Entanglement Randomness and Gapped Itinerant Carriers in a Frustrated Quantum Magnet

Yuanqi Lyu (吕源祺)1,*,†, Luke Pritchard Cairns1,*, Josue Rodriguez1,2, Chunxiao Liu (刘春骁)1, Kenneth Ng (吴子建)1, John Singleton3, and James G. Analytis1,2,4,5,‡

  • *These authors contributed equally to this work.
  • †Contact author: yuanqilyu@berkeley.edu
  • ‡Contact author: analytis@berkeley.edu
PDF

Phys. Rev. X 15, 041035 – Published 21 November, 2025

DOI: https://doi.org/10.1103/tx6t-gbxy

Abstract

The quantum spin liquid is a state manifesting extraordinary many-body entanglement, and the material NaYbSe2 is thought to be one of the most promising candidates for its realization. Through low-temperature heat capacity and thermal conductivity measurements, we identify an apparent contradiction familiar to many quantum spin liquid candidates: While entropy is stored by apparently gapless excitations, the itinerant carriers of entropy are gapped. By studying the compositional series NaYbxLu1−xSe2 across a percolation transition of the magnetic lattice, we suggest that this contradiction can be resolved by the presence of entanglement scales of random sizes. Moreover, as we truncate the scale of entanglement by magnetic dilution, we show that the itinerant magnetic entropy carrier in NaYbSe2 does not arise from a uniform globally entangled spin ground state but rather materializes through the stochastic propagation of boundaries between locally entangled spin objects.

View figure in article

Physics Subject Headings (PhySH)

Popular Summary

Frustrated quantum magnets often show a puzzling tension: They can store an enormous amount of heat but are unable to transport it, as if their excitations are frozen and localized rather than liquid and mobile. This tension is especially evident in NaYbSe2, a leading quantum spin liquid candidate. We suggest that this conflict arises from the false notion that a material must be either perfectly ordered or perfectly entangled. In reality, quenched disorder limits how far entanglement can spread. Our results show that in NaYbSe2 mobile magnetic excitations emerge not from a uniform spin liquid but from the random motion of boundaries between locally entangled spin regions.

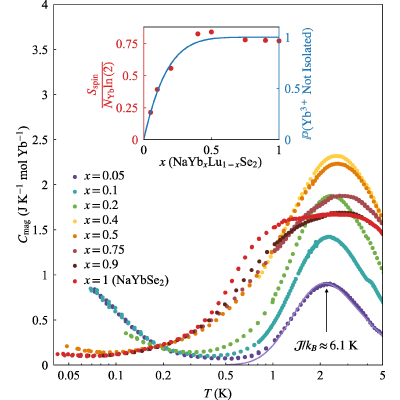

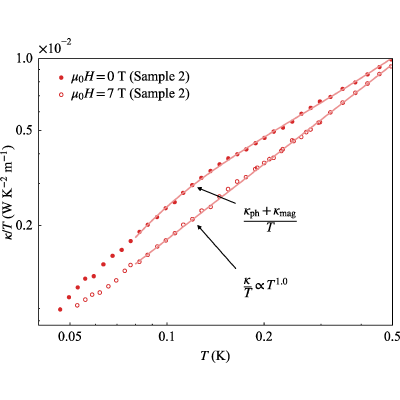

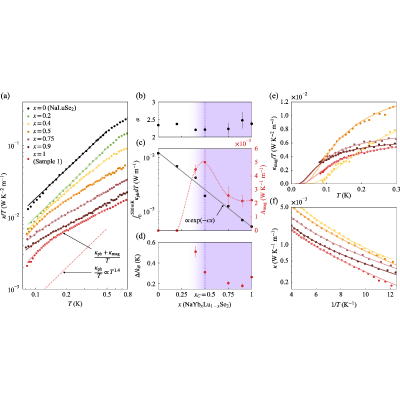

We uncover this behavior through low-temperature heat capacity and thermal conductivity measurements on NaYbxLu1−xSe2, where nonmagnetic Lu3+ ions replace magnetic Yb3+ ions. Heat capacity data reveal that most spins pair into two-spin bonds, or dimers, and form larger clusters of entangled spins that freeze into a disordered “valence bond glass” rather than a regular crystal-like pattern. Thermal conductivity data show that a gapped magnetic excitation appears near the point where the magnetic lattice remains connected but becomes irregular. The number of these excitations peaks there, confirming they originate from short-range, disordered connectivity rather than long-range entanglement.

Our findings resolve the paradox of localized entanglement giving rise to mobile excitations in NaYbSe2. The spin pairs and clusters store entropy, while fluctuating boundaries between them carry it. Because structural disorder is common in real materials, this mechanism may explain similar puzzles in other quantum spin liquid candidates.

Article Text

Supplemental Material

References (65)

  1. C. Broholm, R. J. Cava, S. A. Kivelson, D. G. Nocera, M. R. Norman, and T. Senthil, Quantum spin liquids, Science 367, eaay0668 (2020).
  2. L. Savary and L. Balents, Quantum spin liquids: A review, Rep. Prog. Phys. 80, 016502 (2016).
  3. D. A. Huse and V. Elser, Simple variational wave functions for two-dimensional Heisenberg spin-1/2 antiferromagnets, Phys. Rev. Lett. 60, 2531 (1988).
  4. Z. Zhu and S. R. White, Spin liquid phase of the S=1/2 J1−J2 Heisenberg model on the triangular lattice, Phys. Rev. B 92, 041105(R) (2015).
  5. J. Iaconis, C.-X. Liu, G. Halasz, and L. Balents, Spin liquid versus spin orbit coupling on the triangular lattice, SciPost Phys. 4, 003 (2018).
  6. Z. Zhu, P. A. Maksimov, S. R. White, and A. L. Chernyshev, Topography of spin liquids on a triangular lattice, Phys. Rev. Lett. 120, 207203 (2018).
  7. Q. Sheng and C. L. Henley, Ordering due to disorder in a triangular Heisenberg antiferromagnet with exchange anisotropy, J. Phys. Condens. Matter 4, 2937 (1992).
  8. K. Watanabe, H. Kawamura, H. Nakano, and T. Sakai, Quantum spin-liquid behavior in the spin-1/2 random Heisenberg antiferromagnet on the triangular lattice, J. Phys. Soc. Jpn. 83, 034714 (2014).
  9. H. Kawamura and K. Uematsu, Nature of the randomness-induced quantum spin liquids in two dimensions, J. Phys. Condens. Matter 31, 504003 (2019).
  10. I. Kimchi, A. Nahum, and T. Senthil, Valence bonds in random quantum magnets: Theory and application to YbMgGaO4, Phys. Rev. X 8, 031028 (2018).
  11. P.-L. Dai et al., Spinon Fermi surface spin liquid in a triangular lattice antiferromagnet NaYbSe2, Phys. Rev. X 11, 021044 (2021).
  12. A. O. Scheie et al., Proximate spin liquid and fractionalization in the triangular antiferromagnet KYbSe2, Nat. Phys. 20, 74 (2024).
  13. A. O. Scheie et al., Nonlinear magnons and exchange Hamiltonians of the delafossite proximate quantum spin liquid candidates KYbSe2 and NaYbSe2, Phys. Rev. B 109, 014425 (2024).
  14. Z. Zhang, J. Li, W. Liu, Z. Zhang, J. Ji, F. Jin, R. Chen, J. Wang, X. Wang, J. Ma, and Q. Zhang, Effective magnetic Hamiltonian at finite temperatures for rare-earth chalcogenides, Phys. Rev. B 103, 184419 (2021).
  15. Z. Zangeneh, S. Avdoshenko, J. van den Brink, and L. Hozoi, Single-site magnetic anisotropy governed by interlayer cation charge imbalance in triangular-lattice AYbX2, Phys. Rev. B 100, 174436 (2019).
  16. B. Schmidt, J. Sichelschmidt, K. M. Ranjith, T. Doert, and M. Baenitz, Yb delafossites: Unique exchange frustration of 4f spin-1/2 moments on a perfect triangular lattice, Phys. Rev. B 103, 214445 (2021).
  17. M. Yamashita, N. Nakata, Y. Kasahara, T. Sasaki, N. Yoneyama, N. Kobayashi, S. Fujimoto, T. Shibauchi, and Y. Matsuda, Thermal-transport measurements in a quantum spin-liquid state of the frustrated triangular magnet κ−(BEDT-TTF)2Cu2(CN)3, Nat. Phys. 5, 44 (2009).
  18. M. M. Bordelon, E. Kenney, C. Liu, T. Hogan, L. Posthuma, M. Kavand, Y. Lyu, M. Sherwin, N. P. Butch, C. Brown, M. J. Graf, L. Balents, and S. D. Wilson, Field-tunable quantum disordered ground state in the triangular-lattice antiferromagnet NaYbO2, Nat. Phys. 15, 1058 (2019).
  19. K. M. Ranjith, S. Luther, T. Reimann, B. Schmidt, P. Schlender, J. Sichelschmidt, H. Yasuoka, A. M. Strydom, Y. Skourski, J. Wosnitza, H. Kühne, T. Doert, and M. Baenitz, Anisotropic field-induced ordering in the triangular-lattice quantum spin liquid NaYbSe2, Phys. Rev. B 100, 224417 (2019).
  20. L. Pritchard Cairns, R. Day, S. Haley, N. Maksimovic, J. Rodriguez, H. Taghinejad, J. Singleton, and J. Analytis, Tracking the evolution from isolated dimers to many-body entanglement in NaLuxYb1−xSe2, Phys. Rev. B 106, 024404 (2022).
  21. See Supplemental Material at http://link.aps.org/supplemental/10.1103/tx6t-gbxy for experimental methods, as well as detailed modeling and analysis of heat capacity and thermal conductivities of NaYbxLu1−xSe2 and other quantum spin liquid candidates.
  22. R. Bachmann, F. J. DiSalvo Jr., T. H. Geballe, R. L. Greene, R. E. Howard, C. N. King, H. C. Kirsch, K. N. Lee, R. E. Schwall, H. U. Thomas, and R. B. Zubeck, Heat capacity measurements on small samples at low temperatures, Rev. Sci. Instrum. 43, 205 (1972).
  23. J. S. Hwang, K. J. Lin, and C. Tien, Measurement of heat capacity by fitting the whole temperature response of a heat-pulse calorimeter, Rev. Sci. Instrum. 68, 94 (1997).
  24. G. A. Stewart, On the interpretation of nuclear quadrupole interaction data for rare-earth nuclei at low symmetry sites, Hyperfine Interact. 23, 1 (1985).
  25. R. J. Elliott, K. W. H. Stevens, and M. H. L. Pryce, The theory of magnetic resonance experiments on salts of the rare earths, Proc. R. Soc. A 218, 553 (1953).
  26. A. J. Freeman and R. E. Watson, Theoretical investigation of some magnetic and spectroscopic properties of rare-earth ions, Phys. Rev. 127, 2058 (1962).
  27. R. P. Gupta and S. K. Sen, Sternheimer shielding-antishielding; Rare-earth ions, Phys. Rev. A 7, 850 (1973).
  28. B. Bleaney, Hyperfine interactions in rare-earth metals, J. Appl. Phys. 34, 1024 (1963).
  29. J. R. de Laeter, J. K. Böhlke, P. De Bièvre, H. Hidaka, H. S. Peiser, K. J. R. Rosman, and P. D. P. Taylor, Atomic weights of the elements. review 2000 (IUPAC technical report), Pure Appl. Chem. 75, 683 (2003).
  30. N. J. Stone, Table of nuclear magnetic dipole and electric quadrupole moments, Technical Report, International Atomic Energy Agency (IAEA). 2014.
  31. V. S. Maryasin and M. E. Zhitomirsky, Triangular antiferromagnet with nonmagnetic impurities, Phys. Rev. Lett. 111, 247201 (2013).
  32. S. Y. Li, J.-B. Bonnemaison, A. Payeur, P. Fournier, C. H. Wang, X. H. Chen, and L. Taillefer, Low-temperature phonon thermal conductivity of single-crystalline Nd2CuO4: Effects of sample size and surface roughness, Phys. Rev. B 77, 134501 (2008).
  33. Z. Ma et al., Spin-glass ground state in a triangular-lattice compound YbZnGaO4, Phys. Rev. Lett. 120, 087201 (2018).
  34. C. Kittel and P. McEuen, Introduction to Solid State Physics (John Wiley & Sons, New York, 2005).
  35. A. V. Sologubenko, K. Giannó, H. R. Ott, U. Ammerahl, and A. Revcolevschi, Thermal conductivity of the hole-doped spin ladder system Sr14−xCaxCu24O41, Phys. Rev. Lett. 84, 2714 (2000).
  36. C. Hess, C. Baumann, U. Ammerahl, B. Büchner, F. Heidrich-Meisner, W. Brenig, and A. Revcolevschi, Magnon heat transport in (Sr,Ca,La)14Cu24O41, Phys. Rev. B 64, 184305 (2001).
  37. N. Li, M. T. Xie, Q. Huang, Z. W. Zhuo, Z. Zhang, E. S. Choi, Y. Y. Wang, H. Liang, Y. Sun, D. D. Wu, Q. J. Li, H. D. Zhou, G. Chen, X. Zhao, Q. M. Zhang, and X. F. Sun, Thermodynamics and heat transport in the quantum spin liquid candidates NaYbS2 and NaYbSe2, Phys. Rev. B 110, 224414 (2024).
  38. Y. Xu, J. Zhang, Y. S. Li, Y. J. Yu, X. C. Hong, Q. M. Zhang, and S. Y. Li, Absence of magnetic thermal conductivity in the quantum spin-liquid candidate YbMgGaO4, Phys. Rev. Lett. 117, 267202 (2016).
  39. X. Hong, M. Gillig, A. R. N. Hanna, S. Chillal, A. T. M. Nazmul Islam, B. Lake, B. Büchner, and C. Hess, Spinon heat transport in the three-dimensional quantum magnet PbCuTe2O6, Phys. Rev. Lett. 131, 256701 (2023).
  40. P. G. Klemens, Thermal conductivity and lattice vibrational modes, in Solid State Physics (Academic Press, New York, 1958), Vol. 7, pp. 1–98.
  41. M. Abdel-Jawad, I. Terasaki, T. Sasaki, N. Yoneyama, N. Kobayashi, Y. Uesu, and C. Hotta, Anomalous dielectric response in the dimer Mott insulator κ−(BEDT-TTF)2Cu2(CN)3, Phys. Rev. B 82, 125119 (2010).
  42. M. Abdel-Jawad, N. Tajima, R. Kato, and I. Terasaki, Disordered conduction in single-crystalline dimer Mott compounds, Phys. Rev. B 88, 075139 (2013).
  43. J. Callaway, Model for lattice thermal conductivity at low temperatures, Phys. Rev. 113, 1046 (1959).
  44. R. O. Pohl, X. Liu, and E. Thompson, Low-temperature thermal conductivity and acoustic attenuation in amorphous solids, Rev. Mod. Phys. 74, 991 (2002).
  45. D. G. Cahill, S. K. Watson, and R. O. Pohl, Lower limit to the thermal conductivity of disordered crystals, Phys. Rev. B 46, 6131 (1992).
  46. Z. Zhang, X. Ma, J. Li, G. Wang, D. T. Adroja, T. P. Perring, W. Liu, F. Jin, J. Ji, Y. Wang, Y. Kamiya, X. Wang, J. Ma, and Q. Zhang, Crystalline electric field excitations in the quantum spin liquid candidate NaYbSe2, Phys. Rev. B 103, 035144 (2021).
  47. M. T. Hutchings, Point-charge calculations of energy levels of magnetic ions in crystalline electric fields, in Solid State Physics (Academic Press, New York, 1964), Vol. 16, pp. 227–273.
  48. M. E. Mullen, B. Lüthi, P. S. Wang, E. Bucher, L. D. Longinotti, J. P. Maita, and H. R. Ott, Magnetic-ion-lattice interaction: Rare-earth antimonides, Phys. Rev. B 10, 186 (1974).
  49. Y. Li, D. Adroja, R. I. Bewley, D. Voneshen, A. A. Tsirlin, P. Gegenwart, and Q. Zhang, Crystalline electric-field randomness in the triangular lattice spin-liquid YbMgGaO4, Phys. Rev. Lett. 118, 107202 (2017).
  50. R. R. P. Singh, Valence bond glass phase in dilute kagome antiferromagnets, Phys. Rev. Lett. 104, 177203 (2010).
  51. L. Liu, H. Shao, Y.-C. Lin, W. Guo, and A. W. Sandvik, Random-singlet phase in disordered two-dimensional quantum magnets, Phys. Rev. X 8, 041040 (2018).
  52. M. Z. Ansari and K. Damle, Magnetic effects of nonmagnetic impurities in gapped short-range resonating valence bond spin liquids, Phys. Rev. Lett. 132, 226504 (2024).
  53. D. J. Sanders and D. Walton, Effect of magnon-phonon thermal relaxation on heat transport by magnons, Phys. Rev. B 15, 1489 (1977).
  54. M. F. Smith, J. Paglione, M. B. Walker, and L. Taillefer, Origin of anomalous low-temperature downturns in the thermal conductivity of cuprates, Phys. Rev. B 71, 014506 (2005).
  55. T. Isono, S. Sugiura, T. Terashima, K. Miyagawa, K. Kanoda, and S. Uji, Spin-lattice decoupling in a triangular-lattice quantum spin liquid, Nat. Commun. 9, 1509 (2018).
  56. S. Bao, Z. Cai, W. Si, W. Wang, X. Wang, Y. Shangguan, Z. Ma, Z.-Y. Dong, R. Kajimoto, K. Ikeuchi, S.-L. Yu, J. Sun, J.-X. Li, and J. Wen, Evidence for magnon-phonon coupling in the topological magnet Cu3TeO6, Phys. Rev. B 101, 214419 (2020).
  57. P. Sun, M. Søndergaard, Y. Sun, S. Johnsen, B. B. Iversen, and F. Steglich, Unchanged thermopower enhancement at the semiconductor-metal transition in correlated FeSb2−xTex, Appl. Phys. Lett. 98, 072105 (2011).
  58. J. M. Ni, Q. Y. Liu, Y. J. Yu, E. J. Cheng, Y. Y. Huang, Z. Y. Liu, X. J. Wang, Y. Sui, and S. Y. Li, Ultralow-temperature heat transport in the quantum spin liquid candidate Ca10Cr7O28 with a bilayer kagome lattice, Phys. Rev. B 97, 104413 (2018).
  59. X. Rao et al., Survival of itinerant excitations and quantum spin state transitions in YbMgGaO4 with chemical disorder, Nat. Commun. 12, 4949 (2021).
  60. X. Hong, M. Behnami, L. Yuan, B. Li, W. Brenig, B. Büchner, Y. Li, and C. Hess, Heat transport of the kagome Heisenberg quantum spin liquid candidate YCu3(OH)6.5Br2.5: Localized magnetic excitations and a putative spin gap, Phys. Rev. B 106, L220406 (2022).
  61. X. Hong, M. Gillig, W. Yao, L. Janssen, V. Kocsis, S. Gass, Y. Li, A. U. B. Wolter, B. Büchner, and C. Hess, Phonon thermal transport shaped by strong spin-phonon scattering in a Kitaev material Na2Co2TeO6, npj Quantum Mater. 9, 18 (2024).
  62. C. P. Tu, Z. Ma, H. R. Wang, Y. H. Jiao, D. Z. Dai, and S. Y. Li, Gapped quantum spin liquid in a triangular-lattice Ising-type antiferromagnet PrMgAl11O19, Phys. Rev. Res. 6, 043147 (2024).
  63. Z. Zhu, B. Pan, L. Nie, J. Ni, Y. Yang, C. Chen, C. Jiang, Y. Huang, E. Cheng, Y. Yu, J. Miao, A. D. Hillier, X. Chen, T. Wu, Y. Zhou, S. Li, and L. Shu, Fluctuating magnetic droplets immersed in a sea of quantum spin liquid, Innovation 4, 100459 (2023).
  64. S. J. Gomez Alvarado, B. R. Ortiz, S. Bear, B. A. Gonzalez, A. N. Capa Salinas, A. Berlie, M. J. Graf, and S. D. Wilson, Magnetic dilution in the triangular lattice antiferromagnet NaYb1−xLuxO2, Phys. Rev. B 112, 144434 (2025).
  65. Y. Lyu, L. Pritchard Cairns, J. Rodriguez, C. Liu, K. Ng, J. Singleton, and J. G. Analytis, Supporting data for the article entanglement randomness and gapped itinerant carriers in a frustrated quantum magnet (2025), 10.17605/OSF.IO/CF5UR.
