Berry Phase Dynamics of Sliding Electron Crystals

Yongxin Zeng1,* and Andrew J. Millis1,2

  • *Contact author: yz4788@columbia.edu
PDF

Phys. Rev. X 15, 031059 – Published 28 August, 2025

DOI: https://doi.org/10.1103/g1l3-5x6f

Abstract

Systems such as Wigner crystals and incommensurate charge density waves that spontaneously break a continuous translation symmetry have unusual transport properties arising from their ability to slide coherently in space. Recent experimental and theoretical studies suggest that spontaneous translation symmetry breaking in some two-dimensional materials with nontrivial quantum geometry (e.g., rhombohedral pentalayer graphene) leads to a topologically nontrivial electron crystal state called the anomalous Hall crystal and characterized by a vanishing linear-response dc longitudinal conductivity and a nonvanishing Hall conductivity. In this work we present a theoretical investigation of the sliding dynamics of this new type of electron crystal, taking into account the system’s nontrivial quantum geometry. We find that when accelerated by an external electric field, the crystal acquires a transverse anomalous velocity that stems from not only the Berry curvature of the parent band but also the Galilean noninvariance of the crystal state (i.e., crystal states with different momenta are not related by simple momentum boosts). We further show that acceleration of the crystal modifies its internal current from the static crystal value that is determined by the Chern number of the crystal state. The net Hall conductance including contributions from center-of-mass motion and internal current is in general not quantized. As an experimentally relevant example, we present numerical results in rhombohedral pentalayer graphene and discuss possible experimental implications.

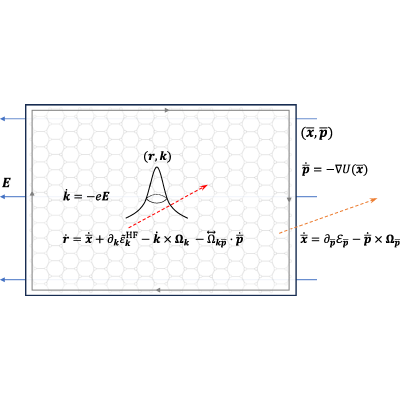

View figure in article

Physics Subject Headings (PhySH)

Popular Summary

In a low-density electron gas, the repulsion between electrons can dominate over their individual motion, causing them to form an ordered “electron crystal” known as a Wigner crystal. In some materials with special electronic structures, such as rhombohedral graphene, theory predicts a new kind of electron crystal called an anomalous Hall crystal. This state is topologically nontrivial and can display the quantum anomalous Hall effect, where edge currents with quantized conductance flow in the absence of an external magnetic field. Because these crystals can slide collectively, we ask a new question: When an anomalous Hall crystal slides, does it move sideways?

We address this by deriving the semiclassical equations of motion for sliding anomalous Hall crystals. Our analysis reveals that they do indeed develop a transverse velocity when driven by an electric field. The key reason is that the relationship between motion and momentum is altered by nontrivial quantum geometry of the electron states. This breaks Galilean invariance, meaning that shifting to a moving reference frame no longer gives an equivalent crystal state. Using both analytical models and numerical simulations for rhombohedral pentalayer graphene, we find that this effect changes the sliding behavior and makes the Hall conductance generally unquantized.

Our results establish a theoretical foundation for understanding the motion of anomalous Hall crystals. Going forward, including the effects of disorder pinning and scattering will allow for concrete predictions that can be tested in experiments. More broadly, our work highlights how quantum geometry can influence the dynamics of states that break spatial symmetries.

Article Text

References (54)

  1. E. Wigner, On the interaction of electrons in metals, Phys. Rev. 46, 1002 (1934).
  2. B. Tanatar and D. M. Ceperley, Ground state of the two-dimensional electron gas, Phys. Rev. B 39, 5005 (1989).
  3. L. Bonsall and A. A. Maradudin, Some static and dynamical properties of a two-dimensional Wigner crystal, Phys. Rev. B 15, 1959 (1977).
  4. Z. Lu, T. Han, Y. Yao, A. P. Reddy, J. Yang, J. Seo, K. Watanabe, T. Taniguchi, L. Fu, and L. Ju, Fractional quantum anomalous Hall effect in multilayer graphene, Nature (London) 626, 759 (2024).
  5. Z. Lu, T. Han, Y. Yao, Z. Hadjri, J. Yang, J. Seo, L. Shi, S. Ye, K. Watanabe, T. Taniguchi et al., Extended quantum anomalous Hall states in graphene/hBN moiré superlattices, Nature (London) 637, 1090 (2025).
  6. D. Waters, A. Okounkova, R. Su, B. Zhou, J. Yao, K. Watanabe, T. Taniguchi, X. Xu, Y.-H. Zhang, J. Folk et al., Interplay of electronic crystals with integer and fractional Chern insulators in moiré pentalayer graphene, Phys. Rev. X 15, 011045 (2025).
  7. J. Xie, Z. Huo, X. Lu, Z. Feng, Z. Zhang, W. Wang, Q. Yang, K. Watanabe, T. Taniguchi, K. Liu et al., Even- and odd-denominator fractional quantum anomalous Hall effect in graphene moire superlattices, Nat. Mater. 24, 1042 (2025).
  8. J. Dong, T. Wang, T. Wang, T. Soejima, M. P. Zaletel, A. Vishwanath, and D. E. Parker, Anomalous Hall crystals in rhombohedral multilayer graphene. I. Interaction-driven Chern bands and fractional quantum Hall states at zero magnetic field, Phys. Rev. Lett. 133, 206503 (2024).
  9. Z. Dong, A. S. Patri, and T. Senthil, Theory of quantum anomalous Hall phases in pentalayer rhombohedral graphene moiré structures, Phys. Rev. Lett. 133, 206502 (2024).
  10. B. Zhou, H. Yang, and Y.-H. Zhang, Fractional quantum anomalous Hall effect in rhombohedral multilayer graphene in the moiréless limit, Phys. Rev. Lett. 133, 206504 (2024).
  11. Z. Guo, X. Lu, B. Xie, and J. Liu, Fractional Chern insulator states in multilayer graphene moiré superlattices, Phys. Rev. B 110, 075109 (2024).
  12. Y. H. Kwan, J. Yu, J. Herzog-Arbeitman, D. K. Efetov, N. Regnault, and B. A. Bernevig, Moiré fractional Chern insulators III: Hartree-Fock phase diagram, magic angle tegime for Chern insulator states, the role of the Moiré potential and goldstone gaps in rhombohedral graphene superlattices, Phys. Rev. B 112, 075109 (2025).
  13. Y. Zeng, D. Guerci, V. Crépel, A. J. Millis, and J. Cano, Sublattice structure and topology in spontaneously crystallized electronic states, Phys. Rev. Lett. 132, 236601 (2024).
  14. T. Tan and T. Devakul, Parent Berry curvature and the ideal anomalous Hall crystal, Phys. Rev. X 14, 041040 (2024).
  15. T. Soejima, J. Dong, T. Wang, T. Wang, M. P. Zaletel, A. Vishwanath, and D. E. Parker, Anomalous Hall crystals in rhombohedral multilayer graphene. II. General mechanism and a minimal model, Phys. Rev. B 110, 205124 (2024).
  16. Z. Dong, A. S. Patri, and T. Senthil, Stability of anomalous Hall crystals in multilayer rhombohedral graphene, Phys. Rev. B 110, 205130 (2024).
  17. B. Zhou and Y.-H. Zhang, New classes of quantum anomalous Hall crystals in multilayer graphene, Phys. Rev. Lett. 135, 036501 (2025).
  18. F. D. M. Haldane, Model for a quantum Hall effect without Landau levels: Condensed-matter realization of the “parity anomaly,” Phys. Rev. Lett. 61, 2015 (1988).
  19. L. I. Glazman, I. M. Ruzin, and B. I. Shklovskii, Quantum transport and pinning of a one-dimensional Wigner crystal, Phys. Rev. B 45, 8454 (1992).
  20. X. Zhu, P. B. Littlewood, and A. J. Millis, Nonlinear conductivity of a Wigner crystal in a strong magnetic field, Phys. Rev. Lett. 72, 2255 (1994).
  21. X. Zhu, P. B. Littlewood, and A. J. Millis, Sliding motion of a two-dimensional Wigner crystal in a strong magnetic field, Phys. Rev. B 50, 4600 (1994).
  22. R. Chitra, T. Giamarchi, and P. Le Doussal, Dynamical properties of the pinned Wigner crystal, Phys. Rev. Lett. 80, 3827 (1998).
  23. M. M. Fogler and D. A. Huse, Dynamical response of a pinned two-dimensional Wigner crystal, Phys. Rev. B 62, 7553 (2000).
  24. R. E. Peierls, Quantum Theory of Solids (Clarendon Press, New York, 1996).
  25. H. Fröhlich, On the theory of superconductivity: The one-dimensional case, Proc. R. Soc. A 223, 296 (1954).
  26. P. Lee, T. Rice, and P. Anderson, Conductivity from charge or spin density waves, Solid State Commun. 14, 703 (1974).
  27. H. Fukuyama, Pinning in Peierls-Fröhlich state and conductivity, J. Phys. Soc. Jpn. 41, 513 (1976).
  28. H. Fukuyama and P. A. Lee, Dynamics of the charge-density wave. I. Impurity pinning in a single chain, Phys. Rev. B 17, 535 (1978).
  29. P. Lee and T. Rice, Electric field depinning of charge density waves, in Basic Notions of Condensed Matter Physics (CRC Press, Boca Raton, FL, 2018), pp. 460–470.
  30. G. Grüner, The dynamics of charge-density waves, Rev. Mod. Phys. 60, 1129 (1988).
  31. A. S. Patri, Z. Dong, and T. Senthil, Extended quantum anomalous Hall effect in moiré structures: Phase transitions and transport, Phys. Rev. B 110, 245115 (2024).

  32. An effective intra-spin-valley time-reversal operation can be defined and is a symmetry of the spin-valley-polarized system when ϵ−p=ϵp and Λ−p′,−p=Λp′,p*. See Ref. [13] for detailed discussion.

  33. M.-C. Chang and Q. Niu, Berry phase, hyperorbits, and the Hofstadter spectrum: Semiclassical dynamics in magnetic Bloch bands, Phys. Rev. B 53, 7010 (1996).
  34. G. Sundaram and Q. Niu, Wave-packet dynamics in slowly perturbed crystals: Gradient corrections and Berry-phase effects, Phys. Rev. B 59, 14915 (1999).
  35. R. D. King-Smith and D. Vanderbilt, Theory of polarization of crystalline solids, Phys. Rev. B 47, 1651 (1993).
  36. D. Vanderbilt, Berry Phases in Electronic Structure Theory: Electric Polarization, Orbital Magnetization and Topological Insulators (Cambridge University Press, Cambridge, England, 2018).
  37. D. Xiao, M.-C. Chang, and Q. Niu, Berry phase effects on electronic properties, Rev. Mod. Phys. 82, 1959 (2010).
  38. S. Coh and D. Vanderbilt, Electric polarization in a Chern insulator, Phys. Rev. Lett. 102, 107603 (2009).
  39. P. Kramer and M. Saraceno, Geometry of the Time-Dependent Variational Principle in Quantum Mechanics (Springer, New York, 1981).
  40. N. Nagaosa, J. Sinova, S. Onoda, A. H. MacDonald, and N. P. Ong, Anomalous Hall effect, Rev. Mod. Phys. 82, 1539 (2010).
  41. N. Sinitsyn, Semiclassical theories of the anomalous Hall effect, J. Phys. Condens. Matter 20, 023201 (2007).
  42. G. Grüner, A. Zawadowski, and P. M. Chaikin, Nonlinear conductivity and noise due to charge-density-wave depinning in NbSe3, Phys. Rev. Lett. 46, 511 (1981).
  43. Y. Zeng and A. J. Millis, Superfluid stiffness bounds in time-reversal symmetric superconductors, arXiv:2506.18081.
  44. A. M. Seiler, F. R. Geisenhof, F. Winterer, K. Watanabe, T. Taniguchi, T. Xu, F. Zhang, and R. T. Weitz, Quantum cascade of correlated phases in trigonally warped bilayer graphene, Nature (London) 608, 298 (2022).
  45. A. M. Seiler, M. Statz, I. Weimer, N. Jacobsen, K. Watanabe, T. Taniguchi, Z. Dong, L. S. Levitov, and R. T. Weitz, Interaction-driven quasi-insulating ground states of gapped electron-doped bilayer graphene, Phys. Rev. Lett. 133, 066301 (2024).
  46. A. M. Seiler, M. Statz, C. Eckel, I. Weimer, J. Pöhls, K. Watanabe, T. Taniguchi, F. Zhang, and R. T. Weitz, Sliding Wigner crystals in bilayer graphene at zero and finite magnetic fields, arXiv:2408.16628.
  47. S. Munyan, S. Ahadi, B. Guo, A. Rashidi, and S. Stemmer, Evidence of zero-field Wigner solids in ultrathin films of cadmium arsenide, Phys. Rev. X 14, 041037 (2024).
  48. J. C. Song and M. S. Rudner, Chiral plasmons without magnetic field, Proc. Natl. Acad. Sci. U.S.A. 113, 4658 (2016).
  49. T. Huang, X. Tu, C. Shen, B. Zheng, J. Wang, H. Wang, K. Khaliji, S. H. Park, Z. Liu, T. Yang et al., Observation of chiral and slow plasmons in twisted bilayer graphene, Nature (London) 605, 63 (2022).
  50. X.-Y. Song, C.-M. Jian, L. Fu, and C. Xu, Intertwined fractional quantum anomalous Hall states and charge density waves, Phys. Rev. B 109, 115116 (2024).
  51. T. Tan, J. May-Mann, and T. Devakul, Wavefunction approach to the fractional anomalous Hall crystal, Phys. Rev. Lett. 135, 036604 (2025).
  52. G. Shavit, Entropy-enhanced fractional quantum anomalous Hall effect, Phys. Rev. B 110, L201406 (2024).
  53. Z. Wei, A.-K. Wu, M. Gonçalves, and S.-Z. Lin, Edge-driven transition between extended quantum anomalous Hall crystal and fractional Chern insulator in rhombohedral graphene multilayers, Phys. Rev. B 111, 035116 (2025).
  54. H. Zhou, T. Xie, A. Ghazaryan, T. Holder, J. R. Ehrets, E. M. Spanton, T. Taniguchi, K. Watanabe, E. Berg, M. Serbyn et al., Half- and quarter-metals in rhombohedral trilayer graphene, Nature (London) 598, 429 (2021).
