Quantum Storage of Qubits in an Array of Independently Controllable Solid-State Quantum Memories

Markus Teller1,*, Susana Plascencia1, Samuele Grandi1, and Hugues de Riedmatten1,2

  • *Contact author: markus.teller@icfo.eu
PDF

Phys. Rev. X 15, 031053 – Published 25 August, 2025

DOI: https://doi.org/10.1103/z6lc-qw2d

Abstract

Random-access quantum memories may offer computational advantages for quantum computers and networks. In this paper, we advance arrays of solid-state quantum memories toward their usage as random-access quantum memory. We perform quantum storage of path and time-bin qubits implemented with weak coherent states at the single-photon level, in an array of ten temporally multiplexed memory cells with controllable addressing. The qubits can be stored in arbitrary combinations of memory cells, from which they are read out on demand. We find average fidelities of 95−2+2% for path qubits and 91−2+2% for time-bin qubits. The measured fidelities violate the classical bounds for both encodings and for all ten cells. We also sequentially store a time-bin qubit in two different memory cells, maintain both qubits simultaneously in the array, and perform a collective readout. The individual control paired with high storage fidelity represents a significant advance toward a solid-state random-access quantum memory for quantum repeaters and photonic quantum processors.

View figure in article

Physics Subject Headings (PhySH)

Popular Summary

Classical computers use random-access memory to temporarily store information for later processing. Similarly, photonic quantum processors could benefit from a quantum version of RAM to hold quantum information, particularly as they generate and process entangled cluster states one photon at a time. A random-access quantum memory would enable flexible storage of these photons until the quantum state grows large enough for computation. In this work, we move a step closer to this vision by demonstrating quantum storage in an array of individually controlled quantum memories.

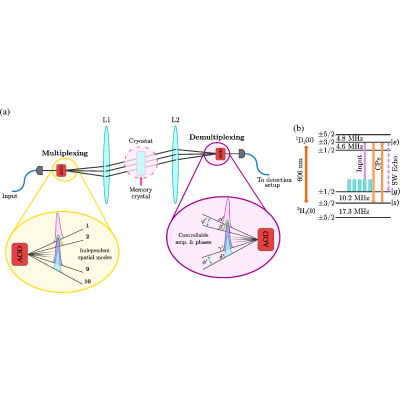

Our setup uses a rare-earth ion-doped crystal cooled in a cryostat and paired with two acoustic-optical deflectors to create an array of ten independently addressable quantum memory cells. These cells store quantum bits, or qubits, encoded in either the path or time parameter. Using weak laser pulses at the single-photon level, we assess the performance of the memory array and find that all ten cells violate classical benchmarks, confirming they operate in the quantum regime. Additionally, we successfully store two sequential time-bin qubits and retrieve them simultaneously, showing the system’s ability to handle more complex quantum information storage and retrieval tasks.

Looking forward, improved memory efficiency could allow this array to be integrated with photonic cluster-state sources, forming the basis for scalable quantum computing. The demonstrated control over individual memory cells would also support advanced operations such as collective measurements or selective, sequential readout of quantum states.

Article Text

Supplemental Material

References (48)

  1. V. Giovannetti, S. Lloyd, and L. Maccone, Quantum random access memory, Phys. Rev. Lett. 100, 160501 (2008).
  2. H.-J. Briegel, W. Dür, J. I. Cirac, and P. Zoller, Quantum repeaters: The role of imperfect local operations in quantum communication, Phys. Rev. Lett. 81, 5932 (1998).
  3. N. Sangouard, C. Simon, H. de Riedmatten, and N. Gisin, Quantum repeaters based on atomic ensembles and linear optics, Rev. Mod. Phys. 83, 33 (2011).
  4. N. Jiang, Y.-F. Pu, W. Chang, C. Li, S. Zhang, and L.-M. Duan, Experimental realization of 105-qubit random access quantum memory, npj Quantum Inf. 5, 28 (2019).
  5. L.-M. Duan, M. D. Lukin, J. I. Cirac, and P. Zoller, Long-distance quantum communication with atomic ensembles and linear optics, Nature (London) 414, 413 (2001).
  6. O. A. Collins, S. D. Jenkins, A. Kuzmich, and T. A. B. Kennedy, Multiplexed memory-insensitive quantum repeaters, Phys. Rev. Lett. 98, 060502 (2007).
  7. R. Raussendorf and H. J. Briegel, A one-way quantum computer, Phys. Rev. Lett. 86, 5188 (2001).
  8. R. Raussendorf, D. E. Browne, and H. J. Briegel, Measurement-based quantum computation on cluster states, Phys. Rev. A 68, 022312 (2003).
  9. H. J. Briegel, D. E. Browne, W. Dür, R. Raussendorf, and M. Van den Nest, Measurement-based quantum computation, Nat. Phys. 5, 19 (2009).
  10. Y.-F. Pu, N. Jiang, W. Chang, H.-X. Yang, C. Li, and L.-M. Duan, Experimental realization of a multiplexed quantum memory with 225 individually accessible memory cells, Nat. Commun. 8, 15359 (2017).
  11. S. Zhang, J. Shi, Z. Cui, Y. Wang, Y. Wu, L. Duan, and Y. Pu, Realization of a programmable multipurpose photonic quantum memory with over-thousand qubit manipulations, Phys. Rev. X 14, 021018 (2024).
  12. S. Langenfeld, O. Morin, M. Körber, and G. Rempe, A network-ready random-access qubits memory, npj Quantum Inf. 6, 86 (2020).
  13. S. Zhang, J. Shi, Y. Liang, Y. Sun, Y. Wu, L. Duan, and Y. Pu, Fast delivery of heralded atom-photon quantum correlation over 12 km fiber through multiplexing enhancement, Nat. Commun. 15, 10306 (2024).
  14. L. Hartung, M. Seubert, S. Welte, E. Distante, and G. Rempe, A quantum-network register assembled with optical tweezers in an optical cavity, Science 385, 179 (2024).
  15. M. Afzelius, C. Simon, H. de Riedmatten, and N. Gisin, Multimode quantum memory based on atomic frequency combs, Phys. Rev. A 79, 052329 (2009).
  16. C. Clausen, I. Usmani, F. Bussières, N. Sangouard, M. Afzelius, H. de Riedmatten, and N. Gisin, Quantum storage of photonic entanglement in a crystal, Nature (London) 469, 508 (2011).
  17. M. Gündoğan, P. M. Ledingham, A. Almasi, M. Cristiani, and H. de Riedmatten, Quantum storage of a photonic polarization qubit in a solid, Phys. Rev. Lett. 108, 190504 (2012).
  18. M. Afzelius, I. Usmani, A. Amari, B. Lauritzen, A. Walther, C. Simon, N. Sangouard, J. Minár, H. de Riedmatten, N. Gisin, and S. Kröll, Demonstration of atomic frequency comb memory for light with spin-wave storage, Phys. Rev. Lett. 104, 040503 (2010).
  19. A. Seri, A. Lenhard, D. Rieländer, M. Gündoğan, P. M. Ledingham, M. Mazzera, and H. de Riedmatten, Quantum correlations between single telecom photons and a multimode on-demand solid-state quantum memory, Phys. Rev. X 7, 021028 (2017).
  20. J. V. Rakonjac, D. Lago-Rivera, A. Seri, M. Mazzera, S. Grandi, and H. de Riedmatten, Entanglement between a telecom photon and an on-demand multimode solid-state quantum memory, Phys. Rev. Lett. 127, 210502 (2021).
  21. A. Ortu, J. V. Rakonjac, A. Holzäpfel, A. Seri, S. Grandi, M. Mazzera, H. de Riedmatten, and M. Afzelius, Multimode capacity of atomic-frequency comb quantum memories, Quantum Sci. Technol. 7, 035024 (2022).
  22. See Supplemental Material at http://link.aps.org/supplemental/10.1103/z6lc-qw2d for further details on the experimental system including setup efficiencies, the radio-frequency control, the fidelity bound, and an extended discussion of the qubit fidelities and experimental limitations, which includes Refs. [23,24].
  23. V. Krutyanskiy, M. Galli, V. Krcmarsky, S. Baier, D. A. Fioretto, Y. Pu, A. Mazloom, P. Sekatski, M. Canteri, M. Teller, J. Schupp, J. Bate, M. Meraner, N. Sangouard, B. P. Lanyon, and T. E. Northup, Entanglement of trapped-ion qubits separated by 230 meters, Phys. Rev. Lett. 130, 050803 (2023).
  24. I. Marcikic, H. de Riedmatten, W. Tittel, H. Zbinden, and N. Gisin, Long-distance teleportation of qubits at telecommunication wavelengths, Nature (London) 421, 509 (2003).
  25. D. F. V. James, P. G. Kwiat, W. J. Munro, and A. G. White, Measurement of qubits, Phys. Rev. A 64, 052312 (2001).
  26. M. Teller, S. Plascencia, C. Sastre Jachimska, S. Grandi, and H. de Riedmatten, A solid-state temporally multiplexed quantum memory array at the single-photon level, npj Quantum Inf. 11, 92 (2025).
  27. B. Efron and R. Tibshirani, An Introduction to the Bootstrap, edited by B. Efron and R. Tibshirani (Chapman & Hall, New York, 1993).
  28. M. Curty and N. Lütkenhaus, Intercept-resend attacks in the bennett-brassard 1984 quantum-key-distribution protocol with weak coherent pulses, Phys. Rev. A 71, 062301 (2005).
  29. H. P. Specht, C. Nolleke, A. Reiserer, M. Uphoff, E. Figueroa, S. Ritter, and G. Rempe, A single-atom quantum memory, Nature (London) 473, 190 (2011).
  30. M. Gündoğan, P. M. Ledingham, K. Kutluer, M. Mazzera, and H. de Riedmatten, Solid state spin-wave quantum memory for time-bin qubits, Phys. Rev. Lett. 114, 230501 (2015).
  31. J. D. Franson, Bell inequality for position and time, Phys. Rev. Lett. 62, 2205 (1989).
  32. N. Timoney, I. Usmani, P. Jobez, M. Afzelius, and N. Gisin, Single-photon-level optical storage in a solid-state spin-wave memory, Phys. Rev. A 88, 022324 (2013).
  33. M. Gündoğan, M. Mazzera, P. M. Ledingham, M. Cristiani, and H. de Riedmatten, Coherent storage of temporally multimode light using a spin-wave atomic frequency comb memory, New J. Phys. 15, 045012 (2013).
  34. T.-S. Yang, Z.-Q. Zhou, Y.-L. Hua, X. Liu, Z.-F. Li, P.-Y. Li, Y. Ma, C. Liu, P.-J. Liang, X. Li, Y.-X. Xiao, J. Hu, C.-F. Li, and G.-C. Guo, Multiplexed storage and real-time manipulation based on a multiple degree-of-freedom quantum memory, Nat. Commun. 9, 3407 (2018).
  35. M. P. Hedges, J. J. Longdell, Y. Li, and M. J. Sellars, Efficient quantum memory for light, Nature (London) 465, 1052 (2010).
  36. M. Wang, H. Jiao, J. Lu, W. Fan, Z. Yang, M. Xi, S. Li, and H. Wang, Cavity-enhanced and spatial-multimode spin-wave-photon quantum interface, arXiv:2307.12523.
  37. S. Duranti, S. Wengerowsky, L. Feldmann, A. Seri, B. Casabone, and H. de Riedmatten, Efficient cavity-assisted storage of photonic qubits in a solid-state quantum memory, Opt. Express 32, 26884 (2024).
  38. A. Ortu, A. Holzäpfel, J. Etesse, and M. Afzelius, Storage of photonic time-bin qubits for up to 20  ms in a rare-earth doped crystal, npj Quantum Inf. 8, 29 (2022).
  39. Y.-P. Liu, Z.-W. Ou, T.-X. Zhu, M.-X. Su, C. Liu, Y.-J. Han, Z.-Q. Zhou, C.-F. Li, and G.-C. Guo, A millisecond integrated quantum memory for photonic qubits, Sci. Adv. 11, eadu5264 (2025).
  40. A. Holzäpfel, A. Ortu, and M. Afzelius, Readout-integrated time-bin qutrit analyzer for echo-based quantum memories, Phys. Rev. Appl. 19, 024074 (2023).
  41. C. Li, Y.-K. Wu, W. Chang, S. Zhang, Y.-F. Pu, N. Jiang, and L.-M. Duan, High-dimensional entanglement between a photon and a multiplexed atomic quantum memory, Phys. Rev. A 101, 032312 (2020).
  42. H. J. Kimble, The quantum internet, Nature (London) 453, 1023 (2008).
  43. H. Bechmann-Pasquinucci and W. Tittel, Quantum cryptography using larger alphabets, Phys. Rev. A 61, 062308 (2000).
  44. D. Cozzolino, B. Da Lio, D. Bacco, and L. K. Oxenløwe, High-dimensional quantum communication: Benefits, progress, and future challenges, Adv. Quantum Technol. 2, 1900038 (2019).
  45. M. Ringbauer, M. Meth, L. Postler, R. Stricker, R. Blatt, P. Schindler, and T. Monz, A universal qudit quantum processor with trapped ions, Nat. Phys. 18, 1053 (2022).
  46. A. Morvan, V. V. Ramasesh, M. S. Blok, J. M. Kreikebaum, K. O’Brien, L. Chen, B. K. Mitchell, R. K. Naik, D. I. Santiago, and I. Siddiqi, Qutrit randomized benchmarking, Phys. Rev. Lett. 126, 210504 (2021).
  47. I. Fernández de Fuentes, T. Botzem, M. A. I. Johnson, A. Vaartjes, S. Asaad, V. Mourik, F. E. Hudson, K. M. Itoh, B. C. Johnson, A. M. Jakob, J. C. McCallum, D. N. Jamieson, A. S. Dzurak, and A. Morello, Navigating the 16-dimensional hilbert space of a high-spin donor qudit with electric and magnetic fields, Nat. Commun. 15, 1380 (2024).
  48. M. Teller, S. Plascencia, S. Grandi, and H. de Riedmatten, Supporting data of "Quantum storage of qubits in an array of independently controllable solid-state quantum memories, Version: v1 (2025), 10.5281/zenodo.14929997.
