Dynamical Scaling Reveals Topological Defects and Anomalous Evolution of a Photoinduced Phase Transition

Gal Orenstein1,2,*, Ryan A. Duncan1,2, Gilberto A. de la Peña Muñoz1,2, Yijing Huang1,2, Viktor Krapivin1,2, Quynh Le Nguyen3, Samuel Teitelbaum4, Anisha G. Singh5, Roman Mankowsky6 et al.

Henrik Lemke6, Mathias Sander6, Yunpei Deng6, Christopher Arrell6, Ian R. Fisher5, David A. Reis1,2, and Mariano Trigo1,2,†

  • *Contact author: galore@slac.stanford.edu
  • †Contact author: mtrigo@slac.stanford.edu
PDF

Phys. Rev. X 15, 031058 – Published 28 August, 2025

DOI: https://doi.org/10.1103/w9v5-rwjr

Abstract

Nonequilibrium states of quantum materials can exhibit exotic properties and enable unprecedented functionality and applications. These transient states are inherently inhomogeneous, characterized by the formation of topologically protected structures, requiring nanometer spatial resolution on femtosecond timescales to resolve their evolution. Using ultrafast total x-ray scattering at a free electron laser and a sophisticated scaling analysis, we gain unique access to the dynamics on the relevant mesoscopic length scales. Our results provide direct evidence that ultrafast excitation of LaTe3 leads to formation of topological vortex strings of the charge density wave. These dislocations of the charge density wave exhibit anomalous, subdiffusive dynamics, slowing the equilibration process, providing rare insight into the nonequilibrium mesoscopic response in a quantum material. Our findings establish a general framework to investigate properties of topological defects, which are expected to be ubiquitous in nonequilibrium phase transitions and may arrest equilibration and enhance competing orders.

View figure in article

Physics Subject Headings (PhySH)

Popular Summary

Controlling quantum materials with light can reveal new, exotic states of matter far from equilibrium, but understanding how these states evolve is difficult. The process unfolds in tiny, rapidly changing patterns that few experimental techniques can resolve. In our study, we use ultrafast x-ray scattering with a hard x-ray free electron laser to watch this evolution in real time. We focus on how a charge density wave—an ordered pattern of electrons—changes after being excited with light, and we discover that its dynamics are shaped by the constrained motion of topological defects.

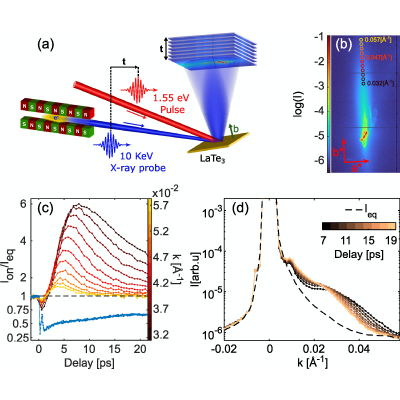

We investigate the material LaTe3, which hosts an incommensurate charge density wave. Using femtosecond x-ray pulses, we monitor changes in the superlattice peak—a signature of the wave—after photoexcitation. By analyzing how the scattering profile evolves, we uncover a surprisingly slow growth in the system’s characteristic length scale, consistent with subdiffusion. Thanks to our exceptionally high momentum resolution, we also resolve the detailed shape of the scattering peak, which reveals power-law scaling. This scaling points directly to the emergence of vortex strings—linelike topological defects that limit how fast the system can relax.

Our results suggest that light-driven quantum materials can temporarily act like glasses. These transient states are difficult to probe because they evolve so quickly and involve nanoscale structures. By combining ultrafast x-ray scattering with careful scaling analysis, we provide a new framework for studying the mesoscale dynamics of quantum materials.

Article Text

Supplemental Material

References (56)

  1. E. Dagotto, Complexity in strongly correlated electronic systems, Science 309, 257 (2005).
  2. V. F. Mitrović, E. E. Sigmund, M. Eschrig, H. N. Bachman, W. P. Halperin, A. P. Reyes, P. Kuhns, and W. G. Moulton, Spatially resolved electronic structure inside and outside the vortex cores of a high-temperature superconductor, Nature (London) 413, 501 (2001).
  3. B. Kalisky, J. R. Kirtley, J. G. Analytis, J.-H. Chu, A. Vailionis, I. R. Fisher, and K. A. Moler, Stripes of increased diamagnetic susceptibility in underdoped superconducting Ba(Fe1−xCox)2As2 single crystals: Evidence for an enhanced superfluid density at twin boundaries, Phys. Rev. B 81, 184513 (2010).
  4. A. Mesaros, K. Fujita, H. Eisaki, S. Uchida, J. C. Davis, S. Sachdev, J. Zaanen, M. J. Lawler, and E.-A. Kim, Topological defects coupling smectic modulations to intra–unit-cell nematicity in cuprates, Science 333, 426 (2011).
  5. Y. I. Joe, X. M. Chen, P. Ghaemi, K. D. Finkelstein, G. A. de la Peña, Y. Gan, J. C. T. Lee, S. Yuan, J. Geck, G. J. MacDougall, T. C. Chiang, S. L. Cooper, E. Fradkin, and P. Abbamonte, Emergence of charge density wave domain walls above the superconducting dome in 1T−TiSe2, Nat. Phys. 10, 421 (2014).
  6. S. Yan, D. Iaia, E. Morosan, E. Fradkin, P. Abbamonte, and V. Madhavan, Influence of domain walls in the incommensurate charge density wave state of Cu intercalated 1T−TiSe2, Phys. Rev. Lett. 118, 106405 (2017).
  7. J. A. W. Straquadine, F. Weber, S. Rosenkranz, A. H. Said, and I. R. Fisher, Suppression of charge density wave order by disorder in Pd-intercalated ErTe3, Phys. Rev. B 99, 235138 (2019).
  8. Y. Yu and S. A. Kivelson, Fragile superconductivity in the presence of weakly disordered charge density waves, Phys. Rev. B 99, 144513 (2019).
  9. A. Fang, J. A. W. Straquadine, I. R. Fisher, S. A. Kivelson, and A. Kapitulnik, Disorder-induced suppression of charge density wave order: STM study of Pd-intercalated ErTe3, Phys. Rev. B 100, 235446 (2019).
  10. D. N. Basov, R. D. Averitt, and D. Hsieh, Towards properties on demand in quantum materials, Nat. Mater. 16, 1077 (2017).
  11. F. Schmitt, P. S. Kirchmann, U. Bovensiepen, R. G. Moore, L. Rettig, M. Krenz, J.-H. Chu, N. Ru, L. Perfetti, D. H. Lu, M. Wolf, I. R. Fisher, and Z.-X. Shen, Transient electronic structure and melting of a charge density wave in TbTe3, Science 321, 1649 (2008).
  12. D. Fausti, R. I. Tobey, N. Dean, S. Kaiser, A. Dienst, M. C. Hoffmann, S. Pyon, T. Takayama, H. Takagi, and A. Cavalleri, Light-induced superconductivity in a stripe-ordered cuprate, Science 331, 189 (2011).
  13. H. Ichikawa, S. Nozawa, T. Sato, A. Tomita, K. Ichiyanagi, M. Chollet, L. Guerin, N. Dean, A. Cavalleri, S.-i. Adachi, T.-h. Arima, H. Sawa, Y. Ogimoto, M. Nakamura, R. Tamaki, K. Miyano, and S.-y. Koshihara, Transient photoinduced ‘hidden’ phase in a manganite, Nat. Mater. 10, 101 (2011).
  14. T. Huber, S. O. Mariager, A. Ferrer, H. Schäfer, J. A. Johnson, S. Grübel, A. Lübcke, L. Huber, T. Kubacka, C. Dornes, C. Laulhe, S. Ravy, G. Ingold, P. Beaud, J. Demsar, and S. L. Johnson, Coherent structural dynamics of a prototypical charge-density-wave-to-metal transition, Phys. Rev. Lett. 113, 026401 (2014).
  15. L. Stojchevska, I. Vaskivskyi, T. Mertelj, P. Kusar, D. Svetin, S. Brazovskii, and D. Mihailovic, Ultrafast switching to a stable hidden quantum state in an electronic crystal, Science 344, 177 (2014).
  16. T. F. Nova, A. S. Disa, M. Fechner, and A. Cavalleri, Metastable ferroelectricity in optically strained SrTiO3, Science 364, 1075 (2019).
  17. X. Li, T. Qiu, J. Zhang, E. Baldini, J. Lu, A. M. Rappe, and K. A. Nelson, Terahertz field-induced ferroelectricity in quantum paraelectric SrTiO3, Science 364, 1079 (2019).
  18. Z. Sun and A. J. Millis, Transient trapping into metastable states in systems with competing orders, Phys. Rev. X 10, 021028 (2020).
  19. A. Kogar, A. Zong, P. E. Dolgirev, X. Shen, J. Straquadine, Y.-Q. Bie, X. Wang, T. Rohwer, I.-C. Tung, Y. Yang, R. Li, J. Yang, S. Weathersby, S. Park, M. E. Kozina, E. J. Sie, H. Wen, P. Jarillo-Herrero, I. R. Fisher, X. Wang, and N. Gedik, Light-induced charge density wave in LaTe3, Nat. Phys. 16, 159 (2020).
  20. J. Ravnik, M. Diego, Y. Gerasimenko, Y. Vaskivskyi, I. Vaskivskyi, T. Mertelj, J. Vodeb, and D. Mihailovic, A time-domain phase diagram of metastable states in a charge ordered quantum material, Nat. Commun. 12, 2323 (2021).
  21. S. Vogelgesang, G. Storeck, J. G. Horstmann, T. Diekmann, M. Sivis, S. Schramm, K. Rossnagel, S. Schäfer, and C. Ropers, Phase ordering of charge density waves traced by ultrafast low-energy electron diffraction, Nat. Phys. 14, 184 (2018).
  22. S. Wandel et al., Enhanced charge density wave coherence in a light-quenched, high-temperature superconductor, Science 376, 860 (2022).
  23. S. Wall, S. Yang, L. Vidas, M. Chollet, J. M. Glownia, M. Kozina, T. Katayama, T. Henighan, M. Jiang, T. A. Miller, D. A. Reis, L. A. Boatner, O. Delaire, and M. Trigo, Ultrafast disordering of vanadium dimers in photoexcited VO2, Science 362, 572 (2018).
  24. T. W. B. Kibble, Topology of cosmic domains and strings, J. Phys. A 9, 1387 (1976).
  25. W. H. Zurek, Cosmological experiments in superfluid helium?, Nature (London) 317, 505 (1985).
  26. M. Mondello and N. Goldenfeld, Scaling and vortex-string dynamics in a three-dimensional system with a continuous symmetry, Phys. Rev. A 45, 657 (1992).
  27. G. F. Mazenko and M. Zannetti, Instability, spinodal decomposition, and nucleation in a system with continuous symmetry, Phys. Rev. B 32, 4565 (1985).
  28. T. Manovitz, S. H. Li, S. Ebadi, R. Samajdar, A. A. Geim, S. J. Evered, D. Bluvstein, H. Zhou, N. U. Koyluoglu, J. Feldmeier, P. E. Dolgirev, N. Maskara, M. Kalinowski, S. Sachdev, D. A. Huse, M. Greiner, V. Vuletić, and M. D. Lukin, Quantum coarsening and collective dynamics on a programmable simulator, Nature (London) 638, 86 (2025).
  29. T. I. Andersen et al., Thermalization and criticality on an analogue–digital quantum simulator, Nature (London) 638, 79 (2025).
  30. R. Yusupov, T. Mertelj, V. V. Kabanov, S. Brazovskii, P. Kusar, J.-H. Chu, I. R. Fisher, and D. Mihailovic, Coherent dynamics of macroscopic electronic order through a symmetry breaking transition, Nat. Phys. 6, 681 (2010).
  31. T. Mertelj, P. Kusar, V. V. Kabanov, P. Giraldo-Gallo, I. R. Fisher, and D. Mihailovic, Incoherent topological defect recombination dynamics in TbTe3, Phys. Rev. Lett. 110, 156401 (2013).
  32. A. Zong, A. Kogar, Y.-Q. Bie, T. Rohwer, C. Lee, E. Baldini, E. Ergeçen, M. B. Yilmaz, B. Freelon, E. J. Sie, H. Zhou, J. Straquadine, P. Walmsley, P. E. Dolgirev, A. V. Rozhkov, I. R. Fisher, P. Jarillo-Herrero, B. V. Fine, and N. Gedik, Evidence for topological defects in a photoinduced phase transition, Nat. Phys. 15, 27 (2019).
  33. Y. Cheng, A. Zong, L. Wu, Q. Meng, W. Xia, F. Qi, P. Zhu, X. Zou, T. Jiang, Y. Guo, J. van Wezel, A. Kogar, M. W. Zuerch, J. Zhang, Y. Zhu, and D. Xiang, Ultrafast formation of topological defects in a two-dimensional charge density wave, Nat. Phys. 20, 54 (2024).
  34. M. Mitrano, S. Lee, A. A. Husain, L. Delacretaz, M. Zhu, G. de la Peña Munoz, S. X.-L. Sun, Y. I. Joe, A. H. Reid, S. F. Wandel, G. Coslovich, W. Schlotter, T. van Driel, J. Schneeloch, G. D. Gu, S. Hartnoll, N. Goldenfeld, and P. Abbamonte, Ultrafast time-resolved x-ray scattering reveals diffusive charge order dynamics in La2−xBaxCuO4, Sci. Adv. 5, eaax3346 (2019).
  35. D. A. Reis, M. F. DeCamp, P. H. Bucksbaum, R. Clarke, E. Dufresne, M. Hertlein, R. Merlin, R. Falcone, H. Kapteyn, M. M. Murnane, J. Larsson, T. Missalla, and J. S. Wark, Probing impulsive strain propagation with x-ray pulses, Phys. Rev. Lett. 86, 3072 (2001).
  36. N. Ru, C. L. Condron, G. Y. Margulis, K. Y. Shin, J. Laverock, S. B. Dugdale, M. F. Toney, and I. R. Fisher, Effect of chemical pressure on the charge density wave transition in rare-earth tritellurides RTe3, Phys. Rev. B 77, 035114 (2008).
  37. H. Yao, J. A. Robertson, E.-A. Kim, and S. A. Kivelson, Theory of stripes in quasi-two-dimensional rare-earth tellurides, Phys. Rev. B 74, 245126 (2006).
  38. N. Ru, Charge density wave formation in rare-earth tritellurides, Ph.D. thesis, Stanford University, 2008.
  39. M. Trigo, P. Giraldo-Gallo, J. N. Clark, M. E. Kozina, T. Henighan, M. P. Jiang, M. Chollet, I. R. Fisher, J. M. Glownia, T. Katayama, P. S. Kirchmann, D. Leuenberger, H. Liu, D. A. Reis, Z. X. Shen, and D. Zhu, Ultrafast formation of domain walls of a charge density wave in SmTe3, Phys. Rev. B 103, 054109 (2021).
  40. Y. Wang, I. Petrides, G. McNamara, M. M. Hosen, S. Lei, Y.-C. Wu, J. L. Hart, H. Lv, J. Yan, D. Xiao, J. J. Cha, P. Narang, L. M. Schoop, and K. S. Burch, Axial Higgs mode detected by quantum pathway interference in RTe3, Nature (London) 606, 896 (2022).
  41. G. Ingold et al., Experimental station Bernina at SwissFEL: Condensed matter physics on femtosecond time scales investigated by x-ray diffraction and spectroscopic methods, J. Synchrotron Radiat. 26, 874 (2019).
  42. E. Prat et al., A compact and cost-effective hard x-ray free-electron laser driven by a high-brightness and low-energy electron beam, Nat. Photonics 14, 748 (2020).
  43. See Supplemental Material at http://link.aps.org/supplemental/10.1103/w9v5-rwjr for details on fluence dependence, effects of anisotropy and supplemental movie 1.
  44. A. J. Bray and A. D. Rutenberg, Growth laws for phase ordering, Phys. Rev. E 49, R27 (1994).
  45. A. P. Y. Wong, P. Wiltzius, R. G. Larson, and B. Yurke, Power-law scattering in fluids with a nonscalar order parameter, Phys. Rev. E 47, 2683 (1993).
  46. P. C. Hohenberg and B. I. Halperin, Theory of dynamic critical phenomena, Rev. Mod. Phys. 49, 435 (1977).
  47. M. Pretko and L. Radzihovsky, Fracton-elasticity duality, Phys. Rev. Lett. 120, 195301 (2018).
  48. A. Gromov, A. Lucas, and R. M. Nandkishore, Fracton hydrodynamics, Phys. Rev. Res. 2, 033124 (2020).
  49. X. Wang, J. C. Ekström, A. U. J. Bengtsson, A. Jarnac, A. Jurgilaitis, V.-T. Pham, D. Kroon, H. Enquist, and J. Larsson, Role of thermal equilibrium dynamics in atomic motion during nonthermal laser-induced melting, Phys. Rev. Lett. 124, 105701 (2020).
  50. A. J. Bray and S. Puri, Asymptotic structure factor and power-law tails for phase ordering in systems with continuous symmetry, Phys. Rev. Lett. 67, 2670 (1991).
  51. A. J. Bray and K. Humayun, Universal amplitudes of power-law tails in the asymptotic structure factor of systems with topological defects, Phys. Rev. E 47, R9 (1993).
  52. A. E. Tarkhov, A. V. Rozhkov, and B. V. Fine, Dynamics of topological defects after photoinduced melting of a charge density wave, Phys. Rev. B 106, L121109 (2022).
  53. F. Nabarro, Theory of Crystal Dislocations (Oxford University Press, New York, 1967).
  54. M. Qi and A. Lucas, Kinematically constrained vortex dynamics in charge density waves, arXiv:2310.00051.
  55. N. Ru and I. R. Fisher, Thermodynamic and transport properties of YTe3, LaTe3, and CeTe3, Phys. Rev. B 73, 033101 (2006).
  56. B. F. Hu, B. Cheng, R. H. Yuan, T. Dong, and N. L. Wang, Coexistence and competition of multiple charge-density-wave orders in rare-earth tritellurides, Phys. Rev. B 90, 085105 (2014).

Outline

Information

Phys. Rev. X 15, 031058– Published 28 August, 2025
  • Received 24 June 2024
  • Revised 23 May 2025
  • Accepted 28 July 2025
