Nonsymmorphic Time-Reversal-Doubled Axion Insulators

Yue Xie1,2, Haohao Sheng1,2, Quansheng Wu1,3, Xi Dai4, Zhong Fang1,3, Hongming Weng1,3,*, and Zhijun Wang1,3,†

  • *Contact author: hmweng@iphy.ac.cn
  • †Contact author: wzj@iphy.ac.cn
PDF

Phys. Rev. X 16, 041017 – Published 15 October, 2026

DOI: https://doi.org/10.1103/jxlt-2slk

Abstract

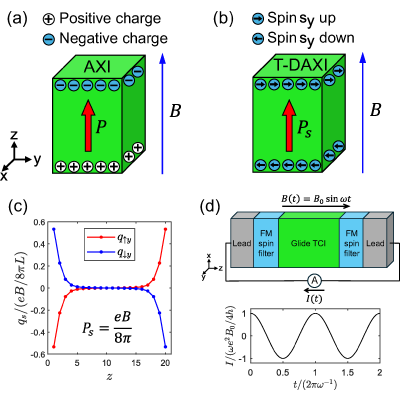

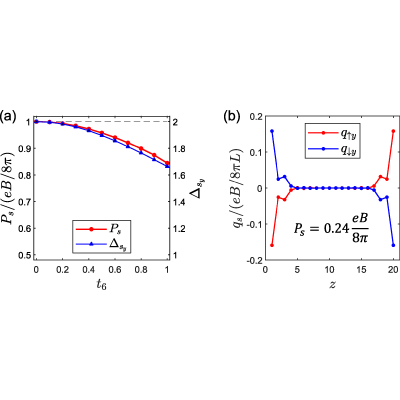

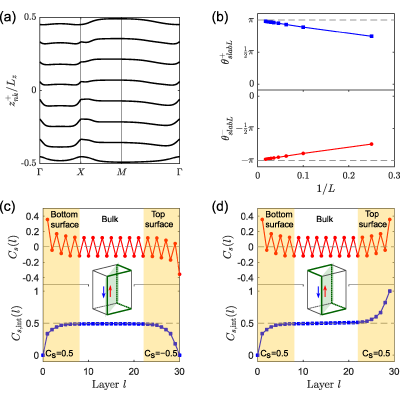

The axion insulator exhibits a topological magnetoelectric effect characterized by an axion angle θ=π, while the time-reversal-doubled axion insulator (T-DAXI) can be viewed as two copies of an axion insulator related by time-reversal symmetry. In this work, we show that a nonsymmorphic topological crystalline insulator with glide (or screw) symmetry can host the nonsymmorphic T-DAXI phase, diagnosed by the nontrivial hourglass (screw) invariant δh=1 (δs=1). In this phase, the partial axion angles (θ±=π) are quantized by the glide and/or screw symmetry, and the gapped surfaces realize half-quantized quantum spin Hall states. Furthermore, we show that nonsymmorphic T-DAXIs also exhibit the spin-magnetoelectric effect. Namely, an external magnetic field can induce a topological nonlocal spin polarization in real space. When the magnetic field is time periodic, this leads to an alternating spin current detectable in experiment. Using ab initio calculations, we demonstrate that mixed bismuth monohalides Bi4BrxI4−x realize the nonsymmorphic T-DAXI. Our findings not only reveal the symmetry-enforced T-DAXIs in nonsymmorphic topological crystalline insulators, but also demonstrate the spin-magnetoelectric effect as a detectable topological spin response in nonsymmorphic T-DAXIs.

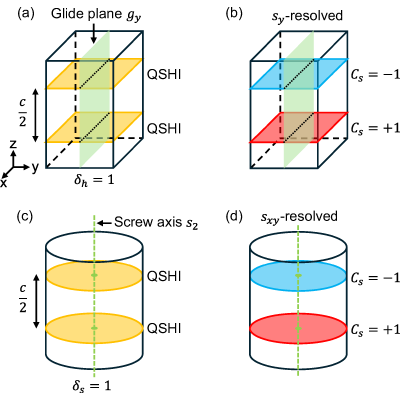

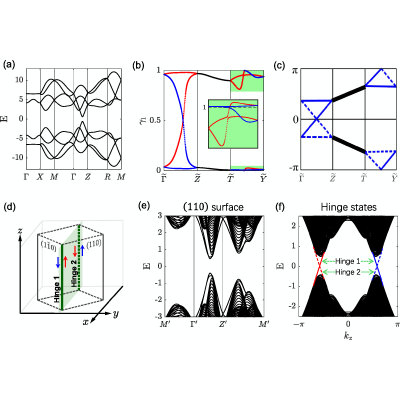

View figure in article

Physics Subject Headings (PhySH)

Popular Summary

Realizing time-reversal-doubled axion insulators (T-DAXIs) remains challenging because existing models rely strictly on inversion symmetry in topological crystalline insulators, restricting candidate material platforms. We extended the T-DAXI phase to nonsymmorphic topological crystalline insulators by establishing a theoretical framework where nonsymmorphic crystal symmetries protect quantized partial axion angles.

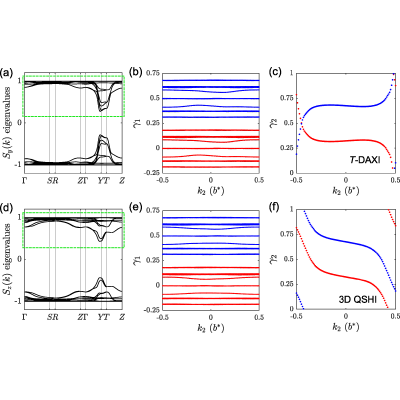

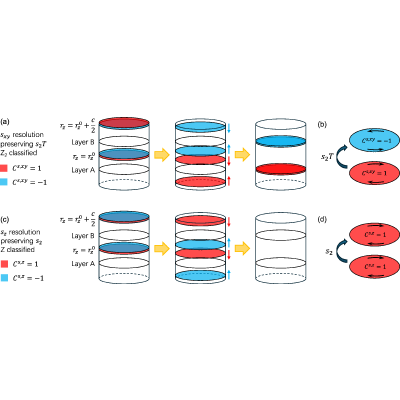

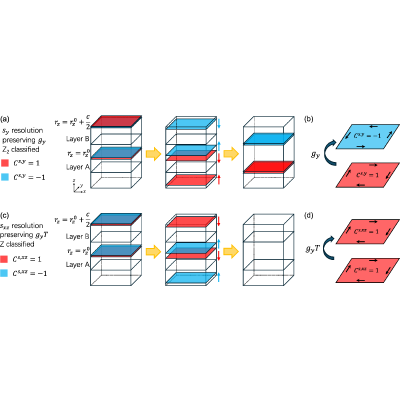

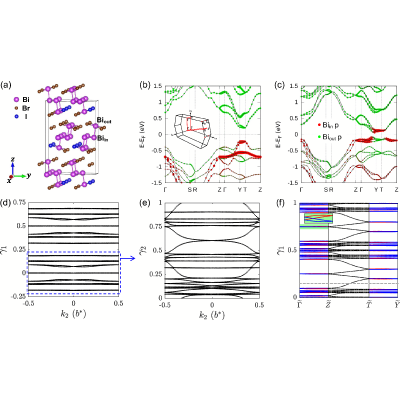

We derived spin-resolved topological classifications for these nonsymmorphic phases and predicted that they exhibit a quantized topological spin magnetoelectric response. Furthermore, using electronic structure analysis, we identified the mixed bismuth monohalide series Bi4BrxI4−x as synthesizable material candidates hosting this protected T-DAXI phase. Our work expands the scope of spinful axion insulator physics to noncentrosymmetric crystals, establishing material targets for observing robust topological spin-electrodynamic phenomena.

Article Text

References (81)

  1. M. Z. Hasan and C. L. Kane, Colloquium: Topological insulators, Rev. Mod. Phys. 82, 3045 (2010).
  2. X.-L. Qi and S.-C. Zhang, Topological insulators and superconductors, Rev. Mod. Phys. 83, 1057 (2011).
  3. C. L. Kane and E. J. Mele, Quantum spin Hall effect in graphene, Phys. Rev. Lett. 95, 226801 (2005).
  4. B. A. Bernevig, T. L. Hughes, and S.-C. Zhang, Quantum spin Hall effect and topological phase transition in HgTe quantum wells, Science 314, 1757 (2006).
  5. C. L. Kane and E. J. Mele, Z2 topological order and the quantum spin Hall effect, Phys. Rev. Lett. 95, 146802 (2005).
  6. L. Fu, C. L. Kane, and E. J. Mele, Topological insulators in three dimensions, Phys. Rev. Lett. 98, 106803 (2007).
  7. Z. Guo, J. Deng, Y. Xie, and Z. Wang, Quadrupole topological insulators in Ta2M3Te5 (M=Ni, Pd) monolayers, npj Quantum Mater. 7, 87 (2022).
  8. S.-Y. Gao, S. Xu, H. Li, C.-J. Yi, S.-M. Nie, Z.-C. Rao, H. Wang, Q.-X. Hu, X.-Z. Chen, W.-H. Fan, J.-R. Huang, Y.-B. Huang, N. Pryds, M. Shi, Z.-J. Wang, Y.-G. Shi, T.-L. Xia, T. Qian, and H. Ding, Time-reversal symmetry breaking driven topological phase transition in EuB6, Phys. Rev. X 11, 021016 (2021).
  9. X.-L. Qi, T. L. Hughes, and S.-C. Zhang, Topological field theory of time-reversal invariant insulators, Phys. Rev. B 78, 195424 (2008).
  10. R. Li, J. Wang, X.-L. Qi, and S.-C. Zhang, Dynamical axion field in topological magnetic insulators, Nat. Phys. 6, 284 (2010).
  11. F. Wilczek, Two applications of axion electrodynamics, Phys. Rev. Lett. 58, 1799 (1987).
  12. A. Sekine and K. Nomura, Axion electrodynamics in topological materials, J. Appl. Phys. 129, 141101 (2021).
  13. D. M. Nenno, C. A. C. Garcia, J. Gooth, C. Felser, and P. Narang, Axion physics in condensed-matter systems, Nat. Rev. Phys. 2, 682 (2020).
  14. A. M. Essin, J. E. Moore, and D. Vanderbilt, Magnetoelectric polarizability and axion electrodynamics in crystalline insulators, Phys. Rev. Lett. 102, 146805 (2009).
  15. N. Pournaghavi, A. Pertsova, A. H. MacDonald, and C. M. Canali, Nonlocal sidewall response and deviation from exact quantization of the topological magnetoelectric effect in axion-insulator thin films, Phys. Rev. B 104, L201102 (2021).
  16. Y.-H. Li and R. Cheng, Identifying axion insulator by quantized magnetoelectric effect in antiferromagnetic MnBi2Te4 tunnel junction, Phys. Rev. Res. 4, L022067 (2022).
  17. Y. Wan, J. Li, and Q. Liu, Topological magnetoelectric response in ferromagnetic axion insulators, Natl. Sci. Rev. 11, nwac138 (2022).
  18. L. Elcoro, B. J. Wieder, Z. Song, Y. Xu, B. Bradlyn, and B. A. Bernevig, Magnetic topological quantum chemistry, Nat. Commun. 12, 5965 (2021).
  19. N. Varnava, I. Souza, and D. Vanderbilt, Axion coupling in the hybrid Wannier representation, Phys. Rev. B 101, 155130 (2020).
  20. Z.-D. Song, B. Lian, R. Queiroz, R. Ilan, B. A. Bernevig, and A. Stern, Delocalization transition of a disordered axion insulator, Phys. Rev. Lett. 127, 016602 (2021).
  21. D. Zhang, M. Shi, T. Zhu, D. Xing, H. Zhang, and J. Wang, Topological axion states in the magnetic insulator MnBi2Te4 with the quantized magnetoelectric effect, Phys. Rev. Lett. 122, 206401 (2019).
  22. J. Li, Y. Li, S. Du, Z. Wang, B.-L. Gu, S.-C. Zhang, K. He, W. Duan, and Y. Xu, Intrinsic magnetic topological insulators in van der waals layered MnBi2Te4-family materials, Sci. Adv. 5, eaaw5685 (2019).
  23. Y. Gong et al., Experimental realization of an intrinsic magnetic topological insulator, Chin. Phys. Lett. 36, 076801 (2019).
  24. C. Liu, Y. Wang, H. Li, Y. Wu, Y. Li, J. Li, K. He, Y. Xu, J. Zhang, and Y. Wang, Robust axion insulator and Chern insulator phases in a two-dimensional antiferromagnetic topological insulator, Nat. Mater. 19, 522 (2020).
  25. J. Yao, R. Zhang, S. Zhang, H. Sheng, Y. Shi, Z. Fang, H. Weng, and Z. Wang, Axion insulator, Weyl points, quantum anomalous Hall effect, and magnetic topological phase transition in Eu3In2As4, Phys. Rev. B 111, L041117 (2025).
  26. J. Gooth, B. Bradlyn, S. Honnali, C. Schindler, N. Kumar, J. Noky, Y. Qi, C. Shekhar, Y. Sun, Z. Wang, B. A. Bernevig, and C. Felser, Axionic charge-density wave in the Weyl semimetal (TaSe4)2I, Nature (London) 575, 315 (2019).
  27. G. M. Pierantozzi, A. D. Vita, C. Bigi, X. Gui, H.-J. Tien, D. Mondal, F. Mazzola, J. Fujii, I. Vobornik, G. Vinai, A. Sala, C. Africh, T.-L. Lee, G. Rossi, T.-R. Chang, W. Xie, R. J. Cava, and G. Panaccione, Evidence of magnetism-induced topological protection in the axion insulator candidate EuSn2P2, Proc. Natl. Acad. Sci. U.S.A. 119, e2116575119 (2022).
  28. X. Gui, I. Pletikosić, H. Cao, H.-J. Tien, X. Xu, R. Zhong, G. Wang, T.-R. Chang, S. Jia, T. Valla, W. Xie, and R. J. Cava, A new magnetic topological quantum material candidate by design, ACS Cent. Sci. 5, 900 (2019).
  29. Y. Xu, Z. Song, Z. Wang, H. Weng, and X. Dai, Higher-order topology of the axion insulator EuIn2As2, Phys. Rev. Lett. 122, 256402 (2019).
  30. M. Mogi, M. Kawamura, R. Yoshimi, A. Tsukazaki, Y. Kozuka, N. Shirakawa, K. S. Takahashi, M. Kawasaki, and Y. Tokura, A magnetic heterostructure of topological insulators as a candidate for an axion insulator, Nat. Mater. 16, 516 (2017).
  31. M. Mogi, M. Kawamura, A. Tsukazaki, R. Yoshimi, K. S. Takahashi, M. Kawasaki, and Y. Tokura, Tailoring tricolor structure of magnetic topological insulator for robust axion insulator, Sci. Adv. 3, eaao1669 (2017).
  32. Roger S. K. Mong, A. M. Essin, and J. E. Moore, Antiferromagnetic topological insulators, Phys. Rev. B 81, 245209 (2010).
  33. R. A. Müller, N. R. Lee-Hone, L. Lapointe, D. H. Ryan, T. Pereg-Barnea, A. D. Bianchi, Y. Mozharivskyj, and R. Flacau, Magnetic structure of GdBiPt: A candidate antiferromagnetic topological insulator, Phys. Rev. B 90, 041109(R) (2014).
  34. N. Varnava and D. Vanderbilt, Surfaces of axion insulators, Phys. Rev. B 98, 245117 (2018).
  35. T. Olsen, M. Taherinejad, D. Vanderbilt, and I. Souza, Surface theorem for the Chern-Simons axion coupling, Phys. Rev. B 95, 075137 (2017).
  36. H. Zhou, H. Li, D.-H. Xu, C.-Z. Chen, Q.-F. Sun, and X. C. Xie, Transport theory of half-quantized Hall conductance in a semimagnetic topological insulator, Phys. Rev. Lett. 129, 096601 (2022).
  37. M. Gong, H. Liu, H. Jiang, C.-Z. Chen, and X.-C. Xie, Half-quantized helical hinge currents in axion insulators, Natl. Sci. Rev. 10, nwad025 (2023).
  38. W. A. Benalcazar, B. A. Bernevig, and T. L. Hughes, Quantized electric multipole insulators, Science 357, 61 (2017).
  39. W. A. Benalcazar, B. A. Bernevig, and T. L. Hughes, Electric multipole moments, topological multipole moment pumping, and chiral hinge states in crystalline insulators, Phys. Rev. B 96, 245115 (2017).
  40. J. Langbehn, Y. Peng, L. Trifunovic, F. von Oppen, and P. W. Brouwer, Reflection-symmetric second-order topological insulators and superconductors, Phys. Rev. Lett. 119, 246401 (2017).
  41. Z. Song, Z. Fang, and C. Fang, (d−2)-dimensional edge states of rotation symmetry protected topological states, Phys. Rev. Lett. 119, 246402 (2017).
  42. F. Schindler, A. M. Cook, M. G. Vergniory, Z. Wang, S. S. P. Parkin, B. A. Bernevig, and T. Neupert, Higher-order topological insulators, Sci. Adv. 4, eaat0346 (2018).
  43. M. Ezawa, Magnetic second-order topological insulators and semimetals, Phys. Rev. B 97, 155305 (2018).
  44. Y. Xu, L. Elcoro, Z.-D. Song, B. J. Wieder, M. G. Vergniory, N. Regnault, Y. Chen, C. Felser, and B. A. Bernevig, High-throughput calculations of magnetic topological materials, Nature (London) 586, 702 (2020).
  45. J. Gao, Z. Guo, H. Weng, and Z. Wang, Magnetic band representations, Fu-Kane-like symmetry indicators, and magnetic topological materials, Phys. Rev. B 106, 035150 (2022).
  46. L. Fu, Topological crystalline insulators, Phys. Rev. Lett. 106, 106802 (2011).
  47. T. H. Hsieh, H. Lin, J. Liu, W. Duan, A. Bansil, and L. Fu, Topological crystalline insulators in the SnTe material class, Nat. Commun. 3, 982 (2012).
  48. Z. Wang, A. Alexandradinata, R. J. Cava, and B. A. Bernevig, Hourglass fermions, Nature (London) 532, 189194 (2016).
  49. C. Fang and L. Fu, New classes of topological crystalline insulators having surface rotation anomaly, Sci. Adv. 5, eaat2374 (2019).
  50. M. G. Vergniory, L. Elcoro, C. Felser, N. Regnault, B. A. Bernevig, and Z. Wang, A complete catalogue of high-quality topological materials, Nature (London) 566, 480 (2019).
  51. T. Zhang, Y. Jiang, Z. Song, H. Huang, Y. He, Z. Fang, H. Weng, and C. Fang, Catalogue of topological electronic materials, Nature (London) 566, 475 (2019).
  52. F. Tang, H. C. Po, A. Vishwanath, and X. Wan, Comprehensive search for topological materials using symmetry indicators, Nature (London) 566, 486 (2019).
  53. B. J. Wieder and B. A. Bernevig, The axion insulator as a pump of fragile topology, arXiv:1810.02373.
  54. F. Schindler, S. S. Tsirkin, T. Neupert, B. Andrei Bernevig, and B. J. Wieder, Topological zero-dimensional defect and flux states in three-dimensional insulators, Nat. Commun. 13, 5791 (2022).
  55. Z. Song, T. Zhang, Z. Fang, and C. Fang, Quantitative mappings between symmetry and topology in solids, Nat. Commun. 9, 3530 (2018).
  56. E. Khalaf, H. C. Po, A. Vishwanath, and H. Watanabe, Symmetry indicators and anomalous surface states of topological crystalline insulators, Phys. Rev. X 8, 031070 (2018).
  57. H. C. Po, A. Vishwanath, and H. Watanabe, Symmetry-based indicators of band topology in the 230 space groups, Nat. Commun. 8, 50 (2017).
  58. E. Khalaf, Higher-order topological insulators and superconductors protected by inversion symmetry, Phys. Rev. B 97, 205136 (2018).
  59. Z. Wang, B. J. Wieder, J. Li, B. Yan, and B. A. Bernevig, Higher-order topology, monopole nodal lines, and the origin of large Fermi arcs in transition metal dichalcogenides XTe2 (X=Mo, W), Phys. Rev. Lett. 123, 186401 (2019).
  60. K.-S. Lin, G. Palumbo, Z. Guo, Y. Hwang, J. Blackburn, D. P. Shoemaker, F. Mahmood, Z. Wang, G. A. Fiete, B. J. Wieder, and B. Bradlyn, Spin-resolved topology and partial axion angles in three-dimensional insulators, Nat. Commun. 15, 550 (2024).
  61. P. Ye and J. Wang, Symmetry-protected topological phases with charge and spin symmetries: Response theory and dynamical gauge theory in two and three dimensions, Phys. Rev. B 88, 235109 (2013).
  62. E. Prodan, Robustness of the spin-Chern number, Phys. Rev. B 80, 125327 (2009).
  63. D. N. Sheng, Z. Y. Weng, L. Sheng, and F. D. M. Haldane, Quantum spin-Hall effect and topologically invariant Chern numbers, Phys. Rev. Lett. 97, 036808 (2006).
  64. D. Monaco and L. Ulčakar, Spin Hall conductivity in insulators with nonconserved spin, Phys. Rev. B 102, 125138 (2020).
  65. A. Alexandradinata, Z. Wang, and B. A. Bernevig, Topological insulators from group cohomology, Phys. Rev. X 6, 021008 (2016).
  66. B. J. Wieder, B. Bradlyn, Z. Wang, J. Cano, Y. Kim, H.-S. D. Kim, A. M. Rappe, C. L. Kane, and B. A. Bernevig, Wallpaper fermions and the nonsymmorphic Dirac insulator, Science 361, 246 (2018).
  67. K. Shiozaki, M. Sato, and K. Gomi, Topology of nonsymmorphic crystalline insulators and superconductors, Phys. Rev. B 93, 195413 (2016).
  68. M. Taherinejad and D. Vanderbilt, Adiabatic pumping of Chern-Simons axion coupling, Phys. Rev. Lett. 114, 096401 (2015).
  69. N. Marzari and D. Vanderbilt, Maximally localized generalized Wannier functions for composite energy bands, Phys. Rev. B 56, 12847 (1997).
  70. X. Wu, O. Diéguez, K. M. Rabe, and D. Vanderbilt, Wannier-based definition of layer polarizations in perovskite superlattices, Phys. Rev. Lett. 97, 107602 (2006).
  71. D. Ceresoli, T. Thonhauser, D. Vanderbilt, and R. Resta, Orbital magnetization in crystalline solids: Multi-band insulators, Chern insulators, and metals, Phys. Rev. B 74, 024408 (2006).
  72. E. V. Dikarev, B. A. Popovkin, and A. V. Shevelkov, New polymolecular bismuth monohalides: Synthesis and crystal structures of Bi4BrxI4−x (x=1,2, or 3), Russ. Chem. Bull. 50, 2304 (2001).
  73. H. Sheng, S. Zhang, Z. Fang, H. Weng, and Z. Wang, Three-dimensional topological ferroelectrics, Phys. Rev. Lett. (2026), 10.1103/nwyq-3t1f.
  74. Z. Song, C. Fang, and Y. Qi, Real-space recipes for general topological crystalline states, Nat. Commun. 11, 4197 (2020).
  75. P. E. Blöchl, Projector augmented-wave method, Phys. Rev. B 50, 17953 (1994).
  76. G. Kresse and D. Joubert, From ultrasoft pseudopotentials to the projector augmented-wave method, Phys. Rev. B 59, 1758 (1999).
  77. G. Kresse and J. Furthmüller, Efficiency of ab-initio total energy calculations for metals and semiconductors using a plane-wave basis set, Comput. Mater. Sci. 6, 15 (1996).
  78. G. Kresse and J. Furthmüller, Efficient iterative schemes for ab initio total-energy calculations using a plane-wave basis set, Phys. Rev. B 54, 11169 (1996).
  79. J. P. Perdew, K. Burke, and M. Ernzerhof, Generalized gradient approximation made simple, Phys. Rev. Lett. 77, 3865 (1996).
  80. A. A. Mostofi, J. R. Yates, G. Pizzi, Y.-S. Lee, I. Souza, D. Vanderbilt, and N. Marzari, An updated version of wannier90: A tool for obtaining maximally-localised Wannier functions, Comput. Phys. Commun. 185, 2309 (2014).
  81. N. Marzari, A. A. Mostofi, J. R. Yates, I. Souza, and D. Vanderbilt, Maximally localized Wannier functions: Theory and applications, Rev. Mod. Phys. 84, 1419 (2012).
