Microscopic Imprints of Learned Solutions in Tunable Networks

Marcelo Guzman1,*, Felipe Martins1,*, Menachem Stern2, and Andrea J. Liu1

  • 1Department of Physics and Astronomy, University of Pennsylvania, Philadelphia, Pennsylvania 19104, USA
  • 2AMOLF, Science Park 104, 1098 XG Amsterdam, The Netherlands

  • *These authors contributed equally to this work.
PDF

Phys. Rev. X 15, 031056 – Published 27 August, 2025

DOI: https://doi.org/10.1103/f2hb-c9s1

Abstract

In physical networks trained using supervised learning, physical parameters are adjusted to produce desired responses to inputs. An example is an electrical contrastive local learning network of nodes connected by edges that adjust their conductances during training. When an edge conductance changes, it upsets the current balance of every node. In response, physics adjusts the node voltages to minimize the dissipated power. Learning in these systems is therefore a coupled double-optimization process, in which the network descends both a cost landscape in the high-dimensional space of edge conductances and a physical landscape—the power dissipation—in the high-dimensional space of node voltages. Because of this coupling, the physical landscape of a trained network contains information about the learned task. Here, we derive a structure-function relation for trained tunable networks and demonstrate that all the physical information relevant to the trained input-output relation can be captured by a tuning susceptibility, an experimentally measurable quantity. We supplement our theoretical results with simulations to show that the tuning susceptibility is correlated with functional importance and that we can extract physical insight into how the system performs the task from the conductances of highly susceptible edges. Our analysis is general and can be applied directly to mechanical networks, such as networks trained for protein-inspired function such as allostery.

View figure in article

Physics Subject Headings (PhySH)

Popular Summary

Traditional digital neural networks are infamously difficult to interpret, making it hard to understand how microscopic parameter changes affect task performance. Recently, a new type of network—electrical contrastive local learning networks—has emerged, where learning occurs directly via physical resistors that individually adjust their conductances. These networks are bound by physical laws, such as minimizing electrical power. Here, we show that this physical constraint yields powerful insight into how the networks perform tasks.

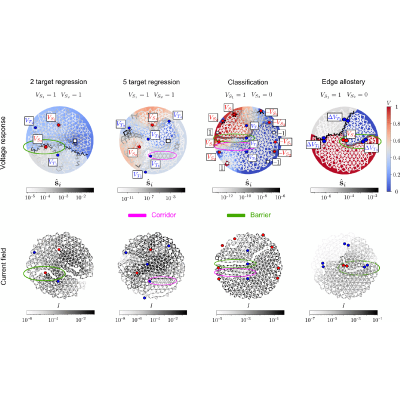

We demonstrate that the resistors most critical to a task can be identified by their physical properties alone. These key resistors often have higher resistance values than their neighbors, forming barriers that shape the flow of electrical current through the network. This current flow determines the network’s output in response to given inputs, meaning that the physical configuration of the resistors is directly linked to its function. Unlike digital models, these physical networks allow us to see how specific components contribute to the task.

Our findings go beyond electrical systems. The same principles apply to mechanical networks, which naturally minimize elastic energy instead of electrical power. This suggests a universal framework for understanding how complex functionality can emerge in physical platforms—from engineered materials to biological systems.

Article Text

References (43)

  1. P. Mehta, M. Bukov, C.-H. Wang, A. G. Day, C. Richardson, C. K. Fisher, and D. J. Schwab, A high-bias, low-variance introduction to machine learning for physicists, Phys. Rep. 810, 1 (2019).
  2. L. Sagun, L. Bottou, and Y. LeCun, Eigenvalues of the Hessian in deep learning: Singularity and beyond, arXiv:1611.07476.
  3. L. Sagun, U. Evci, V. U. Guney, Y. Dauphin, and L. Bottou, Empirical analysis of the Hessian of over-parametrized neural networks, arXiv:1706.04454.
  4. Y. N. Dauphin, R. Pascanu, C. Gulcehre, K. Cho, S. Ganguli, and Y. Bengio, Identifying and attacking the saddle point problem in high-dimensional non-convex optimization, arXiv:1406.2572.
  5. M. Sabanayagam, F. Behrens, U. Adomaityte, and A. Dawid, Unveiling the Hessian’s connection to the decision boundary, arXiv:2306.07104.
  6. J. W. Rocks, N. Pashine, I. Bischofberger, C. P. Goodrich, A. J. Liu, and S. R. Nagel, Designing allostery-inspired response in mechanical networks, Proc. Natl. Acad. Sci. U.S.A. 114, 2520 (2017).
  7. M. B. Pinson, M. Stern, A. Carruthers Ferrero, T. A. Witten, E. Chen, and A. Murugan, Self-folding origami at any energy scale, Nat. Commun. 8, 15477 (2017).
  8. D. Hexner, N. Pashine, A. J. Liu, and S. R. Nagel, Effect of directed aging on nonlinear elasticity and memory formation in a material, Phys. Rev. Res. 2, 043231 (2020).
  9. N. Pashine, Local rules for fabricating allosteric networks, Phys. Rev. Mater. 5, 065607 (2021).
  10. C. Arinze, M. Stern, S. R. Nagel, and A. Murugan, Learning to self-fold at a bifurcation, Phys. Rev. E 107, 025001 (2023).
  11. M. Stern, D. Hexner, J. W. Rocks, and A. J. Liu, Supervised learning in physical networks: From machine learning to learning machines, Phys. Rev. X 11, 021045 (2021).
  12. S. Dillavou, M. Stern, A. J. Liu, and D. J. Durian, Demonstration of decentralized physics-driven learning, Phys. Rev. Appl. 18, 014040 (2022).
  13. S. Dillavou, B. D. Beyer, M. Stern, A. J. Liu, M. Z. Miskin, and D. J. Durian, Machine learning without a processor: Emergent learning in a nonlinear analog network, Proc. Natl. Acad. Sci. U.S.A. 121, e2319718121 (2024).
  14. M. Stern and A. Murugan, Learning without neurons in physical systems, Annu. Rev. Condens. Matter Phys. 14, 417 (2023).
  15. M. Stern, M. Guzman, F. Martins, A. J. Liu, and V. Balasubramanian, Physical networks become what they learn, Phys. Rev. Lett. 134, 147402 (2025).
  16. S. K. Vadlamani, T. P. Xiao, and E. Yablonovitch, Physics successfully implements Lagrange multiplier optimization, Proc. Natl. Acad. Sci. U.S.A. 117, 26639 (2020).
  17. M. Stern, A. J. Liu, and V. Balasubramanian, Physical effects of learning, Phys. Rev. E 109, 024311 (2024).
  18. T. Tlusty, A. Libchaber, and J.-P. Eckmann, Physical model of the genotype-to-phenotype map of proteins, Phys. Rev. X 7, 021037 (2017).
  19. L. Yan, R. Ravasio, C. Brito, and M. Wyart, Architecture and coevolution of allosteric materials, Proc. Natl. Acad. Sci. U.S.A. 114, 2526 (2017).
  20. L. Yan, R. Ravasio, C. Brito, and M. Wyart, Principles for optimal cooperativity in allosteric materials, Biophys. J. 114, 2787 (2018).
  21. K. Husain and A. Murugan, Physical constraints on epistasis, Mol. Biol. Evol. 37, 2865 (2020).
  22. V. R. Anisetti, A. Kandala, and J. Schwarz, Emergent learning in physical systems as feedback-based aging in a glassy landscape, arXiv:2309.04382.
  23. J. W. Rocks, H. Ronellenfitsch, A. J. Liu, S. R. Nagel, and E. Katifori, Limits of multifunctionality in tunable networks, Proc. Natl. Acad. Sci. U.S.A. 116, 2506 (2019).
  24. A. Zaccone, Theory of Disordered Solids (Springer, Cham, 2023).
  25. L. E. Altman, M. Stern, A. J. Liu, and D. J. Durian, Experimental demonstration of coupled learning in elastic networks, Phys. Rev. Appl. 22, 024053 (2024).
  26. J. W. Rocks, A. J. Liu, and E. Katifori, Revealing structure-function relationships in functional flow networks via persistent homology, Phys. Rev. Res. 2, 033234 (2020).
  27. J. W. Rocks, A. J. Liu, and E. Katifori, Hidden topological structure of flow network functionality, Phys. Rev. Lett. 126, 028102 (2021).
  28. J. W. Rocks, E. Katifori, and A. J. Liu, Topological characterization of the continuum of allosteric response, arXiv:2401.13861.
  29. R. N. Gutenkunst, J. J. Waterfall, F. P. Casey, K. S. Brown, C. R. Myers, and J. P. Sethna, Universally sloppy parameter sensitivities in systems biology models, PLoS Comput. Biol. 3, e189 (2007).
  30. M. K. Transtrum, B. B. Machta, K. S. Brown, B. C. Daniels, C. R. Myers, and J. P. Sethna, Perspective: Sloppiness and emergent theories in physics, biology, and beyond, J. Chem. Phys. 143, 010901 (2015).
  31. M. Stern, S. Dillavou, M. Z. Miskin, D. J. Durian, and A. J. Liu, Physical learning beyond the quasistatic limit, Phys. Rev. Res. 4, L022037 (2022).
  32. E. Rouviere, R. Ranganathan, and O. Rivoire, Emergence of single-versus multi-state allostery, PRX Life 1, 023004 (2023).
  33. D. Hexner, A. J. Liu, and S. R. Nagel, Periodic training of creeping solids, Proc. Natl. Acad. Sci. U.S.A. 117, 31690 (2020).
  34. Y. Togashi and H. Flechsig, Coarse-grained protein dynamics studies using elastic network models, Int. J. Mol. Sci. 19, 3899 (2018).
  35. N. Halabi, O. Rivoire, S. Leibler, and R. Ranganathan, Protein sectors: Evolutionary units of three-dimensional structure, Cell 138, 774 (2009).
  36. K. Alim, N. Andrew, A. Pringle, and M. P. Brenner, Mechanism of signal propagation in physarum polycephalum, Proc. Natl. Acad. Sci. U.S.A. 114, 5136 (2017).
  37. V. R. Anisetti, A. Kandala, B. Scellier, and J. Schwarz, Frequency propagation: Multi-mechanism learning in nonlinear physical networks, arXiv:2208.08862.
  38. K. Hornik, M. Stinchcombe, and H. White, Multilayer feedforward networks are universal approximators, Neural Netw. 2, 359 (1989).
  39. M. Stern, S. Dillavou, D. Jayaraman, D. J. Durian, and A. J. Liu, Training self-learning circuits for power-efficient solutions, APL Mach. Learn. 2, 016114 (2024).
  40. A. J. Liu and S. R. Nagel, The jamming transition and the marginally jammed solid, Annu. Rev. Condens. Matter Phys. 1, 347 (2010).
  41. A. Zaccone and E. Scossa-Romano, Approximate analytical description of the nonaffine response of amorphous solids, Phys. Rev. B-83, 184205 (2011).
  42. M. Guzman, F. Martins, M. Stern, and A. J. Liu, Zenodo V1 (2025), 10.5281/zenodo.14680896.
  43. C. R. Calladine, Buckminster Fuller’s, “tensegrity” structures and Clerk Maxwell’s rules for the construction of stiff frames, Int. J. Solids Struct. 14, 161 (1978).
