Subsurface Driven Size-Dependent Elasticity in Nanodiamond

Jiaqi Zhang1,2,3, Chunmeng Liu1, Xing Li1, Dongyang Wang1, Keke Zhao1, Houlin Ji1, Yoshifumi Oshima3, Shaobo Cheng1,2,*, and Chongxin Shan1,†

  • *Contact author: chengshaobo@zzu.edu.cn
  • †Contact author: cxshan@zzu.edu.cn
PDF

Phys. Rev. X 16, 021010 – Published 10 April, 2026

DOI: https://doi.org/10.1103/b3h5-34wt

Abstract

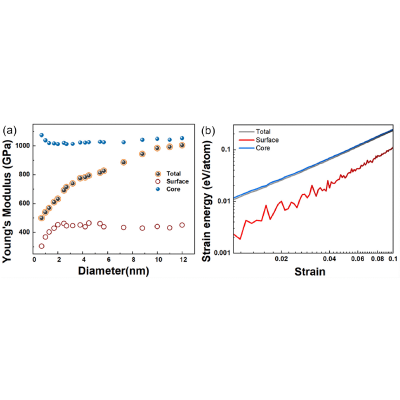

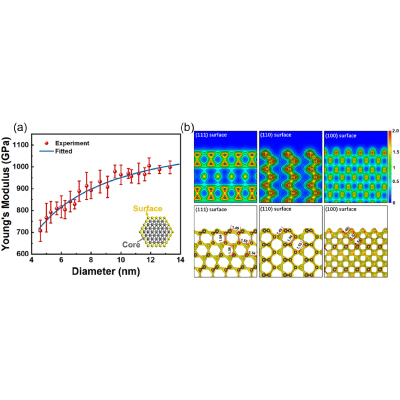

Diamond, an archetype of hardness and brittleness, can nonetheless display striking elastic compliance at the nanoscale, in sharp contrast to its ultrastiff, fracture prone bulk behavior. Despite recent experimental progress, the atomic scale origin of this anomalous elasticity remains unresolved. Here, we uncover a pronounced size- dependent softening in nanodiamond, with the effective axial Young’s modulus decreasing from about 1000 to about 700 GPa as the particle diameter shrinks from 13 to 4 nm. By integrating in situ transmission electron microscopy nanomechanical testing with first principles calculations and molecular dynamics simulations, we show that this stiffness reduction does not arise from the surface atomic layers, which remain comparatively stiff, but instead from weakened bonding in a distinct interfacial region between the surface and the crystalline core. These under-coordinated regions localize strain and accommodate large elastic deformation. The results uncover a previously overlooked interfacial mechanism that governs elasticity in brittle nanomaterials and offer design principles for nanomechanical resonators, quantum devices, and thermal transport applications with tunable stiffness.

View figure in article

Physics Subject Headings (PhySH)

Popular Summary

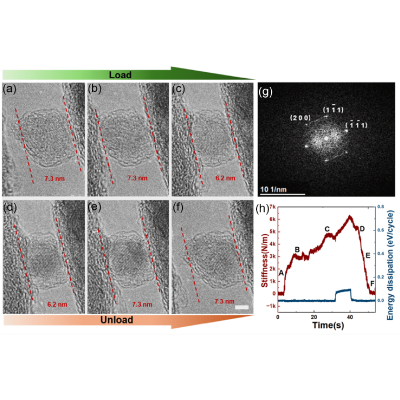

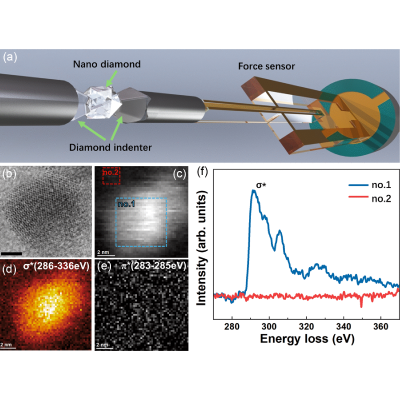

Diamond is known as the hardest, yet brittle material as it will shatter under strain. Using a custom-built electron microscope holder that can measure piconewton-scale force while imaging atoms in real time, we discovered that nanodiamonds become unexpectedly softer, even displaying elastic behavior. The softening has been attributed to the weakened bonds at the interface between the surface and the crystal core while not from the nanodiamond surface. The subsurface region allows strain to concentrate and energy to dissipate, delaying fracture and enabling elasticity that is almost impossible in bulk diamond. This hidden mechanism may play a role in the elasticity of brittle materials, and suggest the archetype of rigidity diamond can have its mechanical properties tuned at nanoscale. It further opens opportunities to design nanomechanical resonators, phononic devices, and quantum systems that exploit this elastic flexibility of diamond.

Article Text

Supplemental Material

References (49)

  1. T. M. Babinec, B. J. M. Hausmann, M. Khan, Y. Zhang, J. R. Maze, P. R. Hemmer, and M. Lončar, A diamond nanowire single-photon source, Nat. Nanotechnol. 5, 195 (2010).
  2. B. S. Miller, L. Bezinge, H. D. Gliddon, D. Huang, G. Dold, E. R. Gray, J. Heaney, P. J. Dobson, E. Nastouli, J. J. L. Morton et al., Spin-enhanced nanodiamond biosensing for ultrasensitive diagnostics, Nature (London) 587, 588 (2020).
  3. S. Hsieh, P. Bhattacharyya, C. Zu, T. Mittiga, T. J. Smart, F. Machado, B. Kobrin, T. O. Höhn, N. Z. Rui, M. Kamrani, S. Chatterjee, S. Choi, M. Zaletel, V. V. Struzhkin et al., Imaging stress and magnetism at high pressures using a nanoscale quantum sensor, Science 366, 1349 (2019).
  4. M. Fujiwara, S. Sun, A. Dohms, Y. Nishimura, K. Suto, Y. Takezawa, K. Oshimi, L. Zhao, N. Sadzak, Y. Umehara, Y. Teki, N. Komatsu, O. Benson et al., Real-time nanodiamond thermometry probing in vivo thermogenic responses, Sci. Adv. 6, eaba9636 (2020).
  5. E. A. Ekimov, V. A. Sidorov, E. D. Bauer, N. N. Mel’nik, N. J. Curro, J. D. Thompson, and S. M. Stishov, Superconductivity in diamond, Nature (London) 428, 542 (2004).
  6. K. Qiu, J. Hou, S. Chen, X. Li, Y. Yue, B. Xu, Q. Hu, L. Liu, Z. Yang, A. Nie et al., Self-healing of fractured diamond, Nat. Mater. 22, 1317 (2023).
  7. C. Dang, J.-P. Chou, B. Dai, C.-T. Chou, Y. Yang, R. Fan, W. Lin, F. Meng, A. Hu, J. Zhu et al., Achieving large uniform tensile elasticity in microfabricated diamond, Science 371, 76 (2021).
  8. A. Banerjee, D. Bernoulli, H. Zhang, M.-F. Yuen, J. Liu, J. Dong, F. Ding, J. Lu, M. Dao, W. Zhang et al., Ultralarge elastic deformation of nanoscale diamond, Science 360, 300 (2018).
  9. A. Nie, Y. Bu, P. Li, Y. Zhang, T. Jin, J. Liu, Z. Su, Y. Wang, J. He, Z. Liu et al., Approaching diamond’s theoretical elasticity and strength limits, Nat. Commun. 10, 5533 (2019).
  10. C. Liu, K. Yang, J. Zhang, S. Cheng, and Chongxin Shan, In-situ transmission electron microscopy shedding light on the mechanical properties of nanoscale materials, Microstructures 4, 2024055 (2024).
  11. A. Nie, Y. Bu, J. Huang, Y. Shao, Y. Zhang, W. Hu, J. Liu, Y. Wang, B. Xu, Z. Liu et al., Direct observation of room-temperature dislocation plasticity in diamond, Matter Radiat. Extremes 2, 1222 (2020).
  12. Y. Wang, L. Wang, H. J. Joyce, Q. Gao, X. Liao, Y. Mai, H. H. Tan, J. Zou, S. P. Ringer, H. Gao et al., Super deformability and young’s modulus of gaas nanowires, Adv. Mater. 23, 1356 (2011).
  13. G. López-Polín, C. Gómez-Navarro, V. Parente, F. Guinea, M. I. Katsnelson, F. Pérez-Murano, and J. Gómez-Herrero, Increasing the elastic modulus of graphene by controlled defect creation, Nat. Phys. 11, 26 (2015).
  14. C. A. Klein and G. F. Cardinale, Young’s modulus and Poisson’s ratio of CVD diamond, Diam. Relat. Mater. 2, 918 (1993).
  15. R. Pastorelli, A. C. Ferrari, M. G. Beghi, C. E. Bottani, and J. Robertson, Elastic constants of ultrathin diamond-like carbon films, Diam. Relat. Mater. 9, 825 (2000).
  16. J. Diao, K. Gall, and M. L. Dunn, Surface-stress-induced phase transformation in metal nanowires, Nat. Mater. 2, 656 (2003).
  17. J. B. Hannon, S. Kodambaka, F. M. Ross, and R. M. Tromp, The influence of the surface migration of gold on the growth of silicon nanowires, Nature (London) 440, 69 (2006).
  18. J. Zhang, M. Tomitori, T. Arai, and Y. Oshima, Surface effect on young’s modulus of sub-two-nanometer gold [111] nanocontacts, Phys. Rev. Lett. 128, 146101 (2022).
  19. Q. Yu, Z.-W. Shan, J. Li, X. Huang, L. Xiao, J. Sun, and E. Ma, Strong crystal size effect on deformation twinning, Nature (London) 463, 335 (2010).
  20. Y. Oshima, A. Onga, and K. Takayanagi, Helical gold nanotube synthesized at 150 K, Phys. Rev. Lett. 91, 205503 (2003).
  21. Y. Kondo and K. Takayanagi, Synthesis and characterization of helical multi-shell gold nanowires, Science 289, 606 (2000).
  22. L. G. Zhou and H. Huang, Are surfaces elastically softer or stiffer?, Appl. Phys. Lett. 84, 1940 (2004).
  23. R. E. Miller and V. B. Shenoy, Size-dependent elastic properties of nanosized structural elements, Nanotechnology 11, 139 (2000).
  24. M. D. Uchic, Sample dimensions influence strength and crystal plasticity, Science 305, 986 (2004).
  25. X. Jiang, J. Zhao, and X. Jiang, Mechanical and electronic properties of diamond nanowires under tensile strain from first principles, Nanotechnology 22, 405705 (2011).
  26. O. A. Williams, A. Kriele, J. Hees, M. Wolfer, W. Müller-Sebert, and C. E. Nebel, High Young’s modulus in ultra thin nanocrystalline diamond, Chem. Phys. Lett. 495, 84 (2010).
  27. J. Zhang, K. Ishizuka, M. Tomitori, T. Arai, and Y. Oshima, Atomic scale mechanics explored by in situ transmission electron microscopy with a quartz length-extension resonator as a force sensor, Nanotechnology 31, 205706 (2020).
  28. J. Zhang, K. Ishizuka, M. Tomitori, T. Arai, K. Hongo, R. Maezono, E. Tosatti, and Y. Oshima, Peculiar atomic bond nature in platinum monatomic chains, Nano Lett. 21, 3922 (2021).
  29. C. Liu, K. Hongo, R. Maezono, J. Zhang, and Y. Oshima, Stiffer bonding of armchair edge in single-layer molybdenum disulfide nanoribbons, Adv. Sci. 10, 2303477 (2023).
  30. L. Canale, J. Comtet, A. Niguès, C. Cohen, C. Clanet, A. Siria, and L. Bocquet, Nanorheology of interfacial water during ice gliding, Phys. Rev. X 9, 041025 (2019).
  31. J. Comtet, A. Lainé, A. Niguès, L. Bocquet, and A. Siria, Atomic rheology of gold nanojunctions, Nature (London) 569, 393 (2019).
  32. J. Hong, Y. Tian, T. Liang, X. Liu, Y. Song, D. Guan, Z. Yan, J. Guo, B. Tang, D. Cao et al., Imaging surface structure and premelting of ice Ih with atomic resolution, Nature (London) 630, 375 (2024).
  33. See Supplemental Material at http://link.aps.org/supplemental/10.1103/b3h5-34wt for details of structural characterization, in situ TEM experiment, density functional theory, and molecular dynamics simulation, which includes Refs. [34–37].
  34. D. Stauffer, A. Beaber, A. Wagner, O. Ugurlu, J. Nowak, K. A. Mkhoyan, S. Girshick, and W. Gerberich, Strain-hardening in submicron silicon pillars and spheres, Acta Mater. 60, 2471 (2012).
  35. F. Xu, Q. Qin, A. Mishra, Y. Gu, and Y. Zhu, Mechanical properties of ZnO nanowires under different loading modes, Nano Res. 3, 271 (2010).
  36. J. Wang, J. Schwenger, A. Ströbel, P. Feldner, P. Herre, S. Romeis, W. Peukert, B. Merle, and N. Vogel, Mechanics of colloidal supraparticles under compression, Adv. Sci. 7, eabj0954 (2021).
  37. A. Sharma, N. Gazit, L. Klinger, and E. Rabkin, Pseudoelasticity of metal nanoparticles is caused by their ultrahigh strength, Adv. Funct. Mater. 30, 1807554 (2020).
  38. J. M. Wheeler, R. Raghavan, J. Wehrs, Y. Zhang, R. Erni, and J. Michler, Approaching the limits of strength: Measuring the uniaxial compressive strength of diamond at small scales, Nano Lett. 16, 812 (2016).
  39. C. Kanzow, N. Yamashita, and M. Fukushima, Levenberg–Marquardt methods with strong local convergence properties for solving nonlinear equations with convex constraints, J. Comput. Appl. Math. 172, 375 (2004).
  40. J. H. Rose, J. Ferrante, and J. R. Smith, Universal binding energy curves for metals and bimetallic interfaces, Phys. Rev. Lett. 47, 675 (1981).
  41. A. A. Griffith and G. I. Taylor, The phenomenon of rupture and flow in solids, Phil. Trans. R. Soc. A 221, 163 (1921).
  42. E. Orowan, Fracture and strength of solids, Rep. Prog. Phys. 12, 185 (1949).
  43. G. R. Irwin, Analysis of stresses and strains near the end of a crack traversing a plate, J. Appl. Mech. 24, 361 (1957).
  44. F. J. Giessibl, Forces and frequency shifts in atomic-resolution dynamic-force microscopy, Phys. Rev. B 56, 16010 (1997).
  45. D. Wu, Z. Zhao, B. Lin, Y. Song, J. Qi, J. Jiang, Z. Yuan, B. Cheng, M. Zhao, Y. Tian et al., Probing structural superlubricity of two-dimensional water transport with atomic resolution, Science 384, 1254 (2024).
  46. J. Comtet, A. Lainé, A. Niguès, L. Bocquet, and A. Siria, Atomic rheology of gold nanojunctions, Nature (London) 569, 393 (2019).
  47. P. Steve, Fast parallel algorithms for short-range molecular dynamics, J. Comput. Phys. 117, 1 (1995).
  48. J. Tersoff, New empirical approach for the structure and energy of covalent systems, Phys. Rev. B 37, 6991 (1988).
  49. J. Zhang, C. Liu, X. Li, D. Wang, K. Zhao, H. Ji, Y. Oshima, S. Cheng, and C. Shan, Supporting data for “Subsurface driven size-dependent elasticity in nanodiamond”, 10.6084/m9.figshare.31810438.
