Targeted Calibration to Adjust Stability Biases in Complex Dynamical System Models

Daniel Pals1,‡,§, Sebastian Bathiany2,3,*,‡,§, Joel Kuettel2,4, Richard A. Wood5, and Niklas Boers2,3,6,†

  • *Contact author: sebastian.bathiany@tum.de
  • †Contact author: n.boers@tum.de
  • ‡Also at Technical University of Munich, Germany; Munich Climate Center; TUM School of Engineering and Design, Department of Aerospace and Geodesy, Earth System Modelling Group.
  • §These authors contributed equally to this work.
PDF

Phys. Rev. X 16, 021007 – Published 7 April, 2026

DOI: https://doi.org/10.1103/624z-1p1s

Abstract

Models of complex dynamical systems like the Earth’s climate often involve large numbers of uncertain parameters. Comprehensive exploration of the parameter space is typically prohibitive due to excessive computational costs, and systematic gradient-based parameter optimization is not feasible because such models are typically not differentiable. This is especially problematic in cases where the models intend to describe highly nonlinear and possibly abrupt dynamics, where sensitivity to parameter changes is high. Components of Earth’s climate system, such as the North Atlantic Overturning Circulation, the polar ice sheets, or the Amazon rainforest, are at risk of undergoing critical transitions in response to anthropogenic climate change. However, estimates of the critical forcing thresholds are highly uncertain because the parameter spaces of complex climate models cannot be fully explored. Concerns have been raised that the above Earth system components are too stable in state-of-the-art models. Here, we introduce a method for efficient, systematic, and objective calibration of dynamical complex system models, targeted at adjusting system stability. Given a number of physical or observational constraints, our method moves the system in a direction where the system loses or gains stability, guided by indicators of “critical slowing down”. In contrast to a brute force approach, where the computational cost would exponentially increase with the number of parameters, our method scales polynomially and thus evades the curse of dimensionality. We successfully apply our method to a conceptual double-fold bifurcation model and a physically plausible reduced-order model of the global ocean circulation. Our method can efficiently adjust stability biases across a range of complex system models, helping to reveal hidden instabilities and resulting state transitions they induce. In particular, it can help us to explore and improve the representation of key multistable components of the Earth system in climate models.

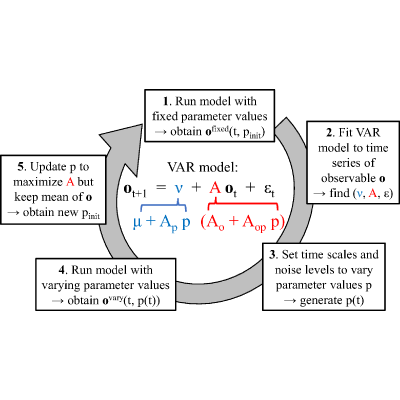

View figure in article

Physics Subject Headings (PhySH)

Popular Summary

Numerical models of complex systems like the Earth system are expensive to run and involve many uncertain and typically hand-tuned parameters. New methods for calibrating such complex models efficiently, objectively, and systematically are needed. In the context of anthropogenic climate change, there is particular concern that specific tipping elements, like the Atlantic meridional overturning circulation, might be overly stable in models due to imperfect parameter choices. Here, we present a methodology for systematically calibrating numerical models toward parameter configurations that yield more or less stable dynamics. We apply our method to a simple bistable model and a conceptual ocean circulation model, demonstrating that our method can help find hidden tipping points and can calibrate complex models under user-defined constraints.

Article Text

References (73)

  1. M. Claussen, L. A. Mysak, A. J. Weaver, M. Crucifix, T. Fichefet, M.-F. Loutre, S. L. Weber, J. Alcamo, V. A. Alexeev, A. Berger, R. Calov, A. Ganopolski, H. Goosse, G. Lohmann, F. Lunkeit, I. I. Mokhov, V. Petoukhov, P. Stone, and Z. Wang, Earth system models of intermediate complexity: Closing the gap in the spectrum of climate system models, Clim. Dyn. 18, 579 (2002).
  2. V. Eyring, S. Bony, G. A. Meehl, C. A. Senior, B. Stevens, R. J. Stouffer, and K. E. Taylor, Overview of the coupled model intercomparison project phase 6 (CMIP6) experimental design and organization, Geosci. Model Dev. 9, 1937 (2016).
  3. J. M. Gutierrez and A.-M. Treguier, Annex II: Models. In: Climate Change 2021: The Physical Science Basis. Contribution of Working Group I to the Sixth Assessment Report of the Intergovernmental Panel on Climate Change (Cambridge University Press, United Kingdom and New York, USA, 2021), pp. 2087–2138.
  4. M. Scholze, J. I. Allen, W. J. Collins, S. E. Cornell, C. Huntingford, M. M. Joshi, J. A. Lowe, R. S. Smith, and O. Wild, Earth system models: A tool to understand changes in the earth system, in Understanding the Earth System: Global Change Science for Application, edited by S. E. Cornell, I. C. Prentice, J. I. House, and C. J. Downy (Cambridge University Press, Cambridge, England, 2012) Chap. 5, pp. 129–159.
  5. J. Curry and P. Webster, Climate science and the uncertainty monster, Bull. Am. Meteorol. Soc. (BAMS) 92, 1667 (2011).
  6. D. Stainforth, M. Allen, E. Tredger, and L. Smith, Confidence, uncertainty and decision-support relevance in climate predictions, Phil. Trans. R. Soc. A 365, 2145 (2007).
  7. H. A. Dijkstra, The role of conceptual models in climate research, Physica (Amsterdam) 457D, 133984 (2024).
  8. T. M. Lenton, H. Held, E. Kriegler, J. W. Hall, W. Lucht, S. Rahmstorf, and H. J. Schellnhuber, Tipping elements in the Earth’s climate system, Proc. Natl. Acad. Sci. U.S.A. 105, 1786 (2008).
  9. D. Chen, M. Rojas, B. Samset, K. Cobb, A. Diongue Niang, P. Edwards, S. Emori, S. Faria, E. Hawkins, P. Hope, P. Huybrechts, M. Meinshausen, S. Mustafa, G.-K. Plattner, and A.-M. Treguier, Framing, Context, and Methods. In: In Climate Change 2021: The Physical Science Basis. Contribution of Working Group I to the Sixth Assessment Report of the Intergovernmental Panel on Climate Change (Cambridge University Press, United Kingdom and New York, USA, 2021), pp. 147–286.
  10. S. Wang, A. Foster, E. A. Lenz, J. D. Kessler, J. C. Stroeve, L. O. Anderson, M. Turetsky, R. Betts, S. Zou, W. Liu, W. R. Boos, and Z. Hausfather, Mechanisms and impacts of earth system tipping elements, Rev. Geophys. 61, 1 (2023).
  11. N. Boers, T. Liu, S. Bathiany, M. Ben-Yami, L. L. Blaschke, N. Bochow, C. A. Boulton, T. M. Lenton, A. Morr, D. Nian, M. Rypdal, and T. Smith, Destabilization of earth system tipping elements, Nat. Geosci. 18, 949 (2025).
  12. N. Boers, M. Ghil, and T. Stocker, Theoretical and paleoclimatic evidence for abrupt transitions in the earth system, Environ. Res. Lett. 17, 093006 (2022).
  13. S. Drijfhout, S. Bathiany, C. Beaulieu, V. Brovkin, M. Claussen, C. Huntingford, M. Scheffer, G. Sgubin, and D. Swingedouw, Catalogue of abrupt shifts in intergovernmental panel on climate change climate models, Proc. Natl. Acad. Sci. U.S.A. 112, E5777 (2015).
  14. S. Terpstra, S. K. J. Falkena, R. Bastiaansen, S. Bathiany, H. A. Dijkstra, and A. S. von der Heydt, Assessment of abrupt shifts in cmip6 models using edge detection, AGU Adv. 6, e2025AV001698 (2025).
  15. P. Valdes, Built for stability, Nat. Geosci. 4, 414 (2011).
  16. J. V. Mecking, S. S. Drijfhout, L. C. Jackson, and M. B. Andrews, The effect of model bias on Atlantic freshwater transport and implications for AMOC bi-stability, Tellus A 69, 1299910 (2017).
  17. H. Haken, Synergetics—An Introduction (Springer, Berlin, Heidelberg, New York, Tokyo, 1983).
  18. M. Scheffer, J. Bascompte, W. A. Brock, V. Brovkin, S. R. Carpenter, V. Dakos, H. Held, E. H. Van Nes, M. Rietkerk, and G. Sugihara, Early-warning signals for critical transitions, Nature (London) 461, 53 (2009).
  19. H. Held and T. Kleinen, Detection of climate system bifurcations by degenerate fingerprinting, Geophys. Res. Lett. 31 (2004).
  20. N. Boers and M. Rypdal, Critical slowing down suggests that the western greenland ice sheet is close to a tipping point, Proc. Natl. Acad. Sci. U.S.A. 118, e2024192118 (2021).
  21. N. Boers, Observation-based early-warning signals for a collapse of the Atlantic Meridional Overturning Circulation, Nat. Clim. Change 11, 680 (2021).
  22. C. A. Boulton, T. M. Lenton, and N. Boers, Pronounced loss of Amazon rainforest resilience since the early 2000s, Nat. Clim. Change 12, 271 (2022).
  23. T. Smith, D. Traxl, and N. Boers, Empirical evidence for recent global shifts in vegetation resilience, Nat. Clim. Change 12, 477 (2022).
  24. N. Bochow and N. Boers, The South American monsoon approaches a critical transition in response to deforestation, Sci. Adv. 9, eadd9973 (2023).
  25. T. Kleinen, H. Held, and G. Petschel-Held, The potential role of spectral properties in detecting thresholds in the earth system: Application to the thermohaline circulation, Ocean Dyn. 53, 53 (2003).
  26. C. Boulton, L. Allison, and T. Lenton, Early warning signals of Atlantic meridional overturning circulation collapse in a fully coupled climate model, Nat. Commun. 5, 5752 (2014).
  27. S. Bathiany, M. Claussen, and K. Fraedrich, Detecting hotspots of atmosphere–vegetation interaction via slowing down—part 1: A stochastic approach, Earth Syst. Dyn. 4, 63 (2013).
  28. S. Bathiany, M. Claussen, and K. Fraedrich, Detecting hotspots of atmosphere–vegetation interaction via slowing down—part 2: Application to a global climate model, Earth Syst. Dyn. 4, 79 (2013).
  29. E. Weinans, J. Lever, S. Bathiany, R. Quax, J. Bascompte, E. van Nes, M. Scheffer, and I. van de Leemput, Finding the direction of lowest resilience in multivariate complex systems, J. R. Soc. Interface 16, 20190629 (2019).
  30. M. Ben-Yami, A. Morr, S. Bathiany, and N. Boers, Uncertainties too large to predict tipping times of major earth system components from historical data, Sci. Adv. 10, eadl4841 (2024).
  31. K. J. Astroem and B. Wittenmark, On self tuning regulators, Automatica 9, 185 (1973).
  32. T. Baumeister, S. Brunton, and J. Kutz, Deep learning and model predictive control for self-tuning mode-locked lasers, J. Opt. Soc. Am. B 35, 617 (2018).
  33. I. e. a. Price, Probabilistic weather forecasting with machine learning, Nature (London) 637, 84 (2025).
  34. K. Bi, L. Xie, H. Zhang, X. Chen, X. Gu, and Q. Tian, Accurate medium-range global weather forecasting with 3D neural networks, Nature (London) 619, 533 (2023).
  35. O. Watt-Meyer, B. Henn, J. McGibbon, S. K. Clark, A. Kwa, W. A. Perkins, E. Wu, L. Harris, and C. S. Bretherton, ACE2: Accurately learning subseasonal to decadal atmospheric variability and forced responses, npj Clim. Atmos. Sci. 8, 205 (2025).
  36. D. e. a. Kochkov, Neural general circulation models for weather and climate, Nature (London) 632, 1060 (2024).
  37. T. e. a. Rackow, Robustness of AI-based weather forecasts in a changing climate, arXiv:2409.18529.
  38. M. Gelbrecht, A. White, S. Bathiany, and N. Boers, Differentiable programming for earth system modeling, Geosci. Model Dev. 16, 3123 (2023).
  39. C. Shen, A. Appling, P. Gentine et al., Differentiable modelling to unify machine learning and physical models for geosciences, Nat. Rev. Earth Environ. 4, 552 (2023).
  40. T. Mauritsen, B. Stevens, E. Roeckner, T. Crueger, M. Esch, M. Giorgetta, H. Haak, J. Jungclaus, D. Klocke, D. Matei, U. Mikolajewicz, D. Notz, R. Pincus, H. Schmidt, and L. Tomassini, Tuning the climate of a global model, J. Adv. Model. Earth Syst. 4, M00A01 (2012).
  41. F. Hourdin, T. Mauritsen, A. Gettelman, J.-C. Golaz, V. Balaji, Q. Duan, D. Folini, D. Ji, D. Klocke, Y. Qian, F. Rauser, C. Rio, L. Tomassini, M. Watanabe, and D. Williamson, The art and science of climate model tuning, Bull. Am. Meteorol. Soc. 98, 589 (2017).
  42. T. Mauritsen and E. Roeckner, Tuning the MPI-ESM1.2 global climate model to improve the match with instrumental record warming by lowering its climate sensitivity, J. Adv. Model. Earth Syst. 12, e2019 MS002037 (2020).
  43. D. J. Lea, M. R. Allen, and T. W. N. Haine, Sensitivity analysis of the climate of a chaotic system, Tellus A 52, 523 (2000).
  44. J. A. Nelder and R. Mead, A simplex method for function minimization, Comput. J. 7, 308 (1965).
  45. N. B. Kovachi and A. M. Stuart, Ensemble Kalman inversion: A derivativefree technique for machine learning tasks, Inverse Probl. 35, 095005 (2019).
  46. M. Collins, B. Booth, B. Bhaskaran, G. Harris, J. Murphy, D. Sexton, and M. Webb, Climate model errors, feedbacks and forcings: A comparison of perturbed physics and multi-model ensembles, Clim. Dyn. 36, 1737 (2011).
  47. E. Cleary, A. Garbuno-Inigo, S. Lan, T. Schneider, and A. M. Stuart, Calibrate, emulate, sample, J. Comput. Phys. 424, 109716 (2021).
  48. Q. Yang, G. S. Elsaesser, M. van Lier-Walqui, and T. Eidhammer, A simple emulator that enables interpretation of parameter-output relationships, applied to two climate model PPEs, J. Adv. Model. Earth Syst. 17, e2024 MS004766 (2025).
  49. K. Cranmer, J. Brehmer, and G. Louppe, The frontier of simulation-based inference, Proc. Natl. Acad. Sci. U.S.A. 117, 30055 (2020).
  50. K. Lux, P. Ashwin, R. A. Wood, and C. Kuehn, Assessing the impact of parametric uncertainty on tipping points of the Atlantic meridional overturning circulation, Environ. Res. Lett. 17, 075002 (2022).
  51. K. Kato, Y. Itoh, and T. Kousaka, Predicting bifurcation points via extreme learning machine methods trained on time-series datasets and parameters in discrete dynamical systems, Phys. Rev. E 112, 014208 (2025).
  52. R. A. Wood, J. M. Rodríguez, R. S. Smith, L. C. Jackson, and E. Hawkins, Observable, low-order dynamical controls on thresholds of the Atlantic meridional overturning circulation, Clim. Dyn. 53, 6815 (2019).
  53. R. R. Chapman, P. Ashwin, J. Baker, and R. A. Wood, Quantifying risk of a noise-induced AMOC collapse from northern and tropical Atlantic Ocean variability, Environ. Res. Commun. 6, 111003 (2024).
  54. R. Chapman, S. Sinet, and P. D. L. Ritchie, Tipping mechanisms in a conceptual model of the Atlantic meridional overturning circulation, Weather 79, 316 (2024).
  55. S. Bathiany, D. Nian, M. Drueke, and N. Boers, Resilience indicators for tropical rainforests in a dynamic vegetation model, Global Change Biol. 30, e17613 (2024).
  56. P. Kloeden and E. Platen, Numerical Solution of Stochastic Differential Equations (Springer, Berlin, 1992).
  57. L. C. Jackson, R. S. Smith, and R. A. Wood, Ocean and atmosphere feedbacks affecting AMOC hysteresis in a GCM, Clim. Dyn. 49, 173 (2017).
  58. E. L. McDonagh, B. A. King, H. L. Bryden, P. Courtois, Z. Szuts, M. Baringer, S. A. Cunningham, C. Atkinson, and G. Gerard McCarthy, Continuous estimate of Atlantic Oceanic freshwater flux at 26.5 °n, J. Clim. 28, 8888 (2015).
  59. K. Wiesenfeld and B. McNamara, Small-signal amplification in bifurcating dynamical systems, Phys. Rev. A 33, 629 (1986).
  60. M. A. Iglesias, K. J. H. Law, and A. M. Stuart, Ensemble Kalman methods for inverse problems, Inverse Probl. 29, 045001 (2013).
  61. N. Urban and T. Fricker, A comparison of latin hypercube and grid ensemble designs for the multivariate emulation of an earth system model, Comput. Geosci. 36, 746 (2010).
  62. F. Berkenkamp, A. Krause, and A. P. Schoellig, Bayesian optimization with safety constraints: Safe and automatic parameter tuning in robotics, Mach. Learn. 112, 3713 (2023).
  63. F. Hourdin, B. Ferster, J. Deshayes, J. Mignot, I. Musat, and D. Williamson, Toward machine-assisted tuning avoiding the underestimation of uncertainty in climate change projections, Sci. Adv. 9, eadf2758 (2023).
  64. M. Willeit, A. Ganopolski, A. Robinson, and N. R. Edwards, The earth system model CLIMBER-X v1.0—part 1: Climate model description and validation, Geosci. Model Dev. 15, 5905 (2022).
  65. A. Robinson, J. Alvarez-Solas, M. Montoya, H. Goelzer, R. Greve, and C. Ritz, Description and validation of the ice-sheet model Yelmo (version 1.0), Geosci. Model Dev. 13, 2805 (2020).
  66. P. Hopcroft and P. Valdes, Paleoclimate-conditioning reveals a North Africa land–atmosphere tipping point, Proc. Natl. Acad. Sci. U.S.A. 118, e2108783118 (2021).
  67. P. M. Cox, R. Betts, M. Collins, P. P. Harris, C. Huntingford, and C. Jones, Amazonian forest dieback under climate-carbon cycle projections for the 21st century, Theor. Appl. Climatol. 78, 137 (2004).
  68. T. E. Lovejoy and C. Nobre, Amazon tipping point, Sci. Adv. 4, eaat2340 (2018).
  69. P. Ashwin, S. Wieczorek, R. Vitolo, and P. Cox, Tipping points in open systems: Bifurcation, noise-induced and rate-dependent examples in the climate system, Phil. Trans. R. Soc. A 370, 1166 (2012).
  70. S. Peatier, B. M. Sanderson, L. Terray, and R. Roehrig, Investigating parametric dependence of climate feedbacks in the atmospheric component of CNRM-CM6-1, Geophys. Res. Lett. 49, e2021GL095084 (2022).
  71. Code is available at https://github.com/TUM-PIK-ESM/targeted-calibration, published under the MIT license
  72. H. Lütkepohl, New Introduction to Multiple Time Series Analysis (Springer, Berlin, 2005).
  73. H. Alkhayuon, P. Ashwin, L. Jackson, C. Quinn, and R. Wood, Basin bifurcations, oscillatory instability and rate-induced thresholds for Atlantic meridional overturning circulation in a global oceanic box model, Proc. R. Soc. A 475, 20190051 (2019).
