Transport by waves and turbulence: Dilute suspensions in stably stratified plane Poiseuille flow

Charlie Lloyd and Robert Dorrell

  • School of Architecture, Building and Civil Engineering, Loughborough University, Loughborough LE11 3TU, United Kingdom

PDF

Phys. Rev. Fluids 10, 114501 – Published 12 November, 2025

DOI: https://doi.org/10.1103/z1sb-q7nr

Abstract

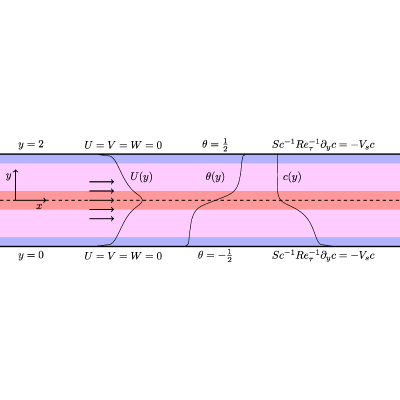

Suspended particle transport is inherent in a wide range of industrial and environmental flows, from energy generation to manufacturing and from marine to atmospheric systems. Such flows are inherently stratified where varying concentration of particulates changes the mean density of the fluid; however, the role of stratification on particle suspension is poorly understood. Here the suspension of sediments in a channel (plane Poiseuille) flow is resolved using numerical simulation where the flow is stably thermally stratified and the particles passive. This set up enables quantification of stratification controls sediment transport processes. Sediment suspension is resolved for settling velocities of Vs=0.005, Vs=0.01, and Vs=0.02, made dimensionless by the friction velocity uτ. Our results show that stratification generates flow-scale mixing processes, which invalidate extant models of sediment suspension that have been used for over 100 years. For stratified flows, the dimensionless collapse of flow scalars and turbulent statistics is poor near the core of the channel, where large concentration gradients coincide with large-scale mixing events. Here the differences between vertical turbulent diffusivities of sediment and temperature increase with increasing Vs, reaching 15% for Vs=0.02. Discrepancies arise due to a breakdown of the linear gradient diffusion hypothesis. Predictions using the gradient diffusion hypothesis are expected to worsen with increasing settling velocity, indicating that classical models poorly predict dilute particle transport in strongly stratified flows, which are common in a range of environmental and industrial settings. Further, in stratified flows a feedback loop is established that generates strong buoyancy forces in the core of the duct, having the profound impact of building a self-reinforcing two-layer sediment concentration profile. These results highlight that classical sediment transport models may underpredict the amount of turbulent mixing, and therefore the capability of flows to suspend material, where flow-scale mixing events occur. They further reveal mechanisms for the formation of a barrier to mixing which significantly reduces suspended load capacity in flows with an internal velocity maximum, such as ducts, pipes, gravity currents, and jets.

View figure in article

Physics Subject Headings (PhySH)

Article Text

References (45)

  1. E. Van Sebille, C. Wilcox, L. Lebreton, N. Maximenko, B. D. Hardesty, J. A. Van Franeker, M. Eriksen, D. Siegel, F. Galgani, and K. L. Law, A global inventory of small floating plastic debris, Environ. Res. Lett. 10, 124006 (2015).
  2. N. Evangeliou, H. Grythe, Z. Klimont, C. Heyes, S. Eckhardt, Susana Lopez-Aparicio, and A. Stohl, Atmospheric transport is a major pathway of microplastics to remote regions, Nat. Commun. 11, 3381 (2020).
  3. W. Wu, S. S. Y. Wang, and Y. Jia, Nonuniform sediment transport in alluvial rivers, J. Hydraul. Res. 38, 427 (2000).
  4. A. K. Morrison, D. W. Waugh, A. McC. Hogg, D. C. Jones, and R. P. Abernathey, Ventilation of the southern ocean pycnocline, Annu. Rev. Mar. Sci. 14, 405 (2022).
  5. R. M. Dorrell, J. Peakall, S. E. Darby, D. R. Parsons, J. Johnson, E. J. Sumner, R. B. Wynn, E. Özsoy, and D. Tezcan, Self-sharpening induces jetlike structure in seafloor gravity currents, Nat. Commun. 10, 1381 (2019).
  6. P. Bartelt, O. Buser, C. V. Valero, and Y. Bühler, Configurational energy and the formation of mixed flowing/powder snow and ice avalanches, Ann. Glaciol. 57, 179 (2016).
  7. R. Sulpizio, P. Dellino, D. M. Doronzo, and D. Sarocchi, Pyroclastic density currents: State of the art and perspectives, J. Volcanol. Geotherm. Res. 283, 36 (2014).
  8. O. Bühler, Waves and Mean Flows (Cambridge University Press, Cambridge, 2014).
  9. C. P. Caulfield, Layering, instabilities, and mixing in turbulent stratified flows, Annu. Rev. Fluid Mech. 53, 113 (2021).
  10. M. G. Wells and R. M. Dorrell, Turbulence processes within turbidity currents, Annu. Rev. Fluid Mech. 53, 59 (2021).
  11. H. Rouse, Modern conceptions of the mechanics of fluid turbulence, Trans. Am. Soc. Civ. Eng. 102, 463 (1937).
  12. S. R. McLean, On the calculation of suspended load for noncohesive sediments, J. Geophys. Res. 97, 5759 (1992).
  13. P. Nielsen and I. A. L. Teakle, Turbulent diffusion of momentum and suspended particles: A finite-mixing-length theory, Phys. Fluids 16, 2342 (2004).
  14. J. Kim, P. Moin, and R. Moser, Turbulence statistics in fully developed channel flow at low Reynolds number, J. Fluid Mech. 177, 133 (1987).
  15. R. D. Moser, J. Kim, and N. N. Mansour, Direct numerical simulation of turbulent channel flow up to Reτ=590, Phys. Fluids 11, 943 (1999).
  16. J. C. Del Alamo and J. Jiménez, Spectra of the very large anisotropic scales in turbulent channels, Phys. Fluids 15, L41 (2003).
  17. A. W. Vreman and J. G. M. Kuerten, Comparison of direct numerical simulation databases of turbulent channel flow at Reτ=180, Phys. Fluids 26, 015102 (2014).
  18. J. Jiménez, The streaks of wall-bounded turbulence need not be long, J. Fluid Mech. 945, R3 (2022).
  19. M. I. Cantero, S. Balachandar, A. Cantelli, C. Pirmez, and G. Parker, Turbidity current with a roof: Direct numerical simulation of self-stratified turbulent channel flow driven by suspended sediment, J. Geophys. Res.: Oceans 114, 2008JC004978 (2009).
  20. M. I. Cantero, S. Balachandar, and G. Parker, Direct numerical simulation of stratification effects in a sediment-laden turbulent channel flow, J. Turbul. 10, N27 (2009).
  21. S. Dutta, M. I. Cantero, and M. H. García, Effect of self-stratification on sediment diffusivity in channel flows and boundary layers: A study using direct numerical simulations, Earth Surf. Dyn. 2, 419 (2014).
  22. C. J. Lloyd, R. M. Dorrell, and C. P. Caulfield, The coupled dynamics of internal waves and hairpin vortices in stratified plane poiseuille flow, J. Fluid Mech. 934, A10 (2022).
  23. C. J. Lloyd and R. M. Dorrell, Linear dynamics in turbulent stratified plane poiseuille flow, J. Fluid Mech. 999, A104 (2024).
  24. T. Watanabe, J. J. Riley, K. Nagata, K. Matsuda, and R. Onishi, Hairpin vortices and highly elongated flow structures in a stably stratified shear layer, J. Fluid Mech. 878, 37 (2019).
  25. J. S. Salinas, S. Balachandar, M. Shringarpure, J. Fedele, D. Hoyal, and S. Zuñiga, Anatomy of subcritical submarine flows with a lutocline and an intermediate destruction layer, Nat. Commun. 12, 1649 (2021).
  26. X. Zhang, F. Zonta, Z. F. Tian, G. J. Nathan, R. C. Chin, and A. Soldati, Dynamics of semi-and neutrally-buoyant particles in thermally stratified turbulent channel flow, Int. J. Multiphase Flow 139, 103595 (2021).
  27. M. Boetti, Pair dispersion of inertial particles crossing stably stratified turbulent/nonturbulent interfaces, Int. J. Multiphase Flow 166, 104502 (2023).
  28. V. Armenio and S. Sarkar, An investigation of stably stratified turbulent channel flow using large-eddy simulation, J. Fluid Mech. 459, 1 (2002).
  29. M. Garcia-Villalba and J. C. del Alamo, Turbulence modification by stable stratification in channel flow, Phys. Fluids 23, 045104 (2011).
  30. E. Meiburg, S. Radhakrishnan, and Mohamad Nasr-Azadani, Modeling gravity and turbidity currents: Computational approaches and challenges, Appl. Mech. Rev. 67, 040802 (2015).
  31. J. M. Ham and G. M. Homsy, Hindered settling and hydrodynamic dispersion in quiescent sedimenting suspensions, Int. J. Multiphase Flow 14, 533 (1988).
  32. R. H. Davis and M. A. Hassen, Spreading of the interface at the top of a slightly polydisperse sedimenting suspension, J. Fluid Mech. 196, 107 (1988).
  33. F. Necker, C. Härtel, L. Kleiser, and E. Meiburg, Mixing and dissipation in particle-driven gravity currents, J. Fluid Mech. 545, 339 (2005).
  34. M. M. Nasr-Azadani and E. Meiburg, TURBINS: An immersed boundary, Navier-Stokes code for the simulation of gravity and turbidity currents interacting with complex topographies, Comput. Fluids 45, 14 (2011).
  35. M. M. Nasr-Azadani and E. Meiburg, Turbidity currents interacting with three-dimensional seafloor topography, J. Fluid Mech. 745, 409 (2014).
  36. J. Pelmard, S. Norris, and H. Friedrich, LES grid resolution requirements for the of gravity currents, Comput. Fluids 174, 256 (2018).
  37. C. R. Marshall, R. M. Dorrell, S. Dutta, G. M. Keevil, J. Peakall, and S. M. Tobias, The effect of schmidt number on gravity current flows: The formation of large-scale three-dimensional structures, Phys. Fluids 33, 106601 (2021).
  38. P. Fischer and J. Mullen, Filter-based stabilization of spectral element methods, C. R. Acad. Sci. Math. 332, 265 (2001).
  39. T. Chatterjee and Y. T. Peet, Regularization for large-eddy simulation in wall-bounded turbulence: An explicit filtering-based approach, Int. J. Numer. Methods Fluids 88, 1 (2018).
  40. J. K. Lai, E. Merzari, and Y. A. Hassan, Sensitivity analyses in a buoyancy-driven closed system with high resolution CFD using boussinesq approximation and variable density models, Int. J. Heat Fluid Flow 75, 1 (2019).
  41. E. Merzari, A. Obabko, P. Fischer, and M. Aufiero, Wall resolved large eddy simulation of reactor core flows with the spectral element method, Nucl. Eng. Des. 364, 110657 (2020).
  42. S. B. Pope, Turbulent Flows (Cambridge University Press, Cambridge, 2001).
  43. O. T. Schmidt and T. Colonius, Guide to spectral proper orthogonal decomposition, AIAA J. 58, 1023 (2020).
  44. R. Luchi, S. Balachandar, G. Seminara, and G. Parker, Turbidity currents with equilibrium basal driving layers: A mechanism for long runout, Geophys. Res. Lett. 45, 1518 (2018).
  45. C. Lloyd and R. Dorrell, Dataset for “Transport by waves and turbulence: Dilute suspensions in stably stratified plane Poiseuille flow" [Data set], Zenodo (2025), https://doi.org/10.5281/zenodo.17258873.
