Unraveling friction forces of droplets on a non-wetting surface

Abhijit Kumar Kushwaha1,*, Sankara Arunachalam1, Ville Jokinen2, Dan Daniel1,3, and Tadd T. Truscott1,†

  • 1Mechanical Engineering, Physical Science and Engineering, King Abdullah University of Science and Technology, Thuwal 23955-6900, Saudi Arabia
  • 2Department of Chemistry and Materials Science, School of Chemical Engineering, Aalto University, Espoo 02150, Finland
  • 3Droplet and Soft Matter Unit, Okinawa Institute of Science and Technology Graduate University, Onna, Okinawa 904-0495, Japan

  • *Contact author: akushwaha.iitk@gmail.com
  • †Contact author: taddtruscott@gmail.com
PDF

Phys. Rev. Fluids 10, 103603 – Published 22 October, 2025

DOI: https://doi.org/10.1103/y86v-8rgs

Abstract

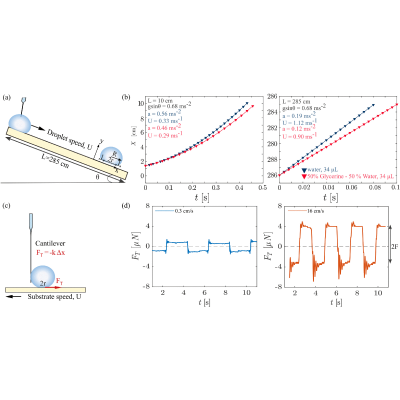

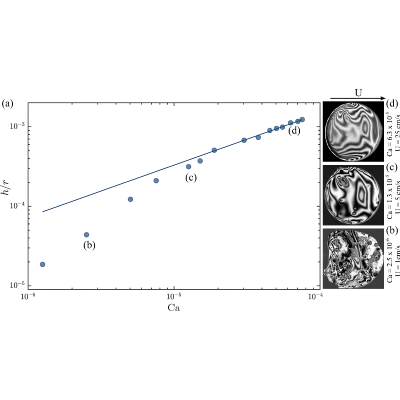

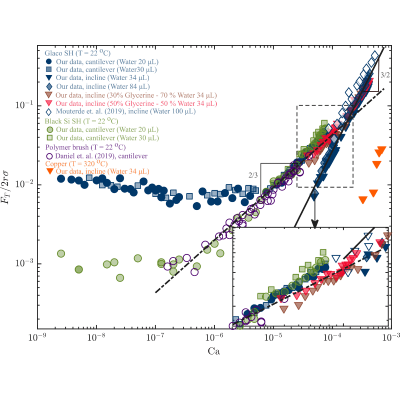

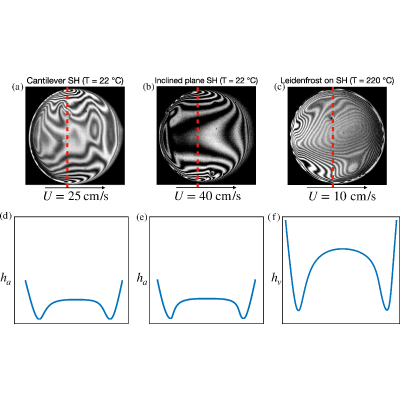

Understanding the friction forces acting on droplets moving across non-wetting surfaces is essential for advancing applications in fluid transport and microfluidics. In this study we quantify droplet friction on both superhydrophobic and superheated (Leidenfrost) substrates using two complementary experimental approaches: inclined plane dynamics and cantilever force sensing. We identify distinct friction regimes governed by contact-line pinning, viscous dissipation, and aerodynamic drag over a broad range of velocities and viscosities. A force-based scaling law captures the transition between these regimes as a function of the capillary number, integrating contact-line effects, internal dissipation, and aerodynamic contributions. Our model is further validated through white light interferometry and high-speed reflective interference contrast microscopy, which reveal the structure and evolution of the thin air or vapor layers beneath the droplets. These findings offer a comprehensive framework for predicting droplet behavior on non-wetting surfaces and inform the design of surfaces for reduced friction in engineering and microfluidic systems.

View figure in article

Physics Subject Headings (PhySH)

Article Text

Supplemental Material

References (45)

  1. S. L. Ceccio, Friction drag reduction of external flows with bubble and gas injection, Annu. Rev. Fluid Mech. 42, 183 (2010).
  2. E. Aljallis, M. A. Sarshar, R. Datla, V. Sikka, A. Jones, and C.-H. Choi, Experimental study of skin friction drag reduction on superhydrophobic flat plates in high Reynolds number boundary layer flow, Phys. Fluids 25, 025103 (2013).
  3. H. Park, G. Sun et al., Superhydrophobic turbulent drag reduction as a function of surface grating parameters, J. Fluid Mech. 747, 722 (2014).
  4. D. C. Leslie, A. Waterhouse, J. B. Berthet, T. M. Valentin, A. L. Watters, A. Jain, P. Kim, B. D. Hatton, A. Nedder, K. Donovan et al., A bioinspired omniphobic surface coating on medical devices prevents thrombosis and biofouling, Nat. Biotechnol. 32, 1134 (2014).
  5. S. Sunny, G. Cheng, D. Daniel, P. Lo, S. Ochoa, C. Howell, N. Vogel, A. Majid, and J. Aizenberg, Transparent antifouling material for improved operative field visibility in endoscopy, Proc. Natl. Acad. Sci. USA 113, 11676 (2016).
  6. A. Elzaabalawy and S. Meguid, Potential of combating transmission of COVID-19 using novel self-cleaning superhydrophobic surfaces: Part II—Thermal, chemical, and mechanical durability, Int. J. Mech. Mater. Des. 16, 433 (2020).
  7. X. Zhang, Y. Si, J. Mo, and Z. Guo, Robust micro-nanoscale flowerlike ZnO/epoxy resin superhydrophobic coating with rapid healing ability, Chem. Eng. J. 313, 1152 (2017).
  8. J. Ou, B. Perot, and J. P. Rothstein, Laminar drag reduction in microchannels using ultrahydrophobic surfaces, Phys Fluids 16, 4635 (2004).
  9. S. Gogte, P. Vorobieff, R. Truesdell, A. Mammoli, F. van Swol, P. Shah, and C. J. Brinker, Effective slip on textured superhydrophobic surfaces, Phys. Fluids 17, 051701 (2005).
  10. I. U. Vakarelski, J. O. Marston, D. Y. C. Chan, and S. T. Thoroddsen, Drag reduction by Leidenfrost vapor layers, Phys. Rev. Lett. 106, 214501 (2011).
  11. H. Lhuissier, Y. Tagawa, T. Tran, and C. Sun, Levitation of a drop over a moving surface, J. Fluid Mech. 733, R4 (2013).
  12. A. Gauthier, J. C. Bird, C. Clanet, and D. Quéré, Aerodynamic Leidenfrost effect, Phys. Rev. Fluids 1, 084002 (2016).
  13. M. K. Chaudhury and P. S. Goohpattader, Activated drops: Self-excited oscillation, critical speeding and noisy transport, Eur. Phys. J. E 36, 15 (2013).
  14. Y. Zhang, M. Guo, D. Seveno, and J. De Coninck, Dynamic wetting of various liquids: Theoretical models, experiments, simulations and applications, Adv. Colloid Interface Sci. 313, 102861 (2023).
  15. J. G. Leidenfrost, On the fixation of water in diverse fire, Int. J. Heat Mass Transf. 9, 1153 (1966).
  16. J. G. Leidenfrost, De Aquae Communis Nonnullis Qualitatibus Tractatus (Ovenius, Duisburg, 1756).
  17. H. Linke, B. J. Alemán, L. D. Melling, M. J. Taormina, M. J. Francis, C. C. Dow-Hygelund, V. Narayanan, R. P. Taylor, and A. Stout, Self-propelled Leidenfrost droplets, Phys. Rev. Lett. 96, 154502 (2006).
  18. G. Lagubeau, M. Le Merrer, C. Clanet, and D. Quéré, Leidenfrost on a ratchet, Nat. Phys. 7, 395 (2011).
  19. P. Bourrianne, C. Lv, and D. Quéré, The cold Leidenfrost regime, Sci. Adv. 5, eaaw0304 (2019).
  20. M. Mrinal, X. Wang, and C. Luo, Self-rotation-induced propulsion of a Leidenfrost drop on a ratchet, Langmuir 33, 6307 (2017).
  21. A. Bouillant, T. Mouterde, P. Bourrianne, A. Lagarde, C. Clanet, and D. Quéré, Leidenfrost wheels, Nat. Phys. 14, 1188 (2018).
  22. M. Sakai, H. Kono, A. Nakajima, X. Zhang, H. Sakai, M. Abe, and A. Fujishima, Sliding of water droplets on the superhydrophobic surface with ZnO nanorods, Langmuir 25, 14182 (2009).
  23. M. Sakai, J.-H. Song, N. Yoshida, S. Suzuki, Y. Kameshima, and A. Nakajima, Direct observation of internal fluidity in a water droplet during sliding on hydrophobic surfaces, Langmuir 22, 4906 (2006).
  24. T. Mouterde, P. S. Raux, C. Clanet, and D. Quéré, Superhydrophobic frictions, Proc. Natl. Acad. Sci. USA 116, 8220 (2019).
  25. M. Backholm, D. Molpeceres, M. Vuckovac, H. Nurmi, M. J. Hokkanen, V. Jokinen, J. V. Timonen, and R. H. Ras, Water droplet friction and rolling dynamics on superhydrophobic surfaces, Commun. Mater. 1, 64 (2020).
  26. M. Backholm, T. Kärki, H. A. Nurmi, M. Vuckovac, V. Turkki, S. Lepikko, V. Jokinen, D. Quéré, J. V. Timonen, and R. H. Ras, Toward vanishing droplet friction on repellent surfaces, Proc. Natl. Acad. Sci. USA 121, e2315214121 (2024).
  27. J. P. Rothstein, Slip on superhydrophobic surfaces, Annu. Rev. Fluid Mech. 42, 89 (2010).
  28. H.-J. Butt, N. Gao, P. Papadopoulos, W. Steffen, M. Kappl, and R. Berger, Energy dissipation of moving drops on superhydrophobic and superoleophobic surfaces, Langmuir 33, 107 (2017).
  29. L. Mahadevan and Y. Pomeau, Rolling droplets, Phys. Fluids 11, 2449 (1999).
  30. P. Olin, S. B. Lindström, T. Pettersson, and L. Wagberg, Water drop friction on superhydrophobic surfaces, Langmuir 29, 9079 (2013).
  31. E. Sawaguchi, A. Matsuda, K. Hama, M. Saito, and Y. Tagawa, Droplet levitation over a moving wall with a steady air film, J. Fluid Mech. 862, 261 (2019).
  32. D. Daniel, J. V. Timonen, R. Li, S. J. Velling, and J. Aizenberg, Oleoplaning droplets on lubricated surfaces, Nat. Phys. 13, 1020 (2017).
  33. A. Keiser, P. Baumli, D. Vollmer, and D. Quéré, Universality of friction laws on liquid-infused materials, Phys. Rev. Fluids 5, 014005 (2020).
  34. X. Li, F. Bodziony, M. Yin, H. Marschall, R. Berger, and H.-J. Butt, Kinetic drop friction, Nat. Commun. 14, 4571 (2023).
  35. S. Arunachalam, M. Lin, and D. Daniel, Probing the physical origins of droplet friction using a critically damped cantilever, Soft Matter 20, 7583 (2024).
  36. A. Keiser, L. Keiser, C. Clanet, and D. Quéré, Drop friction on liquid-infused materials, Soft Matter 13, 6981 (2017).
  37. X. Q. Koh, C. Thenarianto, V. Jokinen, and D. Daniel, Quantifying droplet–solid friction using an atomic force microscope, Droplet 3, e107 (2024).
  38. See Supplemental Material at http://link.aps.org/supplemental/10.1103/y86v-8rgs for supplemental videos.
  39. M. Backholm and O. Bäumchen, Micropipette force sensors for in vivo force measurements on single cells and multicellular microorganisms, Nat. Protoc. 14, 594 (2019).
  40. A. Gauthier, M. Rivetti, J. Teisseire, and E. Barthel, Finite size effects on textured surfaces: Recovering contact angles from vagarious drop edges, Langmuir 30, 1544 (2014).
  41. D. Daniel, A. Y. T. Chia, L. C. H. Moh, R. Liu, X. Q. Koh, X. Zhang, and N. Tomczak, Hydration lubrication of polyzwitterionic brushes leads to nearly friction-and adhesion-free droplet motion, Commun. Phys. 2, 105 (2019).
  42. D. Daniel, J. V. I. Timonen, R. Li, S. J. Velling, M. J. Kreder, A. Tetreault, and J. Aizenberg, Origins of extreme liquid repellency on structured, flat, and lubricated hydrophobic surfaces, Phys. Rev. Lett. 120, 244503 (2018).
  43. L. Landau and B. Levich, Dragging of a liquid by a moving plate, in Dynamics of Curved Fronts (Elsevier, New York, 1988), p. 141.
  44. F. Schellenberger, J. Xie, N. Encinas, A. Hardy, M. Klapper, P. Papadopoulos, H.-J. Butt, and D. Vollmer, Direct observation of drops on slippery lubricant-infused surfaces, Soft Matter 11, 7617 (2015).
  45. N. Gao, F. Geyer, D. W. Pilat, S. Wooh, D. Vollmer, H.-J. Butt, and R. Berger, How drops start sliding over solid surfaces, Nat. Phys. 14, 191 (2018).
