Formation and vortex breakdown of the counter-rotating vortex pair in square and circular laminar jets in crossflow

F. C. Martins* and J. C. F. Pereira

  • *Contact author: francisco.c.g.martins@ist.utl.pt
PDF

Phys. Rev. Fluids 10, 094703 – Published 10 September, 2025

DOI: https://doi.org/10.1103/lp11-vm7k

Abstract

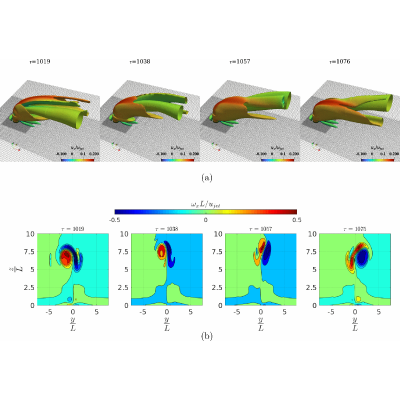

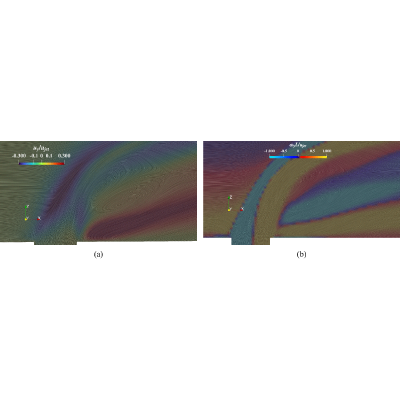

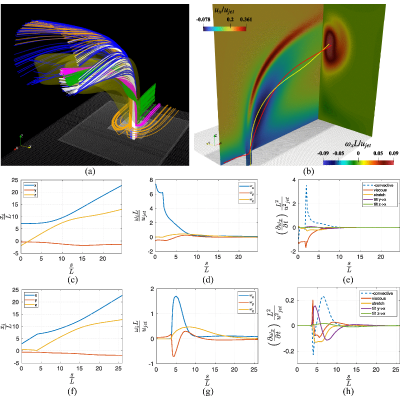

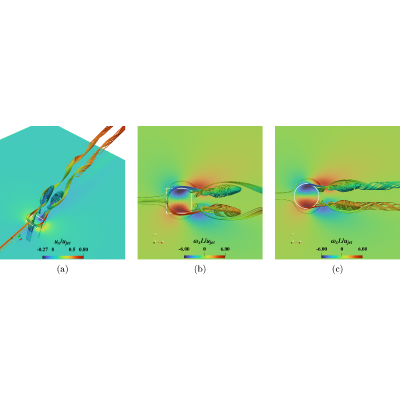

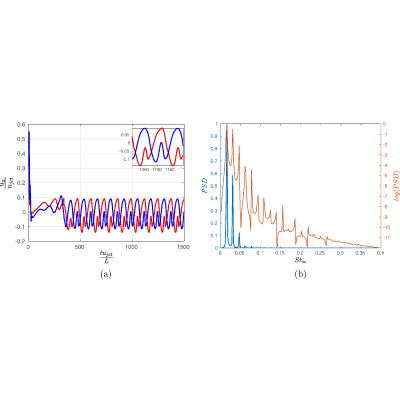

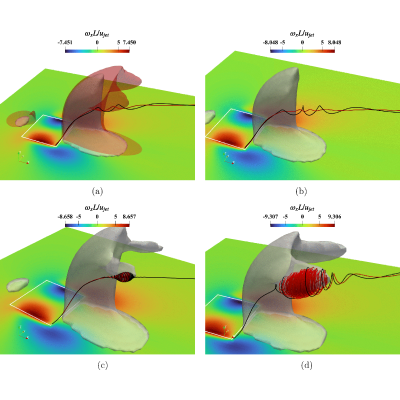

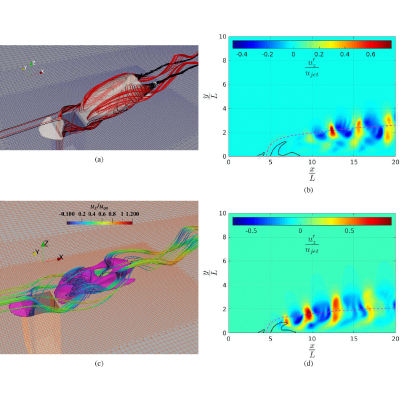

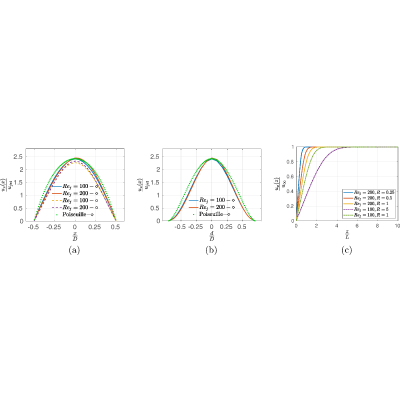

Laminar jets in crossflow are analyzed using direct numerical simulation to identify the source of vorticity leading to the formation of the counter-rotating vortex pair. A vorticity transport analysis conducted on steady cases shows that all counter-rotating vortex pair vorticity is generated in the nozzle walls for large velocity ratio jets (R), but that additional boundary layer vorticity is entrained at low R. The transport mechanisms are quantified and discussed in detail, including the influence of having a square jet cross section. The study also examines the effect of varying the velocity ratio in the range 0.25≤R≤5 and the jet Reynolds number in the range 100≤Rejet≤300. Increasingly complex flow patterns are revealed, even in the steady regime, including the onset of bubble vortex breakdown of the counter-rotating vortex pair. Breakdown onset is quantified and analyzed in detail, revealing that it is a gradual process that depends on the jet vorticity and the adverse pressure gradient formed downstream of the jet inlet. Additionally, breakdown is discovered to precede the onset of unsteady flow for decreasing R and fixed Rejet for jets with both cross sections. A newly discovered asymmetric instability is identified at Rejet=300 and characterized, where each of the counter-rotating vortices undergoes breakdown while oscillating laterally at low frequency. Hairpin vortex shedding, typical of low R laminar jets in crossflow, is captured in our simulations. Breakdown bubbles are identified for R>0.4, where the flow remains approximately steady in the near field. For R≤0.4, the increasing fluctuation amplitude in the near field results in the rollup of fluid and the destruction of the breakdown bubbles in the instantaneous flow field.

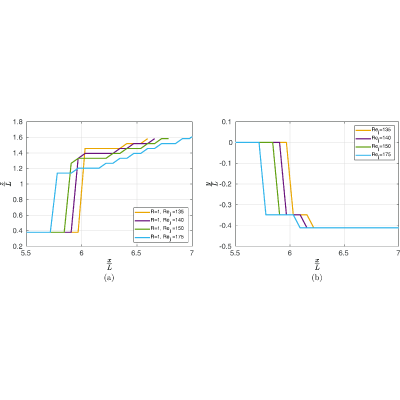

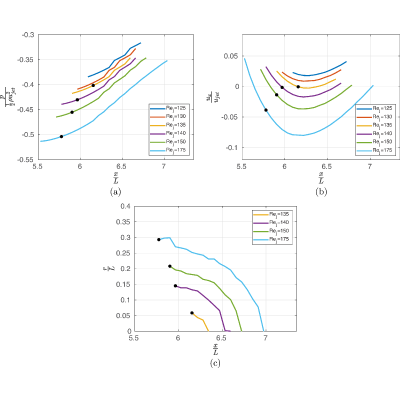

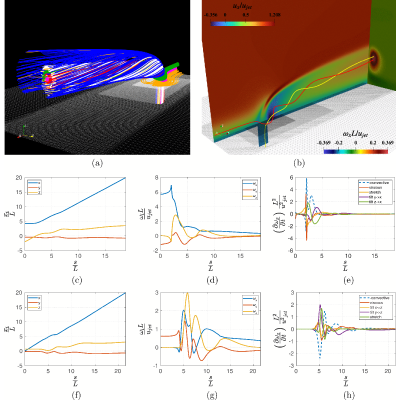

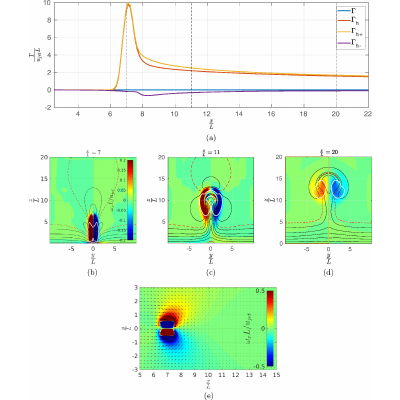

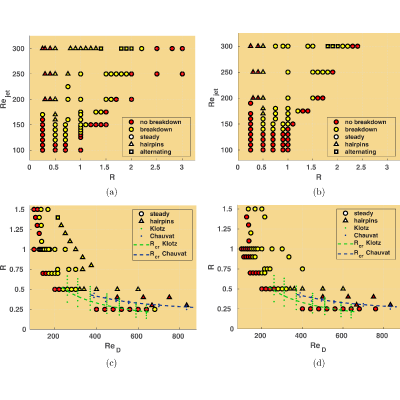

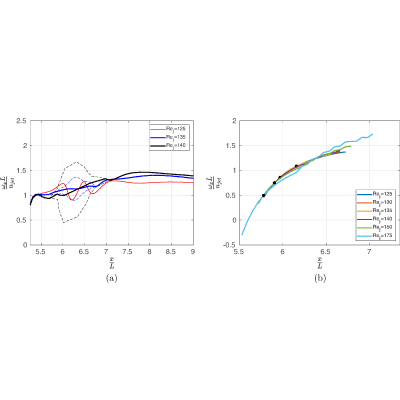

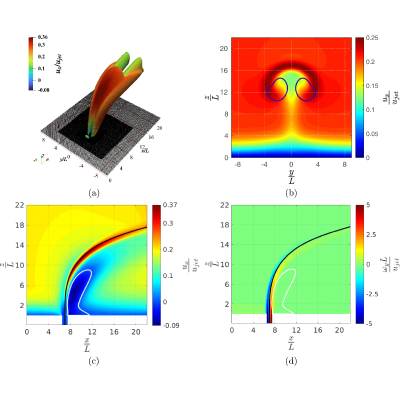

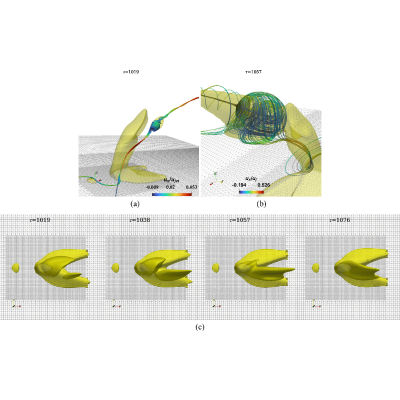

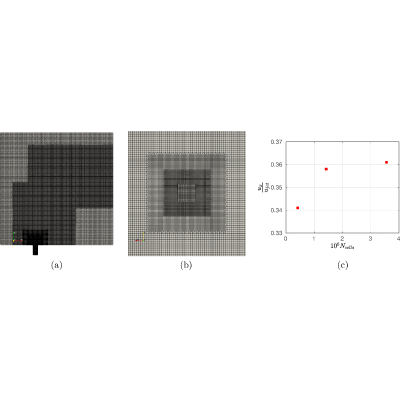

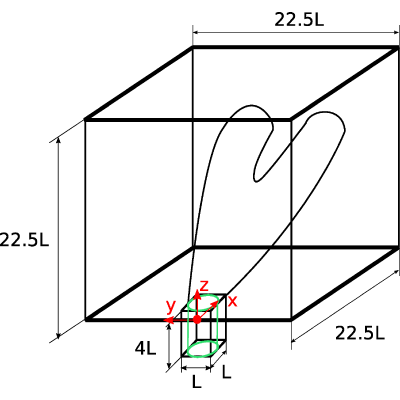

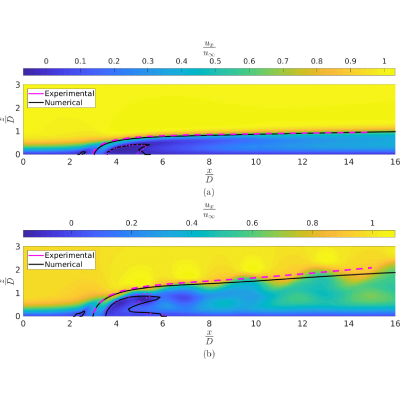

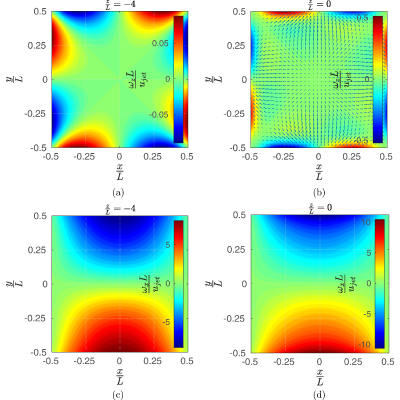

View figure in article

Physics Subject Headings (PhySH)

Article Text

References (51)

  1. E. E. Callaghan, Investigation of the Penetration of an AirJet Directed Perpendicularly to an Air Stream (National Advisory Committee for Aeronautics, Hampton, VA, 1948), p. 1615.
  2. T. T. Rice, K. Taylor, and M. Amitay, Pulse modulation of synthetic jet actuators for control of separation, Phys. Rev. Fluids 6, 093902 (2021).
  3. M. Popovac and K. Hanjalić, Vortices and heat flux around a wall-mounted cube cooled simultaneously by a jet and a crossflow, Int. J. Heat Mass Transf. 52, 4047 (2009), special Issue Honoring Professor D. Brian Spalding.
  4. E. Liu, X. Liu, M. Zhao, H. Zheng, J. Lu, and Z. Zhang, Turbulent fuel-air mixing study of jet in crossflow at different velocity ratios using les, Int. J. Heat Fluid Flow 85, 108633 (2020).
  5. L. Zhang and V. Yang, Flow dynamics and mixing of a transverse jet in crossflow—Part I: Steady crossflow, J. Eng. Gas Turbines Power 139, 082601 (2017).
  6. H. Chung and J. R. Koseff, Interaction of a buoyant plume with a turbulent canopy mixing layer, Phys. Rev. Fluids 8, 064501 (2023).
  7. G. G. J. Ernst, J. P. Davis, and R. S. J. Sparks, Bifurcation of volcanic plumes in a crosswind, Bull. Volcanol. 56, 159 (1994).
  8. K. Mahesh, The interaction of jets with crossflow, Annu. Rev. Fluid Mech. 45, 379 (2013).
  9. E. W. Harris, T. Shoji, A. Besnard, S. G. Schein, R. T. M'Closkey, L. Cortelezzi, and A. R. Karagozian, Effects of controlled vortex generation and interactions in transverse jets, Phys. Rev. Fluids 7, 013902 (2022).
  10. A. Sau, T. W. H. Sheu, R. R. Hwang, and W. C. Yang, Three-dimensional simulation of square jets in cross-flow, Phys. Rev. E 69, 066302 (2004).
  11. T. F. Fric and A. Roshko, Vortical structure in the wake of a transverse jet, J. Fluid Mech. 279, 1 (1994).
  12. R. M. Kelso and A. J. Smits, Horseshoe vortex systems resulting from the interaction between a laminar boundary layer and a transverse jet, Phys. Fluids 7, 153 (1995).
  13. A. Rivero, J. A. Ferre, and F. Giralt, Organized motions in a jet in crossflow, J. Fluid Mech. 444, 117 (2001).
  14. B. Wegner, Y. Huai, and A. Sadiki, Comparative study of turbulent mixing in jet in cross-flow configurations using les, Int. J. Heat Fluid Flow 25, 767 (2004).
  15. L. Cortelezzi and A. R. Karagozian, On the formation of the counter-rotating vortex pair in transverse jets, J. Fluid Mech. 446, 347 (2001).
  16. R. Camussi, G. Guj, and A. Stella, Experimental study of a jet in a crossflow at very low Reynolds number, J. Fluid Mech. 454, 113 (2002).
  17. P. Schlatter, S. Bagheri, and D. S. Henningson, Self-sustained global oscillations in a jet in crossflow, Theor. Comput. Fluid Dyn. 25, 129 (2011).
  18. R. M. Kelso, T. T. Lim, and A. E. Perry, An experimental study of round jets in cross-flow, J. Fluid Mech. 306, 111 (1996).
  19. M. Shinohara and S. Matsushima, Formation of fire whirls: Experimental verification that a counter-rotating vortex pair is a possible origin of fire whirls, Fire Safety J. 54, 144 (2012).
  20. B. A. C. Barata, F. C. Martins, and J. C. F. Pereira, Les of fire plumes subjected to crosswind inducing vertical vorticity, Fire Safety J. 144, 104112 (2024).
  21. G. Chauvat, A. Peplinski, D. S. Henningson, and A. Hanifi, Global linear analysis of a jet in cross-flow at low velocity ratios, J. Fluid Mech. 889, A12 (2020).
  22. T. Cambonie and J.-L. Aider, Transition scenario of the round jet in crossflow topology at low velocity ratios, Phys. Fluids 26, 084101 (2014).
  23. L. Klotz, K. Gumowski, and J. E. Wesfreid, Experiments on a jet in a crossflow in the low-velocity-ratio regime, J. Fluid Mech. 863, 386 (2019).
  24. G. Bidan and D. E. Nikitopoulos, On steady and pulsed low-blowing-ratio transverse jets, J. Fluid Mech. 714, 393 (2013).
  25. J.-M. Chomaz, Global instabilities in spatially developing flows: Non-normality and nonlinearity, Annu. Rev. Fluid Mech. 37, 357 (2005).
  26. M. Ilak, P. Schlatter, S. Bagheri, and D. S. Henningson, Bifurcation and stability analysis of a jet in cross-flow: Onset of global instability at a low velocity ratio, J. Fluid Mech. 696, 94 (2012).
  27. M. B. Jovanović, H. C. Lange, and A. Steenhoven, Effect of hole imperfection on adiabatic film cooling effectiveness, Int. J. Heat Fluid Flow 29, 377 (2008).
  28. S. L. V. Coelho and J. C. R. Hunt, The dynamics of the near field of strong jets in crossflows, J. Fluid Mech. 200, 95 (1989).
  29. T. H. New, T. T. Lim, and S. C. Luo, Elliptic jets in cross-flow, J. Fluid Mech. 494, 119 (2003).
  30. P. Huq and M. R. Dhanak, The bifurcation of circular jets in crossflow, Phys. Fluids 8, 754 (1996).
  31. Y. Lv, H. Wei, T. Liu, X. Zhao, Y. Liu, B. Huang, and G. Wang, Numerical investigation of the round jet in crossflow at high velocity ratios with special emphasis on the evolution of vortex structures, Phys. Fluids 34, 034116 (2022).
  32. L. L. Yuan, R. L. Street, and J. H. Ferziger, Large-eddy simulations of a round jet in crossflow, J. Fluid Mech. 379, 71 (1999).
  33. O. Sgarzi and F. Leboeuf, Analysis of Vortices in Three-Dimensional Jets Introduced in a Cross-Flow Boundary-layer, 78682 (ASME, New York, NY, 1997).
  34. Z. Shi, J. WU, and J. WU, Symmetric and asymmetric jets in a uniform crossflow, in Proceedings of the 29th Aerospace Sciences Meeting (AIAA, Reno, 1991), p. 722.
  35. K. Jia, T. Scofield, M. Wei, and S. Bhattacharya, Vorticity transfer in a leading-edge vortex due to controlled spanwise bending, Phys. Rev. Fluids 6, 024703 (2021).
  36. J. M. Akkala and J. H. J. Buchholz, Vorticity transport mechanisms governing the development of leading-edge vortices, J. Fluid Mech. 829, 512 (2017).
  37. F. C. Martins, J. M. C. Pereira, and J. C. F. Pereira, Vorticity transport in laminar steady rotating plumes, Phys. Fluids 32, 043604 (2020).
  38. B. A. Haven and M. Kurosaka, Kidney and anti-kidney vortices in crossflow jets, J. Fluid Mech. 352, 27 (1997).
  39. M. G. Hall, Vortex breakdown, Annu. Rev. Fluid Mech. 4, 195 (1972).
  40. S. T. Chan, J. T. Ault, S. J. Haward, E. Meiburg, and A. Q. Shen, Coupling of vortex breakdown and stability in a swirling flow, Phys. Rev. Fluids 4, 084701 (2019).
  41. P. Moise and J. Mathew, Bubble and conical forms of vortex breakdown in swirling jets, J. Fluid Mech. 873, 322 (2019).
  42. B. R. Morton, The generation and decay of vorticity, Geophys. Astrophys. Fluid Dyn. 28, 277 (1984).
  43. H. G. Weller, G. Tabor, H. Jasak, and C. Fureby, A tensorial approach to computational continuum mechanics using object-oriented techniques, Comput. Phys. 12, 620 (1998).
  44. P. J. Roache, Verification and Validation in Computational Science and Engineering, Vol. 895 (Hermosa, Albuquerque, NM, 1998).
  45. I. Danaila, J. Dušek, and F. Anselmet, Coherent structures in a round, spatially evolving, unforced, homogeneous jet at low Reynolds numbers, Phys. Fluids 9, 3323 (1997).
  46. M. S. Chong, A. E. Perry, and B. J. Cantwell, A general classification of three-dimensional flow fields, Phys. Fluids 2, 765 (1990).
  47. A. Bejan, S. Ziaei, and S. Lorente, Evolution: Why all plumes and jets evolve to round cross sections, Sci. Rep. 4, 4730 (2014).
  48. S. Leibovich, The structure of vortex breakdown, Annu. Rev. Fluid Mech. 10, 221 (1978).
  49. G. L. Brown and J. M. Lopez, Axisymmetric vortex breakdown: Part 2. Physical mechanisms, J. Fluid Mech. 221, 553 (1990).
  50. S. Muppidi and K. Mahesh, Direct numerical simulation of round turbulent jets in crossflow, J. Fluid Mech. 574, 59 (2007).
  51. F. C. Martins and J. C. F. Pereira, Numerical study of laminar unsteady circular and square jets in crossflow in the low velocity ratio regime, Fluids 9, 292 (2024).
