Signature function: A scale-by-scale measure of turbulent kinetic energy
Phys. Rev. Fluids 11, 104608 – Published 22 October, 2026
DOI: https://doi.org/10.1103/6nhp-63v9
Abstract

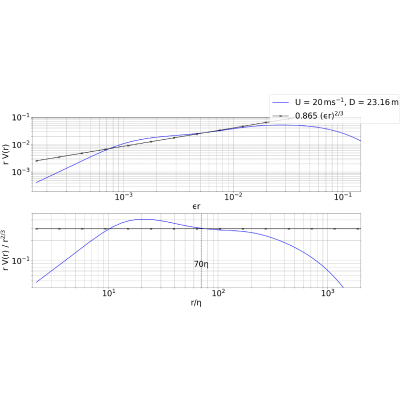

A real-space measure of the scale-by-scale distribution of turbulent kinetic energy was introduced in [P. A. Davidson, Turbulence: An Introduction for Scientists and Engineers (Oxford University Press, Oxford, 2004)], called the signature function. However, this signature function has two weaknesses. First, although measurements suggest that it is positive in fully developed turbulence, non-negative results cannot be guaranteed. Second, its definition involves derivatives, and so its calculation from experimental data is sensitive to noise. Here, we develop a refinement of the original signature function. This version improves on the original in that it can be shown to be strictly positive in isotropic turbulence. Moreover, it is obtained from experimental data through a process of integration, rather than differentiation, and so is less sensitive to noise. We apply this diagnostic to grid turbulence. Here the signature function is shown to recover many of the expected features of a scale-by-scale energy density. For example, it falls off below ten Kolmogorov scales and also for scales that exceed the integral scale. Moreover, it exhibits a 2/3 law in the inertial subrange, coupled to a bottleneck at the top of the dissipation range. We also apply the signature function to the near-wall region of smooth and rough-wall boundary layers. Although the diagnostic is not guaranteed to stay positive in such a shear layer, in practice it is observed to remain positive. As with grid turbulence, the signature function captures the expected features of a scale-by-scale energy distribution. In particular, it confirms that the energy of the large eddies near the wall scales on the square of the shear velocity.
Physics Subject Headings (PhySH)
Article Text
References (15)
- A. A. Townsend, The Structure of Turbulent Shear Flow (Cambridge University Press, Cambridge, UK, 1956).
- P. A. Davidson, Turbulence: An Introduction for Scientists and Engineers (Oxford University Press, Oxford, UK, 2004).
- P. A. Davidson and B. R. Pearson, Identifying turbulent energy distributions in real, rather than Fourier, space, Phys Rev. Let. 95, 214501 (2005).
- L. Danaila, J. F. Krawczynski, F. Thiesset, and B. Renou, Yaglom-like equation in axisymmetric anisotropic turbulence, Physica D 241, 216 (2012).
- F. Hamba, Turbulent energy density in scale space for inhomogeneous turbulence, J. Fluid Mech. 842, 532 (2018).
- F. Hamba, Scale-space energy density for inhomogeneous turbulence based on filtered velocities, J. Fluid Mech. 931, A34 (2022).
- H. Tennekes and J. L. Lumley, A First Course in Turbulence (MIT Press, Cambridge, MA, 1972).
- A. S. Monin and A. M. Yaglom, Statistical Fluid Mechanics, Volume II (MIT Press, Cambridge, MA, 1975).
- P.-Å. Krogstad and P. A. Davidson, Freely decaying, homogeneous turbulence generated by multi-scale grids, J. Fluid Mech. 680, 417 (2011).
- M. Bourgoin, C. Baudet, S. Kharche, N. Mordant, T. Vandenberghe, S. Sumbekova, N. Stelzenmuller, A. Aliseda, M. Gibert, P.-E. Roche, R. Volk, T. Barois, M. L. Caballero, L. Chevillard, J.-F. Pinton, L. Fiabane, J. Delville, C. Fourment, A. Bouha, L. Danaila, et al., Investigation of the small-scale statistics of turbulence in the Modane S1MA wind tunnel, CEAS Aeronaut. J. 9, 269 (2018).
- P. A. Davidson, T. B. Nickels, and P.-A. Krogstad, The logarithmic structure function law in wall-layer turbulence, J. Fluid Mech. 550, 51 (2006).
- P. A. Davidson, P.-A. & Krogstad, and T. B. Nickels, A refined interpretation of the logarithmic structure function law in wall layer turbulence, Phys. Fluids. 18, 065112 (2006).
- P. A. Davidson and P.-A. Krogstad, A universal scaling for low-order structure functions in the log-law region of smooth- and rough-wall boundary layers, J. Fluid Mech. 752, 140 (2014).
- N. Hutchins, T. B. Nickels, I. Marusic, and M. S. Chong, Hot-wire spatial resolution issues in wall-bounded turbulence, J. Fluid Mech. 635, 103 (2009).
- D. Chandran, R. Baidya, J. P. Monty, and I. Marusic, Two-dimensional energy spectra in high-Reynolds-number turbulent boundary layers, J. Fluid Mech. 826, R1 (2017).
