Compressible boundary layers over isotropic porous surfaces

Ludovico Fossà*,† and Pierre Ricco

  • School of Mechanical, Aerospace and Civil Engineering, Mappin Building, University of Sheffield, S13JD Sheffield, United Kingdom

  • *Contact author: ludovico-fossa@oist.jp
  • †Present address: Complex Fluids and Flows Unit, Okinawa Institute of Science and Technology Graduate University, 1919-1 Tancha, Onna-son, Kunigami-gun, Okinawa-ken 904-0495, Japan.
PDF

Phys. Rev. Fluids 10, 094101 – Published 29 September, 2025

DOI: https://doi.org/10.1103/5j49-bxxs

Abstract

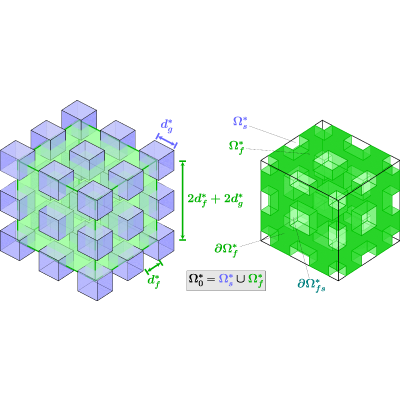

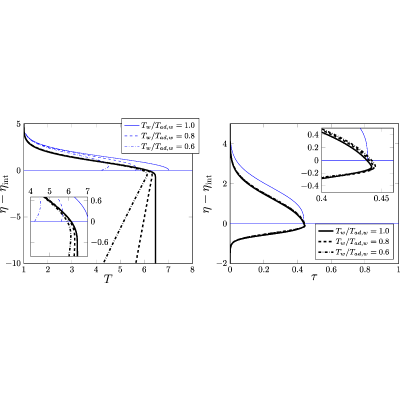

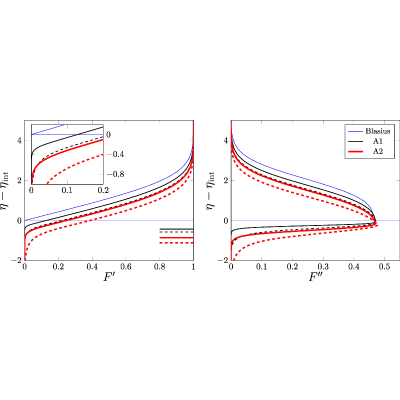

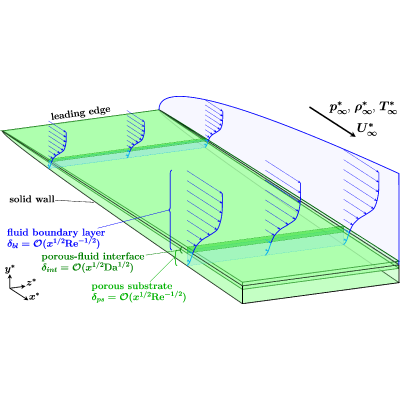

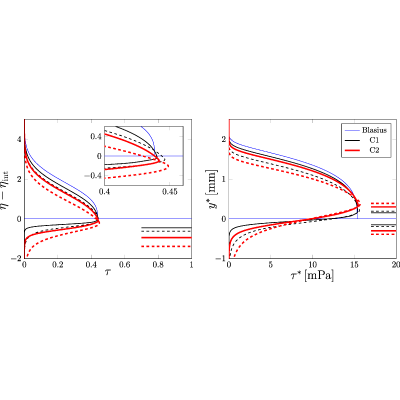

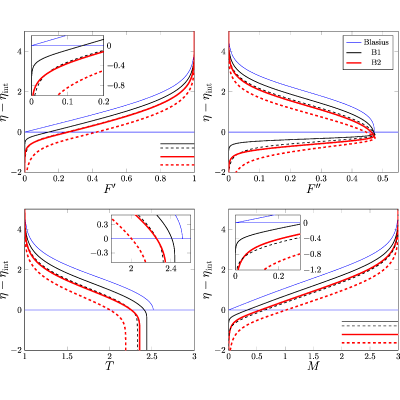

A compressible laminar boundary layer developing over an isotropic porous substrate is investigated by asymptotic and numerical methods. The substrate is modeled as an array of cubes. The momentum and enthalpy balance equations are derived by volume averaging. The self-similar solution proposed by Tsiberkin [Transp. Porous Media 121, 109 (2018)] for streamwise-growing permeability is extended to include compressibility, heat conduction, and a nonlinear drag. The velocity profile shows an inflection point at the free fluid-porous interfacial layer, below which it decreases to zero. A marked reduction of the adiabatic recovery temperature of the fluid and the velocity gradient at the interface is observed for high porosity, large grains, and relatively high Mach numbers. The temperature imposed at the bottom of the porous substrate has a negligible influence on the shear stresses.

View figure in article

Physics Subject Headings (PhySH)

Article Text

References (55)

  1. D. A. Nield and A. Bejan, Convection in Porous Media (Springer International, New York, 2017).
  2. K. Vafai and S.-J. Kim, Analysis of surface enhancement by a porous substrate, J. Heat Transf. 112, 700 (1990).
  3. D. A. Nield and A. V. Kuznetsov, Boundary-layer analysis of forced convection with a plate and porous substrate, Acta Mech. 166, 141 (2003).
  4. W. P. Breugem, B. J. Boersma, and R. E. Uittenbogaard, The laminar boundary layer over a permeable wall, Transp. Porous Media 59, 267 (2005).
  5. K. Tsiberkin On the structure of the steady-state flow velocity field near the interface between a homogeneous liquid and a Brinkman porous medium, Tech. Phys. 61, 1181 (2016).
  6. W. P. Breugem, B. J. Boersma, and R. E. Uittenbogaard, The influence of wall permeability on turbulent channel flow, J. Fluid Mech. 562, 35 (2006).
  7. Z. Wu and P. Mirbod, Experimental analysis of the flow near the boundary of random porous media, Phys. Fluids 30, 047103 (2018).
  8. J. Härter, D. S. Martínez, R. Poser, B. Weigand, and G. Lamanna, Coupling between a turbulent outer flow and an adjacent porous medium: high resolved particle image velocimetry measurements, Phys. Fluids 35, 022105 (2023).
  9. M. Kaviany, Boundary-layer treatment of forced convection heat transfer from a semi-infinite flat plate embedded in porous media, J. Heat Transf. 109, 345 (1987).
  10. A. Nakayama, T. Kokudai, and H. Koyama, Non-Darcian boundary layer flow and forced convective heat transfer over a flat plate in a fluid-saturated porous medium, J. Heat Transf. 112, 157 (1990).
  11. M. V. Papalexandris, Boundary-layer flow in a porous domain above a flat plate, J. Eng. Math. 140, 4 (2023).
  12. G. Neale and W. Nader, Practical significance of Brinkman's extension of Darcy's law: coupled parallel flows within a channel and a bounding porous medium, Can. J. Chem. Eng. 52, 475 (1974).
  13. J. A. Ochoa-Tapia and S. Whitaker, Momentum transfer at the boundary between a porous medium and a homogeneous fluid–I. Theoretical development, Int. J. Heat Mass Transf. 38, 2635 (1995).
  14. D. A. Nield, Modelling high speed flow of a compressible fluid in a saturated porous medium, Transp. Porous Media 14, 85 (1994).
  15. J. Bear and Y. Bachmat, Introduction to Modeling of Transport Phenomena in Porous Media (Kluwer Academic, Dordrecht, 1990).
  16. S. Whitaker, The Method of Volume Averaging (Kluwer Academic, Dordrecht, 1998).
  17. A De Ville, On the properties of compressible gas flow in a porous media, Transp. Porous Media 22, 287 (1996).
  18. S. G. Mironov, A. A. Maslov, T. V. Poplavskaya, and S. V. Kirilovskiy, Modeling of a supersonic flow around a cylinder with a gas-permeable porous insert, J. Appl. Mech. Tech. Phys. 56, 549 (2015).
  19. A. A. Maslov, S. G. Mironov, T. V. Poplavskaya, and S. V. Kirilovskiy, Supersonic flow around a cylinder with a permeable high-porosity insert: experiment and numerical simulation, J. Fluid Mech. 867, 611 (2019).
  20. C. L. Running, B. L. Bemis, J. L. Hill, M. P. Borg, J. J. Redmond, K. Jantze, and C. Scalo, Attenuation of hypersonic second-mode boundary-layer instability with an ultrasonically absorptive silicon-carbide foam, Exp. Fluids 64, 79 (2023).
  21. E. M. Sparrow, H. Quack, and C. J. Boerner, Local nonsimilarity boundary-layer solutions, AIAA J. 8, 1936 (1970).
  22. T. Cebeci, Convective Heat Transfer (Horizons, Heidelberg, 2002).
  23. K. Tsiberkin, Effect of inertial terms on fluid-porous medium flow coupling, Transp. Porous Media 121, 109 (2018).
  24. K. Tsiberkin, Inertial and Darcy's terms ratio in boundary layer at fluid-porous medium interface, Transp. Porous Media 125, 259 (2018).
  25. K. Stewartson, The Theory of Laminar Boundary Layers in Compressible Fluids (Clarendon Press, Oxford, 1964).
  26. J. D. Anderson, Hypersonic and High-temperature Gas Dynamics (AIAA, Reston, Virginia, USA, 2019).
  27. S. Whitaker, Advances in theory of fluid motion in porous media, Ind. Eng. Chem. 61, 14 (1969).
  28. Y. Bachmat and J. Bear, Macroscopic modelling of transport phenomena in porous media. 1: the continuum approach, Transp. Porous Media 1, 213 (1986).
  29. S. Sorek, D. Levi-Hevroni, A. Levy, and G. Ben-Dor, Extensions to the macroscopic Navier-Stokes equation, Transp. Porous Media 61, 215 (2005).
  30. M. Quintard and S. Whitaker, Transport in ordered and disordered porous media II: generalized volume averaging, Transp. Porous Media 14, 179 (1994).
  31. W. P. Breugem and B. J. Boersma, Direct numerical simulations of turbulent flow over a permeable wall using a direct and a continuum approach, Phys. Fluids 17, 025103 (2005).
  32. W. G. Gray, A derivation of the equations for multi-phase transport, Chem. Eng. Sci. 30, 229 (1975).
  33. S. Whitaker, Flow in porous media I: a theoretical derivation of Darcy's law, Transp. Porous Media 1, 3 (1986).
  34. S. Whitaker, The Forchheimer equation: a theoretical development, Transp. Porous Media 25, 27 (1996).
  35. D. Lasseux and F. J. Valdés-Parada, On the developments of Darcy's law to include inertial and slip effects, C. R. Méc. 345, 660 (2017).
  36. Z. Khalifa, L. Pocher, and N. Tilton, Regimes of flow through cylinder arrays subject to steady pressure gradients, Int. J. Heat Mass Transf. 159, 120072 (2020).
  37. J. Barrère, O. Gipouloux, and S. Whitaker, On the closure problem for Darcy's law, Transp. Porous Media 7, 209 (1992).
  38. A. Costa, Permeability-porosity relationship: a reexamination of the kozeny-carman equation based on a fractal pore-space geometry assumption, Geophys. Res. Lett. 33, L02318 (2006).
  39. M. D. M. Innocentini, P. Sepulveda, and F. S. Ortega, Permeability (Wiley-VCH, 2006), Chap. 4.2.
  40. H. Wedin and S. Cherubini, Permeability models affecting nonlinear stability in the asymptotic suction boundary layer: the Forchheimer versus the Darcy model, Fluid Dyn. Res. 48, 061411, (2016).
  41. D. A. Nield, The limitations of the Brinkman-Forchheimer equation in modeling flow in a saturated porous medium and at an interface, Int. J. Heat Fluid Flow 12, 269 (1991).
  42. N. Tilton and L. Cortelezzi, Stability of boundary layers over porous walls with suction, AIAA J. 53, 2856 (2015).
  43. N. Tilton and L. Cortelezzi, Linear stability analysis of pressure-driven flows in channels with porous walls, J. Fluid Mech. 604, 411 (2008).
  44. G. Emanuel and J. P. Jones, Compressible flow through a porous plate, Int. J. Heat Mass Transf. 11, 827 (1968).
  45. R. P. Shreeve, Supersonic flow from a porous metal plate, AIAA J. 6, 752 (1968).
  46. M. Celli, D. A. S. Rees, and A. Barletta, The effect of local thermal non-equilibrium on forced convection boundary layer flow from a heated surface in porous media, Int. J. Heat Mass Transf. 53, 3533 (2010).
  47. M. V. Papalexandris, Thermal boundary-layer solutions for forced convection in a porous domain above a flat plate, J. Eng. Math. 144, 3 (2024).
  48. M. van Dyke, Perturbation Methods in Fluid Mechanics (Parabolic, Stanford, 1975).
  49. P. S. Negi, M. Mishra, and M. Skote, DNS of a single low-speed streak subject to spanwise wall oscillations, Flow, Turbul. Combust. 94, 795 (2015).
  50. A. Goharzadeh, A. Khalili, and B. B. Jørgensen, Transition layer thickness at a fluid-porous interface, Phys. Fluids 17, 057102 (2005).
  51. W. P. Breugem, The influence of wall permeability on laminar and turbulent flows: theory and simulations, PhD. thesis, TU Delft, 2005.
  52. P. Graziosi and G. L. Brown, Experiments on stability and transition at Mach 3, J. Fluid Mech. 472, 83 (2002).
  53. A. A. Maslov, A. N. Shiplyuk, A. A. Sidorenko, and D. Arnal, Leading-edge receptivity of a hypersonic boundary layer on a flat plate, J. Fluid Mech. 426, 73 (2001).
  54. H. B. Keller and T. Cebeci, Accurate numerical methods for boundary layer flows i: two dimensional laminar flows, in Proceedings of the Second International Conference on Numerical Methods in Fluid Dynamics, edited by M. Holt (Springer, Berlin, 1971), pp. 92–100.
  55. H. B. Keller and T. Cebeci, Accurate numerical methods for boundary-layer flows II: two dimensional turbulent flows, AIAA J. 10, 1193 (1972).
