Nonequilibrium pathways between cluster morphologies in active phase separation: Necking, rupture, and cavitation

Liheng Yao (姚立衡)1,2, Michael E. Cates1, and Robert L. Jack1,3

PDF

Phys. Rev. E 114, 014148 – Published 28 July, 2026

DOI: https://doi.org/10.1103/vdps-lhr9

Abstract

We investigate the dynamical pathways of a morphological transition in a two-dimensional active lattice gas undergoing motility-induced phase separation. The transition is between two locally stable morphologies of the liquid cluster: a system-spanning “slab” and a compact “droplet.” We generate trajectories of this transition in both directions using forward flux sampling. We find that the droplet-to-slab transition always follows a similar mechanism to its equilibrium counterpart, but the reverse (slab-to-droplet) transition depends on rare nonequilibrium fluctuations. At low Péclet numbers the equilibrium and nonequilibrium pathways compete, while at high Péclet numbers the equilibrium pathway is entirely suppressed, and the only allowed mechanism involves a large vapor bubble. We discuss the implications of these findings for active matter systems more generally.

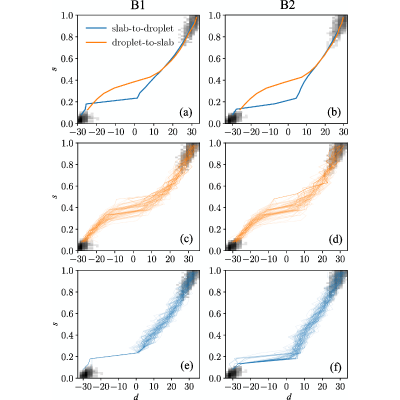

View figure in article

Physics Subject Headings (PhySH)

Collections

This article appears in the following collection:

Controlling Stochastic Dynamics Across Scales

We present a Collection of papers on Controlling Stochastic Dynamics Across Scales. It seeks to highlight novel studies on controlling the dynamics of complex stochastic systems with a rich phenomenology. Guest editors of the Collection are Étienne Fodor of the University of Luxembourg and Todd Gingrich of Northwestern University.

Article Text

References (60)

  1. J. Tailleur and M. E. Cates, Statistical mechanics of interacting run-and-tumble bacteria, Phys. Rev. Lett. 100, 218103 (2008).
  2. Y. Fily and M. C. Marchetti, Athermal phase separation of self-propelled particles with no alignment, Phys. Rev. Lett. 108, 235702 (2012).
  3. G. S. Redner, M. F. Hagan, and A. Baskaran, Structure and dynamics of a phase-separating active colloidal fluid, Phys. Rev. Lett. 110, 055701 (2013).
  4. M. E. Cates and C. Nardini, Active phase separation: New phenomenology from non-equilibrium physics, Rep. Prog. Phys. 88, 056601 (2025).
  5. P. Dupuis and R. S. Ellis, A Weak Convergence Approach to the Theory of Large Deviations (Wiley, New York, 1997).
  6. R. Chetrite and H. Touchette, Variational and optimal control representations of conditioned and driven processes, J. Stat. Mech. (2015) P12001.
  7. R. L. Jack and P. Sollich, Effective interactions and large deviations in stochastic processes, Eur. Phys. J.: Spec. Top. 224, 2351 (2015).
  8. A. Das and D. T. Limmer, Variational control forces for enhanced sampling of nonequilibrium molecular dynamics simulations, J. Chem. Phys. 151, 244123 (2019).
  9. A. Das, D. C. Rose, J. P. Garrahan, and D. T. Limmer, Reinforcement learning of rare diffusive dynamics, J. Chem. Phys. 155, 134105 (2021).
  10. E. R. Heller and D. T. Limmer, Evaluation of transition rates from nonequilibrium instantons, Phys. Rev. Res. 6, 043110 (2024).
  11. M. Venturoli, E. Vanden-Eijnden, and G. Ciccotti, Kinetics of phase transitions in two dimensional Ising models studied with the string method, J. Math. Chem. 45, 188 (2009).
  12. C. Moritz, A. Tröster, and C. Dellago, Interplay of fast and slow dynamics in rare transition pathways: The disk-to-slab transition in the 2d Ising model, J. Chem. Phys. 147, 152714 (2017).
  13. K. Lum and D. Chandler, Phase diagram and free energies of vapor films and tubes for a confined fluid, Int. J. Thermophys. 19, 845 (1998).
  14. D. Nicolaides and R. Evans, Monte Carlo study of phase transitions in a confined lattice gas, Phys. Rev. B 39, 9336 (1989).
  15. A. Vishnyakov and A. V. Neimark, Nucleation of liquid bridges and bubbles in nanoscale capillaries, J. Chem. Phys. 119, 9755 (2003).
  16. A. Luzar and K. Leung, Dynamics of capillary evaporation. I. Effect of morphology of hydrophobic surfaces, J. Chem. Phys. 113, 5836 (2000).
  17. K. Leung and A. Luzar, Dynamics of capillary evaporation. II. Free energy barriers, J. Chem. Phys. 113, 5845 (2000).
  18. R. Evans, Fluids adsorbed in narrow pores: Phase equilibria and structure, J. Phys.: Condens. Matter 2, 8989 (1990).
  19. A. Tröster and K. Binder, Positive Tolman length in a lattice gas with three-body interactions, Phys. Rev. Lett. 107, 265701 (2011).
  20. A. Tröster, M. Oettel, B. Block, P. Virnau, and K. Binder, Numerical approaches to determine the interface tension of curved interfaces from free energy calculations, J. Chem. Phys. 136, 064709 (2012).
  21. L. Yao and R. L. Jack, Interfacial and density fluctuations in a lattice model of motility-induced phase separation, J. Chem. Phys. 162, 114902 (2025).
  22. R. J. Allen, D. Frenkel, and P. R. ten Wolde, Simulating rare events in equilibrium or nonequilibrium stochastic systems, J. Chem. Phys. 124, 024102 (2006).
  23. R. J. Allen, D. Frenkel, and P. R. ten Wolde, Forward flux sampling-type schemes for simulating rare events: Efficiency analysis, J. Chem. Phys. 124, 194111 (2006).
  24. R. J. Allen, C. Valeriani, and P. R. ten Wolde, Forward flux sampling for rare event simulations, J. Phys.: Condens. Matter 21, 463102 (2009).
  25. S. Hussain and A. Haji-Akbari, Studying rare events using forward-flux sampling: Recent breakthroughs and future outlook, J. Chem. Phys. 152, 060901 (2020).
  26. J. Bialké, J. T. Siebert, H. Löwen, and T. Speck, Negative interfacial tension in phase-separated active Brownian particles, Phys. Rev. Lett. 115, 098301 (2015).
  27. A. Patch, D. M. Sussman, D. Yllanes, and M. C. Marchetti, Curvature-dependent tension and tangential flows at the interface of motility-induced phases, Soft Matter 14, 7435 (2018).
  28. E. Tjhung, C. Nardini, and M. E. Cates, Cluster phases and bubbly phase separation in active fluids: Reversal of the Ostwald process, Phys. Rev. X 8, 031080 (2018).
  29. L. Langford and A. K. Omar, Theory of capillary tension and interfacial dynamics of motility-induced phases, Phys. Rev. E 110, 054604 (2024).
  30. X.-Q. Shi, G. Fausti, H. Chaté, C. Nardini, and A. Solon, Self-organized critical coexistence phase in repulsive active particles, Phys. Rev. Lett. 125, 168001 (2020).
  31. G. Fausti, M. E. Cates, and C. Nardini, Statistical properties of microphase and bubbly phase-separated active fluids, Phys. Rev. E 110, L042103 (2024).
  32. G. Fausti, E. Tjhung, M. E. Cates, and C. Nardini, Capillary interfacial tension in active phase separation, Phys. Rev. Lett. 127, 068001 (2021).
  33. F. Turci and N. B. Wilding, Wetting transition of active Brownian particles on a thin membrane, Phys. Rev. Lett. 127, 238002 (2021).
  34. F. Turci, R. L. Jack, and N. B. Wilding, Partial and complete wetting of droplets of active Brownian particles, Soft Matter 20, 2060 (2024).
  35. Y. Zhao, R. Zakine, A. Daerr, Y. Kafri, J. Tailleur, and F. van Wijland, Wetting by active fluids, Nat. Phys. 22, 805 (2026).
  36. N. Grodzinski, M. E. Cates, and R. L. Jack, Hydrodynamic theory of wetting by active particles, Phys. Rev. E 113, 065423 (2026).
  37. N. Grodzinski, R. L. Jack, and M. E. Cates, Spontaneous ratchet currents and transition dynamics in active wetting, Phys. Rev. Lett. 136, 257101 (2026).
  38. D. Richard, H. Löwen, and T. Speck, Nucleation pathway and kinetics of phase-separating active Brownian particles, Soft Matter 12, 5257 (2016).
  39. R. J. Allen, C. Valeriani, S. Tănase-Nicola, P. R. ten Wolde, and D. Frenkel, Homogeneous nucleation under shear in a two-dimensional Ising model: Cluster growth, coalescence, and breakup, J. Chem. Phys. 129, 134704 (2008).
  40. S. Ryu and W. Cai, Numerical tests of nucleation theories for the Ising models, Phys. Rev. E 82, 011603 (2010).
  41. G. S. Redner, C. G. Wagner, A. Baskaran, and M. F. Hagan, Classical nucleation theory description of active colloid assembly, Phys. Rev. Lett. 117, 148002 (2016).
  42. D. M. Hoyle and S. M. Fielding, Age-dependent modes of extensional necking instability in soft glassy materials, Phys. Rev. Lett. 114, 158301 (2015).
  43. A. Moriel and E. Bouchbinder, Necking instabilities in elastoviscoplastic materials, Phys. Rev. Mater. 2, 073602 (2018).
  44. E. Y. Lin and R. A. Riggleman, Distinguishing failure modes in oligomeric polymer nanopillars, Soft Matter 15, 6589 (2019).
  45. K. Thijssen, T. B. Liverpool, C. P. Royall, and R. L. Jack, Necking and failure of a particulate gel strand: Signatures of yielding on different length scales, Soft Matter 19, 7412 (2023).
  46. P. Guan, S. Lu, M. J. B. Spector, P. K. Valavala, and M. L. Falk, Cavitation in amorphous solids, Phys. Rev. Lett. 110, 185502 (2013).
  47. I. Singh, R. Narasimhan, and U. Ramamurty, Cavitation-induced fracture causes nanocorrugations in brittle metallic glasses, Phys. Rev. Lett. 117, 044302 (2016).
  48. R. Long, C.-Y. Hui, J. P. Gong, and E. Bouchbinder, The fracture of highly deformable soft materials: A tale of two length scales, Annu. Rev. Condens. Matter Phys. 12, 71 (2021).
  49. J. Mason, C. Erignoux, R. L. Jack, and M. Bruna, Exact hydrodynamics and onset of phase separation for an active exclusion process, Proc. R. Soc. A 479, 20230524 (2023).
  50. C. Maes, Local detailed balance, SciPost Phys. Lect. Notes 32 (2021).
  51. D. T. Gillespie, Exact stochastic simulation of coupled chemical reactions, J. Phys. Chem. 81, 2340 (1977).
  52. N. Masuda and C. L. Vestergaard, Gillespie Algorithms for Stochastic Multiagent Dynamics in Populations and Networks (Cambridge University Press, Cambridge, UK, 2022).
  53. B. Peters, Reaction Rate Theory and Rare Events Simulations (Elsevier, Amsterdam, 2017).
  54. K. Kawasaki, Diffusion constants near the critical point for time-dependent Ising models. I, Phys. Rev. 145, 224 (1966).
  55. Y. Ben Dor, S. Ro, Y. Kafri, M. Kardar, and J. Tailleur, Disordered boundaries destroy bulk phase separation in scalar active matter, Phys. Rev. E 105, 044603 (2022).
  56. T. S. van Erp, Dynamical rare event simulation techniques for equilibrium and non-equilibrium systems, Adv. Chem. Phys. 151, 27 (2012).
  57. X. K. Xi, D. Q. Zhao, M. X. Pan, W. H. Wang, Y. Wu, and J. J. Lewandowski, Fracture of brittle metallic glasses: Brittleness or plasticity, Phys. Rev. Lett. 94, 125510 (2005).
  58. R. Wittkowski, A. Tiribocchi, J. Stenhammar, R. J. Allen, D. Marenduzzo, and M. E. Cates, Scalar ϕ4 field theory for active-particle phase separation, Nat. Commun. 5, 4351 (2014).
  59. M. E. Cates and C. Nardini, Classical nucleation theory for active fluid phase separation, Phys. Rev. Lett. 130, 098203 (2023).
  60. J. S. Liu, Monte Carlo Strategies in Scientific Computing, Springer Series in Statistics (Springer, New York, 2004).
