Beyond gradient descent: Adam for analog Ising machines

Stijn Van Vooren*, Guy Van der Sande, and Guy Verschaffelt

  • *Contact author: Stijn.Van.Vooren@vub.be
PDF

Phys. Rev. E 114, 045305 – Published 13 October, 2026

DOI: https://doi.org/10.1103/qg6g-nkf3

Abstract

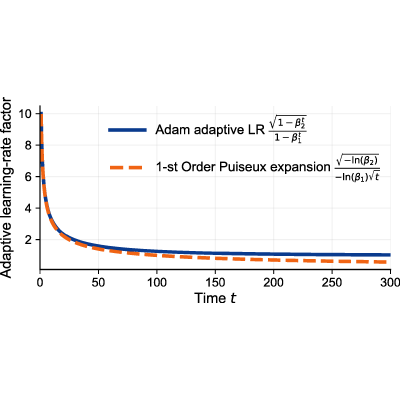

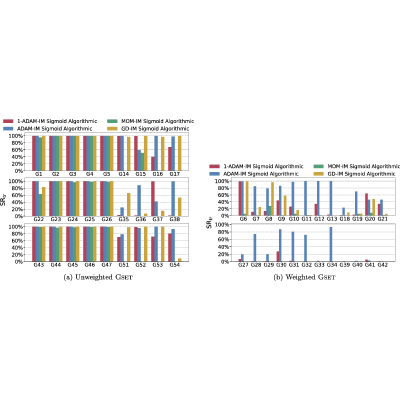

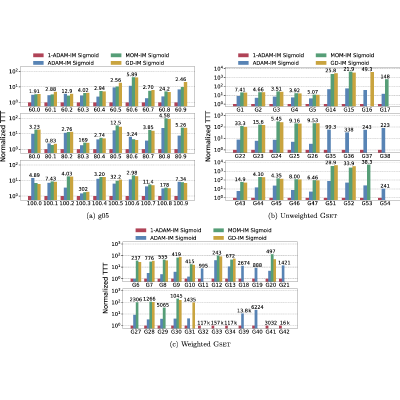

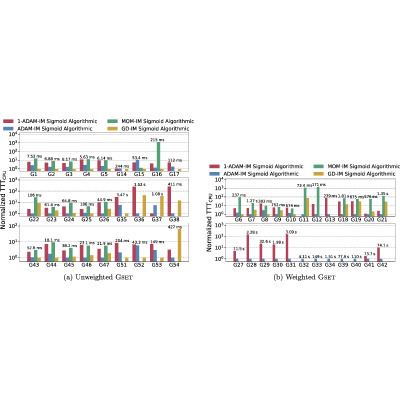

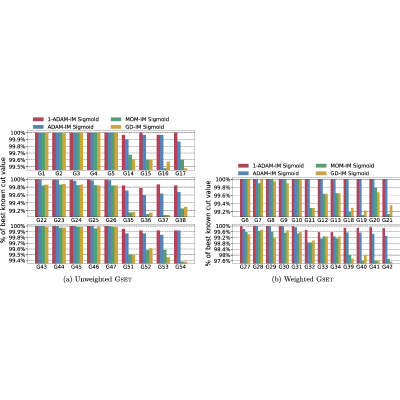

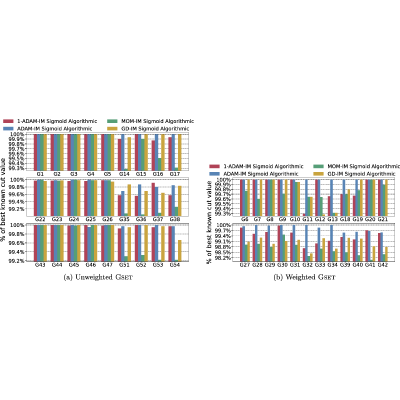

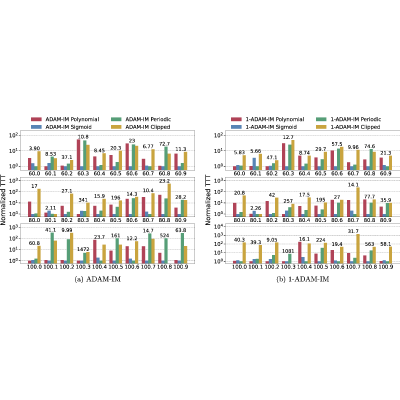

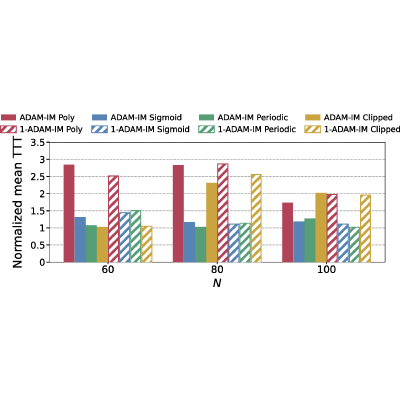

As Moore's law reaches its limits, Ising machines offer a promising alternative computing approach for difficult optimization problems. However, many analog, time-continuous Ising machines rely on gradient-descent-like dynamics to find solutions, which can limit speed and robustness. We investigate whether momentum and Adam optimization can improve these systems. Since these optimizers are traditionally formulated in discrete time, we derive continuous-time versions suitable for analog, time-continuous Ising-machine dynamics. On Max-Cut benchmarks, we find that Adam-based dynamics substantially reduce time to target and improve solution quality compared with gradient-descent- and momentum-based dynamics. We further introduce a first-order continuous-time approximation of Adam that is intended as a simpler starting point for future physical implementations and while performing better than the full Adam formulation in a continuous-time setting. We also study a purely algorithmic discrete-time setting, where the performance gap is reduced on easier problem instances, while the Adam-based update rule performs best on harder weighted problem instances. These results identify continuous-time Adam dynamics as a powerful design principle for analog Ising machines.

View figure in article

Physics Subject Headings (PhySH)

Article Text

Supplemental Material

References (31)

  1. T. N. Theis and H.-S. P. Wong, The end of Moore's law: A new beginning for information technology, Computi. Sci. Eng. 19, 41 (2017).
  2. J. Shalf, The future of computing beyond Moore's Law, Philos. Trans. R. Soc. A 378, 20190061 (2020).
  3. C. E. Leiserson, N. C. Thompson, J. S. Emer, B. C. Kuszmaul, B. W. Lampson, D. Sanchez, and T. B. Schardl, There's plenty of room at the top: What will drive computer performance after Moore's law? Science 368, eaam9744 (2020).
  4. M. W. Johnson, M. H. S. Amin, S. Gildert, T. Lanting, F. Hamze, N. Dickson, R. Harris, A. J. Berkley, J. Johansson, P. Bunyk, E. M. Chapple, C. Enderud, J. P. Hilton, K. Karimi, E. Ladizinsky, N. Ladizinsky, T. Oh, I. Perminov, C. Rich, M. C. Thom, et al., Quantum annealing with manufactured spins, Nature (London) 473, 194 (2011).
  5. Y. Yamamoto, K. Aihara, T. Leleu, K.-i. Kawarabayashi, S. Kako, M. Fejer, K. Inoue, and H. Takesue, Coherent Ising machines—Optical neural networks operating at the quantum limit, npj Quantum Inf. 3, 49 (2017).
  6. T. Inagaki, Y. Haribara, K. Igarashi, T. Sonobe, S. Tamate, T. Honjo, A. Marandi, P. L. McMahon, T. Umeki, K. Enbutsu, O. Tadanaga, H. Takenouchi, K. Aihara, K.-i. Kawarabayashi, K. Inoue, S. Utsunomiya, and H. Takesue, A coherent Ising machine for 2000-node optimization problems, Science 354, 603 (2016).
  7. F. Böhm, D. Alonso-Urquijo, G. Verschaffelt, and G. Van der Sande, Noise-injected analog Ising machines enable ultrafast statistical sampling and machine learning, Nat. Commun. 13, 5847 (2022).
  8. A. Lucas, Ising formulations of many NP problems, Front. Phys. 2, 1 (2014).
  9. Y. Zhang, Y. Deng, Y. Lin, Y. Jiang, Y. Dong, X. Chen, G. Wang, D. Shang, Q. Wang, H. Yu, and Z. Wang, Oscillator-network-based Ising machine, Micromachines 13, 1016 (2022).
  10. M. Babaeian, D. T. Nguyen, V. Demir, M. Akbulut, P.-A. Blanche, Y. Kaneda, S. Guha, M. A. Neifeld, and N. Peyghambarian, A single shot coherent Ising machine based on a network of injection-locked multicore fiber lasers, Nat. Commun. 10, 3516 (2019).
  11. H. Goto, K. Endo, M. Suzuki, Y. Sakai, T. Kanao, Y. Hamakawa, R. Hidaka, M. Yamasaki, and K. Tatsumura, High-performance combinatorial optimization based on classical mechanics, Sci. Adv. 7, eabe7953 (2021).
  12. T. Okuyama, T. Sonobe, K.-i. Kawarabayashi, and M. Yamaoka, Binary optimization by momentum annealing, Phys. Rev. E 100, 012111 (2019).
  13. D. Pierangeli, G. Marcucci, and C. Conti, Large-scale photonic Ising machine by spatial light modulation, Phys. Rev. Lett. 122, 213902 (2019).
  14. H. Goto, K. Tatsumura, and A. R. Dixon, Combinatorial optimization by simulating adiabatic bifurcations in nonlinear Hamiltonian systems, Sci. Adv. 5, eaav2372 (2019).
  15. L. Mys, G. Verschaffelt, and G. Van der Sande, Predicting the optimal noise strength for solving optimization problems with analog Ising machines, Phys. Rev. Applied 25, 034068 (2026).
  16. B. T. Polyak, Some methods of speeding up the convergence of iteration methods, USSR Comput. Math. Math. Phys. 4, 1 (1964).
  17. N. Mohseni, P. L. McMahon, and T. Byrnes, Ising machines as hardware solvers of combinatorial optimization problems, Nat. Rev. Phys. 4, 363 (2022).
  18. R. A. Brown, D. Venturelli, M. Pavone, and D. E. Bernal Neira, Accelerating continuous variable coherent Ising machines via momentum, in Integration of Constraint Programming, Artificial Intelligence, and Operations Research, edited by B. Dilkina (Springer Nature Switzerland, Cham, 2024), pp. 109–126.
  19. A. Barakat and P. Bianchi, Convergence and dynamical behavior of the ADAM algorithm for nonconvex stochastic optimization, SIAM J. Optim. 31, 244 (2021).
  20. F. Böhm, T. V. Vaerenbergh, G. Verschaffelt, and G. Van der Sande, Order-of-magnitude differences in computational performance of analog Ising machines induced by the choice of nonlinearity, Commun. Phys. 4, 149 (2021).
  21. H. Goto, R. Hidaka, and K. Tatsumura, Edge-of-chaos enhanced quantum-inspired algorithm for combinatorial optimization, Phys. Rev. Appl. 25, 044011 (2026).
  22. T. Leleu, Y. Yamamoto, P. L. McMahon, and K. Aihara, Destabilization of local minima in analog spin systems by correction of amplitude heterogeneity, Phys. Rev. Lett. 122, 040607 (2019).
  23. T. Leleu, F. Khoyratee, T. Levi, R. Hamerly, T. Kohno, and K. Aihara, Scaling advantage of chaotic amplitude control for high-performance combinatorial optimization, Commun. Phys. 4, 266 (2021).
  24. T. Leleu, S. Reifenstein, A. Yamamura, and S. Ganguli, Reshaping global loop structure to accelerate local optimization by smoothing rugged landscapes, arXiv:2602.01490.
  25. A. B. Da Silva and M. Gazeau, A general system of differential equations to model first-order adaptive algorithms, J. Mach. Learn. Res. 21, 5072 (2020).
  26. D. P. Kingma and J. Ba, Adam: A method for stochastic optimization, in 3rd International Conference on Learning Representations (ICLR, San Diego, CA, USA, 2015).
  27. See Supplemental Material at http://link.aps.org/supplemental/10.1103/qg6g-nkf3 for Bayesian-optimization details, learning-rate and nonlinearity checks, benchmark cut values, implementation comparisons, and TTT diagnostics, which includes Refs. [11, 22, 23, 30].
  28. F. Rendl, G. Rinaldi, and A. Wiegele, Solving Max-Cut to optimality by intersecting semidefinite and polyhedral relaxations, Math. Program. 121, 307 (2010).
  29. Y. Ye, Gset Max-Cut Problem Set (2003), https://web.stanford.edu/~yyye/yyye/Gset/.
  30. R. Martinez-Cantin, BayesOpt: A Bayesian optimization library for nonlinear optimization, experimental design and bandits, J. Mach. Learn. Res. 15, 3915 (2014).
  31. https://github.com/StijnVanVooren/Adam-analog-ising-machines.
