Nonlocal current-driven heat flow in ideal plasmas

Nicholas Mitchell1, David Chapman2, and Grigory Kagan1

PDF

Phys. Rev. E 112, L053202 – Published 24 November, 2025

DOI: https://doi.org/10.1103/jn8x-nfv2

Abstract

Electron heat flux is an important and often dominant mechanism of energy transport in a variety of collisional plasmas in a confined fusion or astrophysical context. While nonlocal conductive heat transport, driven by strong temperature gradients, has been investigated extensively in previous literature, nonlocal regimes of the current-driven heat flow and friction have not received the same attention. In this Letter, a first-principles reduced kinetic method is applied to study nonlocal effects on current-driven transport. In addition to nonlocality due to sharp gradients, sufficiently large currents are found to significantly enhance current-driven heat flux due to a novel nonlocal mechanism, with this enhancement being increasingly prevalent for higher effective ionizations Z*. Introducing the dimensionless number Nu≡|ue−ui|/vth,e, these enhancements occur for even relatively weak flows Nu≳1/100, analogously to standard nonlocal effects becoming significant for Knudsen numbers NK≳1/100.

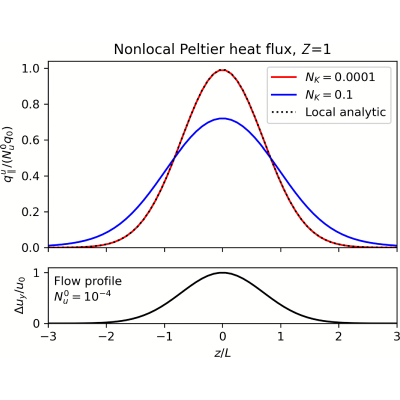

View figure in article

Physics Subject Headings (PhySH)

Article Text

References (40)

  1. A. R. Bell, R. G. Evans, and D. J. Nicholas, Elecron energy transport in steep temperature gradients in laser-produced plasmas, Phys. Rev. Lett. 46, 243 (1981).
  2. J. D. Callen and M. W. Kissick, Evidence and concepts for non-local transport, Plasma Phys. Controlled Fusion 39, B173 (1997).
  3. H. G. Rinderknecht, P. A. Amendt, S. C. Wilks, and G. Collins, Kinetic physics in ICF: Present understanding and future directions, Plasma Phys. Controlled Fusion 60, 064001 (2018).
  4. D. Power, S. Mijin, M. Wigram, F. Militello, and R. Kingham, Scaling laws for electron kinetic effects in tokamak scrape-off layer plasmas, Nucl. Fusion 63, 086013 (2023).
  5. G. Gregori, S. H. Glenzer, J. Knight, C. Niemann, D. Price, D. H. Froula, M. J. Edwards, R. P. J. Town, A. Brantov, W. Rozmus, and V. Y. Bychenkov, Effect of nonlocal transport on heat-wave propagation, Phys. Rev. Lett. 92, 205006 (2004).
  6. Z. Chen, X. Yang, G. Zhang, Y. Ma, R. Yan, H. Xu, Z. Sheng, F. Shao, and J. Zhang, Role of nonlocal heat transport on the laser ablative Rayleigh-Taylor instability, Nucl. Fusion 64, 126029 (2024).
  7. R. Y. Lau, D. J. Strozzi, M. Sherlock, M. Weis, A. S. Joglekar, W. A. Farmer, Y. Shi, and J. R. Cary, Nonlocal effects on thermal transport in MagLIF-relevant gaspipes on NIF, Phys. Plasmas 32, 082104 (2025).
  8. N. B. Meezan, D. T. Woods, N. Izumi, H. Chen, H. A. Scott, M. B. Schneider, D. A. Liedahl, O. S. Jones, G. B. Zimmerman, J. D. Moody, O. L. Landen, and W. W. Hsing, Evidence of restricted heat transport in national ignition facility Hohlraums, Phys. Plasmas 27, 102704 (2020).
  9. S. Chapman, T. G. Cowling, and D. Park, The mathematical theory of non-uniform gases, Am. J. Phys. 30, 389 (1962).
  10. L. Spitzer, Physics of Fully Ionized Gases, 2nd ed. (Interscience, New York, 1962).
  11. S. I. Braginskii, Reviews of Plasma Physics (Consultants Bureau, New York, 1965), p. 205.
  12. E. M. Epperlein and M. G. Haines, Plasma transport coefficients in a magnetic field by direct numerical solution of the Fokker–Planck equation, Phys. Fluids 29, 1029 (1986).
  13. J.-Y. Ji and E. D. Held, Closure and transport theory for high-collisionality electron-ion plasmas, Phys. Plasmas 20, 042114 (2013).
  14. E. M. Epperlein and R. W. Short, A practical nonlocal model for electron heat transport in laser plasmas, Phys. Fluids B 3, 3092 (1991).
  15. H. Zhao, Z. Sheng, and S. Weng, Nonlocal thermal transport in magnetized plasma along different directions, Matter Radiat. Extremes 7, 045901 (2022).
  16. A. R. Bell and M. Sherlock, The fastvfp code for solution of the Vlasov–Fokker–Planck equation, Plasma Phys. Controlled Fusion 66, 035014 (2024).
  17. A. Thomas, M. Tzoufras, A. Robinson, R. Kingham, C. Ridgers, M. Sherlock, and A. Bell, A review of Vlasov–Fokker–Planck numerical modeling of inertial confinement fusion plasma, J. Comput. Phys. 231, 1051 (2012).
  18. G. P. Schurtz, P. D. Nicolaï, and M. Busquet, A nonlocal electron conduction model for multidimensional radiation hydrodynamics codes, Phys. Plasmas 7, 4238 (2000).
  19. P. D. Nicolaï, J.-L. A. Feugeas, and G. P. Schurtz, A practical nonlocal model for heat transport in magnetized laser plasmas, Phys. Plasmas 13, 032701 (2006).
  20. D. Del Sorbo, J.-L. Feugeas, P. Nicolaï, M. Olazabal-Loumé, B. Dubroca, S. Guisset, M. Touati, and V. Tikhonchuk, Reduced entropic model for studies of multidimensional nonlocal transport in high-energy-density plasmas, Phys. Plasmas 22, 082706 (2015).
  21. J. P. Brodrick, R. J. Kingham, M. M. Marinak, M. V. Patel, A. V. Chankin, J. T. Omotani, M. V. Umansky, D. Del Sorbo, B. Dudson, J. T. Parker, G. D. Kerbel, M. Sherlock, and C. P. Ridgers, Testing nonlocal models of electron thermal conduction for magnetic and inertial confinement fusion applications, Phys. Plasmas 24, 092309 (2017).
  22. C. Arran, M. Holec, M. Sherlock, M. Marinak, and C. P. Ridgers, The accuracy of multi-group models for nonlocal electron transport in magnetized plasmas, Phys. Plasmas 32, 043908 (2025).
  23. J. R. Sanmartín, Electron heat conduction in ICF targets, in Nuclear Fusion by Inertial Confinement, edited by G. Velarde, Y. Ronen, and J. M. Martinez-Val (CRC Press, Boca Raton, FL, 1992), Chap. 7, pp. 185–196.
  24. M. Holec, J. Nikl, and S. Weber, Nonlocal transport hydrodynamic model for laser heated plasmas, Phys. Plasmas 25, 032704 (2018).
  25. D. Bennaceur-Doumaz and A. Bendib, Nonlocal electron transport in magnetized plasmas with arbitrary atomic number, Phys. Plasmas 13, 092308 (2006).
  26. H. C. Watkins, Studies of magnetised and non-local transport in laser-plasma interactions, Ph.D. thesis, Imperial College London, 2019.
  27. P. Helander and D. J. Sigmar, Collisional Transport in Magnetized Plasmas (Canbridge University Press, Cambridge, UK, 2002).
  28. N. T. Mitchell, D. A. Chapman, C. J. McDevitt, M. P. Read, and G. Kagan, A reduced kinetic method for investigating non-local ion heat transport in ideal multi-species plasmas, Plasma Phys. Controlled Fusion 66, 075005 (2024).
  29. G. Kagan, D. Svyatskiy, H. G. Rinderknecht, M. J. Rosenberg, A. B. Zylstra, C.-K. Huang, and C. J. McDevitt, Self-similar structure and experimental signatures of suprathermal ion distribution in inertial confinement fusion implosions, Phys. Rev. Lett. 115, 105002 (2015).
  30. M. Casanova, O. Larroche, and J.-P. Matte, Kinetic simulation of a collisional shock wave in a plasma, Phys. Rev. Lett. 67, 2143 (1991).
  31. K. V. Lezhnin, S. R. Totorica, A. S. Hyder, J. Griff-McMahon, M. B. P. Adams, P. Tzeferacos, A. Diallo, and W. Fox, Particle-in-cell simulations of expanding high energy density plasmas with laser ray tracing, Phys. Plasmas 32, 022701 (2025).
  32. W.-S. Zhang, H.-B. Cai, B. Du, D.-G. Kang, S.-Y. Zou, and S.-P. Zhu, Full particle-in-cell simulation of the formation and structure of a collisional plasma shock wave, Phys. Rev. E 103, 023213 (2021).
  33. M. Luo, C. Heaton, Y. Wang, D. Plummer, M. Fitzgerald, F. Miniati, S. M. Vinko, and G. Gregori, Learning heat transport kernels using a nonlocal heat transport theory-informed neural network, Phys. Rev. Res. 7, L042017 (2025).
  34. S. X. Hu, L. A. Collins, T. R. Boehly, J. D. Kress, V. N. Goncharov, and S. Skupsky, First-principles thermal conductivity of warm-dense deuterium plasmas for inertial confinement fusion applications, Phys. Rev. E 89, 043105 (2014).
  35. N. Lopez, A. Bott, and A. Schekochihin, Collisional whistler instability and electron temperature staircase in inhomogeneous plasma, J. Plasma Phys. 91, E45 (2025).
  36. J. P. Chittenden and M. G. Haines, Nernst and Ettinghausen effects in the dense Z-pinch: Their impact upon equilibria and runaway electrons, J. Phys. D: Appl. Phys. 26, 1048 (1993).
  37. G. Farrow, J. P. Chittenden, and G. Kagan, Self-similar solutions for resistive diffusion, ohmic heating, and Ettingshausen effects in plasmas of arbitrary β, Phys. Plasmas 29, 032703 (2022).
  38. C. Walsh, Extended magneto-hydrodynamic effects in indirect-drive inertial confinement fusion experiments, Ph.D. thesis, Imperial College London, 2018.
  39. C. A. Walsh, J. P. Chittenden, K. McGlinchey, N. P. L. Niasse, and B. D. Appelbe, Self-generated magnetic fields in the stagnation phase of indirect-drive implosions on the national ignition facility, Phys. Rev. Lett. 118, 155001 (2017).
  40. https://github.com/Nic-Mitchell/CurrentDrivenTransport.
