Sliding of a cylindrical shell into a rigid hole

Yukiho Matsumoto1, Keisuke Yoshida2, and Tomohiko G. Sano1,3,*

  • 1School of Integrated Design Engineering, Graduate School of Science and Technology, Keio University, 3-14-1 Hiyoshi, Yokohama, Kanagawa 2238522, Japan
  • 2Research Organization of Science and Technology, Ritsumeikan University, Kusatsu, Shiga 525-8577, Japan
  • 3Department of Mechanical Engineering, Faculty of Science and Technology, Keio University, 3-14-1 Hiyoshi, Yokohama, Kanagawa 2238522, Japan

  • *Contact author: sano@mech.keio.ac.jp
PDF

Phys. Rev. E 113, 035501 – Published 3 March, 2026

DOI: https://doi.org/10.1103/hv9t-3h5w

Abstract

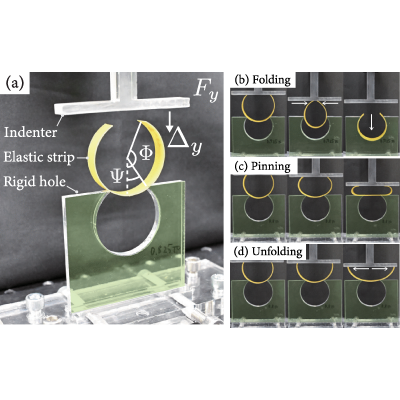

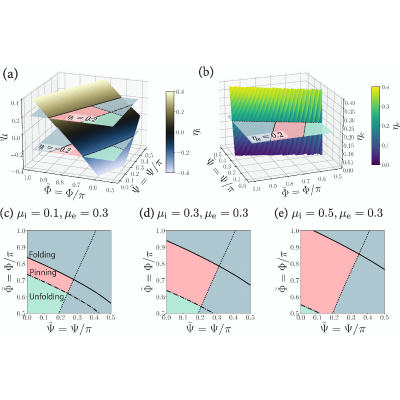

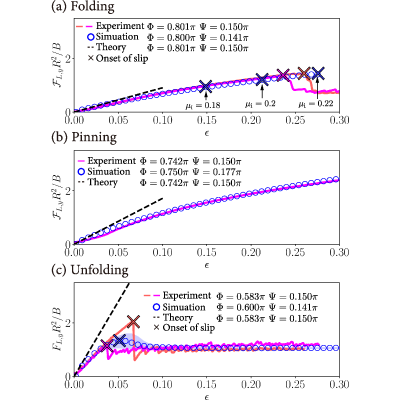

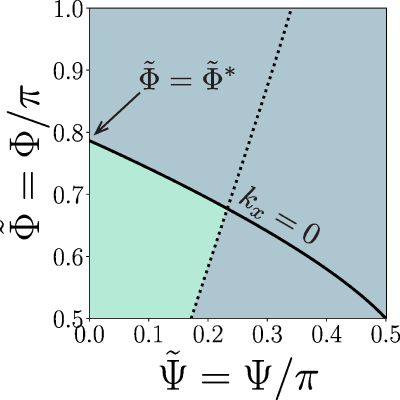

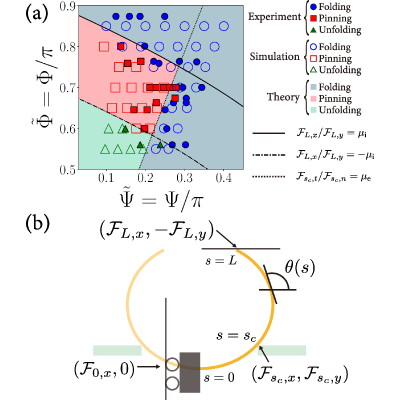

Fitting two different materials is a versatile methodology in manufacturing complex structures. One of the canonical models for fitting is the snap-fit model, in which flexible materials and rigid structures are assembled by pushing their interlocking components together. The assembly via snap-fit is often accompanied by large deformations of flexible structures and abrupt force drops, highlighting the role of elasticity, geometry, and contact friction. Despite several model studies revealing fundamental mechanics for snap-fit, the current snap-fit design relies on prototyping and empirical rules. In this paper, we analyze a snap-fit model in which a naturally curved beam slips into a rigid hole. We construct an analytical model based on the theory of elastica with contact friction and demonstrate that its predictions are in excellent quantitative agreement with both simulations and experiments. We find three distinct sliding modes: folding, pinning, and unfolding. The classification is systematically organized in a phase diagram based on the geometric parameters of the shells and the hole. Our study complements existing approaches by providing a predictive framework for contact-based structures that involve friction, elasticity, and geometry, and sheds light on a unified understanding of the interactions between an elastic and a rigid body.

View figure in article

Physics Subject Headings (PhySH)

Article Text

Supplemental Material

References (33)

  1. V. T. Moy, E.-L. Florin, and H. E. Gaub, Intermolecular forces and energies between ligands and receptors, Science 266, 257 (1994).
  2. R. Benson, Stick/slip conditions for a thin, incomplete, elastic ring impinging on a frictional barrier, J. Appl. Mech. 49, 231 (1982).
  3. M. Romano, D. A. Friedman, and T. J. Shay, Laboratory experimentation of autonomous spacecraft approach and docking to a collaborative target, J. Spacecr. Rockets 44, 164 (2007).
  4. K. Yoshida and H. Wada, Mechanics of a snap fit, Phys. Rev. Lett. 125, 194301 (2020).
  5. G. K. Curtis, I. M. Griffiths, and D. Vella, Bridging a gap: A heavy elastica between point supports, Int. J. Solids Struct. 326, 113702 (2026).
  6. L. D. Landau and E. M. Lifshitz, Theory of Elasticity (Pergamon Press, Oxford, 1980).
  7. T. G. Sano, T. Yamaguchi, and H. Wada, Slip morphology of elastic strips on frictional rigid substrates, Phys. Rev. Lett. 118, 178001 (2017).
  8. P. Grandgeorge, T. G. Sano, and P. M. Reis, An elastic rod in frictional contact with a rigid cylinder, J. Mech. Phys. Solids 164, 104885 (2022).
  9. T. R. Powers, Dynamics of filaments and membranes in a viscous fluid, Rev. Mod. Phys. 82, 1607 (2010).
  10. B. Audoly and Y. Pomeau, Elasticity and Geometry from Hair Curls to the Non-linear Response of Shells (Oxford University Press, Oxford, 2010).
  11. T. A. Ivey and D. A. Singer, Knot types, homotopies and stability of closed elastic rods, Proc. Lond. Math. Soc. 79, 429 (1999).
  12. N. Naik and V. Madhavan, Twisted impregnated yarns: Elastic properties, J. Strain Anal. Eng. Des. 35, 83 (2000).
  13. B. Audoly, N. Clauvelin, and S. Neukirch, Elastic knots, Phys. Rev. Lett. 99, 164301 (2007).
  14. J. Crassous, S. Poincloux, and A. Steinberger, Metastability of a periodic network of threads: Shapes of a knitted fabric, Phys. Rev. Lett. 133, 248201 (2024).
  15. A. Rafsanjani, Y. Zhang, B. Liu, S. M. Rubinstein, and K. Bertoldi, Kirigami skins make a simple soft actuator crawl, Sci. Rob. 3, eaar7555 (2018).
  16. T. G. Sano, E. Hohnadel, T. Kawata, T. Métivet, and F. Bertails-Descoubes, Randomly stacked open cylindrical shells as functional mechanical energy absorber, Commun. Mater. 4, 59 (2023).
  17. B. Gorissen, D. Melancon, N. Vasios, M. Torbati, and K. Bertoldi, Inflatable soft jumper inspired by shell snapping, Sci. Rob. 5, eabb1967 (2020).
  18. Y. Yang, K. Vella, and D. P. Holmes, Grasping with kirigami shells, Sci. Robot. 6, eabd6426 (2021).
  19. T. Abe, I. Hashiguchi, Y. Nakahara, S. Kobayashi, R. Tarumi, H. Takahashi, G. Ishigami, and T. G. Sano, Snap and jump: How elastic shells pop out, Adv. Robot. Syst. 1, 202500041 (2024).
  20. K. Yoshida and H. Wada, Indentation of an elastic arch on a frictional substrate: Pinning, unfolding, and snapping, Phys. Rev. E 109, 045001 (2024).
  21. C. Wang, A critical review of the heavy elastica, Int. J. Mech. Sci. 28, 549 (1986).
  22. X. Q. He, C. M. Wang, and K. Y. Lam, Analytical bending solutions of elastica with one end held while the other end portion slides on a friction support, Arch. Appl. Mech. (Ingenieur Archiv) 67, 543 (1997).
  23. M. Nizette and A. Goriely, Towards a classification of Euler-Kirchhoff filaments, J. Math. Phys. 40, 2830 (1999).
  24. R. H. Plaut, D. A. Dillard, and A. D. Borum, Collapse of heavy cantilevered elastica with frictional internal support, J. Appl. Mech. 78, (2011).
  25. F. Bosi, D. Misseroni, F. Dal Corso, and D. Bigoni, Self-encapsulation, or the ‘dripping’ of an elastic rod, Proc. R. Soc. A 471, 20150195 (2015).
  26. B. N. J. Persson, Sliding Friction Physical Principles and Applications (Springer Science & Business Media, Berlin, 2013).
  27. G. Chirico and J. Langowski, Kinetics of DNA supercoiling studied by Brownian dynamics simulation, Biopolym.: Orig. Res. Biomol. 34, 415 (1994).
  28. M. Bergou, M. Wardetzky, S. Robinson, B. Audoly, and E. Grinspun, Discrete elastic rods, in ACM SIGGRAPH 2008 Papers (ACM, New York, 2008), pp. 1–12.
  29. T. G. Sano, M. Pezzulla, and P. M. Reis, A Kirchhoff-like theory for hard magnetic rods under geometrically nonlinear deformation in three dimensions, J. Mech. Phys. Solids 160, 104739 (2022).
  30. V. Romero, M. Ly, A. H. Rasheed, R. Charrondière, A. Lazarus, S. Neukirch, and F. Bertails-Descoubes, Physical validation of simulators in computer graphics: A new framework dedicated to slender elastic structures and frictional contact, ACM Transactions on Graphics (TOG) 40, 1 (2021).
  31. See Supplemental Material at http://link.aps.org/supplemental/10.1103/hv9t-3h5w for the experimental and simulation movies.
  32. T. G. Sano, Sliding of cylindrical shell into a rigid hole, Zenodo (2025), 10.5281/zenodo.17756084.
  33. P. Grandgeorge, C. Baek, H. Singh, P. Johanns, T. G. Sano, A. Flynn, J. H. Maddocks, and P. M. Reis, Mechanics of two filaments in tight orthogonal contact, Proc. Natl. Acad. Sci. USA 118, e2021684118 (2021).
