Nonlinear effects in a strongly coupled nanoelectromechanical system

Narges Tarakameh Samani1, Farhad Shahbazi2, and Mehdi Abdi2

PDF

Phys. Rev. E 113, 034203 – Published 2 March, 2026

DOI: https://doi.org/10.1103/59mg-ffhg

Abstract

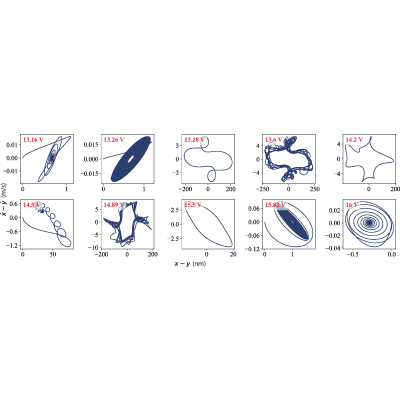

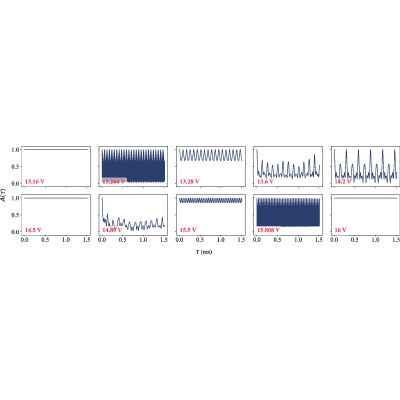

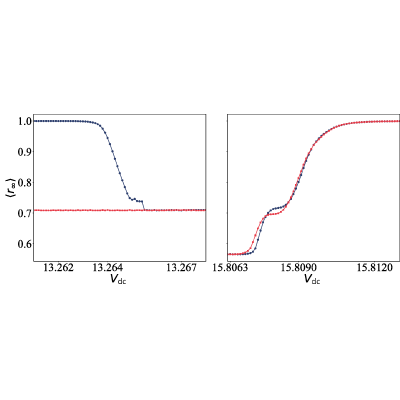

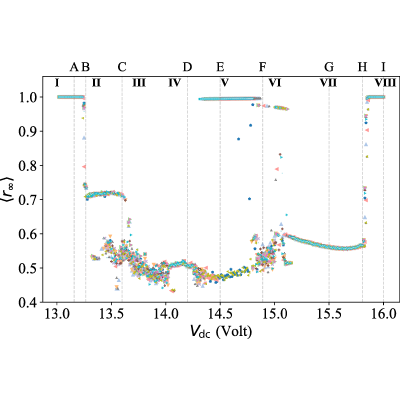

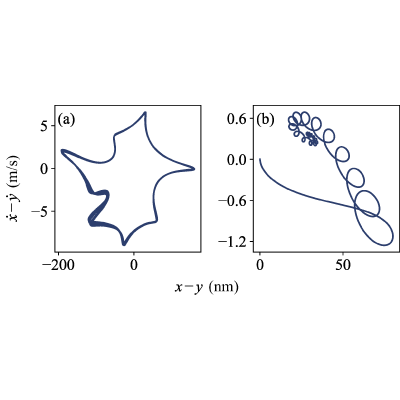

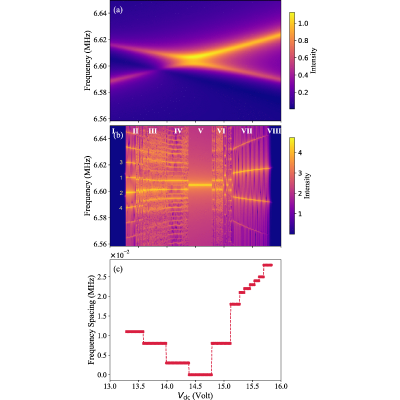

Controlling nonlinear effects in μ– and nanoelectromechanical systems is essential for unlocking their full potential in sensing, signal processing, and frequency control. In this study, we develop a voltage-dependent Hamiltonian framework for a nanoelectromechanical resonator with two strongly coupled vibrational modes, representative of a nanostring platform. The mode frequencies and couplings of the system are tuned electrostatically using a dc voltage, which also controls the strength of the interactions. Our theoretical model reproduces the experimentally observed avoided crossing in the absence of an ac drive and generates tunable frequency-comb spectra when a parametric drive is applied. By scanning the dc voltage, we generate a phase diagram that links comb formation and sharp regime boundaries to underlying bifurcations, multistability, and attractor switching. Phase-resolved diagnostics based on a Kuramoto order parameter, together with autocorrelation and Poincaré analyses, quantify coherence and critical slowing down near these transitions. We further explore the relationship between nonlinear coupling, parametric excitation, and stability transitions within a single device of experimental relevance and establish a dynamical framework for engineering nanoelectromechanical resonators that offer enhanced tunability, functionality, and a predictive link to experimental outcomes.

View figure in article

Physics Subject Headings (PhySH)

Article Text

References (41)

  1. A. Ignatenko, A. Buyadzhi, V. Buyadzhi, A. Kuznetsova, A. Mashkantsev, and E. Ternovsky, Nonlinear chaotic dynamics of quantum systems: molecules in an electromagnetic field, Advances in Quantum Chemistry (Elsevier, Amsterdam, 2019), Vol. 78, pp. 149–170.
  2. A. V. Melkikh, Nonlinearity of quantum mechanics and solution of the problem of wave function collapse, Commun. Theor. Phys. 64, 47 (2015).
  3. T. Huang, X. Zhao, S. Zeng, A. Crunteanu, P. P. Shum, and N. Yu, Planar nonlinear metasurface optics and their applications, Rep. Prog. Phys. 83, 126101 (2020).
  4. R. De Alba, F. Massel, I. R. Storch, T. S. Abhilash, A. Hui, P. L. McEuen, H. G. Craighead, and J. M. Parpia, Tunable phonon-cavity coupling in graphene membranes, Nat. Nanotechnol. 11, 741 (2016).
  5. G. Rega, Nonlinear dynamics in mechanics: State of the art and expected future developments, J. Comput. Nonlinear Dyn. 17, 080802 (2022).
  6. H. G. Craighead, Nanoelectromechanical systems, Science 290, 1532 (2000).
  7. F. Ben, J. Fernando, J.-Y. Ou, C. Dupré, E. Ollier, F. A. Hassani, H. Mizuta, and Y. Tsuchiya, Characterisation and modeling of nonlinear resonance behavior on very-high-frequency silicon nanoelectromechanical resonators, Micro Nano Eng. 19, 100212 (2023).
  8. K. Asadi, J. Yu, and H. Cho, Nonlinear couplings and energy transfers in micro-and nano-mechanical resonators: Intermodal coupling, internal resonance and synchronization, Philos. Trans. R. Soc. A 376, 20170141 (2018).
  9. T. Dinh, H. Phan, N. Nguyen, M. Rais-Zadeh, T. Nguyen, P. Song, J. Bell, D. Dao, and R. Deo, Micromachined mechanical resonant sensors: From materials, structural designs to applications, Adv. Mater. Technol. 9, 2300913 (2023).
  10. J. F. Rhoads, S. W. Shaw, and K. L. Turner, Nonlinear dynamics and its applications in micro-and nanoresonators, J. Dyn. Sys. Meas. Control. 132, 034001 (2010).
  11. K. L. Ekinci and M. L. Roukes, Nanoelectromechanical systems, Rev. Sci. Instrum. 76, 061101 (2005).
  12. L. Wei, X. Kuai, Y. Bao, J. Wei, L. Yang, P. Song, M. Zhang, F. Yang, and X. Wang, The recent progress of mems/nems resonators, Micromachines 12, 724 (2021).
  13. C. Samanta, P. R. Y. Gangavarapu, and A. K. Naik, Nonlinear mode coupling and internal resonances in MoS2 nanoelectromechanical system, Appl. Phys. Lett. 107, 173110 (2015).
  14. J. Rieger, T. Faust, M. J. Seitner, J. P. Kotthaus, and E. M. Weig, Frequency and q factor control of nanomechanical resonators, Appl. Phys. Lett. 101, 103110 (2012).
  15. C. Tu, J. E.-Y. Lee, and X.-S. Zhang, Dissipation analysis methods and q-enhancement strategies in piezoelectric mems laterally vibrating resonators: A review, Sensors 20, 4978 (2020).
  16. H. Jia, P. Xu, and X. Li, Integrated resonant micro/nano gravimetric sensors for bio/chemical detection in air and liquid, Micromachines 12, 645 (2021).
  17. F. R. Braakman and M. Poggio, Force sensing with nanowire cantilevers, Nanotechnology 30, 332001 (2019).
  18. C. Samanta, N. Arora, and A. K. Naik, Tuning of geometric nonlinearity in ultrathin nanoelectromechanical systems, Appl. Phys. Lett. 113, 113101 (2018).
  19. Z. Tang, Y. Xu, G. Li, and N. R. Aluru, Physical models for coupled electromechanical analysis of silicon nanoelectromechanical systems, J. Appl. Phys. 97, 114304 (2005).
  20. I. Pavithran, P. R. Midhun, and R. I. Sujith, Tipping in complex systems under fast variations of parameters, Chaos 33, 081105 (2023).
  21. T. M. Bury, C. T. Bauch, and M. Anand, Detecting and distinguishing tipping points using spectral early warning signals, J. R. Soc. Interface 17, 20200482 (2020).
  22. M. Scheffer, J. Bascompte, W. A. Brock, V. Brovkin, S. R. Carpenter, V. Dakos, H. Held, E. H. Van Nes, M. Rietkerk, and G. Sugihara, Early-warning signals for critical transitions, Nature (London) 461, 53 (2009).
  23. S. Mosca, M. Parisi, I. Ricciardi, F. Leo, T. Hansson, M. Erkintalo, P. Maddaloni, P. Denatale, S. Wabnitz, and M. De Rosa, Modulation instability induced frequency comb generation in a continuously pumped optical parametric oscillator, Phys. Rev. Lett. 121, 093903 (2018).
  24. D. A. Czaplewski, C. Chen, D. Lopez, O. Shoshani, A. M. Eriksson, S. Strachan, and S. W. Shaw, Bifurcation generated mechanical frequency comb, Phys. Rev. Lett. 121, 244302 (2018).
  25. J. S. Ochs, D. K. J. Boneß, G. Rastelli, M. Seitner, W. Belzig, M. I. Dykman, and E. M. Weig, Frequency comb from a single driven nonlinear nanomechanical mode, Phys. Rev. X 12, 041019 (2022).
  26. S. Rahmanian, H. Mouharrar, R. Abdelrahman, M. Akbari, Y. S. Shama, K. Musselman, D. Muñoz-Rojas, S. Basrour, and E. Abdel Rahman, Nems generated electromechanical frequency combs, Microsyst. Nanoeng. 11, 8 (2025).
  27. M. Park and A. Ansari, Formation, evolution, and tuning of frequency combs in microelectromechanical resonators, J. Microelectromech. Syst. 28, 429 (2019).
  28. A. Chiout, F. Correia, M.-Q. Zhao, A. T. Johnson, D. Pierucci, F. Oehler, A. Ouerghi, and J. Chaste, Multi-order phononic frequency comb generation within a MoS2 electromechanical resonator, Appl. Phys. Lett. 119, 173102 (2021).
  29. J. Wu, P. Song, S. Zang, L. Li, W. Zhang, and L. Shao, Limit cycle convergence leads to period-doubling and cyclic-fold bifurcation in internal resonance-induced mechanical frequency combs, Nonlinear Dyn. 113, 19289 (2025).
  30. M. J. Seitner, M. Abdi, A. Ridolfo, M. J. Hartmann, and E. M. Weig, Parametric oscillation, frequency mixing, and injection locking of strongly coupled nanomechanical resonator modes, Phys. Rev. Lett. 118, 254301 (2017).
  31. T. Faust, J. Rieger, M. J. Seitner, P. Krenn, J. P. Kotthaus, and E. M. Weig, Nonadiabatic dynamics of two strongly coupled nanomechanical resonator modes, Phys. Rev. Lett. 109, 037205 (2012).
  32. A. A. Barakat, A. Chowdhury, A. T. Le, and E. M. Weig, Modal coupling impacts the parametric normal mode splitting: Quantifying the tunable mode coupling of a nanomechanical resonator, arXiv:2412.16767.
  33. S. H. Strogatz, Nonlinear Dynamics and Chaos: With Applications to Physics, Biology, Chemistry, and Engineering, 2nd ed. (CRC Press, Boca Raton, FL, 2015).
  34. D. J. Shelton, G. D. Boreman, D. W. Peters, I. Brener, M. B. Sinclair, J. C. Ginn, and K. R. Coffey, Strong coupling between nanoscale metamaterials and phonons, Nano Lett. 11, 2104 (2011).
  35. K. Kashinath, M. P. Juniper, and I. C. Waugh, Nonlinear self-excited thermoacoustic oscillations of a ducted premixed flame: Bifurcations and routes to chaos, J. Fluid Mech. 761, 399 (2014).
  36. A. D. Poularikas and A. M. Grigoryan, Transforms and Applications Handbook, 3rd ed. (CRC Press, Boca Raton, FL, 2018).
  37. M. Z. E. Mahdavi and F. Shahbazi, Synchronization of two coupled massive oscillators in the time-delayed kuramoto model, Chaos 35, 013122 (2025).
  38. H. Koike, H. Takayasu, and M. Takayasu, Bifurcation and hysteresis in a nonlinear transport model on network motifs, Phys. Rev. Res. 6, 013059 (2024).
  39. D. Allemeier, I. I. Kaya, M. S. Hanay, and K. L. Ekinci, Multistability and noise-induced transitions in dispersively coupled nonlinear nanomechanical modes, Phys. Rev. A 112, 023505 (2025).
  40. A. N. Pisarchik and U. Feudel, Control of multistability, Phys. Rep. 540, 167 (2014).
  41. E. T. Phillips, B. Lindner, and H. Kantz, Stabilizing role of multiplicative noise in nonconfining potentials, Phys. Rev. Res. 7, 023146 (2025).
