Wall-enhanced dendritic growth: An exact Wiener-Hopf-Hankel solution for oblique reflection
Phys. Rev. E 114, 035506 – Published 8 September, 2026
DOI: https://doi.org/10.1103/361l-rq54
Abstract

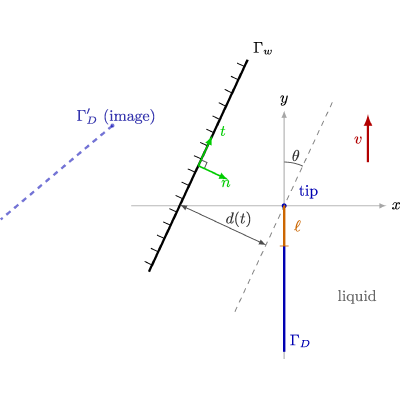

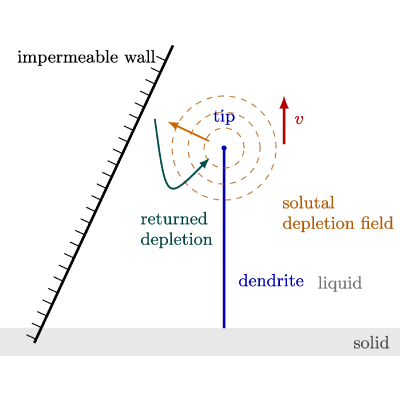

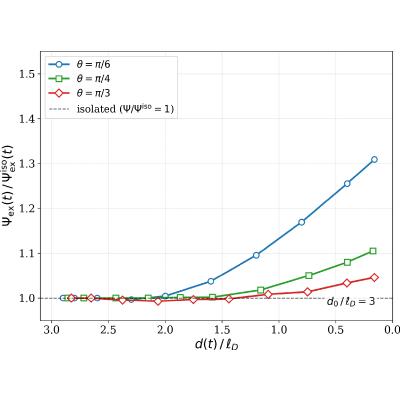

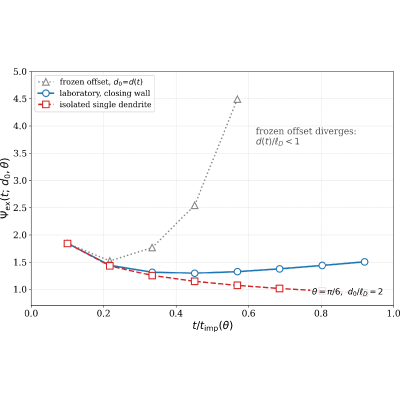

A solidifying dendrite advancing toward an oblique impermeable wall senses the wall through reflection of its own diffusive depletion field. The strength of this reflection depends on both wall obliquity and the unsteady kinematics of the closing gap, and cannot be captured by any quasistatic frozen offset construction. We solve the moving boundary diffusion problem exactly in the laboratory frame (wall fixed, dendrite advancing at constant speed) by recasting it as a Wiener-Hopf-Hankel system on a pair of spectral branches. The resulting upper triangular operator is inverted sequentially: first as a Fredholm integral equation on the lower branch, then as a scalar Wiener-Hopf problem on the upper branch, reaching a closed form solution via Cagniard-de Hoop. A Padé-Abrahams rational reduction of the spectral radical reduces the entire scheme to a low cost algebraic system at each Laplace node. The exact unsteady solution inverts the classical starvation picture. Measured against an isolated dendrite at the same elapsed time, the wall correction is weakly suppressive while the tip is more than about two diffusion lengths from the wall, where the reflected depletion returns with little retardation and acts as ordinary blockage, but the suppression never exceeds one percent. As the gap closes the correction changes sign and the feeding rises to 31 percent above the isolated reference at grazing incidence, because the reflected field carries a memory of wider past gaps and delivers more solute than the instantaneous geometry would allow. The enhancement is governed by the oblique Péclet number and is strongest at grazing incidence, where it exceeds the preceding suppression by a factor of 30.
Physics Subject Headings (PhySH)
See Also
Exact transport theory of dendritic competition and arrest
Article Text
References (51)
- W. Kurz, M. Rappaz, and R. Trivedi, Progress in modelling solidification microstructures in metals and alloys. Part II: Dendrites from 2021 to 2018, Int. Mater. Rev. 66, 30 (2021).
- G. P. Ivantsov, Temperature field around a spherical, cylindrical, and needle-shaped crystal which grows in a supercooled melt, Dokl. Akad. Nauk SSSR 58, 567 (1947).
- W. W. Mullins and R. F. Sekerka, Morphological stability of a particle growing by diffusion or heat flow, J. Appl. Phys. 34, 323 (1963).
- W. W. Mullins and R. F. Sekerka, Stability of a planar interface during solidification of a dilute binary alloy, J. Appl. Phys. 35, 444 (1964).
- J. S. Langer and H. Müller-Krumbhaar, Theory of dendritic growth—I. Elements of a stability analysis, Acta Metall. 26, 1681 (1978).
- D. A. Kessler, J. Koplik, and H. Levine, Pattern selection in fingered growth phenomena, Adv. Phys. 37, 255 (1988).
- E. A. Brener and V. I. Mel'nikov, Pattern selection in two-dimensional dendritic growth, Adv. Phys. 40, 53 (1991).
- J. S. Langer, Instabilities and pattern formation in crystal growth, Rev. Mod. Phys. 52, 1 (1980).
- D. Tourret and A. Karma, Multiscale dendritic needle network model of alloy solidification, Acta Mater. 61, 6474 (2013).
- D. Tourret and A. Karma, Three-dimensional dendritic needle network model for alloy solidification, Acta Mater. 120, 240 (2016).
- E. A. Brener, Y. Saito, H. Müller-Krumbhaar, and D. E. Temkin, Growth of an acicular crystal near a wall, JETP Lett. 61, 285 (1995).
- J. D. Hunt and S.-Z. Lu, Numerical modeling of cellular/dendritic array growth: Spacing and structure predictions, Metall. Mater. Trans. A 27, 611 (1996).
- E. Brener, H. Müller-Krumbhaar, and D. Temkin, Structure formation and the morphology diagram of possible structures in two-dimensional diffusional growth, Phys. Rev. E 54, 2714 (1996).
- J. A. Warren and J. S. Langer, Prediction of dendritic spacings in a directional-solidification experiment, Phys. Rev. E 47, 2702 (1993).
- B. J. Spencer and H. E. Huppert, The relationship between dendrite tip characteristics and dendrite spacings in alloy directional solidification, J. Cryst. Growth 200, 287, (1999).
- A. Bogno, H. Nguyen-Thi, G. Reinhart, B. Billia, and J. Baruchel, Growth and interaction of dendritic equiaxed grains: In situ characterization by synchrotron x-ray radiography, Acta Mater. 61, 1303 (2013).
- A. Karma and W.-J. Rappel, Quantitative phase-field modeling of dendritic growth in two and three dimensions, Phys. Rev. E 57, 4323 (1998).
- N. Warnken, D. Ma, A. Drevermann, R. C Reed, S. G. Fries, and I. Steinbach, Phase-field modelling of as-cast microstructure evolution in nickel-based superalloys, Acta Mater. 57, 5862 (2009).
- T. Takaki, Phase-field modeling and simulations of dendrite growth, ISIJ Int. 54, 437 (2014).
- S. Körber, M. Fleck, F. Gräf, R. Völkl, and U. Glatzel, Anisotropic growth of the primary dendrite arms in a single-crystal thin-walled nickel-based superalloy, Adv. Eng. Mater. 24, 2101332 (2022).
- B. Gurrutxaga-Lerma, On the transient planar contact problem in the presence of dry friction and slip, Int. J. Solids Struct. 193-194, 314 (2020).
- B. Gurrutxaga-Lerma, The elastodynamic bimaterial interface under mode I and mode II loading, Int. J. Solids Struct. 225, 111031 (2021).
- B. Gurrutxaga-Lerma, On the stability of transient bimaterial contact in the presence of dry friction and slip, Int. J. Solids Struct. 276, 112291 (2023).
- I. D. Abrahams, On the solution of Wiener-Hopf problems involving noncommutative matrix kernel decompositions, SIAM J. Appl. Math. 57, 541 (1997).
- I. D. Abrahams, The application of Padé approximants to Wiener-Hopf factorization, IMA J. Appl. Math. 65, 257 (2000).
- B. Noble, Methods based on the Wiener-Hopf technique for the solution of partial differential equations, in International Series of Monographs on Pure and Applied Mathematics (Pergamon Press, London, UK, 1958), Vol. 7.
- A. V. Kisil, I. D. Abrahams, G. Mishuris, and S. V. Rogosin, The Wiener-Hopf technique, its generalizations and applications: Constructive and approximate methods, Proc. R. Soc. A 477, 20210533 (2021).
- F. S. Teixeira, Diffraction by a rectangular wedge: Wiener-Hopf-Hankel formulation, Integr. Eqn. Oper. Theory 14, 436 (1991).
- E. Meister, F.-O. Speck, and F. S. Teixeira, Wiener-Hopf-Hankel operators for some wedge diffraction problems with mixed boundary conditions, J. Integr. Eqn. Applic. 4, 229 (1992).
- H. S. Carslaw and J. C. Jaeger, Conduction of Heat in Solids, 2nd ed. (Oxford University Press, Oxford, UK, 1959).
- G. C. Hsiao and W. L. Wendland, Boundary integral equations, in Applied Mathematical Sciences (Springer, Berlin, Heidelberg, 2008), Vol. 164.
- V. V. Peller, Hankel Operators and Their Applications, Springer Monographs in Mathematics (Springer, New York, NY, 2003).
- No Wiener-Hopf treatment of a solidification problem appears to have been published. The closest analogues are in wave scattering and crack mechanics [26, 27], from which the operator structure below is borrowed.
- J. B. Lawrie and I. D. Abrahams, A brief historical perspective of the Wiener-Hopf technique, J. Eng. Math. 59, 351 (2007).
- B. Gurrutxaga-Lerma, M. Hughes, and N. Warnken, preceding paper, Exact transport theory of dendritic competition and arrest, Phys. Rev. E 114, 035505 (2026).
- A. I. Markushevich, Theory of Functions of a Complex Variable (American Mathematical Society, Providence, RI, 2005), Vol. 296.
- L. Maniar and R. Schnaubelt, The Fredholm alternative for parabolic evolution equations with inhomogeneous boundary conditions, J. Diff. Eqn. 235, 308 (2007).
- N. I. Muskhelishvili, Singular Integral Equations: Boundary Problems of Function Theory and Their Application to Mathematical Physics (P. Noordhoff, Groningen, The Netherlands, 1953).
- L. Cagniard, Réflexion et réfraction des ondes séismiques progressives (Gauthier-Villars, Paris, France, 1939).
- A. T. De Hoop, A modification of Cagniard's method for solving seismic pulse problems, Appl. Sci. Res. 8, 349 (1960).
- A. Talbot, The accurate numerical inversion of Laplace transforms, IMA J. Appl. Math. 23, 97 (1979).
- L. N. Trefethen, J. A. C. Weideman, and T. Schmelzer, Talbot quadratures and rational approximations, BIT Numer. Math. 46, 653 (2006).
- H. Stehfest, Algorithm 368: Numerical inversion of Laplace transforms [D5], Commun. ACM 13, 47 (1970).
- P. Pelcé and Y. Pomeau, Dendrites in the small undercooling limit, Stud. Appl. Math. 74, 245 (1986).
- M . B. Amar and Y. Pomeau, Theory of dendritic growth in a weakly undercooled melt, Europhys. Lett. 2, 307 (1986).
- K. B. Broberg, Cracks and Fracture (Academic Press, San Diego, CA, 1999).
- L. B. Freund, Dynamic fracture mechanics, in Cambridge Monographs on Mechanics and Applied Mathematics (Cambridge University Press, Cambridge, UK, 1990).
- B. Gurrutxaga-Lerma, D. S Balint, D. Dini, and A. P Sutton, Elastodynamic image forces on dislocations, Proc. R. Soc. A 471, 20150433 (2015).
- B. Gurrutxaga-Lerma, Elastodynamic image forces on screw dislocations in the presence of phase boundaries, Proc. R. Soc. A 473, 20170484 (2017).
- P. Bloomfield, Fourier Analysis of Time Series: An Introduction (John Wiley & Sons, New York, NY, 2004).
- M. Abramowitz and I. A. Stegun, Handbook of Mathematical Functions with Formulas, Graphs, and Mathematical Tables (U.S. Government Printing Office, Washington, DC, 1948), Vol. 55.
