Scalar and tensor structures in J/ψJ/ψ scattering from lattice QCD

Geng Li1,2,*, Chunjiang Shi1,3, Ying Chen1,2,3,†, and Wei Sun1

  • *Contact author: ligeng@ihep.ac.cn
  • †Contact author: cheny@ihep.ac.cn
PDF

Phys. Rev. D 114, L031506 – Published 27 August, 2026

DOI: https://doi.org/10.1103/xksw-yqcj

Abstract

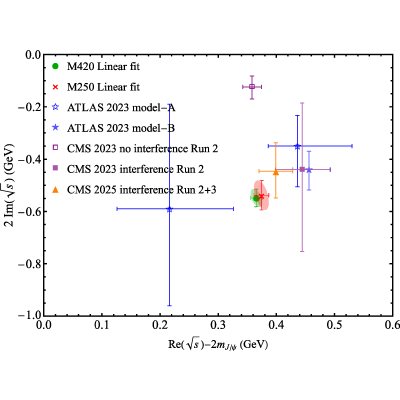

The S01 and S25 amplitudes of J/ψJ/ψ scattering are determined up to 6.6 GeV from Nf=2 lattice QCD simulations at mπ≈420  MeV and 250 MeV. We observe an attractive interaction in the S10 channel, which permits the existence of a near-threshold scalar structure. This structure may correspond to X(6200), but the possible left-hand-cut effect prevents us from a precise pole determination. In the S52 channel, while a near-threshold repulsive interaction is observed, a resonance appears at higher energies associated with a Castillejo-Dalitz-Dyson zero sCDD≈6.45  GeV of the scattering amplitude. The tensor resonance has the parameters (mR,ΓR)=(6.543(10),0.548(34))  GeV for mπ≈420  MeV and (6.538(13), 0.537(56)) GeV for mπ≈250  MeV, which are compatible with those of X(6600) [or X(6400)] reported by ATLAS and CMS and also support the 2++ assignment of the recent CMS study. The difference of the S01 and S25 J/ψJ/ψ interaction is attributed to the dominance of the quark rearrangement effects. The systematic uncertainties owing to the unphysical pion mass, the finite lattice spacing, and the finite volume should be investigated by future lattice QCD studies with more sophisticated lattice setups.

View figure in article

Physics Subject Headings (PhySH)

Article Text

References (59)

  1. S. Navas et al. (Particle Data Group), Review of particle physics, Phys. Rev. D 110, 030001 (2024).
  2. R. Aaij et al. (LHCb Collaboration), Observation of structure in the J/ψ -pair mass spectrum, Sci. Bull. 65, 1983 (2020).
  3. G. Aad et al. (ATLAS Collaboration), Observation of an excess of dicharmonium events in the four-muon final state with the ATLAS detector, Phys. Rev. Lett. 131, 151902 (2023).
  4. A. Hayrapetyan et al. (CMS Collaboration), New structures in the J/ψJ/ψ mass spectrum in proton-proton collisions at s=13  TeV, Phys. Rev. Lett. 132, 111901 (2024).
  5. X. Wang and K. Yi, New structures in the J/ψJ/ψ mass spectrum at CMS, EPJ Web Conf. 312, 06004 (2024).
  6. A. Hayrapetyan et al. (CMS Collaboration), Determination of the spin and parity of all-charm tetraquarks, Nature (London) 648, 58 (2025).
  7. A. Hayrapetyan et al. (CMS Collaboration), Observation of a family of all-charm tetraquark candidates at the LHC, CERN Report No. CMS-PAS-BPH-24-003, 2025.
  8. X.-K. Dong, V. Baru, F.-K. Guo, C. Hanhart, and A. Nefediev, Coupled-channel interpretation of the LHCb double- J/ψ spectrum and hints of a new state near the J/ψJ/ψ threshold, Phys. Rev. Lett. 126, 132001 (2021); 127, 119901(E) (2021).
  9. Y.-L. Song, Y. Zhang, V. Baru, F.-K. Guo, C. Hanhart, and A. Nefediev, Toward a precision determination of the X(6200) parameters from data, Phys. Rev. D 111, 034038 (2025).
  10. Y. Iwasaki, A possible model for new resonances-exotics and hidden charm, Prog. Theor. Phys. 54, 492 (1975).
  11. K.-T. Chao, The (cc)-(cc¯) (diquark–anti-diquark) states in e+e− annihilation, Z. Phys. C 7, 317 (1981).
  12. J. P. Ader, J. M. Richard, and P. Taxil, Do narrow heavy multi-quark states exist?, Phys. Rev. D 25, 2370 (1982).
  13. B.-A. Li and K.-F. Liu, J/ψ pair production in hadronic collisions, Phys. Rev. D 29, 426 (1984).
  14. L. Heller and J. A. Tjon, On bound states of heavy Q2Q¯2 systems, Phys. Rev. D 32, 755 (1985).
  15. A. M. Badalian, B. L. Ioffe, and A. V. Smilga, Four quark states in the heavy quark system, Nucl. Phys. B281, 85 (1987).
  16. W. Chen, H.-X. Chen, X. Liu, T. G. Steele, and S.-L. Zhu, Hunting for exotic doubly hidden-charm/bottom tetraquark states, Phys. Lett. B 773, 247 (2017).
  17. Z.-G. Wang, Analysis of the QQQ¯Q¯ tetraquark states with QCD sum rules, Eur. Phys. J. C 77, 432 (2017).
  18. Z.-G. Wang and Z.-Y. Di, Analysis of the vector and axialvector QQQ¯Q¯ tetraquark states with QCD sum rules, Acta Phys. Pol. B 50, 1335 (2019).
  19. Z.-H. Guo and J. A. Oller, Insights into the inner structures of the fully charmed tetraquark state X(6900), Phys. Rev. D 103, 034024 (2021).
  20. M.-S. Liu, F.-X. Liu, X.-H. Zhong, and Q. Zhao, Fully heavy tetraquark states and their evidences in LHC observations, Phys. Rev. D 109, 076017 (2024).
  21. H.-X. Chen, W. Chen, X. Liu, and S.-L. Zhu, Strong decays of fully-charm tetraquarks into di-charmonia, Sci. Bull. 65, 1994 (2020).
  22. L. Maiani, J/ψ-pair resonance by LHCb: A new revolution?, Sci. Bull. 65, 1949 (2020).
  23. K.-T. Chao and S.-L. Zhu, The possible tetraquark states ccc¯c¯ observed by the LHCb experiment, Sci. Bull. 65, 1952 (2020).
  24. C. Gong, M.-C. Du, Q. Zhao, X.-H. Zhong, and B. Zhou, Nature of X(6900) and its production mechanism at LHCb, Phys. Lett. B 824, 136794 (2022).
  25. R. Zhu, Fully-heavy tetraquark spectra and production at hadron colliders, Nucl. Phys. B966, 115393 (2021).
  26. Z.-R. Liang, X.-Y. Wu, and D.-L. Yao, Hunting for states in the recent LHCb di-J/ψ invariant mass spectrum, Phys. Rev. D 104, 034034 (2021).
  27. F.-X. Liu, M.-S. Liu, X.-H. Zhong, and Q. Zhao, Higher mass spectra of the fully-charmed and fully-bottom tetraquarks, Phys. Rev. D 104, 116029 (2021).
  28. X.-K. Dong, V. Baru, F.-K. Guo, C. Hanhart, A. Nefediev, and B.-S. Zou, Is the existence of a J/ψJ/ψ bound state plausible?, Sci. Bull. 66, 2462 (2021).
  29. P. Niu, Z. Zhang, Q. Wang, and M.-L. Du, The third peak structure in the double J/ψ spectrum, Science bulletin 68, 800 (2023).
  30. W.-C. Dong and Z.-G. Wang, Going in quest of potential tetraquark interpretations for the newly observed Tψψ states in light of the diquark-antidiquark scenarios, Phys. Rev. D 107, 074010 (2023).
  31. Z.-G. Wang, Analysis of the X(6600), X(6900), X(7300) and related tetraquark states with the QCD sum rules, Nucl. Phys. B985, 115983 (2022).
  32. S.-Q. Kuang, Q. Zhou, D. Guo, Q.-H. Yang, and L.-Y. Dai, Study of X(6900) with unitarized coupled channel scattering amplitudes, Eur. Phys. J. C 83, 383 (2023).
  33. Q. Huang, R. Chen, J. He, and X. Liu, Discovering a novel dynamics mechanism for charmonium scattering, Phys. Rev. D 113, 074007 (2026).
  34. W.-L. Wu, Y.-K. Chen, L. Meng, and S.-L. Zhu, Benchmark calculations of fully heavy compact and molecular tetraquark states, Phys. Rev. D 109, 054034 (2024).
  35. Z.-H. Zhang and F.-K. Guo, Classification of coupled-channel near-threshold structures, Phys. Lett. B 863, 139387 (2025).
  36. H.-X. Chen, W. Chen, X. Liu, Y.-R. Liu, and S.-L. Zhu, An updated review of the new hadron states, Rep. Prog. Phys. 86, 026201 (2023).
  37. G. Li, C. Shi, Y. Chen, and W. Sun, companion paper, ηcηc and J/ψJ/ψ scatterings from lattice QCD, Phys. Rev. D 114, 034512 (2026).
  38. M. Lüscher, Volume dependence of the energy spectrum in massive quantum field theories. II. Scattering states, Commun. Math. Phys. 105, 153 (1986).
  39. M. Lüscher, Two-particle states on a torus and their relation to the scattering matrix, Nucl. Phys. B354, 531 (1991).
  40. M. Lüscher, Signatures of unstable particles in finite volume, Nucl. Phys. B364, 237 (1991).
  41. H. Li, C. Shi, Y. Chen, M. Gong, J. Liang, Z. Liu, and W. Sun, X(3872) relevant DD¯* scattering in Nf=2 lattice QCD, arXiv:2402.14541.
  42. M. Peardon, J. Bulava, J. Foley, C. Morningstar, J. Dudek, R. G. Edwards, B. Joo, H.-W. Lin, D. G. Richards, and K. J. Juge (Hadron Spectrum Collaboration), Novel quark-field creation operator construction for hadronic physics in lattice QCD, Phys. Rev. D 80, 054506 (2009).
  43. G. K. C. Cheung, C. E. Thomas, J. J. Dudek, and R. G. Edwards (Hadron Spectrum Collaboration), Tetraquark operators in lattice QCD and exotic flavour states in the charm sector, J. High Energy Phys. 11 (2017) 033.
  44. M.-L. Du, A. Filin, V. Baru, X.-K. Dong, E. Epelbaum, F.-K. Guo, C. Hanhart, A. Nefediev, J. Nieves, and Q. Wang, Role of left-hand cut contributions on pole extractions from lattice data: Case study for Tcc(3875)+, Phys. Rev. Lett. 131, 131903 (2023).
  45. L. Meng, V. Baru, E. Epelbaum, A. A. Filin, and A. M. Gasparyan, Solving the left-hand cut problem in lattice QCD: Tcc(3875)+ from finite volume energy levels, Phys. Rev. D 109, L071506 (2024).
  46. A. B. Raposo and M. T. Hansen, Finite-volume scattering on the left-hand cut, J. High Energy Phys. 08 (2024) 075.
  47. Y. Meng, C. Liu, X.-Y. Tuo, H. Yan, and Z. Zhang, Lattice calculation of the ηcηc and J/ψJ/ψ s-wave scattering length, Eur. Phys. J. C 85, 458 (2025).
  48. L. Castillejo, R. H. Dalitz, and F. J. Dyson, Low’s scattering equation for the charged and neutral scalar theories, Phys. Rev. 101, 453 (1956).
  49. J. A. Oller, Lectures on scattering theory in partial-wave amplitudes, arXiv:2409.16790.
  50. F. J. Dyson, Meaning of the solutions of Low’s scattering equation, Phys. Rev. 106, 157 (1957).
  51. M. I. Krivoruchenko, Remarks on the origin of Castillejo-Dalitz-Dyson poles, Phys. Rev. C 82, 018201 (2010).
  52. Y. Li, F.-K. Guo, J.-Y. Pang, and J.-J. Wu, Generalization of Weinberg’s compositeness relations, Phys. Rev. D 105, L071502 (2022).
  53. Q.-F. Lü, D.-Y. Chen, and Y.-B. Dong, Masses of fully heavy tetraquarks QQQ¯Q¯ in an extended relativized quark model, Eur. Phys. J. C 80, 871 (2020).
  54. G.-J. Wang, L. Meng, M. Oka, and S.-L. Zhu, Higher fully charmed tetraquarks: Radial excitations and P-wave states, Phys. Rev. D 104, 036016 (2021).
  55. S. Chen, C. Shi, Y. Chen, M. Gong, Z. Liu, W. Sun, and R. Zhang, Tcc+(3875) relevant DD* scattering from Nf=2 lattice QCD, Phys. Lett. B 833, 137391 (2022).
  56. R. G. Edwards and B. Joo (SciDAC Collaboration, LHPC Collaboration, and UKQCD Collaboration), The chroma software system for lattice QCD, Nucl. Phys. B, Proc. Suppl. 140, 832 (2005).
  57. M. A. Clark, R. Babich, K. Barros, R. C. Brower, and C. Rebbi, Solving Lattice QCD systems of equations using mixed precision solvers on GPUs, Comput. Phys. Commun. 181, 1517 (2010).
  58. R. Babich, M. A. Clark, B. Joo, G. Shi, R. C. Brower, and S. Gottlieb (QUDA Collaboration), Scaling lattice QCD beyond 100 GPUs, in International Conference for High Performance Computing, Networking, Storage and Analysis (Association for Computing Machinery (ACM), New York, 2011).
  59. X. Jiang, C. Shi, Y. Chen, M. Gong, and Y.-B. Yang, Use quda for lattice QCD calculation with python, arXiv:2411.08461.
