Heavy quarkonium spectrum and decay constants from a neural-network-based holographic model

Yu Zhang1,2, Xun Chen1,2,3,*, and Miguel Angel Martin Contreras1,2,†

  • *Contact author: chenxun@usc.edu.cn
  • †Contact author: miguelangel.martin@usc.edu.cn

Phys. Rev. D 113, 126029 – Published 30 June, 2026

DOI: https://doi.org/10.1103/qfqd-6jt2

Abstract

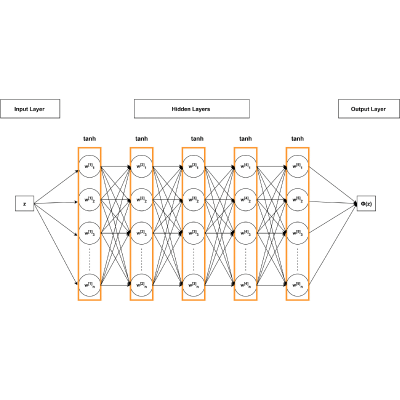

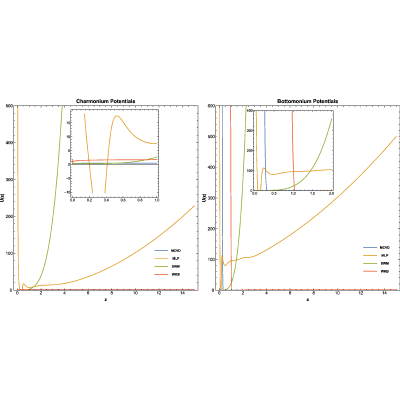

We present a data-driven inverse construction of the dilaton field in a bottom-up AdS/QCD description of heavy vector quarkonia. Instead of adopting an ad hoc analytic ansatz, we use a multilayer perceptron to learn Φ′(z) as a smooth function of the holographic coordinate, with Φ(0)=0 imposed to ensure ultraviolet consistency. The dilaton and its derivatives obtained by automatic differentiation generate the holographic potential U(z), and the associated Schrödinger-like equation is discretized and diagonalized to extract the low-lying eigenmodes. Masses and decay constants are then evaluated from the eigenvalues and the near-boundary behavior of the bulk-to-boundary modes. Training on PDG data for charmonium and bottomonium yields a nonquadratic dilaton profile that resolves the long-standing difficulty of simultaneously reproducing both the heavy quarkonium spectrum and the monotonic suppression of leptonic decay constants with radial excitation. The combined fit achieves rms deviations of 1.26% (charmonium) and 3.32% (bottomonium). This work establishes neural-network reconstruction as a flexible tool for holographic modeling and provides a basis for future extensions incorporating additional channels, lattice constraints, or finite-temperature backgrounds.

View figure in article

Physics Subject Headings (PhySH)

Article Text

References (97)

  1. J. Polchinski and M. J. Strassler, Phys. Rev. Lett. 88, 031601 (2002).
  2. H. Boschi-Filho and N. R. F. Braga, J. High Energy Phys. 05 (2003) 009.
  3. J. Erlich, E. Katz, D. T. Son, and M. A. Stephanov, Phys. Rev. Lett. 95, 261602 (2005).
  4. S. J. Brodsky and G. F. de Teramond, Phys. Rev. D 77, 056007 (2008).
  5. J. M. Maldacena, Adv. Theor. Math. Phys. 2, 231 (1998).
  6. O. Aharony, S. S. Gubser, J. M. Maldacena, H. Ooguri, and Y. Oz, Phys. Rep. 323, 183 (2000).
  7. S. S. Gubser, I. R. Klebanov, and A. M. Polyakov, Phys. Lett. B 428, 105 (1998).
  8. A. Karch and E. Katz, J. High Energy Phys. 06 (2002) 043.
  9. T. Sakai and S. Sugimoto, Prog. Theor. Phys. 113, 843 (2005).
  10. T. Sakai and S. Sugimoto, Prog. Theor. Phys. 114, 1083 (2005).
  11. H. Boschi-Filho and N. R. F. Braga, Eur. Phys. J. C 32, 529 (2004).
  12. A. Karch, E. Katz, D. T. Son, and M. A. Stephanov, Phys. Rev. D 74, 015005 (2006).
  13. H. R. Grigoryan and A. V. Radyushkin, Phys. Rev. D 76, 095007 (2007).
  14. J. Erdmenger, N. Evans, I. Kirsch, and E. Threlfall, Eur. Phys. J. A 35, 81 (2008).
  15. P. Colangelo, F. De Fazio, F. Giannuzzi, F. Jugeau, and S. Nicotri, Phys. Rev. D 78, 055009 (2008).
  16. A. Ballon Bayona, H. Boschi-Filho, N. R. F. Braga, and M. A. C. Torres, J. High Energy Phys. 01 (2010) 052.
  17. A. L. Cotrone, A. Dymarsky, and S. Kuperstein, J. High Energy Phys. 03 (2011) 005.
  18. D. Li and M. Huang, J. High Energy Phys. 11 (2013) 088.
  19. N. Wen, X. Cao, J. Chao, and H. Liu, Phys. Rev. D 109, 086021 (2024).
  20. X. Cao, S. Qiu, H. Liu, and D. Li, J. High Energy Phys. 08 (2021) 005.
  21. M. Thomas Arun and R. Pal, arXiv:2512.16450.
  22. Y. Kim, J.-P. Lee, and S. H. Lee, Phys. Rev. D 75, 114008 (2007).
  23. H. R. Grigoryan, P. M. Hohler, and M. A. Stephanov, Phys. Rev. D 82, 026005 (2010).
  24. Y. Li, P. Maris, X. Zhao, and J. P. Vary, Phys. Lett. B 758, 118 (2016).
  25. N. R. F. Braga, M. A. Martin Contreras, and S. Diles, Phys. Lett. B 763, 203 (2016).
  26. X.-R. Liu, Q. Liu, H. Song, and Chen, arXiv:2602.16988.
  27. J.-K. Chen, Phys. Lett. B 786, 477 (2018).
  28. J.-K. Chen, Eur. Phys. J. A 57, 238 (2021).
  29. J.-K. Chen, Nucl. Phys. A1050, 122927 (2024).
  30. M. A. Martin Contreras and A. Vega, Phys. Rev. D 102, 046007 (2020).
  31. M. A. Martin Contreras and A. Vega, arXiv:2509.04956.
  32. S. Navas et al. (Particle Data Group), Phys. Rev. D 110, 030001 (2024).
  33. N. R. F. Braga, L. F. Ferreira, and R. Da Rocha, Phys. Lett. B 787, 16 (2018).
  34. M. A. Martin Contreras and A. Vega, Phys. Rev. D 108, 126024 (2023).
  35. A. F. Krutov, R. G. Polezhaev, and V. E. Troitsky, Phys. Rev. D 93, 036007 (2016).
  36. T. M. Aliev, A. Ozpineci, and M. Savci, Phys. Lett. B 678, 470 (2009).
  37. J. P. Vary et al., Few Body Syst. 59, 56 (2018).
  38. M. E. Carrillo-Serrano, W. Bentz, I. C. Cloët, and A. W. Thomas, Phys. Rev. C 92, 015212 (2015).
  39. N. Evans and A. Tedder, Phys. Lett. B 642, 546 (2006).
  40. S. S. Afonin, Phys. Rev. C 83, 048202 (2011).
  41. S. S. Afonin, Int. J. Mod. Phys. A 27, 1250171 (2012).
  42. N. R. F. Braga and L. F. Ferreira, Phys. Lett. B 783, 186 (2018).
  43. M. A. Martin Contreras and A. Vega, Phys. Rev. D 101, 046009 (2020).
  44. M. A. Martin Contreras, S. Diles, and A. Vega, Phys. Rev. D 103, 086008 (2021).
  45. M. A. Martin Contreras, A. Vega, and S. Diles, Phys. Lett. B 854, 138723 (2024).
  46. Y.-G. Ma, L.-G. Pang, R. Wang, and K. Zhou, Chin. Phys. Lett. 40, 122101 (2023).
  47. K. Zhou, L.-G. Pang, S. Shi, and H. Stoecker, Proc. Sci., FAIRness2022 (2023) 064.
  48. L.-G. Pang, Int. J. Mod. Phys. E 33, 2430009 (2024).
  49. Z.-H. Li, C.-Q. Li, and L.-G. Pang, arXiv:2309.07397.
  50. K.-F. Pu, H. Li, H.-L. Lu, and L.-G. Pang, Chin. Phys. C 47, 054104 (2023).
  51. L.-G. Pang, Nucl. Phys. A1005, 121972 (2021).
  52. J. Steinheimer, L.-G. Pang, K. Zhou, V. Koch, J. Randrup, and H. Stoecker, J. High Energy Phys. 12 (2019) 122.
  53. L. Wang, B. M. Hare, K. Zhou, H. Stoecker, and O. Scholten, Chaos Solitons Fractals 170, 113346 (2023).
  54. Y. Huang, J. Chen, J. Jia, L.-M. Liu, Y.-G. Ma, and C. Zhang, Phys. Rev. C 111, 034329 (2025).
  55. W.-B. He, Y.-G. Ma, L.-G. Pang, H. Song, and K. Zhou, Nucl. Sci. Tech. 34, 88 (2023).
  56. J. He, W.-B. He, Y.-G. Ma, and S. Zhang, Phys. Rev. C 104, 044902 (2021).
  57. K. Hornik, M. Stinchcombe, and H. White, Neural Netw. 2, 359 (1989).
  58. M. Raissi, P. Perdikaris, and G. E. Karniadakis, J. Comput. Phys. 378, 686 (2019).
  59. S. Soma, L. Wang, S. Shi, H. Stoecker, and K. Zhou, Phys. Rev. D 107, 083028 (2023).
  60. G. E. Karniadakis, I. G. Kevrekidis, L. Lu, P. Perdikaris, S. Wang, and L. Yang, Nat. Rev. Phys. 3, 422 (2021).
  61. S. Shi, K. Zhou, J. Zhao, S. Mukherjee, and P. Zhuang, Phys. Rev. D 105, 014017 (2022).
  62. X. Tong, W. Feng, W. Xu, C.-H. Chang, G.-L. Wang, and Q. Li, Chin. Phys. Lett. 43, 020201 (2026).
  63. J. Mei, L. Wang, and M. Huang, arXiv:2507.22012.
  64. W. He, Q. Li, Y. Ma, Z. Niu, J. Pei, and Y. Zhang, Sci. China Phys. Mech. Astron. 66, 282001 (2023).
  65. K. Zhou, L.-G. Pang, N. Su, H. Petersen, H. Stoecker, and X.-N. Wang, EPJ Web Conf. 171, 16005 (2018).
  66. L.-G. Pang, K. Zhou, N. Su, H. Petersen, H. Stoecker, and X.-N. Wang, Nucl. Phys. A982, 867 (2019).
  67. L. Wang, Y. Jiang, L. He, and K. Zhou, Chin. Phys. Lett. 39, 120502 (2022).
  68. Y.-S. Zhao, L. Wang, K. Zhou, and X.-G. Huang, Phys. Rev. C 106, L051901 (2022).
  69. Y.-L. Du, D. Pablos, and K. Tywoniuk, J. High Energy Phys. 03 (2021) 206.
  70. Y.-L. Du, D. Pablos, and K. Tywoniuk, Phys. Rev. Lett. 128, 012301 (2022).
  71. L. Jiang, L. Wang, and K. Zhou, Phys. Rev. D 103, 116023 (2021).
  72. S. Shi, K. Zhou, J. Zhao, S. Mukherjee, and P. Zhuang, Proc. Sci., LATTICE2021 (2022) 537.
  73. H.-A. Zeng, L. Wang, and M. Huang, arXiv:2512.06044.
  74. T. Akutagawa, K. Hashimoto, and T. Sumimoto, Phys. Rev. D 102, 026020 (2020).
  75. K. Hashimoto, S. Sugishita, A. Tanaka, and A. Tomiya, Phys. Rev. D 98, 106014 (2018).
  76. Y.-K. Yan, S.-F. Wu, X.-H. Ge, and Y. Tian, Phys. Rev. D 102, 101902 (2020).
  77. K. Hashimoto, K. Ohashi, and T. Sumimoto, Phys. Rev. D 105, 106008 (2022).
  78. M. Song, M.-S. H. Oh, Y. Ahn, and K.-Y. Kim, Chin. Phys. C 45, 073111 (2021).
  79. W.-B. Chang and D.-f. Hou, Phys. Rev. D 109, 086010 (2024).
  80. B. Ahn, H.-S. Jeong, K.-Y. Kim, and K. Yun, J. High Energy Phys. 03 (2024) 141.
  81. Z.-F. Gu, Y.-K. Yan, and S.-F. Wu, Eur. Phys. J. C 85, 63 (2025).
  82. K. Li, Y. Ling, P. Liu, and M.-H. Wu, Phys. Rev. D 107, 066021 (2023).
  83. R.-G. Cai, S. He, L. Li, and H.-A. Zeng, Sci. China Phys. Mech. Astron. 69, 240414 (2026).
  84. B. Ahn, H.-S. Jeong, K.-Y. Kim, and K. Yun, J. High Energy Phys. 01 (2025) 025.
  85. H. Boschi-Filho and N. R. F. Braga, J. High Energy Phys. 05 (2003) 009.
  86. B. Batell and T. Gherghetta, Phys. Rev. D 78, 026002 (2008).
  87. W. Lucha and F. F. Schoberl, Phys. Rev. A 54, 3790 (1996).
  88. J. Polchinski and M. J. Strassler, J. High Energy Phys. 05 (2003) 012.
  89. M. B. Wise, in Les Houches Summer School in Theoretical Physics, Session 68: Probing the Standard Model of Particle Interactions (1997), pp. 1051–1089, .
  90. S. S. Afonin, PMC Phys. A 3, 1 (2009).
  91. S. S. Afonin, A. A. Andrianov, V. A. Andrianov, and D. Espriu, J. High Energy Phys. 04 (2004) 039.
  92. W. Lucha, F. F. Schoberl, and D. Gromes, Phys. Rep. 200, 127 (1991).
  93. https://github.com/yu11c/DilatonNN.
  94. S. Navas et al. (Particle Data Group), Phys. Rev. D 110, 030001 (2024).
  95. K. Xu, J. Li, M. Zhang, S. S. Du, K. Kawarabayashi, and S. Jegelka, arXiv:2009.11848.
  96. L. Ziyin, T. Hartwig, and M. Ueda, arXiv:2006.08195.
  97. H. Maennel, O. Bousquet, and S. Gelly, arXiv:1803.08367.
