Entanglement generation between field modes mediated by a fluctuating conducting wall

Luca Giovanni Cammarata*, Tommaso Fazio†, Roberto Passante‡, and Lucia Rizzuto§

  • *Contact author: lucagiovanni.cammarata@unipa.it
  • †Contact author: tommaso.fazio@unipa.it
  • ‡Contact author: roberto.passante@unipa.it
  • §Contact author: lucia.rizzuto@unipa.it
PDF

Phys. Rev. D 114, 065008 – Published 9 September, 2026

DOI: https://doi.org/10.1103/h81j-hddn

Abstract

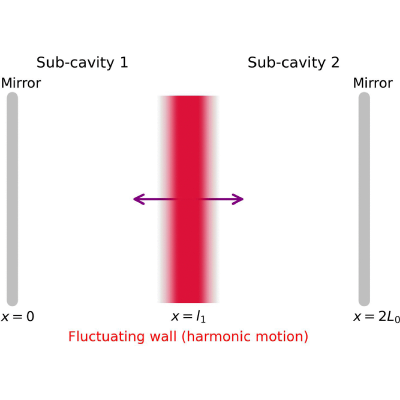

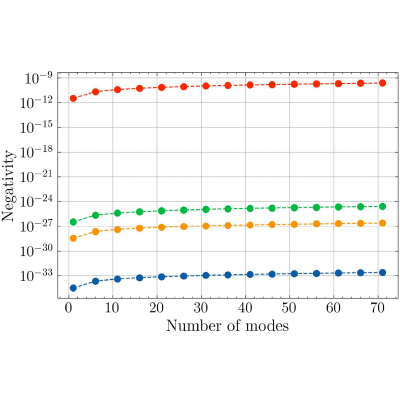

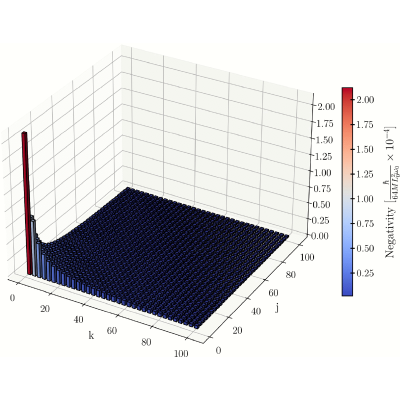

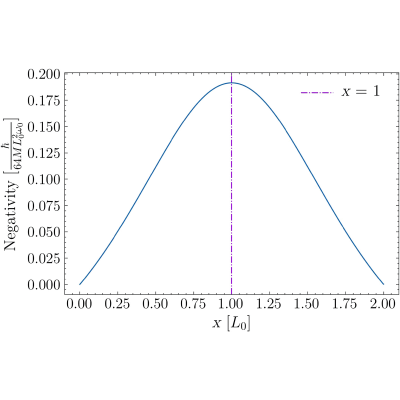

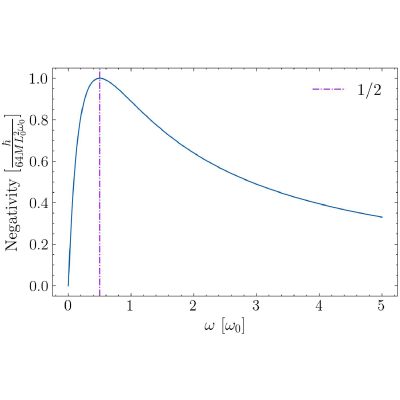

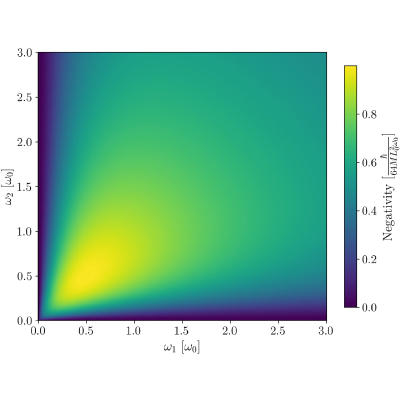

We consider a movable conducting plate of finite mass, between two fixed ones, whose mechanical degrees of freedom are treated quantum-mechanically and bound to its equilibrium position by a harmonic potential. The movable wall is thus subjected to quantum fluctuations of its position. This creates a system of two subcavities separated by the movable fluctuating plate, and two massless one-dimensional scalar fields, one in each subcavity. This system is described by an appropriate generalization of the Law Hamiltonian. The presence of the movable wall yields an effective plate-fields interaction, as well as an effective interaction between the field modes. We obtain, at the second order in perturbation theory, the ground state of the interacting system and the reduced density operator of the fields in each subcavity by tracing out the wall’s degrees of freedom. We calculate the entanglement between two field modes, one in each cavity, by evaluating analytically the negativity; we then also evaluate numerically the total multimode negativity. Our results show that in both cases the fields in the two subcavities are entangled, in contrast to the case in which the wall is fixed in space. We discuss the amount of the field entanglement present as a function of relevant physical parameters of the system such as the mass and oscillation frequency of the movable wall, its distance from the fixed walls and the frequencies of the field modes considered.

View figure in article

Physics Subject Headings (PhySH)

Article Text

References (43)

  1. M. Aspelmeyer, T. J. Kippenberg, and F. Marquardt, Cavity optomechanics, Rev. Mod. Phys. 86, 1391 (2014).
  2. V. Dodonov, Fifty years of the dynamical Casimir effect, Physics (N.Y.) 2, 67 (2020).
  3. A. G. Martín-Caro, G. García-Moreno, J. Olmedo, and J. M. Sánchez Velázquez, Classical and quantum field theory in a box with moving boundaries: A numerical study of the dynamical Casimir effect, Phys. Rev. D 110, 025007 (2024).
  4. Y. Chen, Macroscopic quantum mechanics: Theory and experimental concepts of optomechanics, J. Phys. B 46, 104001 (2013).
  5. M. Andreata and V. Dodonov, Dynamics of entanglement between field modes in a one-dimensional cavity with a vibrating boundary, J. Opt. B 7, S11 (2005).
  6. C. I. Velasco, N. F. Del Grosso, F. C. Lombardo, A. Soba, and P. I. Villar, Photon generation and entanglement in a double superconducting cavity, Phys. Rev. A 106, 043701 (2022).
  7. N. F. Del Grosso, F. C. Lombardo, and P. I. Villar, Entanglement degradation of cavity modes due to the dynamical Casimir effect, Phys. Rev. D 102, 125008 (2020).
  8. G. Calajò, L. Rizzuto, and R. Passante, Control of spontaneous emission of a single quantum emitter through a time-modulated photonic-band-gap environment, Phys. Rev. A 96, 023802 (2017).
  9. F. D. Bello, S. Asgarnezhad-Zorgabad, Z. Jalali-Mola, J. F. Donegan, and O. Hess, Dynamic control of super- and subradiance of quantum emitters via near-field photonics and time-varying media, APL Quantum 3, 016116 (2026).
  10. C. K. Law, Interaction between a moving mirror and radiation pressure: A Hamiltonian formulation, Phys. Rev. A 51, 2537 (1995).
  11. C. K. Law, Effective hamiltonian for the radiation in a cavity with a moving mirror and a time-varying dielectric medium, Phys. Rev. A 49, 433 (1994).
  12. S. Butera and R. Passante, Field fluctuations in a one-dimensional cavity with a mobile wall, Phys. Rev. Lett. 111, 060403 (2013).
  13. F. Armata and R. Passante, Vacuum energy densities of a field in a cavity with a mobile boundary, Phys. Rev. D 91, 025012 (2015).
  14. F. Armata, M. S. Kim, S. Butera, L. Rizzuto, and R. Passante, Nonequilibrium dressing in a cavity with a movable reflecting mirror, Phys. Rev. D 96, 045007 (2017).
  15. L. Lo and C. K. Law, Quantum radiation from a shaken two-level atom in vacuum, Phys. Rev. A 98, 063807 (2018).
  16. S. Butera and I. Carusotto, Mechanical backreaction effect of the dynamical Casimir emission, Phys. Rev. A 99, 053815 (2019).
  17. S. Butera, Corrections to the optomechanical Hamiltonian from quadratic fluctuations of a moving mirror, Phys. Rev. A 111, 043524 (2025).
  18. J.-D. Tang, Q.-Z. Cai, Z.-D. Cheng, N. Xu, G.-Y. Peng, P.-Q. Chen, D.-G. Wang, Z.-W. Xia, Y. Wang, H.-Z. Song, Q. Zhou, and G.-W. Deng, A perspective on quantum entanglement in optomechanical systems, Phys. Lett. A 429, 127966 (2022).
  19. A. Mercurio, E. Russo, F. Mauceri, S. Savasta, F. Nori, V. Macrì, and R. L. Franco, Bilateral photon emission from a vibrating mirror and multiphoton entanglement generation, SciPost Phys. 18, 067 (2025).
  20. H. Zhai, S.-L. Chen, K.-W. Huang, and H. Xiong, Vacuum-fluctuation-mediated phonon heat transfer in a coupled optomechanical system, Opt. Lett. 51, 2172 (2026).
  21. F. Montalbano, F. Armata, L. Rizzuto, and R. Passante, Spatial correlations of field observables in two half-spaces separated by a movable perfect mirror, Phys. Rev. D 107, 056007 (2023).
  22. F. Armata, S. Butera, F. Montalbano, R. Passante, and L. Rizzuto, Field observables near a fluctuating boundary, J. Phys. Conf. Ser. 2533, 012042 (2023).
  23. E. Arias, G. Krein, G. Menezes, and N. F. Svaiter, Thermal radiation from a fluctuating event horizon, Int. J. Mod. Phys. A 27, 1250129 (2012).
  24. A. Giugno, A. Giusti, and A. Helou, Horizon quantum fuzziness for non-singular black holes, Eur. Phys. J. C 78, 208 (2018).
  25. T. G. Mertens and G. J. Turiaci, Solvable models of quantum black holes: A review on Jackiw-Teitelboim gravity, Living Rev. Relativity 26, 4 (2023).
  26. L. H. Ford and N. F. Svaiter, Vacuum energy density near fluctuating boundaries, Phys. Rev. D 58, 065007 (1998).
  27. E. Russo, A. Mercurio, F. Mauceri, R. Lo Franco, F. Nori, S. Savasta, and V. Macrì, Optomechanical two-photon hopping, Phys. Rev. Res. 5, 013221 (2023).
  28. C. G. Baker, W. P. Bowen, P. Cox, M. J. Dolan, M. Goryachev, and G. Harris, Optomechanical dark matter instrument for direct detection, Phys. Rev. D 110, 043005 (2024).
  29. S. S. Schweber, An Introduction to Relativistic Quantum Field Theory (Dover Publications, Mineola, NY, 2005).
  30. C. Cohen-Tannoudji, B. Diu, and F. Laloë, Quantum Mechanics, Volume III: Fermions, Bosons, Photons, Correlations, and Entanglement (Wiley-VCH, Weinheim, Germany, 2020).
  31. G. Vidal and R. F. Werner, Computable measure of entanglement, Phys. Rev. A 65, 032314 (2002).
  32. P. Kharel, G. I. Harris, E. A. Kittlaus, W. H. Renninger, N. T. Otterstrom, J. G. Harris, and P. T. Rakich, High-frequency cavity optomechanics using bulk acoustic phonons, Sci. Adv. 5, eaav0582 (2019).
  33. T. J. Kippenberg and K. J. Vahala, Cavity opto-mechanics, Opt. Express 15, 17172 (2007).
  34. A. Ayoub and J. Akram, Thermal entanglement of superconducting qubits for arbitrary interaction strength, Physica C 591, 1353977 (2021).
  35. V. Villafañe, S. Anguiano, A. E. Bruchhausen, G. Rozas, J. Bloch, C. G. Carbonell, A. Lemaître, and A. Fainstein, Quantum well photoelastic comb for ultra-high frequency cavity optomechanics, Quantum Sci. Technol. 4, 014011 (2018).
  36. F. Liu, S. Alaie, Z. C. Leseman, and M. Hossein-Zadeh, Sub-pg mass sensing and measurement with an optomechanical oscillator, Opt. Express 21, 19555 (2013).
  37. J. Millen, T. S. Monteiro, R. Pettit, and A. N. Vamivakas, Optomechanics with levitated particles, Rep. Prog. Phys. 83, 026401 (2020).
  38. J. Zheng, X. Sun, Y. Li, M. Poot, A. Dadgar, N. N. Shi, W. H. Pernice, H. X. Tang, and C. W. Wong, Femtogram dispersive l3-nanobeam optomechanical cavities: Design and experimental comparison, Opt. Express 20, 26486 (2012).
  39. Y. Tsaturyan, A. Barg, E. S. Polzik, and A. Schliesser, Ultracoherent nanomechanical resonators via soft clamping and dissipation dilution, Nat. Nanotechnol. 12, 776 (2017).
  40. J. N. Kirchhof, K. Weinel, S. Heeg, V. Deinhart, S. Kovalchuk, K. Höflich, and K. I. Bolotin, Tunable graphene phononic crystal, Nano Lett. 21, 2174 (2021).
  41. Y. Li, K. Cui, X. Feng, Y. Huang, Z. Huang, F. Liu, and W. Zhang, Optomechanical crystal nanobeam cavity with high optomechanical coupling rate, J. Opt. 17, 045001 (2015).
  42. Z. Huang, K. Cui, Y. Li, X. Feng, F. Liu, W. Zhang, and Y. Huang, Strong optomechanical coupling in nanobeam cavities based on hetero optomechanical crystals, Sci. Rep. 5, 15964 (2015).
  43. R. Leijssen and E. Verhagen, Strong optomechanical interactions in a sliced photonic crystal nanobeam, Sci. Rep. 5, 15974 (2015).
