Investigating the role of tetraquark operators in lattice QCD studies of the a0(980) and κ resonances

Andrew D. Hanlon1,*, Daniel Darvish2, Sarah Skinner2, John Meneghini2, Ruairí Brett2, John Bulava3, Jacob Fallica2, Colin Morningstar2, Fernando Romero-López4 et al.

André Walker-Loud5

  • *Contact author: ahanlon7@kent.edu
PDF

Phys. Rev. D 114, 014517 – Published 23 July, 2026

DOI: https://doi.org/10.1103/bs45-shv9

Abstract

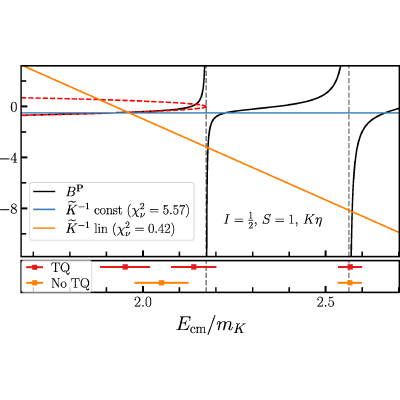

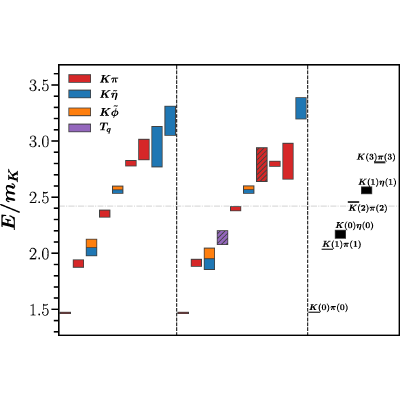

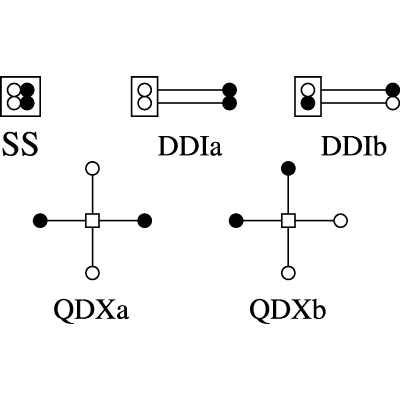

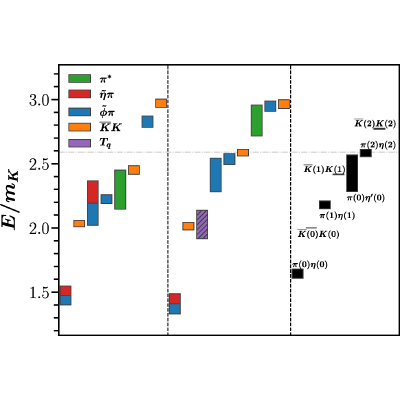

The role of tetraquark operators in studying the isodoublet strange κ and isovector nonstrange a0(980) scalar mesons in lattice quantum chromodynamics (QCD) is examined using an ensemble with mπ≈230  MeV and spatial extent L such that mπL≈4.4. Hermitian correlation matrices using both single-meson, meson-meson, and tetraquark interpolating operators are used to extract the spectrum of finite-volume stationary states in the appropriate symmetry channels. Hundreds of local and extended tetraquark operators are explored. Determinations of the spectrum in each channel are found to be unreliable without the inclusion of at least one tetraquark operator. For example, the inclusion of tetraquark operators with isospin 1/2 and strangeness 1 quantum numbers reveals the existence of an additional energy level in the Kη subsystem below the Kη threshold. The implications of this on parametrizing the scattering K-matrix through a well-known quantization condition to extract properties of the κ and a0(980) scalar meson resonances are discussed.

View figure in article

Physics Subject Headings (PhySH)

Article Text

Supplemental Material

References (37)

  1. S. Godfrey and N. Isgur, Mesons in a relativized quark model with chromodynamics, Phys. Rev. D 32, 189 (1985).
  2. G. Rupp and E. Van Beveren, Scalar mesons: Fifty years of challenging the quark model, Acta Phys. Pol. B Proc. Suppl. 11, 455 (2018).
  3. R. Jaffe, Exotica, Nucl. Phys. B, Proc. Suppl. 142, 343 (2005).
  4. C. Amsler and N. Tornqvist, Mesons beyond the naive quark model, Phys. Rep. 389, 61 (2004).
  5. F. E. Close and N. A. Tornqvist, Scalar mesons above and below 1 GeV, J. Phys. G 28, R249 (2002).
  6. L. Maiani, F. Piccinini, A. Polosa, and V. Riquer, New look at scalar mesons, Phys. Rev. Lett. 93, 212002 (2004).
  7. A. Stump and J. R. Green, Position-space sampling for local multiquark operators in lattice QCD using distillation and the importance of tetraquark operators for Tcc(3875)+, Phys. Rev. D 113, 034513 (2026).
  8. S. Prelovsek, E. Ortiz-Pacheco, S. Collins, L. Leskovec, M. Padmanath, and I. Vujmilovic, Doubly heavy tetraquarks from lattice QCD: Incorporating diquark-antidiquark operators and the left-hand cut, Phys. Rev. D 112, 014507 (2025).
  9. H. Alharazin, A. B. Raposo, J. Bulava, S. Dawid, J. R. Green, C. Morningstar, F. Romero-López, M. Salg, S. R. Sharpe, and A. Stump, Three-body study of the Tcc(3875)+ from lattice QCD, in 42th International Symposium on Lattice Field Theory (2026), arXiv:2602.17204.
  10. S. Prelovsek, T. Draper, C. B. Lang, M. Limmer, K.-F. Liu, N. Mathur, and D. Mohler, Lattice study of light scalar tetraquarks with I=0,2,1/2,3/2: Are σ and κ tetraquarks?, Phys. Rev. D 82, 094507 (2010).
  11. C. Alexandrou, J. O. Daldrop, M. Dalla Brida, M. Gravina, L. Scorzato, C. Urbach, and M. Wagner, Lattice investigation of the scalar mesons a0(980) and κ using four-quark operators, J. High Energy Phys. 04 (2013) 137.
  12. C. Alexandrou, J. Berlin, M. Dalla Brida, J. Finkenrath, T. Leontiou, and M. Wagner, Lattice QCD investigation of the structure of the a0(980) meson, Phys. Rev. D 97, 034506 (2018).
  13. F.-K. Guo, L. Liu, U.-G. Meissner, and P. Wang, Tetraquarks, hadronic molecules, meson-meson scattering and disconnected contributions in lattice QCD, Phys. Rev. D 88, 074506 (2013).
  14. C. Morningstar, J. Bulava, J. Foley, K. J. Juge, D. Lenkner, M. Peardon, and C. H. Wong, Improved stochastic estimation of quark propagation with Laplacian Heaviside smearing in lattice QCD, Phys. Rev. D 83, 114505 (2011).
  15. M. Luscher, Two particle states on a torus and their relation to the scattering matrix, Nucl. Phys. B354, 531 (1991).
  16. K. Rummukainen and S. A. Gottlieb, Resonance scattering phase shifts on a nonrest frame lattice, Nucl. Phys. B450, 397 (1995).
  17. C. H. Kim, C. T. Sachrajda, and S. R. Sharpe, Finite-volume effects for two-hadron states in moving frames, Nucl. Phys. B727, 218 (2005).
  18. R. A. Briceno, Two-particle multichannel systems in a finite volume with arbitrary spin, Phys. Rev. D 89, 074507 (2014).
  19. G. Fox, R. Gupta, O. Martin, and S. Otto, Monte Carlo estimates of the mass gap of the O(2) and O(3) spin models in (1+1)-dimensions, Nucl. Phys. B205, 188 (1982).
  20. C. Michael and I. Teasdale, Extracting glueball masses from lattice QCD, Nucl. Phys. B215, 433 (1983).
  21. M. Lüscher and U. Wolff, How to calculate the elastic scattering matrix in two-dimensional quantum field theories by numerical simulation, Nucl. Phys. B339, 222 (1990).
  22. S. Basak, R. Edwards, G. Fleming, U. Heller, C. Morningstar, D. Richards, I. Sato, and S. Wallace, Group-theoretical construction of extended baryon operators in lattice QCD, Phys. Rev. D 72, 094506 (2005).
  23. C. Morningstar, J. Bulava, B. Fahy, J. Foley, Y. Jhang, K. Juge, D. Lenkner, and C. Wong, Extended hadron and two-hadron operators of definite momentum for spectrum calculations in lattice QCD, Phys. Rev. D 88, 014511 (2013).
  24. C. Morningstar and M. J. Peardon, Analytic smearing of SU(3) link variables in lattice QCD, Phys. Rev. D 69, 054501 (2004).
  25. R. G. Edwards, B. Joo, and H.-W. Lin, Tuning for three-flavors of anisotropic clover fermions with stout-link smearing, Phys. Rev. D 78, 054501 (2008).
  26. H.-W. Lin et al. (Hadron Spectrum Collaboration), First results from 2+1 dynamical quark flavors on an anisotropic lattice: Light-hadron spectroscopy and setting the strange-quark mass, Phys. Rev. D 79, 034502 (2009).
  27. R. Brett, J. Bulava, J. Fallica, A. Hanlon, B. Hörz, and C. Morningstar, Determination of s- and p-wave I=1/2 Kπ scattering amplitudes in Nf=2+1 lattice QCD, Nucl. Phys. B932, 29 (2018).
  28. J. Bulava, B. Fahy, B. Hörz, K. J. Juge, C. Morningstar, and C. H. Wong, I=1 and I=2 π−π scattering phase shifts from Nf=2+1 lattice QCD, Nucl. Phys. B910, 842 (2016).
  29. See Supplemental Material at http://link.aps.org/supplemental/10.1103/bs45-shv9 for further details about our tetraquark operator selection procedure.
  30. D. J. Wilson, J. J. Dudek, R. G. Edwards, and C. E. Thomas, Resonances in coupled πK,ηK scattering from lattice QCD, Phys. Rev. D 91, 054008 (2015).
  31. G. Rendon, L. Leskovec, S. Meinel, J. Negele, S. Paul, M. Petschlies, A. Pochinsky, G. Silvi, and S. Syritsyn, I=1/2 S-wave and P-wave Kπ scattering and the κ and K* resonances from lattice QCD, Phys. Rev. D 102, 114520 (2020).
  32. J. J. Dudek, R. G. Edwards, and C. E. Thomas (Hadron Spectrum Collaboration), Energy dependence of the ρ resonance in ππ elastic scattering from lattice QCD, Phys. Rev. D 87, 034505 (2013); 90, 099902(E) (2014).
  33. J. J. Dudek, R. G. Edwards, and D. J. Wilson (Hadron Spectrum Collaboration), An a0 resonance in strongly coupled πη, KK¯ scattering from lattice QCD, Phys. Rev. D 93, 094506 (2016).
  34. C. Morningstar, J. Bulava, B. Singha, R. Brett, J. Fallica, A. Hanlon, and B. Hörz, Estimating the two-particle K-matrix for multiple partial waves and decay channels from finite-volume energies, Nucl. Phys. B924, 477 (2017).
  35. S. Navas et al. (Particle Data Group Collaboration), Review of particle physics, Phys. Rev. D 110, 030001 (2024).
  36. D. Stanzione, J. West, R. Evans, T. Minyard, O. Ghattas, and D. Panda, Frontera: The evolution of leadership computing at the National Science Foundation, in Proceedings of Practice and Experience in Advanced Research Computing (PEARC ’20) (Association for Computing Machinery (ACM), New York, NY, USA, 2020).
  37. R. G. Edwards and B. Joo (SciDAC Collaboration), The Chroma software system for lattice QCD, Nucl. Phys. B, Proc. Suppl. 140, 832 (2005).
