Dark matter in the scale-invariant 3-3-1-1 model

Alex G. Dias and Vinicius Padovani*

Kristjan Kannike† and Niko Koivunen‡

Julio Leite§

B. L. Sánchez-Vega∥

  • AHEP Group, Institut de Física Corpuscular—C.S.I.C./Universitat de València, Parc Científic de Paterna. C/ Catedrático José Beltrán, 2 E-46980 Paterna (Valencia), Spain

  • Departamento de Física, UFMG, Belo Horizonte, MG 31270-901, Brazil

  • *Contact author: vinicius.padovani.physics@gmail.com
  • †Contact author: Kristjan.Kannike@cern.ch
  • ‡Contact author: niko.koivunen@kbfi.ee
  • §Contact author: julio.leite@ific.uv.es
  • ∥Contact author: bruce@fisica.ufmg.br
PDF

Phys. Rev. D 112, 115017 – Published 4 December, 2025

DOI: https://doi.org/10.1103/b7wy-r6kg

Abstract

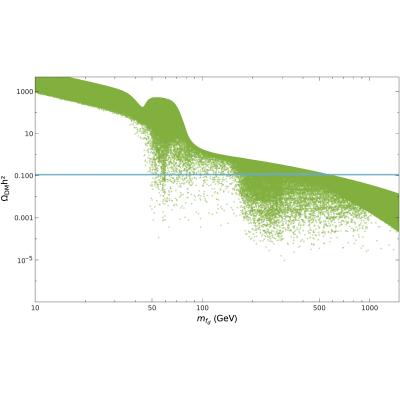

We propose a novel scale-invariant model with the 3-3-1-1 gauge symmetry featuring a universal seesaw mechanism for all fermion masses, which, through the inclusion of additional vectorlike quarks, provides a partial explanation for the observed fermion mass hierarchies. A discrete remnant of the gauge group, the matter parity (PM), stabilizes a fermionic dark matter candidate, and the scalar sector includes two triplets (minimal for 3−3−1 breaking) and two scalar singlets. We identify the lightest PM-odd fermion, fd, as a viable dark matter candidate. Our analysis shows that fd satisfies the observed relic density constraint within the mass range 220  GeV≲mfd≲555  GeV, primarily due to resonant annihilation via the new scalar H2. While this mass range depends on the symmetry-breaking scale vχ, which has a lower bound of vχ≳3.6  TeV from LEP constraints on the ρ0 parameter, we adopt a more conservative lower bound of vχ>10  TeV. This choice is made to ensure that the Z′ boson mass remains above approximately 4 TeV, and is motivated by recent LHC results and future projections for Z′ boson searches, which provide more stringent constraints than previous bounds or those from the ρ0 parameter. Spin-independent (SI) interactions dominate the direct detection phenomenology of fd. We calculate the SI elastic scattering cross section and find that parameter points satisfying the relic density constraint are consistent with current experimental limits from LZ and PandaX-4T for certain parameter choices, particularly depending on the α12 angle. Some regions of the viable parameter space lie below the neutrino floor. Prospects for detection by future experiments like XLZD and PandaX-xT are also presented and discussed.

View figure in article

Physics Subject Headings (PhySH)

Article Text

References (74)

  1. M. Singer, J. W. F. Valle, and J. Schechter, Phys. Rev. D 22, 738 (1980).
  2. F. Pisano and V. Pleitez, Phys. Rev. D 46, 410 (1992).
  3. R. Foot, O. F. Hernandez, F. Pisano, and V. Pleitez, Phys. Rev. D 47, 4158 (1993).
  4. P. H. Frampton, Phys. Rev. Lett. 69, 2889 (1992).
  5. J. C. Montero, F. Pisano, and V. Pleitez, Phys. Rev. D 47, 2918 (1993).
  6. V. Pleitez and M. D. Tonasse, Phys. Rev. D 48, 2353 (1993).
  7. R. Foot, H. N. Long, and T. A. Tran, Phys. Rev. D 50, R34 (1994).
  8. V. Pleitez, Phys. Rev. D 53, 514 (1996).
  9. M. Ozer, Phys. Rev. D 54, 1143 (1996).
  10. H. N. Long, Phys. Rev. D 53, 437 (1996).
  11. J. C. Montero and B. L. Sánchez-Vega, Phys. Rev. D 84, 055019 (2011).
  12. P. V. Dong, H. T. Hung, and T. D. Tham, Phys. Rev. D 87, 115003 (2013).
  13. P. V. Dong, Phys. Rev. D 92, 055026 (2015).
  14. A. Alves, G. Arcadi, P. V. Dong, L. Duarte, F. S. Queiroz, and J. W. F. Valle, Phys. Lett. B 772, 825 (2017).
  15. J. Leite, O. Popov, R. Srivastava, and J. W. F. Valle, Phys. Lett. B 802, 135254 (2019).
  16. J. Leite, A. Morales, J. W. F. Valle, and C. A. Vaquera-Araujo, Phys. Rev. D 102, 015022 (2020).
  17. J. C. Montero, A. Romero, and B. L. Sánchez-Vega, Phys. Rev. D 97, 063015 (2018).
  18. A. G. Dias, J. Leite, and B. L. Sánchez-Vega, Phys. Rev. D 106, 115008 (2022).
  19. G. C. Branco, P. M. Ferreira, L. Lavoura, M. N. Rebelo, M. Sher, and J. P. Silva, Phys. Rep. 516, 1 (2012).
  20. S. P. Martin, Adv. Ser. Dir. High Energy Phys. 18, 1 (1998).
  21. S. R. Coleman and E. J. Weinberg, Phys. Rev. D 7, 1888 (1973).
  22. E. Gildener and S. Weinberg, Phys. Rev. D 13, 3333 (1976).
  23. J. C. Montero and B. L. Sánchez-Vega, Phys. Rev. D 91, 037302 (2015).
  24. A. Davidson and K. C. Wali, Phys. Rev. Lett. 59, 393 (1987).
  25. S. Dimopoulos and H. Georgi, Nucl. Phys. B193, 150 (1981).
  26. G. R. Farrar and P. Fayet, Phys. Lett. 76B, 575 (1978).
  27. L. E. Ibanez and G. G. Ross, Nucl. Phys. B368, 3 (1992).
  28. M. Kadastik, K. Kannike, and M. Raidal, Phys. Rev. D 80, 085020 (2009); 81, 029903(E) (2010).
  29. M. Kadastik, K. Kannike, and M. Raidal, Phys. Rev. D 81, 015002 (2010).
  30. P. V. Dong, D. T. Huong, F. S. Queiroz, and N. Thuy, Phys. Rev. D 90, 075021 (2014).
  31. M. Gell-Mann, P. Ramond, and R. Slansky, in Supergravity, edited by P. V. Niuwenhuizen and D. Freedman (North Holland, Amsterdam, 1979).
  32. T. Yanagida, in Proceedings of the Workshop on the Baryon Number of the Universe and Unified Theories, edited by O. Sawada and A. Sugamoto (National Laboratory of High Energy Physics, Tsukuba, Japan, 1979).
  33. R. N. Mohapatra and G. Senjanovic, Phys. Rev. Lett. 44, 912 (1980).
  34. S. L. Glashow, NATO Adv. Study Inst. Ser. B Phys. 59, 687 (1980).
  35. P. Minkowski, Phys. Lett. 67B, 421 (1977).
  36. K. Kannike, A. Kubarski, and L. Marzola, Phys. Rev. D 99, 115034 (2019).
  37. L. Alexander-Nunneley and A. Pilaftsis, J. High Energy Phys. 09 (2010) 021.

  38. Note that due to normalization of the fields, the numerical coefficient on the right-hand side is different from Ref. [36].

  39. H. Fritzsch and J. Plankl, Phys. Rev. D 35, 1732 (1987).
  40. B. Singh Koranga and V. K. Nautiyal, Int. J. Theor. Phys. 60, 781 (2021).
  41. K. Kannike, J. High Energy Phys. 01 (2024) 176.
  42. S. Navas et al. (Particle Data Group), Phys. Rev. D 110, 030001 (2024).
  43. R. L. Workman et al. (Particle Data Group), Prog. Theor. Exp. Phys. 2022, 083C01 (2022).
  44. T. S. Roussy, L. Caldwell, T. Wright, W. B. Cairncross, Y. Shagam, K. B. Ng, N. Schlossberger, S. Y. Park, A. Wang, J. Ye, and E. A. Cornell, Science 381, 46 (2023).
  45. C. Abel et al., Phys. Rev. Lett. 124, 081803 (2020).
  46. G. D. Conto and V. Pleitez, Phys. Rev. D 91, 015006 (2015).
  47. H. Okada, N. Okada, Y. Orikasa, and K. Yagyu, Phys. Rev. D 94, 015002 (2016).
  48. A. Doff, C. A. de S. Pires, and P. S. R. da Silva, Phys. Rev. D 74, 015014 (2006).
  49. T. Dent and J. Silva-Marcos, Nucl. Phys. B652, 142 (2003).
  50. J. Kley et al., Eur. Phys. J. C 82, 926 (2022).
  51. W. Grimus and L. Lavoura, J. High Energy Phys. 11 (2000) 042.
  52. J. Casas and A. Ibarra, Nucl. Phys. B618, 171 (2001).
  53. T. J. Kärkkäinen and Z. Trócsányi, J. Phys. G 49, 045004 (2022).
  54. I. Esteban, M. C. Gonzalez-Garcia, M. Maltoni, I. Martinez-Soler, J. P. Pinheiro, and T. Schwetz, J. High Energy Phys. 12 (2024) 216.
  55. CMS Collaboration, CERN Reports No. CMS-PAS-TOP-17-004, CMS Collaboration, 2019.
  56. Q.-H. Cao and D.-M. Zhang, arXiv:1611.09337.
  57. A. Tumasyan et al. (CMS Collaboration), J. High Energy Phys. 07 (2023) 020.
  58. G. Aad et al. (ATLAS Collaboration), Phys. Lett. B 854, 138743 (2024).
  59. Y. Kuno and Y. Okada, Rev. Mod. Phys. 73, 151 (2001).
  60. N. Aghanim, Y. Akrami, M. Ashdown et al., Astron. Astrophys. 641, A6 (2020).
  61. G. Alguero, G. Bélanger, F. Boudjema, S. Chakraborti, A. Goudelis, S. Kraml, A. Mjallal, and A. Pukhov, Comput. Phys. Commun. 299, 109133 (2024).
  62. R. Bause et al., Phys. Rev. A 111, 062815 (2025).
  63. A. Alves, L. Duarte, S. Kovalenko, Y. M. Oviedo-Torres, F. S. Queiroz, and Y. S. Villamizar, Phys. Rev. D 106, 055027 (2022).
  64. P. Gondolo and G. Gelmini, Nucl. Phys. B360, 145 (1991).
  65. K. Griest and D. Seckel, Phys. Rev. D 43, 3191 (1991).
  66. A. Alloul, N. D. Christensen, C. Degrande, C. Duhr, and B. Fuks, Comput. Phys. Commun. 185, 2250 (2014).
  67. Q.-H. Cao and D.-M. Zhang, arXiv:1611.09337.
  68. A. Belyaev, N. D. Christensen, and A. Pukhov, Comput. Phys. Commun. 184, 1729 (2013).
  69. Y. Meng et al. (PandaX-4T Collaboration), Phys. Rev. Lett. 127, 261802 (2021).
  70. LUX-ZEPLIN Collaboration, Phys. Rev. Lett. 135, 011802 (2025).
  71. C. A. J. O’Hare, Phys. Rev. Lett. 127, 251802 (2021).
  72. J. Aalbers et al. (LUX-ZEPLIN Collaboration), Phys. Rev. Lett. 131, 041002 (2023).
  73. J. Aalbers et al., J. Phys. G 50, 013001 (2022).
  74. A. Abdukerim et al., Sci. China Phys. Mech. Astron. 68, 221011 (2024).
