Multipole structure of the N→Δ transition generalized parton distributions

June-Young Kim* and Hyun-Chul Kim†

  • Department of Physics and Institute of Quantum Science, Inha University, Incheon 22212, Republic of Korea

  • *Contact author: jun-young.kim@inha.ac.kr
  • †Contact author: hchkim@inha.ac.kr
PDF

Phys. Rev. D 114, 074023 – Published 13 October, 2026

DOI: https://doi.org/10.1103/1hr6-pbk8

Abstract

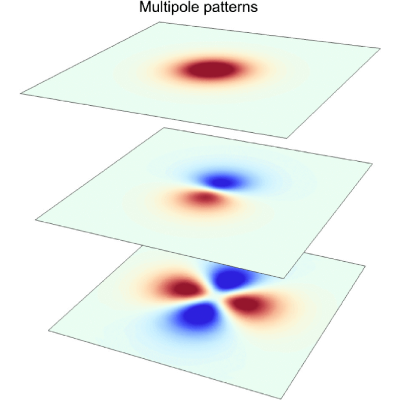

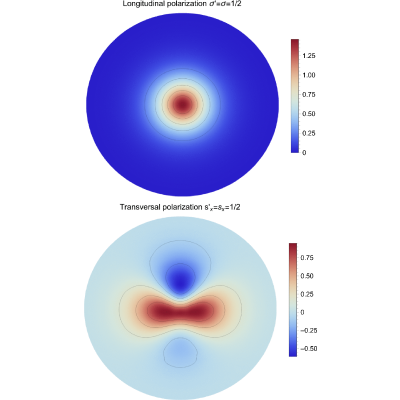

We establish the multipole structure of the N→Δ transition at the level of the generalized parton distributions (GPDs). We decompose the four transition GPDs into one monopole, two dipole, and one quadrupole components in the transverse plane by a multipole expansion of the covariant transition matrix element in terms of the three-dimensional spin-transition tensors and the transverse momentum transfer. These multipole components are in one-to-one correspondence with the light-front helicity amplitudes. In the zero-skewness limit, the multipole GPDs define impact-parameter transition densities, which generalize the transverse transition charge densities to the x-dependent level. These transition densities arise from nondiagonal matrix elements between two distinct hadronic states and must therefore be distinguished from the diagonal densities of the nucleon and the Δ. The multipole transition densities visualize the monopole, dipole, and quadrupole structures of the partonic N→Δ transition in the transverse plane.

View figure in article

Physics Subject Headings (PhySH)

Article Text

References (43)

  1. V. Pascalutsa, M. Vanderhaeghen, and S. N. Yang, Electromagnetic excitation of the Δ(1232)-resonance, Phys. Rep. 437, 125 (2007).
  2. F. Takahashi et al. (Particle Data Group), Review of particle physics, Int. J. Mod. Phys. A 41, 2630011 (2026).
  3. H. F. Jones and M. D. Scadron, Multipole gamma N Delta form-factors and resonant photoproduction and electroproduction, Ann. Phys. (N.Y.) 81, 1 (1973).
  4. R. Beck et al., Measurement of the E2/M1 ratio in the N→Δ transition using the reaction p(γ→,p)π0, Phys. Rev. Lett. 78, 606 (1997).
  5. R. Beck et al., Determination of the E2/M1 ratio in the γN→Δ(1232) transition from a simultaneous measurement of p(γ→,p)π0 and p(γ→,π+)n, Phys. Rev. C 61, 035204 (2000).
  6. G. Blanpied et al. (LEGS Collaboration), N→Δ transition from simultaneous measurements of p(γ→,π) and p(γ→,γ), Phys. Rev. Lett. 79, 4337 (1997).
  7. G. Blanpied et al. (LEGS Collaboration), N→Δ transition and proton polarizabilities from measurements of p(γ→,γ), p(γ→,π0), and p(γ→,π+), Phys. Rev. C 64, 025203 (2001); 64, 029902(E) (2001).
  8. C. Mertz et al., Search for quadrupole strength in the electroexcitation of the Δ+(1232), Phys. Rev. Lett. 86, 2963 (2001).
  9. N. F. Sparveris et al. (OOPS Collaboration), Investigation of the conjectured nucleon deformation at low momentum transfer, Phys. Rev. Lett. 94, 022003 (2005).
  10. T. Pospischil et al. (A1 Collaboration), Measurement of the recoil polarization in the p(e→,e′p→)π0 reaction at the Δ(1232) resonance, Phys. Rev. Lett. 86, 2959 (2001).
  11. V. V. Frolov et al., Electroproduction of the Δ(1232) resonance at high momentum transfer, Phys. Rev. Lett. 82, 45 (1999).
  12. K. Joo et al. (CLAS Collaboration), Q2 dependence of quadrupole strength in the γ*p→Δ+(1232)→pπ0 transition, Phys. Rev. Lett. 88, 122001 (2002).
  13. M. Ungaro et al. (CLAS Collaboration), Measurement of the N→Δ+(1232) transition at high momentum transfer by π0 electroproduction, Phys. Rev. Lett. 97, 112003 (2006).
  14. I. G. Aznauryan et al. (CLAS Collaboration), Electroexcitation of nucleon resonances from CLAS data on single pion electroproduction, Phys. Rev. C 80, 055203 (2009).
  15. C. Alexandrou, C. N. Papanicolas, and M. Vanderhaeghen, Colloquium: The shape of hadrons, Rev. Mod. Phys. 84, 1231 (2012).
  16. S. S. Kamalov and S. N. Yang, Pion cloud and the Q2 dependence of γ*N↔Δ transition form factors, Phys. Rev. Lett. 83, 4494 (1999).
  17. T. Sato and T. S. H. Lee, Dynamical study of the Δ excitation in N(e,e′π) reactions, Phys. Rev. C 63, 055201 (2001).
  18. J.-Y. Kim and H.-C. Kim, Electromagnetic transition form factors, E2/M1 and C2/M1 ratios of the baryon decuplet, Eur. Phys. J. C 80, 1087 (2020).
  19. C. E. Carlson and M. Vanderhaeghen, Empirical transverse charge densities in the nucleon and the nucleon-to-Delta transition, Phys. Rev. Lett. 100, 032004 (2008).
  20. D. Müller, D. Robaschik, B. Geyer, F. M. Dittes, and J. Hořŕejši, Wave functions, evolution equations and evolution kernels from light ray operators of QCD, Fortschr. Phys. 42, 101 (1994).
  21. X.-D. Ji, Gauge-invariant decomposition of nucleon spin, Phys. Rev. Lett. 78, 610 (1997).
  22. A. V. Radyushkin, Nonforward parton distributions, Phys. Rev. D 56, 5524 (1997).
  23. K. Goeke, M. V. Polyakov, and M. Vanderhaeghen, Hard exclusive reactions and the structure of hadrons, Prog. Part. Nucl. Phys. 47, 401 (2001).
  24. M. Diehl, Generalized parton distributions, Phys. Rep. 388, 41 (2003).
  25. A. V. Belitsky and A. V. Radyushkin, Unraveling hadron structure with generalized parton distributions, Phys. Rep. 418, 1 (2005).
  26. M. Burkardt, Impact parameter dependent parton distributions and off forward parton distributions for ζ→0, Phys. Rev. D 62, 071503 (2000); 66, 119903(E) (2002).
  27. M. Burkardt, Impact parameter space interpretation for generalized parton distributions, Int. J. Mod. Phys. A 18, 173 (2003).
  28. S. Diehl et al. (CLAS Collaboration), First measurement of hard exclusive π−Δ++ electroproduction beam-spin asymmetries off the proton, Phys. Rev. Lett. 131, 021901 (2023).
  29. P. Kroll and K. Passek-Kumerički, Transition GPDs and exclusive electroproduction of π−Δ (1232) final states, Phys. Rev. D 107, 054009 (2023).
  30. K. M. Semenov-Tian-Shansky and M. Vanderhaeghen, Deeply virtual Compton process e−N→e−γπN to study nucleon to resonance transitions, Phys. Rev. D 108, 034021 (2023).
  31. S. Diehl et al., Exploring baryon resonances with transition generalized parton distributions: Status and perspectives, Eur. Phys. J. A 61, 131 (2025).
  32. R. Abdul Khalek et al., Science requirements and detector concepts for the electron-ion collider: EIC Yellow report, Nucl. Phys. A1026, 122447 (2022).
  33. J.-Y. Kim, K. M. Semenov-Tian-Shansky, H.-Y. Won, S. Son, and C. Weiss, Complete definition of N→Δ transition generalized parton distributions, Phys. Rev. D 111, 114010 (2025).
  34. J.-Y. Kim and C. Weiss, Tensor-polarized parton density in the N→Δ transition, Phys. Lett. B 870, 139924 (2025).
  35. J.-Y. Kim, Tensor-polarized parton density in the N→Δ transition from the large-Nc light-cone wave function, Phys. Rev. D 113, 114019 (2026).
  36. D. A. Varshalovich, A. N. Moskalev, and V. K. Khersonskii, Quantum Theory of Angular Momentum: Irreducible Tensors, Spherical Harmonics, Vector Coupling Coefficients, 3nj Symbols (World Scientific Publishing Company, Singapore, 1988), 10.1142/0270.
  37. W. Rarita and J. Schwinger, On a theory of particles with half integral spin, Phys. Rev. 60, 61 (1941).
  38. P. L. Chung and F. Coester, Relativistic constituent quark model of nucleon form-factors, Phys. Rev. D 44, 229 (1991).
  39. W. R. B. de Araujo, M. Beyer, T. Frederico, and H. J. Weber, Feynman versus Bakamjian-Thomas in light front dynamics, J. Phys. G 25, 1589 (1999).
  40. J. A. Rinehimer and G. A. Miller, Connecting the breit frame to the infinite momentum light front frame: How G(E) turns into F(1), Phys. Rev. C 80, 015201 (2009).
  41. C. Lorcé, New explicit expressions for Dirac bilinears, Phys. Rev. D 97, 016005 (2018).
  42. G. P. Lepage and S. J. Brodsky, Exclusive processes in perturbative quantum chromodynamics, Phys. Rev. D 22, 2157 (1980).
  43. S. J. Brodsky, H.-C. Pauli, and S. S. Pinsky, Quantum chromodynamics and other field theories on the light cone, Phys. Rep. 301, 299 (1998).
