Dipion transitions from X(3872) to χcJ (J=0, 1, 2)

Qi Wu1, Zhong-Quan Sun1, Dian-Yong Chen2,3,*, Shi-Dong Liu4,†, and Gang Li4,‡

  • *Contact author: chendy@seu.edu.cn
  • †Contact author: liusd@qfnu.edu.cn
  • ‡Contact author: gli@qfnu.edu.cn
PDF

Phys. Rev. D 113, 014015 – Published 14 January, 2026

DOI: https://doi.org/10.1103/19lr-96hx

Abstract

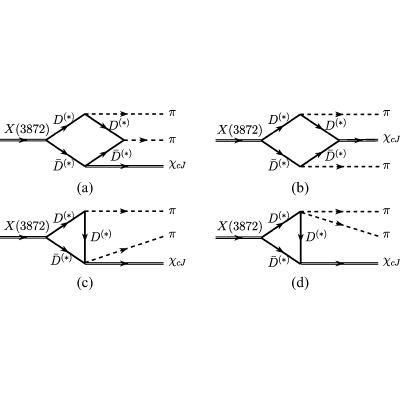

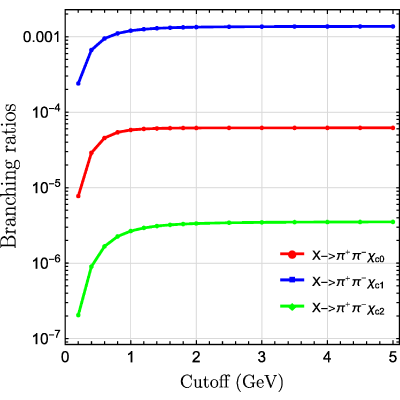

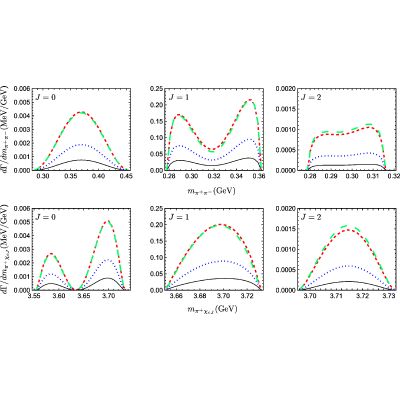

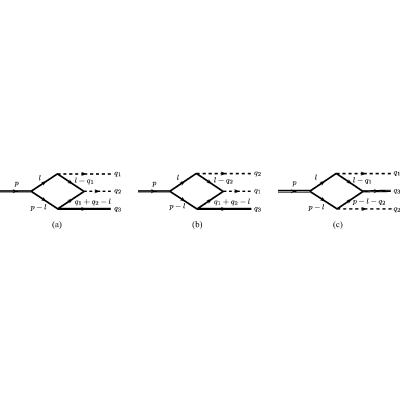

In this work, we investigate the dipion transition processes X(3872)→ππχcJ (J=0, 1, 2) within the framework of heavy hadron chiral perturbation theory, treating X(3872) as a molecular state composed of DD¯*+H.c. components. By analyzing the box and triangle loop diagrams with the nonrelativistic effective field theory power-counting rule, we demonstrate that box diagrams dominate these dipion transition processes. Branching ratios are calculated as functions of the mixing angle θ, which parametrizes the neutral and charged meson compositions of the X(3872). Our results indicate that the branching fractions for X(3872)→ππχc0, X(3872)→ππχc1, and X(3872)→ππχc2 are of the orders of 10−4, 10−3, and 10−5, respectively. We also predict the ratios B[X(3872)→ππχc0/2]/B[X(3872)→ππχc1] and B[X(3872)→π+π−χcJ]/B[X(3872)→π0π0χcJ]. The latter deviates from isospin-symmetry expectations, revealing various degrees of isospin violation. By studying the π+π− and π+χcJ invariant mass spectra, we find a double-bump structure in the π+π− invariant mass distributions of the process X(3872)→π+π−χc1 and π+χc0 invariant mass distribution of the process X(3872)→π+π−χc0, which could be tested by future experimental measurements.

View figure in article

Physics Subject Headings (PhySH)

Article Text

References (74)

  1. S. K. Choi et al. (Belle Collaboration), Phys. Rev. Lett. 91, 262001 (2003).
  2. H.-X. Chen, W. Chen, X. Liu, and S.-L. Zhu, Phys. Rep. 639, 1 (2016).
  3. A. Hosaka, T. Iijima, K. Miyabayashi, Y. Sakai, and S. Yasui, Prog. Theor. Exp. Phys. 2016, 062C01 (2016).
  4. R. F. Lebed, R. E. Mitchell, and E. S. Swanson, Prog. Part. Nucl. Phys. 93, 143 (2017).
  5. A. Esposito, A. Pilloni, and A. D. Polosa, Phys. Rep. 668, 1 (2017).
  6. F.-K. Guo, C. Hanhart, U.-G. Meißner, Q. Wang, Q. Zhao, and B.-S. Zou, Rev. Mod. Phys. 90, 015004 (2018); 94, 029901(E) (2022).
  7. A. Ali, J. S. Lange, and S. Stone, Prog. Part. Nucl. Phys. 97, 123 (2017).
  8. S. L. Olsen, T. Skwarnicki, and D. Zieminska, Rev. Mod. Phys. 90, 015003 (2018).
  9. M. Karliner, J. L. Rosner, and T. Skwarnicki, Annu. Rev. Nucl. Part. Sci. 68, 17 (2018).
  10. C.-Z. Yuan, Int. J. Mod. Phys. A 33, 1830018 (2018).
  11. Y. Dong, A. Faessler, and V. E. Lyubovitskij, Prog. Part. Nucl. Phys. 94, 282 (2017).
  12. Y.-R. Liu, H.-X. Chen, W. Chen, X. Liu, and S.-L. Zhu, Prog. Part. Nucl. Phys. 107, 237 (2019).
  13. M.-Z. Liu, Y.-W. Pan, Z.-W. Liu, T.-W. Wu, J.-X. Lu, and L.-S. Geng, Phys. Rep. 1108, 1 (2025).
  14. R. Aaij et al. (LHCb Collaboration), Phys. Rev. D 92, 011102 (2015).
  15. S. Godfrey and N. Isgur, Phys. Rev. D 32, 189 (1985).
  16. N. A. Tornqvist, Z. Phys. C 61, 525 (1994).
  17. M. B. Voloshin, Phys. Lett. B 579, 316 (2004).
  18. E. S. Swanson, Phys. Lett. B 588, 189 (2004).
  19. N. A. Tornqvist, Phys. Lett. B 590, 209 (2004).
  20. S. Fleming, M. Kusunoki, T. Mehen, and U. van Kolck, Phys. Rev. D 76, 034006 (2007).
  21. Y.-R. Liu, X. Liu, W.-Z. Deng, and S.-L. Zhu, Eur. Phys. J. C 56, 63 (2008).
  22. E. S. Swanson, Phys. Lett. B 598, 197 (2004).
  23. E. Braaten and M. Kusunoki, Phys. Rev. D 69, 074005 (2004).
  24. E. Braaten and M. Kusunoki, Phys. Rev. D 71, 074005 (2005).
  25. E. Braaten and M. Kusunoki, Phys. Rev. D 72, 054022 (2005).
  26. X. Liu, B. Zhang, and S.-L. Zhu, Phys. Lett. B 645, 185 (2007).
  27. S. Dubynskiy and M. B. Voloshin, Phys. Rev. D 77, 014013 (2008).
  28. S. Fleming and T. Mehen, Phys. Rev. D 78, 094019 (2008).
  29. Y.-b. Dong, A. Faessler, T. Gutsche, and V. E. Lyubovitskij, Phys. Rev. D 77, 094013 (2008).
  30. C. Bignamini, B. Grinstein, F. Piccinini, A. D. Polosa, and C. Sabelli, Phys. Rev. Lett. 103, 162001 (2009).
  31. S. Fleming and T. Mehen, Phys. Rev. D 85, 014016 (2012).
  32. F. Aceti, R. Molina, and E. Oset, Phys. Rev. D 86, 113007 (2012).
  33. A. Margaryan and R. P. Springer, Phys. Rev. D 88, 014017 (2013).
  34. F.-K. Guo, C. Hanhart, U.-G. Meißner, Q. Wang, and Q. Zhao, Phys. Lett. B 725, 127 (2013).
  35. F. K. Guo, C. Hidalgo-Duque, J. Nieves, A. Ozpineci, and M. P. Valderrama, Eur. Phys. J. C 74, 2885 (2014).
  36. Z.-Y. Zhou, M.-T. Yu, and Z. Xiao, Phys. Rev. D 100, 094025 (2019).
  37. Q. Wu, D.-Y. Chen, and T. Matsuki, Eur. Phys. J. C 81, 193 (2021).
  38. L. Meng, G.-J. Wang, B. Wang, and S.-L. Zhu, Phys. Rev. D 104, 094003 (2021).
  39. Y. Wang, Q. Wu, G. Li, W.-H. Qin, X.-H. Liu, C.-S. An, and J.-J. Xie, Phys. Rev. D 106, 074015 (2022).
  40. Q. Wu, M.-Z. Liu, and L.-S. Geng, Eur. Phys. J. C 84, 147 (2024).
  41. K. Abe et al. (Belle Collaboration), in Proceedings of the 22nd International Symposium on Lepton-Photon Interactions at High Energy (LP 2005) (2005), arXiv:hep-ex/0505037.
  42. M. Ablikim et al. (BESIII Collaboration), Phys. Rev. Lett. 122, 232002 (2019).
  43. P. del Amo Sanchez et al. (BABAR Collaboration), Phys. Rev. D 82, 011101 (2010).
  44. R. Aaij et al. (LHCb Collaboration), Phys. Rev. D 108, L011103 (2023).
  45. Y. Yamaguchi, A. Hosaka, S. Takeuchi, and M. Takizawa, J. Phys. G 47, 053001 (2020).
  46. G.-J. Wang, Z. Yang, J.-J. Wu, M. Oka, and S.-L. Zhu, Sci. Bull. 69, 3036 (2024).
  47. J. Song, L. R. Dai, and E. Oset, Phys. Rev. D 108, 114017 (2023).
  48. D. Gamermann, J. Nieves, E. Oset, and E. Ruiz Arriola, Phys. Rev. D 81, 014029 (2010).
  49. D. Gamermann and E. Oset, Eur. Phys. J. A 33, 119 (2007).
  50. D. Gamermann and E. Oset, Eur. Phys. J. A 36, 189 (2008).
  51. D. Gamermann and E. Oset, Phys. Rev. D 80, 014003 (2009).
  52. D. Gamermann, C. E. Jimenez-Tejero, and A. Ramos, Phys. Rev. D 83, 074018 (2011).
  53. Y. Dong, A. Faessler, T. Gutsche, S. Kovalenko, and V. E. Lyubovitskij, Phys. Rev. D 79, 094013 (2009).
  54. M. Ablikim et al. (BESIII Collaboration), Phys. Rev. Lett. 122, 202001 (2019).
  55. S. Navas et al. (Particle Data Group), Phys. Rev. D 110, 030001 (2024).
  56. M. Ablikim et al. (BESIII Collaboration), Phys. Rev. D 105, 072009 (2022).
  57. M. Ablikim et al. (BESIII Collaboration), Phys. Rev. D 109, L071101 (2024).
  58. M. Ablikim et al. (BESIII Collaboration), Phys. Rev. D 110, 072015 (2024).
  59. N. N. Achasov and G. N. Shestakov, Phys. Rev. D 110, 016023 (2024).
  60. Z.-S. Jia, Z.-H. Zhang, W.-H. Qin, and G. Li, Phys. Rev. D 109, 034017 (2024).
  61. S.-D. Liu, F. Wang, Z.-S. Jia, G. Li, X.-H. Liu, and J.-J. Xie, Phys. Rev. D 110, 054048 (2024).
  62. H.-D. Cai, Z.-S. Jia, G. Li, and S.-D. Liu, Phys. Rev. D 111, 114024 (2025).
  63. F.-K. Guo, C. Hanhart, and U.-G. Meissner, Phys. Rev. Lett. 103, 082003 (2009); 104, 109901(E) (2010).
  64. F.-K. Guo, C. Hanhart, G. Li, U.-G. Meissner, and Q. Zhao, Phys. Rev. D 83, 034013 (2011).
  65. M. B. Wise, Phys. Rev. D 45, R2188 (1992).
  66. J. Hu and T. Mehen, Phys. Rev. D 73, 054003 (2006).
  67. T. Mehen, Phys. Rev. D 92, 034019 (2015).
  68. S. Weinberg, Phys. Rev. 137, B672 (1965).
  69. V. Baru, J. Haidenbauer, C. Hanhart, Y. Kalashnikova, and A. E. Kudryavtsev, Phys. Lett. B 586, 53 (2004).
  70. P. Colangelo, F. De Fazio, and T. N. Pham, Phys. Rev. D 69, 054023 (2004).
  71. Z.-S. Jia, G. Li, and Z.-H. Zhang, Phys. Rev. D 112, 074035 (2025).
  72. F.-K. Guo, U.-G. Meißner, and Z. Yang, Phys. Lett. B 760, 417 (2016).
  73. M.-N. Tang, Y.-H. Lin, F.-K. Guo, C. Hanhart, and U.-G. Meißner, Commun. Theor. Phys. 75, 055203 (2023).
  74. Y.-H. Chen, Chin. Phys. C 44, 023103 (2020).
