Geometry-controlled directional wave-packet transmission in graphene with photonic-crystal-like electrostatic patterns

Kh. Rakhimov1,2,3,*, H. T. Yusupov4,†, M. Yusupov5,6,7, S. M. Vaez Allaei8,9, R. Sepehrinia8, and A. Chaves10

  • *Contact author: kh.rakhimov@gmail.com
  • †Contact author: x.yusupov@kiut.uz
PDF

Phys. Rev. B 114, 245412 – Published 13 October, 2026

DOI: https://doi.org/10.1103/b5bd-z893

Abstract

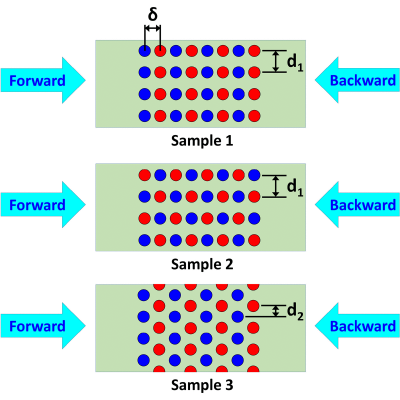

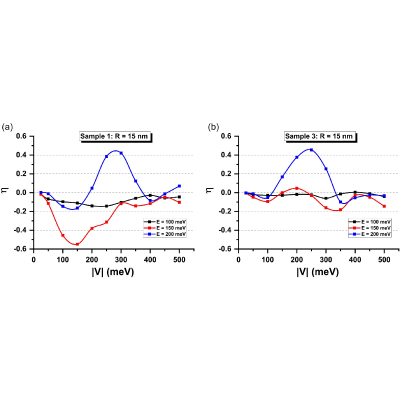

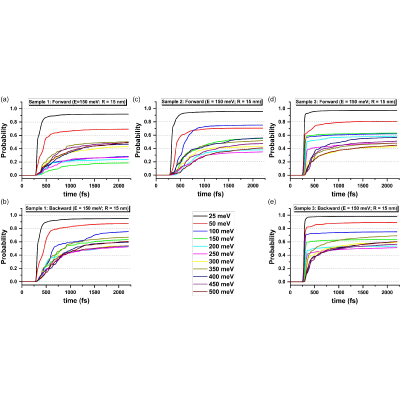

We investigate electron wave-packet transport in monolayer graphene subjected to photonic-crystal-inspired electrostatic superlattices composed of periodically arranged circular barriers and wells with zero net potential. Using the time-dependent Dirac equation combined with a split-operator propagation method, we systematically examine how lattice geometry, barrier-well ordering, propagation direction, carrier energy, and scatterer radius govern transient dynamics and long-time transmission behavior. Three representative superlattice configurations are analyzed: square, staggered, and triangular superlattices. While all systems exhibit a universal temporal evolution characterized by an initial transient regime followed by transmission saturation, the saturated transmission strongly depends on structural geometry and propagation direction (i.e., forward and backward). In particular, square and triangular lattices display pronounced directional asymmetry, whereas the staggered configuration serves as an isotropic system in both the forward and backward directions. By introducing the normalized asymmetry coefficient η, we demonstrate that both the magnitude and sign of directional preference can be controllably tuned—and even reversed—through variations in electrostatic potential strength and incident wave-packet energy. These findings establish circular electrostatic superlattices as a versatile platform for geometry-programmable Dirac-fermion transport, opening pathways toward graphene-based directional filters, tunable energy-selective transport elements, and advanced electron-optical devices.

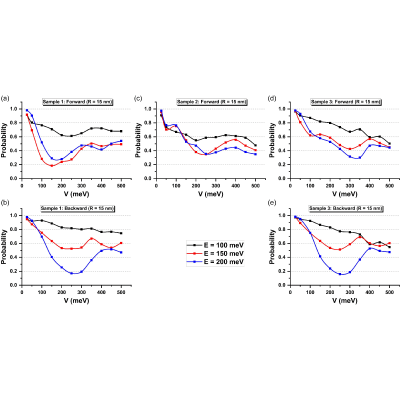

View figure in article

Physics Subject Headings (PhySH)

Article Text

Supplemental Material

References (37)

  1. K. S. Novoselov, A. K. Geim, S. V. Morozov, D. Jiang, Y. Zhang, S. V. Dubonos, I. V. Grigorieva, and A. A. Firsov, Electric field effect in atomically thin carbon films, Science 306, 666 (2004).
  2. A. K. Geim and K. S. Novoselov, The rise of graphene, Nat. Mater. 6, 183 (2007).
  3. K. S. Novoselov, V. I. Fal′ko, L. Colombo, P. R. Gellert, M. G. Schwab, and K. Kim, A roadmap for graphene, Nature (London) 490, 192 (2012).
  4. K. S. Novoselov, A. K. Geim, S. V. Morozov, D. Jiang, M. I. Katsnelson, I. V. Grigorieva, S. V. Dubonos, and A. A. Firsov, Two-dimensional gas of massless Dirac fermions in graphene, Nature (London) 438, 197 (2005).
  5. A. H. Castro Neto, F. Guinea, N. M. R. Peres, K. S. Novoselov, and A. K. Geim, The electronic properties of graphene, Rev. Mod. Phys. 81, 109 (2009).
  6. G. Auton, J. Zhang, R. K. Kumar, H. Wang, X. Zhang, Q. Wang, E. Hill, and A. Song, Graphene ballistic nano-rectifier with very high responsivity, Nat. Commun. 7, 11670 (2016).
  7. O. Klein, Die Reflexion von Elektronen an einem Potentialsprung nach der relativistischen Dynamik von Dirac, Z. Phys. 53, 157 (1929).
  8. M. I. Katsnelson, K. S. Novoselov, and A. K. Geim, Chiral tunnelling and the Klein paradox in graphene, Nat. Phys. 2, 620 (2006).
  9. N. Stander, B. Huard, and D. Goldhaber-Gordon, Evidence for Klein tunneling in graphene p-n junctions, Phys. Rev. Lett. 102, 026807 (2009).
  10. J. D. Walls and D. Hadad, Suppressing Klein tunneling in graphene using a one-dimensional array of localized scatterers, Sci. Rep. 5, 8435 (2015).
  11. A. F. Young and P. Kim, Quantum interference and Klein tunnelling in graphene heterojunctions, Nat. Phys. 5, 222 (2009).
  12. A. Contreras-Astorga, F. Correa, and V. Jakubský, Super-Klein tunneling of Dirac fermions through electrostatic gratings in graphene, Phys. Rev. B 102, 115429 (2020).
  13. C.-H. Park, L. Yang, Y.-W. Son, M. L. Cohen, and S. G. Louie, Anisotropic behaviours of massless Dirac fermions in graphene under periodic potentials, Nat. Phys. 4, 213 (2008).
  14. L. Brey and H. A. Fertig, Emerging zero modes for graphene in a periodic potential, Phys. Rev. Lett. 103, 046809 (2009).
  15. P. Burset, A. L. Yeyati, L. Brey, and H. A. Fertig, Transport in superlattices on single-layer graphene, Phys. Rev. B 83, 195434 (2011).
  16. A. de Jamblinne de Meux, N. Leconte, J. C. Charlier, and A. Lherbier, Velocity renormalization and Dirac cone multiplication in graphene superlattices with various barrier-edge geometries, Phys. Rev. B 91, 235139 (2015).
  17. S. S. Sunku, G. X. Ni, B. Y. Jiang, H. Yoo, A. Sternbach, A. S. McLeod, T. Stauber, L. Xiong, T. Taniguchi, K. Watanabe, P. Kim, M. M. Fogler, and D. N. Basov, Photonic crystals for nano-light in moiré graphene superlattices, Science 362, 1153 (2018).
  18. T. Li, H. Chen, K. Wang, Y. Hao, L. Zhang, K. Watanabe, T. Taniguchi, and X. Hong, Transport anisotropy in one-dimensional graphene superlattice in the high Kronig-Penney potential limit, Phys. Rev. Lett. 132, 056204 (2024).
  19. J. M. Pereira, F. M. Peeters, A. Chaves, and G. A. Farias, Klein tunneling in single and multiple barriers in graphene, Semicond. Sci. Technol. 25, 033002 (2010).
  20. J. D. Joannopoulos, S. G. Johnson, J. N. Winn, and R. D. Meade, Photonic Crystals: Molding the Flow of Light (Princeton University Press, Princeton, NJ, 2011).
  21. K. Y. Rakhimov, A. Chaves, G. A. Farias, and F. M. Peeters, Wavepacket scattering of Dirac and Schrödinger particles on potential and magnetic barriers, J. Phys.: Condens. Matter 23, 275801 (2011).
  22. K. Y. Rakhimov, H. T. Yusupov, S. R. Nurmatov, A. Chaves, and G. R. Berdiyorov, Wave-packet rectification in graphene with alternating circular electrostatic potential barriers, J. Appl. Phys. 137, 144302 (2025).
  23. V. Krueckl and T. Kramer, Revivals of quantum wave packets in graphene, New J. Phys. 11, 093010 (2009).
  24. A. Chaves, G. A. Farias, F. M. Peeters, and R. Ferreira, The split-operator technique for the study of spinorial wavepacket dynamics, Commun. Comput. Phys. 17, 850 (2015).
  25. J. M. Pereira, V. Mlinar, F. M. Peeters, and P. Vasilopoulos, Confined states and direction-dependent transmission in graphene quantum wells, Phys. Rev. B 74, 045424 (2006).
  26. A. Chaves, L. Covaci, K. Y. Rakhimov, G. A. Farias, and F. M. Peeters, Wave-packet dynamics and valley filter in strained graphene, Phys. Rev. B 82, 205430 (2010).
  27. S. Palpacelli, M. Mendoza, H. J. Herrmann, and S. Succi, Klein tunneling in the presence of random impurities, Int. J. Mod. Phys. C 23, 1250080 (2012).
  28. M. M. Suleimanov, M. U. Nosirov, H. T. Yusupov, A. Chaves, G. R. Berdiyorov, and K. Y. Rakhimov, Wave-packet dynamics in monolayer graphene with periodic scattering potentials, Physica B 714, 417484 (2025).
  29. K. Yu. Rakhimov, A. Chaves, and G. de Aquino Farias, Wave packet propagation through randomly distributed scattering centers in graphene, in Low-Dimensional Functional Materials, edited by R. Egger, D. Matrasulov, and K. Rakhimov (Springer, Dordrecht, 2013), Chap. 9, p. 119.
  30. K. Rakhimov, A. Chaves, and P. Lambin, Scattering of Dirac electrons by randomly distributed nitrogen substitutional impurities in graphene, Appl. Sci. 6, 256 (2016).
  31. M. Andelkovic, K. Y. Rakhimov, A. Chaves, G. R. Berdiyorov, and M. V. Milošević, Wave-packet propagation in a graphene geometric diode, Physica E 147, 115607 (2023).
  32. K. Butanov, M. Baydjanov, H. Yusupov, K. Bobojonov, M. Yusupov, A. Chaves, and K. Rakhimov, Wave-packet transport in graphene under asymmetric electrostatic arrays: Geometry-tunable confinement, Physics 8, 16 (2026).
  33. G. M. Milibaeva, H. T. Yusupov, D. G. Berdiyorova, Y. Rakhimova, M. Yusupov, A. Chaves, and K. Rakhimov, Wave packet propagation through square and triangular patterned circular potential scatterers in graphene, Phys. Scr. 100, 125945 (2025).
  34. H. Wang, G. Jayaswal, G. Deokar, J. Stearns, P. M. F. J. Costa, G. Moddel, and A. Shamim, CVD-grown monolayer graphene-based geometric diode for THz rectennas, Nanomaterials 11, 1986 (2021).
  35. M. Suzuki, Fractal decomposition of exponential operators with applications to many-body theories and Monte Carlo simulations, Phys. Lett. A 146, 319 (1990).
  36. M. H. Degani and J. P. Leburton, Single-electron states and conductance in lateral-surface superlattices, Phys. Rev. B 44, 10901 (1991).
  37. See Supplemental Material at http://link.aps.org/supplemental/10.1103/b5bd-z893 for the transmission probabilities for energies of 100 and 200 meV and scatterer sizes of 7, 10, and 15 nm; the saturated transmission probabilities for scatterer radii of 7 and 10 nm; and the normalized directional asymmetry coefficients for scatterer radii of 7 and 10 nm.
