Bias-Field-Free Operation of Nitrogen-Vacancy Ensembles in Diamond for Accurate Vector Magnetometry

Lilian Childress1,*, Vincent Halde2,†, Kayla Johnson2, Andrew Lowther2, David Roy-Guay2, Romain Ruhlmann2, and Adrian Solyom2

  • 1Department of Physics, McGill University, 3600 Rue University, Montreal, Quebec H3A 2T8, Canada
  • 2SBQuantum, 805 Rue Galt O, Sherbrooke, Quebec J1H 1Z1, Canada

  • *Contact author: lilian.childress@mcgill.ca
  • †Contact author: vincent.halde@sbquantum.com
PDF

PRX Quantum 6, 040364 – Published 15 December, 2025

DOI: https://doi.org/10.1103/zcdm-5qq3

Abstract

Accurate measurement of vector magnetic fields is critical for applications including navigation, geoscience, and space exploration. Nitrogen-vacancy (NV) center spin ensembles offer a promising solution for high-sensitivity vector magnetometry, as their different orientations in the diamond lattice measure different components of the magnetic field. However, the bias magnetic field typically used to separate signals from each NV orientation introduces inaccuracy from drifts in permanent magnets or coils. Here, we present a novel bias-field-free approach that labels the NV orientations via the direction of the microwave (MW) field in a variable-pulse-duration Ramsey sequence used to manipulate the spin ensemble. Numerical simulations demonstrate the possibility to isolate each orientation’s signal with subnanotesla accuracy in most terrestrial fields, even without precise MW field calibration, at only a moderate cost to sensitivity. We also provide proof-of-principle experimental validation, observing relevant features that evolve as expected with the applied magnetic field. Looking forward, by removing a key source of drift, the proposed protocol lays the groundwork for future deployment of NV magnetometers in high-accuracy or long-duration missions.

View figure in article

Physics Subject Headings (PhySH)

Popular Summary

Accurate, drift-free measurements of terrestrial magnetic fields’ magnitude and direction are essential to geoscience, navigation, and mineral exploration, but existing portable vector magnetometers are significantly less accurate than their scalar counterparts. Nitrogen-vacancy (NV) spins in diamond offer a new platform with native vector sensing thanks to their four possible orientations in the crystal, with each responding to distinct field components. Reconstruction of the vector field, however, requires isolation of signals from each orientation within the ensemble and assignment of their axis. The conventional solution—a dc bias magnetic field—leaves the magnetometer susceptible to inaccuracy induced by bias drifts that are indistinguishable from external fields. Our work identifies a robust mechanism for bias-field-free vector NV magnetometry.

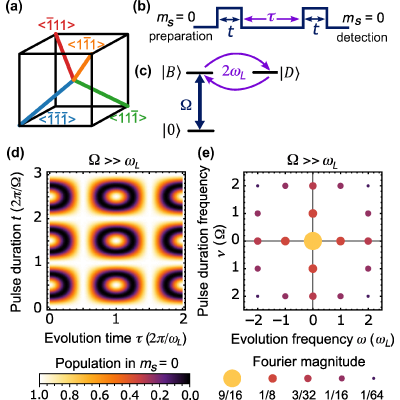

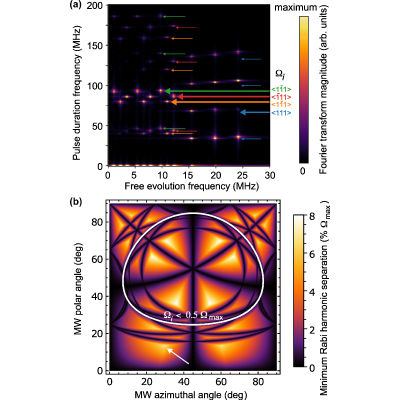

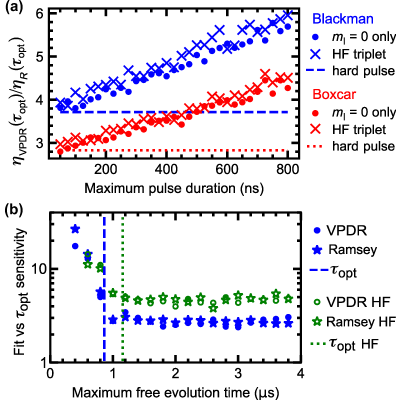

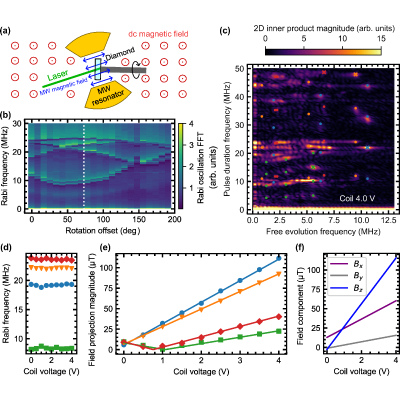

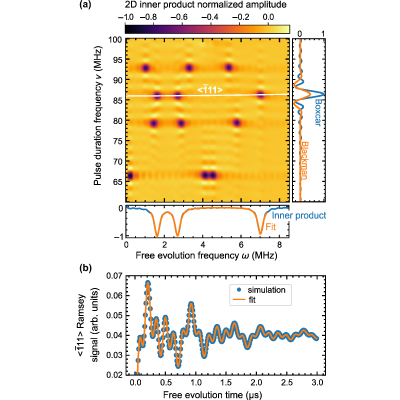

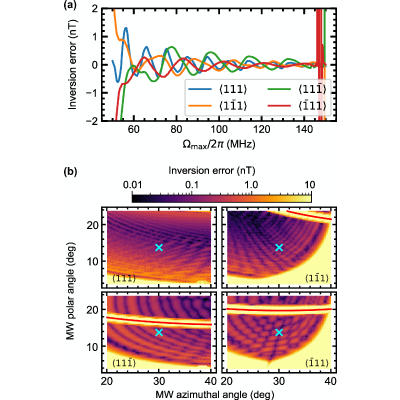

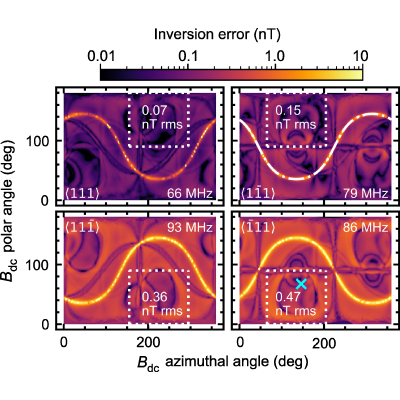

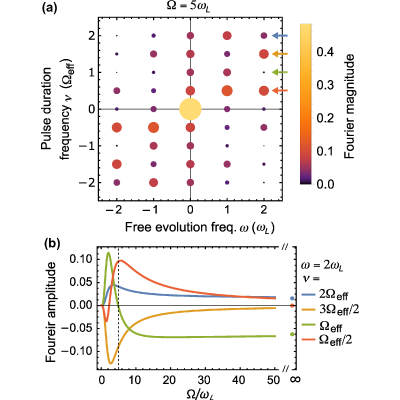

In our approach, the NV spins are excited by two pulses of a microwave field whose polarization determines a distinct rate of driven spin oscillations for each orientation. Between pulses, the spins precess in the external magnetic field. By independently varying both the pulse duration and the interpulse delay, we can correlate the driven oscillation frequency (and thus orientation) with the component of the magnetic field along that axis, allowing extraction of field projections along known directions. Numerical simulations show that this technique is compatible with state-of-the-art vector accuracy even when the polarization of the microwave field is imprecisely calibrated, and preliminary experimental tests reveal expected features and evolution with the external field.

Our findings thus overcome a key barrier to accuracy in NV sensors, opening the door to drift-free, portable vector magnetometry.

Article Text

References (77)

  1. A. Canciani and J. Raquet, Airborne magnetic anomaly navigation, IEEE Trans. Aerosp. Electron. Syst. 53, 67 (2017).
  2. A. Gupta, P. Sengupta, R. Phernetton, and A. Sosanya, in 2024 AIAA DATC/IEEE 43rd Digital Avionics Systems Conference (DASC) (IEEE, San Diego, CA, USA, 2024), p. 1, ISSN: 2155-7209.
  3. A. J. Canciani, Magnetic navigation on an F-16 aircraft using online calibration, IEEE Trans. Aerosp. Electron. Syst. 58, 420 (2022).
  4. C. Huang, G. Hendeby, and I. Skog, in 2022 25th International Conference on Information Fusion (FUSION) (IEEE, Linköping, Sweden, 2022), p. 1.
  5. P. Alken, et al., International geomagnetic reference field: The thirteenth generation, Earth Planets Space 73, 49 (2021).
  6. P. Olson and H. Amit, Changes in Earth’s dipole, Naturwissenschaften 93, 519 (2006).
  7. G. Balasis, A. Z. Boutsi, C. Papadimitriou, S. M. Potirakis, V. Pitsis, I. A. Daglis, A. Anastasiadis, and O. Giannakis, Investigation of dynamical complexity in Swarm-derived geomagnetic activity indices using information theory, Atmosphere 14, 890 (2023).
  8. W. D. Heavlin, K. Kappler, L. Yang, M. Fan, J. Hickey, J. Lemon, L. MacLean, T. Bleier, P. Riley, and D. Schneider, Case-control study on a decade of ground-based magnetometers in California reveals modest signal 24–72 h prior to earthquakes, J. Geophys. Res.: Solid Earth 127, e2022JB024109 (2022).
  9. M. N. Nabighian, V. J. S. Grauch, R. O. Hansen, T. R. LaFehr, Y. Li, J. W. Peirce, J. D. Phillips, and M. E. Ruder, 75th anniversary—The historical development of the magnetic method in exploration, Geophysics 70, 33ND (2005).
  10. D. A. Clark, New methods for interpretation of magnetic gradient tensor data, ASEG Ext. Abstr. 2012, 1 (2012).
  11. R. Stolz, M. Schiffler, M. Becken, A. Thiede, M. Schneider, G. Chubak, P. Marsden, A. B. Bergshjorth, M. Schaefer, and O. Terblanche, SQUIDs for magnetic and electromagnetic methods in mineral exploration, Miner. Econ. 35, 467 (2022).
  12. J. S. Bennett, B. E. Vyhnalek, H. Greenall, E. M. Bridge, F. Gotardo, S. Forstner, G. I. Harris, F. A. Miranda, and W. P. Bowen, Precision magnetometers for aerospace applications: A review, Sensors 21, 5568 (2021).
  13. T. Jager, J.-M. Léger, F. Bertrand, I. Fratter, and J.-C. Lalaurie, in 2010 IEEE SENSORS (IEEE, Waikoloa, HI, USA, 2010), p. 2392, ISSN: 1930-0395.
  14. GEM GSMP potassium magnetometer for high precision and accuracy, https://www.gemsys.ca/ultra-high-sensitivity-potassium/.
  15. G. Hulot, P. Vigneron, J.-M. Léger, I. Fratter, N. Olsen, T. Jager, F. Bertrand, L. Brocco, O. Sirol, X. Lalanne, A. Boness, and V. Cattin, Swarm’s absolute magnetometer experimental vector mode, an innovative capability for space magnetometry, Geophys. Res. Lett. 42, 1352 (2015).
  16. I. Fratter, J.-M. Léger, F. Bertrand, T. Jager, G. Hulot, L. Brocco, and P. Vigneron, Swarm absolute scalar magnetometers first in-orbit results, Acta Astronaut. 121, 76 (2016).
  17. L. Tøffner-Clausen, V. Lesur, N. Olsen, and C. C. Finlay, In-flight scalar calibration and characterisation of the Swarm magnetometry package, Earth Planets Space 68, 129 (2016).
  18. O. Gravrand, A. Khokhlov, J. L. Le Mouël, and J. M. Léger, On the calibration of a vectorial 4He pumped magnetometer, Earth Planets Space 53, 949 (2001).
  19. L. Rondin, J.-P. Tetienne, T. Hingant, J.-F. Roch, P. Maletinsky, and V. Jacques, Magnetometry with nitrogen-vacancy defects in diamond, Rep. Progr. Phys. 77, 056503 (2014).
  20. J. F. Barry, J. M. Schloss, E. Bauch, M. J. Turner, C. A. Hart, L. M. Pham, and R. L. Walsworth, Sensitivity optimization for NV-diamond magnetometry, Rev. Mod. Phys. 92, 015004 (2020).
  21. B. J. Maertz, A. P. Wijnheijmer, G. D. Fuchs, M. E. Nowakowski, and D. D. Awschalom, Vector magnetic field microscopy using nitrogen vacancy centers in diamond, Appl. Phys. Lett. 96, 092504 (2010).
  22. S. Steinert, F. Dolde, P. Neumann, A. Aird, B. Naydenov, G. Balasubramanian, F. Jelezko, and J. Wrachtrup, High sensitivity magnetic imaging using an array of spins in diamond, Rev. Sci. Instrum. 81, 043705 (2010).
  23. D. O’Shea, SBQuantum’s quantum magnetometer selected for MagQuest challenge—Inside quantum technology, https://www.insidequantumtechnology.com/news-archive/sbquantums-quantum-magnetometer-selected-for-magquest-challenge/ (2023).
  24. V. Halde, O. Bernard, M. Brochu, L. Dufresne, N. Fleury, K. Johnson, B. Moffett, and D. Roy-Guay, Who let the diamonds out? ArXiv:2509.19179.
  25. E. Danieli, J. Perlo, B. Blümich, and F. Casanova, Highly stable and finely tuned magnetic fields generated by permanent magnet assemblies, Phys. Rev. Lett. 110, 180801 (2013).
  26. G. Moree and M. Leijon, Review of hysteresis models for magnetic materials, Energies 16, 3908 (2023).
  27. N. Wang, C.-F. Liu, J.-W. Fan, X. Feng, W.-H. Leong, A. Finkler, A. Denisenko, J. Wrachtrup, Q. Li, and R.-B. Liu, Zero-field magnetometry using hyperfine-biased nitrogen-vacancy centers near diamond surfaces, Phys. Rev. Res. 4, 013098 (2022).
  28. M. P. Backlund, P. Kehayias, and R. L. Walsworth, Diamond-based magnetic imaging with Fourier optical processing, Phys. Rev. Appl. 8, 054003 (2017).
  29. B. Chen, X. Hou, F. Ge, X. Zhang, Y. Ji, H. Li, P. Qian, Y. Wang, N. Xu, and J. Du, Calibration-free vector magnetometry using nitrogen-vacancy center in diamond integrated with optical vortex beam, Nano Lett. 20, 8267 (2020).
  30. T. Weggler, C. Ganslmayer, F. Frank, T. Eilert, F. Jelezko, and J. Michaelis, Determination of the three-dimensional magnetic field vector orientation with nitrogen vacany centers in diamond, Nano Lett. 20, 2980 (2020).
  31. P. Reuschel, M. Agio, and A. M. Flatae, Vector magnetometry based on polarimetric optically detected magnetic resonance, Adv. Quantum Technol. 5, 2200077 (2022).
  32. F. Münzhuber, F. Bayer, V. Marković, J. Brehm, J. Kleinlein, L. W. Molenkamp, and T. Kiessling, Polarization-assisted vector magnetometry with no bias field using an ensemble of nitrogen-vacancy centers in diamond, Phys. Rev. Appl. 14, 014055 (2020).
  33. M. Li, H. Yuan, P. Fan, S. Wang, J. Shen, and L. Xu, Simultaneous vector magnetometry based on fluorescence polarization of NV centers ensemble in diamond, Appl. Phys. Lett. 125, 144001 (2024).
  34. C. Li, F.-Z. Shi, J. Zhou, and P.-F. Wang, Vector magnetometry in zero bias magnetic field using nitrogen-vacancy ensembles, Chin. Phys. B 33, 100701 (2024).
  35. T. Isogawa, Y. Matsuzaki, and J. Ishi-Hayase, Vector dc magnetic-field sensing with a reference microwave field using perfectly aligned nitrogen-vacancy centers in diamond, Phys. Rev. A 107, 062423 (2023).
  36. T. Yoon, M. Cha, D. Kim, and H. Choi, Identifying NV center axes via spatially varying microwave fields for vector magnetometry, Appl. Phys. Lett. 126, 144002 (2025).
  37. M. S. Z. Liddy, T. Borneman, P. Sprenger, and D. Cory, Optimal control theory techniques for nitrogen vacancy ensembles in single crystal diamond, Quantum Inf. Process. 22, 1 (2023).
  38. L. M. Pham, E. M. Thompson, J. F. Barry, K. A. Johnson, and D. A. Braje, Chopped bias magnetic field solid-state spin sensor for low frequency measurements of physical quantities, https://patents.google.com/patent/US11041916B2/en (2021), patent number US11041916B2.
  39. D. Roy-Guay, Vectorial magnetometer and associated methods for sensing an amplitude and orientation of a magnetic field, https://patents.google.com/patent/US10921394B2/en (2021), patent number US10921394B2.
  40. https://github.com/sbquantum2/sbq-dq-simulator, 2025.
  41. M. C. Cambria, G. Thiering, A. Norambuena, H. T. Dinani, A. Gardill, I. Kemeny, V. Lordi, Gali, J. R. Maze, and S. Kolkowitz, Physically motivated analytical expression for the temperature dependence of the zero-field splitting of the nitrogen-vacancy center in diamond, Phys. Rev. B 108, L180102 (2023).
  42. C. A. Hart, J. M. Schloss, M. J. Turner, P. J. Scheidegger, E. Bauch, and R. L. Walsworth, NV-diamond magnetic microscopy using a double quantum 4-Ramsey protocol, Phys. Rev. Appl. 15, 044020 (2021).
  43. K. Fang, V. M. Acosta, C. Santori, Z. Huang, K. M. Itoh, H. Watanabe, S. Shikata, and R. G. Beausoleil, High-sensitivity magnetometry based on quantum beats in diamond nitrogen-vacancy centers, Phys. Rev. Lett. 110, 130802 (2013).
  44. H. J. Mamin, M. H. Sherwood, M. Kim, C. T. Rettner, K. Ohno, D. D. Awschalom, and D. Rugar, Multipulse double-quantum magnetometry with near-surface nitrogen-vacancy centers, Phys. Rev. Lett. 113, 030803 (2014).
  45. O. Moussa, I. Hincks, and D. G. Cory, Preparing and preserving the double quantum coherence in NV− centers in diamond at low fields, J. Magn. Reson. 249, 24 (2014).
  46. E. Bauch, C. A. Hart, J. M. Schloss, M. J. Turner, J. F. Barry, P. Kehayias, S. Singh, and R. L. Walsworth, Ultralong dephasing times in solid-state spin ensembles via quantum control, Phys. Rev. X 8, 031025 (2018).
  47. V. V. Dobrovitski, A. E. Feiguin, D. D. Awschalom, and R. Hanson, Decoherence dynamics of a single spin versus spin ensemble, Phys. Rev. B 77, 245212 (2008).
  48. J. T. Oon, J. Tang, C. A. Hart, K. S. Olsson, M. J. Turner, J. M. Schloss, and R. L. Walsworth, Ramsey envelope modulation in NV diamond magnetometry, Phys. Rev. B 106, 054110 (2022).
  49. B. Smeltzer, J. McIntyre, and L. Childress, Robust control of individual nuclear spins in diamond, Phys. Rev. A 80, 050302(R) (2009).
  50. M. Garsi, R. Stöhr, A. Denisenko, F. Shagieva, N. Trautmann, U. Vogl, B. Sene, F. Kaiser, A. Zappe, R. Reuter, and J. Wrachtrup, Three-dimensional imaging of integrated-circuit activity using quantum defects in diamond, Phys. Rev. Appl. 21, 014055 (2024).
  51. J. M. Schloss, J. F. Barry, M. J. Turner, and R. L. Walsworth, Simultaneous broadband vector magnetometry using solid-state spins, Phys. Rev. Appl. 10, 034044 (2018).
  52. E. Zhang, W. Zhang, X. Jiang, and X. Qin, Deep-neural-network-based magnetic-field acquisition method for quantum sensing with nitrogen-vacancy centers, Phys. Rev. A 110, 052417 (2024).
  53. WBlackman(tn)=0.42−0.5cos(2πn/N)+0.08cos(4πn/N), where N is the number of pulse durations tn in the dataset (see documentation at https://docs.scipy.org/doc/scipy/reference/generated/scipy.signal.windows.blackman.html).
  54. The presented analysis using frequencies constrained to Δω=2|ω0+mIA| works well for weak transverse fields relative to Δ. Within Earth’s field, it remains compatible with subnanotesla accuracy in our inversions of simulated data. At higher fields, this constraint might need to be relaxed to achieve the same level of accuracy.
  55. R. D. McMichael, S. Dushenko, and S. M. Blakley, Sequential Bayesian experiment design for adaptive Ramsey sequence measurements, J. Appl. Phys. 130, 144401 (2021).
  56. C. Bonato, M. S. Blok, H. T. Dinani, D. W. Berry, M. L. Markham, D. J. Twitchen, and R. Hanson, Optimized quantum sensing with a single electron spin using real-time adaptive measurements, Nat. Nanotechnol. 11, 247 (2016).
  57. G. Waldherr, J. Beck, P. Neumann, R. S. Said, M. Nitsche, M. L. Markham, D. J. Twitchen, J. Twamley, F. Jelezko, and J. Wrachtrup, High-dynamic-range magnetometry with a single nuclear spin in diamond, Nat. Nanotechnol. 7, 105 (2012).
  58. N. M. Nusran, M. U. Momeen, and M. V. G. Dutt, High-dynamic-range magnetometry with a single electronic spin in diamond, Nat. Nanotechnol. 7, 109 (2012).
  59. V. Halde, Conception d’une cavité 3D à fréquence de résonance ajustable par capacités variables pour le contrôle d’ensemble de systèmes quantiques, MSc Thesis, Université de Sherbrooke, 2021, https://savoirs.usherbrooke.ca/handle/11143/18721.
  60. F. H. L. Koppens, D. Klauser, W. A. Coish, K. C. Nowack, L. P. Kouwenhoven, D. Loss, and L. M. K. Vandersypen, Universal phase shift and nonexponential decay of driven single-spin oscillations, Phys. Rev. Lett. 99, 106803 (2007).
  61. R. Igarashi, T. Sugi, S. Sotoma, T. Genjo, Y. Kumiya, E. Walinda, H. Ueno, K. Ikeda, H. Sumiya, H. Tochio, Y. Yoshinari, Y. Harada, and M. Shirakawa, Tracking the 3D rotational dynamics in nanoscopic biological systems, J. Am. Chem. Soc. 142, 7542 (2020).
  62. Y. Wang, H. Shen, Z. Liu, Y. Yu, S. Du, C. Zu, and C. Zhang, Simultaneous determination of local magnetic fields and sensor orientation with nitrogen-vacancy centers in nanodiamond, ArXiv:2507.05366.
  63. G. Mariani, S. Nomoto, S. Kashiwaya, and S. Nomura, System for the remote control and imaging of MW fields for spin manipulation in NV centers in diamond, Sci. Rep. 10, 4813 (2020).
  64. C. Park and D. Lee, Design and simulation of a strong and uniform microwave antenna for a large volume of nitrogen-vacancy ensembles in diamond, J. Korean Phys. Soc. 78, 280 (2021).
  65. M. Goryachev, W. G. Farr, D. L. Creedon, Y. Fan, M. Kostylev, and M. E. Tobar, High-cooperativity cavity QED with magnons at microwave frequencies, Phys. Rev. Appl. 2, 054002 (2014).
  66. Q=100 induces a rise time of ∼5 ns, but by discarding the first few MW pulse durations (or not acquiring it), our simulations show its impact can be mitigated.
  67. J.-M. Léger, T. Jager, F. Bertrand, G. Hulot, L. Brocco, P. Vigneron, X. Lalanne, A. Chulliat, and I. Fratter, In-flight performance of the Absolute Scalar Magnetometer vector mode on board the Swarm satellites, Earth Planets Space 67, 57 (2015).
  68. Geometrics, How to set up dead-zone-free operation for MFAM, https://www.geometrics.com/support/how-to-set-up-dead-zone-free-operation-for-mfam/.
  69. T. Mittiga, S. Hsieh, C. Zu, B. Kobrin, F. Machado, P. Bhattacharyya, N. Z. Rui, A. Jarmola, S. Choi, D. Budker, and N. Y. Yao, Imaging the local charge environment of nitrogen-vacancy centers in diamond, Phys. Rev. Lett. 121, 246402 (2018).
  70. Y.-H. Yu, R.-Z. Zhang, Y. Xu, X.-Q. Chen, H. Zheng, Q. Li, R.-B. Liu, X.-Y. Pan, D. Budker, and G.-Q. Liu, Optically detected magnetic resonance of nitrogen-vacancy centers in diamond under weak laser excitation, Phys. Rev. Appl. 21, 044051 (2024).
  71. S. Felton, A. M. Edmonds, M. E. Newton, P. M. Martineau, D. Fisher, D. J. Twitchen, and J. M. Baker, Hyperfine interaction in the ground state of the negatively charged nitrogen vacancy center in diamond, Phys. Rev. B 79, 075203 (2009).
  72. M. Niethammer, M. Widmann, S. Y. Lee, P. Stenberg, O. Kordina, T. Ohshima, N. T. Son, E. Janzén, and J. Wrachtrup, Vector magnetometry using silicon vacancies in 4H-SiC under ambient conditions, Phys. Rev. Appl. 6, 034001 (2016).
  73. P. J. Vetter, A. Marshall, G. T. Genov, T. F. Weiss, N. Striegler, E. F. Großmann, S. Oviedo-Casado, J. Cerrillo, J. Prior, P. Neumann, and F. Jelezko, Zero- and low-field sensing with nitrogen-vacancy centers, Phys. Rev. Appl. 17, 044028 (2022).
  74. H. Zheng, J. Xu, G. Z. Iwata, T. Lenz, J. Michl, B. Yavkin, K. Nakamura, H. Sumiya, T. Ohshima, J. Isoya, J. Wrachtrup, A. Wickenbrock, and D. Budker, Zero-field magnetometry based on nitrogen-vacancy ensembles in diamond, Phys. Rev. Appl. 11, 064068 (2019).
  75. D. Lönard, I. C. Barbosa, S. Johansson, J. Gutsche, and A. Widera, Limits of absolute vector magnetometry with NV centers in diamond, ArXiv:2504.20750.
  76. M. Tsukamoto, S. Ito, K. Ogawa, Y. Ashida, K. Sasaki, and K. Kobayashi, Accurate magnetic field imaging using nanodiamond quantum sensors enhanced by machine learning, Sci. Rep. 12, 13942 (2022).
  77. L. Childress, V. Halde, K. Johnson, A. Lowther, D. Roy-Guay, R. Ruhlmann, and A. Solyom, Replication Data for Bias-field-free operation of nitrogen-vacancy ensembles in diamond for accurate vector magnetometry, Borealis (2025), https://doi.org/10.5683/SP3/DRTLGW.
