Quantum Routing and Entanglement Dynamics Through Bottlenecks

Dhruv Devulapalli1,2,*, Chao Yin3,†, Andrew Y. Guo4, Eddie Schoute5,6, Andrew M. Childs1,7,8, Alexey V. Gorshkov1,2, and Andrew Lucas3

  • *Contact author: devulapallidhruv@gmail.com
  • †Contact author: chao.yin@colorado.edu
PDF

PRX Quantum 7, 010310 – Published 15 January, 2026

DOI: https://doi.org/10.1103/7b1x-hjcy

Abstract

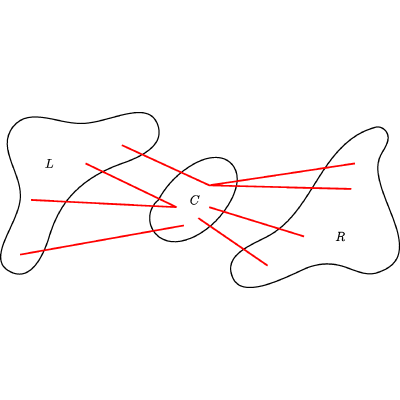

To implement arbitrary quantum circuits in architectures with restricted interactions, one may effectively simulate all-to-all connectivity by routing quantum information. We consider the entanglement dynamics and routing between two regions only connected through an intermediate “bottleneck” region with few qubits. In such systems, where the entanglement rate is restricted by a vertex boundary rather than an edge boundary of the underlying interaction graph, existing results such as the small incremental entangling theorem give only a trivial constant lower bound on the routing time (the minimum time to perform an arbitrary permutation). We significantly improve the lower bound on the routing time in systems with a vertex bottleneck. Specifically, for any system with two regions L,R with NL,NR qubits, respectively, coupled only through an intermediate region C with NC qubits, for any δ>0 we show a lower bound of Ω(NR1−δ/NLNC) on the Hamiltonian quantum routing time when using piecewise time-independent Hamiltonians, or time-dependent Hamiltonians subject to a smoothness condition. We also prove an upper bound on the average amount of bipartite entanglement between L and C,R that can be generated in time t by such architecture-respecting Hamiltonians in systems constrained by vertex bottlenecks, improving the scaling in the system size from O(NLt) to O(NLt). As a special case, when applied to the star graph (i.e., one vertex connected to N leaves), we obtain an Ω(N1−δ) lower bound on the routing time and on the time to prepare N/2 Bell pairs between the vertices. We also show that, in systems of free particles, we can route optimally on the star graph in time Θ(N) using Hamiltonian quantum routing, obtaining a speedup over gate-based routing, which takes time Θ(N).

View figure in article

Physics Subject Headings (PhySH)

Popular Summary

Quantum computers are expected to perform certain information-processing tasks far more efficiently than classical computers. However, implementing quantum algorithms in current architectures is challenging since only specific pairs of qubits can directly interact. One way to overcome this limitation is by routing or moving quantum information between parts of the device. In this work, we investigate fundamental limits on how quickly routing can be performed, especially in architectures where two large regions of qubits can communicate only through a small “bottleneck” region. We find that such bottlenecks strongly constrain the minimum time needed to perform routing.

We show that previous analysis of such systems underestimated the time required to perform routing. By combining ideas from entanglement dynamics theory with recent results on quantum simulation, we establish new lower bounds on the routing time that scale with the number of qubits in each region. We also derive bounds on how rapidly entanglement can be generated between the two regions. In systems of noninteracting identical particles (fermions or bosons), we discover a routing protocol that matches our lower bound and achieves a speedup for routing using a continuous-time evolution rather than conventional gate-based methods.

These results shed light on how bottlenecks may limit the performance of quantum computers. They may guide the design of scalable architectures and help characterize the overheads of implementing quantum algorithms. More broadly, our results on entanglement dynamics could also help understand which other quantum operations are slow on realistic architectures and quantum systems.

Article Text

References (51)

  1. C. D. Bruzewicz, J. Chiaverini, R. McConnell, and J. M. Sage, Trapped-ion quantum computing: Progress and challenges, Appl. Phys. Rev. 6, 021314 (2019).
  2. M. Kjaergaard, M. E. Schwartz, J. Braumüller, P. Krantz, J. I.-J. Wang, S. Gustavsson, and W. D. Oliver, Superconducting qubits: Current state of play, Annu. Rev. Condens. Matter Phys. 11, 369 (2020).
  3. A. M. Childs, E. Schoute, and C. M. Unsal, in 14th Conference on the Theory of Quantum Computation, Communication and Cryptography (TQC 2019), Leibniz International Proceedings in Informatics (LIPIcs) (Schloss Dagstuhl – Leibniz-Zentrum für Informatik, Dagstuhl, Germany, 2019), Vol. 135, p. 3:1.
  4. N. Alon, F. R. K. Chung, and R. L. Graham, Routing permutations on graphs via matchings, SIAM J. Discrete Math. 7, 513 (1994).
  5. A. Cowtan, S. Dilkes, R. Duncan, A. Krajenbrink, W. Simmons, and S. Sivarajah, in 14th Conference on the Theory of Quantum Computation, Communication and Cryptography (TQC 2019), Leibniz International Proceedings in Informatics (LIPIcs) (Schloss Dagstuhl – Leibniz-Zentrum für Informatik, Dagstuhl, Germany, 2019), Vol. 135, p. 5:1.
  6. F. Wagner, A. Bärmann, F. Liers, and M. Weissenbäck, Improving quantum computation by optimized qubit routing, J. Optim. Theory Appl. 197, 1161 (2023).
  7. G. Li, Y. Ding, and Y. Xie, in Proceedings of the 24th International Conference on Architectural Support for Programming Languages and Operating Systems (Association for Computing Machinery, New York, NY, USA, 2019), p. 1001.
  8. A. Bapat, A. M. Childs, A. V. Gorshkov, S. King, E. Schoute, and H. Shastri, Quantum routing with fast reversals, Quantum 5, 533 (2021).
  9. A. Bapat, A. M. Childs, A. V. Gorshkov, and E. Schoute, Advantages and limitations of quantum routing, PRX Quantum 4, 010313 (2023).
  10. D. Devulapalli, E. Schoute, A. Bapat, A. M. Childs, and A. V. Gorshkov, Quantum routing with teleportation, Phys. Rev. Res. 6, 033313 (2024).
  11. D. J. Rosenbaum, in 8th Conference on the Theory of Quantum Computation, Communication and Cryptography (TQC 2013), Leibniz International Proceedings in Informatics (LIPIcs) (Schloss Dagstuhl – Leibniz-Zentrum für Informatik, Dagstuhl, Germany, 2013), Vol. 22, p. 294.
  12. F. Hahn, A. Pappa, and J. Eisert, Quantum network routing and local complementation, npj Quantum Inf. 5, 1 (2019).
  13. P. Yuan and S. Zhang, Full characterization of the depth overhead for quantum circuit compilation with arbitrary qubit connectivity constraint, Quantum 9, 1757 (2025).
  14. R. Jozsa, in The Geometric Universe: Science, Geometry, and the Work of Roger Penrose, edited by S. A. Huggett, L. J. Mason, K. P. Tod, S. T. Tsou, and N. M. J. Woodhouse (Oxford University, Oxford, 1998), p. 369.
  15. R. Jozsa and N. Linden, On the role of entanglement in quantum-computational speed-up, Proc. R. Soc. London, A 459, 2011 (2003).
  16. A. Ekert and R. Jozsa, Quantum algorithms: Entanglement–enhanced information processing, Philos. Trans. R. Soc. London, A 356, 1769 (1998).
  17. D. Bruß and C. Macchiavello, Multipartite entanglement in quantum algorithms, Phys. Rev. A 83, 052313 (2011).
  18. Q. Zhao, Y. Zhou, and A. M. Childs, Entanglement accelerates quantum simulation, Nat. Phys. 21, 1338 (2025).
  19. S. Bravyi, D. Lee, Z. Li, and B. Yoshida, How much entanglement is needed for quantum error correction? Phys. Rev. Lett. 134, 210602 (2025).
  20. C. H. Bennett, D. P. DiVincenzo, J. A. Smolin, and W. K. Wootters, Mixed-state entanglement and quantum error correction, Phys. Rev. A 54, 3824 (1996).
  21. E. Knill and R. Laflamme, Theory of quantum error-correcting codes, Phys. Rev. A 84, 2525 (2000).
  22. H. Buhrman, R. Cleve, and W. van Dam, Quantum entanglement and communication complexity, SIAM J. Comput. 30, 1829 (2001).
  23. N. Gisin and R. Thew, Quantum communication, Nat. Photonics 1, 165 (2007).
  24. R. Horodecki, P. Horodecki, M. Horodecki, and K. Horodecki, Quantum entanglement, Rev. Mod. Phys. 81, 865 (2009).
  25. C. L. Degen, F. Reinhard, and P. Cappellaro, Quantum sensing, Rev. Mod. Phys. 89, 035002 (2017).
  26. V. Giovannetti, S. Lloyd, and L. Maccone, Quantum-enhanced measurements: Beating the standard quantum limit, Science 306, 1330 (2004).
  27. J. J. Bollinger, W. M. Itano, D. J. Wineland, and D. J. Heinzen, Optimal frequency measurements with maximally correlated states, Phys. Rev. A 54, R4649 (1996).
  28. K. Van Acoleyen, M. Mariën, and F. Verstraete, Entanglement rates and area laws, Phys. Rev. Lett. 111, 170501 (2013).
  29. M. Mariën, K. M. R. Audenaert, K. Van Acoleyen, and F. Verstraete, Entanglement rates and the stability of the area law for the entanglement entropy, Commun. Math. Phys. 346, 35 (2016).
  30. T. S. Cubitt, F. Verstraete, and J. I. Cirac, Entanglement flow in multipartite systems, Phys. Rev. A 71, 052308 (2005).
  31. T. S. Cubitt, F. Verstraete, W. Dür, and J. I. Cirac, Separable states can be used to distribute entanglement, Phys. Rev. Lett. 91, 037902 (2003).
  32. S. Bravyi, Upper bounds on entangling rates of bipartite Hamiltonians, Phys. Rev. A 76, 052319 (2007).
  33. W. Dür, G. Vidal, J. I. Cirac, N. Linden, and S. Popescu, Entanglement capabilities of nonlocal Hamiltonians, Phys. Rev. Lett. 87, 137901 (2001).
  34. C. H. Bennett, A. W. Harrow, D. W. Leung, and J. A. Smolin, On the capacities of bipartite Hamiltonians and unitary gates, IEEE Trans. Inf. Theory 49, 1895 (2003).
  35. C.-F. A. Chen, A. Lucas, and C. Yin, Speed limits and locality in many-body quantum dynamics, Rep. Progr. Phys. 86, 116001 (2023).
  36. A. M. Childs, Y. Su, M. C. Tran, N. Wiebe, and S. Zhu, Theory of Trotter error with commutator scaling, Phys. Rev. X 11, 011020 (2021).
  37. Q. Zhao, Y. Zhou, A. F. Shaw, T. Li, and A. M. Childs, Hamiltonian simulation with random inputs, Phys. Rev. Lett. 129, 270502 (2022).
  38. C. Yin, A. Lucas, and D. T. Stephen, Frobenius light cone and the shift unitary, Phys. Rev. A 109, 052419 (2024).
  39. S. B. Bravyi and A. Y. Kitaev, Fermionic quantum computation, Ann. Phys. (N. Y.) 298, 210 (2002).
  40. K. M. R. Audenaert, Quantum skew divergence, J. Math. Phys. 55, 112202 (2014).
  41. Y. Shi, Quantum entanglement of identical particles, Phys. Rev. A 67, 024301 (2003).
  42. P. Zanardi, Quantum entanglement in fermionic lattices, Phys. Rev. A 65, 042101 (2002).
  43. P. Jordan and E. Wigner, Über das Paulische ëquivalenzverbot, Z. Phys. 47, 631 (1928).
  44. F. Verstraete and J. I. Cirac, Mapping local Hamiltonians of fermions to local Hamiltonians of spins, J. Stat. Mech.: Theory Exp. 2005, P09012 (2005).
  45. A. Ambainis and J. Emerson, in 22nd Annual IEEE Conference on Computational Complexity (IOP Publishing, Bristol, UK, 2007), p. 129.
  46. D. Gross, K. Audenaert, and J. Eisert, Evenly distributed unitaries: On the structure of unitary designs, J. Math. Phys. 48, 052104 (2007).
  47. J. M. Renes, R. Blume-Kohout, A. J. Scott, and C. M. Caves, Symmetric informationally complete quantum measurements, J. Math. Phys. 45, 2171 (2004).
  48. K. M. R. Audenaert, A sharp continuity estimate for the von Neumann entropy, J. Phys. A: Math. Gen. 40, 8127 (2007).
  49. D. W. Berry, A. M. Childs, R. Cleve, R. Kothari, and R. D. Somma, in Proceedings of the 46th Annual ACM Symposium on Theory of Computing (Association for Computing Machinery, New York, NY, USA, 2014), p. 283.
  50. C. Yin, Fast and accurate Greenberger-Horne-Zeilinger encoding using all-to-all interactions, Phys. Rev. Lett. 134, 130604 (2025).
  51. T. V. Vu, T. Kuwahara, and K. Saito, Optimal light cone for macroscopic particle transport in long-range systems: A quantum speed limit approach, Quantum 8, 1483 (2024).

Outline

Information

PRX Quantum 7, 010310– Published 15 January, 2026
  • Received 3 June 2025
  • Accepted 2 December 2025
Crossmark - Check for updates button
Creative Commons Logo

Published by the American Physical Society under the terms of the Creative Commons Attribution 4.0 International license. Further distribution of this work must maintain attribution to the author(s) and the published article's title, journal citation, and DOI.
