Integer quantum Hall effect in bilayer Dice lattices

Han-Lin Liu* and J. Wang†

  • *Contact author: hanlinl@seu.edu.cn
  • †Contact author: jwang@seu.edu.cn
PDF

Phys. Rev. Research 7, 033195 – Published 26 August, 2025

DOI: https://doi.org/10.1103/xzfz-d19q

Abstract

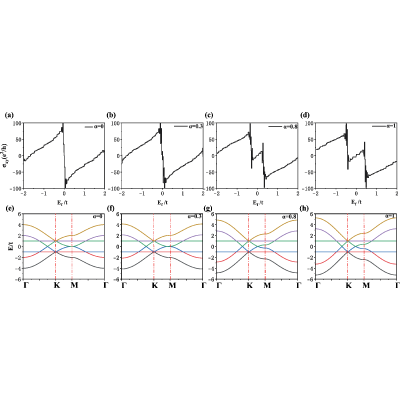

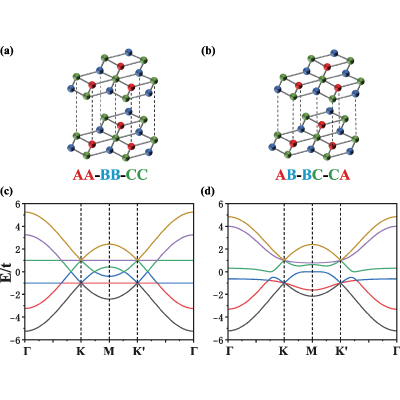

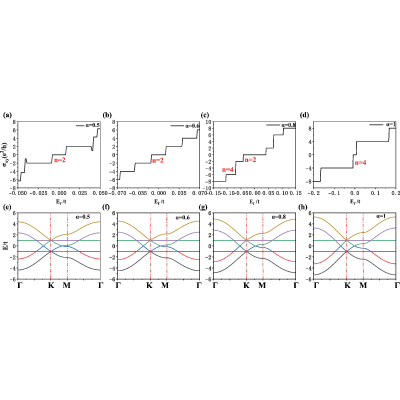

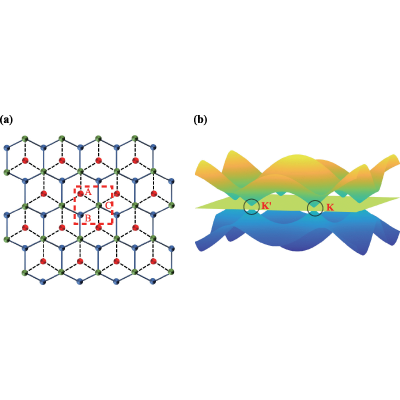

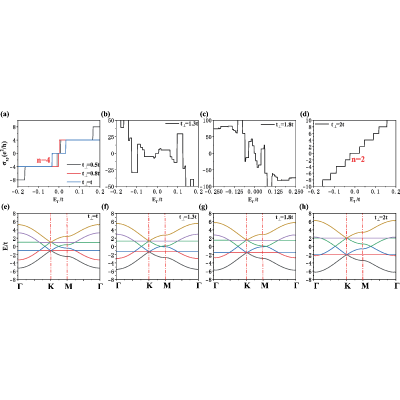

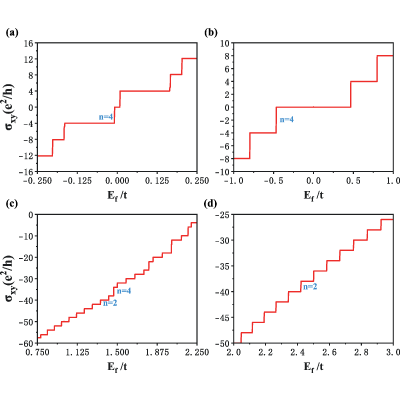

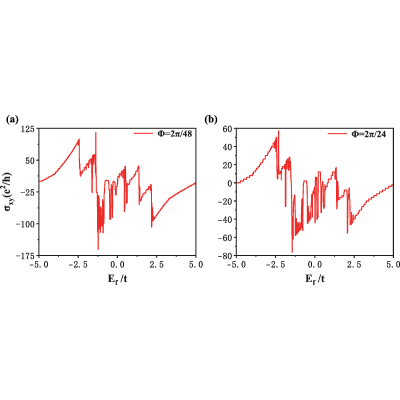

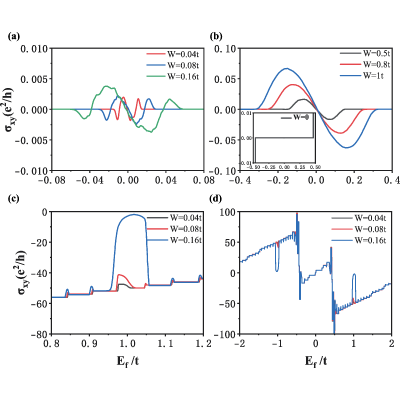

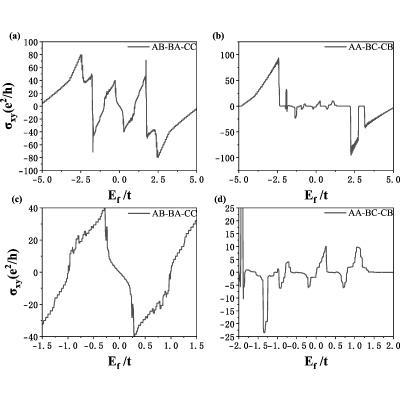

We investigate the quantum Hall effect in bilayer dice lattices with AA-BB-CC and AB-BC-CA stacking configurations, focusing on the interplay between flat band stability and band topology. For the aligned AA-BB-CC stacking, the system exhibits a narrow zero Hall conductivity plateau at the Dirac point and hybrid integer quantum Hall states (n=±2,±4) in some energy regions, originating from the coexistence of spin, valley, and layer degeneracies. Additionally, the flat band generated by AA-BB-CC stacking is more easily destroyed. In contrast, the cyclic AB-BC-CA stacking displays irregular Hall conductivity due to complex band structures lacking complete flat bands. By tuning interlayer coupling strength t⊥ and hopping parameter α, the corresponding results show that the position of the Dirac point relative to the high-symmetry point in the Brillouin zone determines the appearance of the conductivity transitions. A mixed integer quantum Hall effect with n = 2 and  = 4 appears for specific values of α.

View figure in article

Physics Subject Headings (PhySH)

Article Text

References (42)

  1. K. S. Novoselov, A. K. Geim, S. V. Morozov, D. Jiang, Y. Zhang, S. V. Dubonos, I. V. Grigorieva, and A. A. Firsov, Electric field effect in atomically thin carbon films, Science 306, 666 (2004).
  2. M. Z. Hasan and C. L. Kane, Colloquium: Topological insulators, Rev. Mod. Phys. 82, 3045 (2010).
  3. X.-L. Qi and S.-C. Zhang, Topological insulators and superconductors, Rev. Mod. Phys. 83, 1057 (2011).
  4. Y. M. Zuev, W. Chang, and P. Kim, Thermoelectric and magnetothermoelectric transport measurements of graphene, Phys. Rev. Lett. 102, 096807 (2009).
  5. P. Wei, W. Bao, Y. Pu, C. N. Lau, and J. Shi, Anomalous thermoelectric transport of Dirac particles in graphene, Phys. Rev. Lett. 102, 166808 (2009).
  6. Y. Xing, Q.-F. Sun, and J. Wang, Nernst and Seebeck effects in a graphene nanoribbon, Phys. Rev. B 80, 235411 (2009).
  7. A. K. Geim and K. S. Novoselov, The rise of graphene, Nat. Mater. 6, 183 (2007).
  8. M. I. Katsnelson, Graphene: Carbon in two dimensions, Mater. Today 10, 20 (2007).
  9. D. Hsieh, D. Qian, L. Wray, Y. Xia, Y. S. Hor, R. J. Cava, and M. Z. Hasan, A topological Dirac insulator in a quantum spin Hall phase, Nature (London) 452, 970 (2008).
  10. B. A. Bernevig, Topological Insulators and Topological Superconductors (Princeton University Press, Princeton, NJ, 2013).
  11. H.-J. Kim, K.-S. Kim, J.-F. Wang, M. Sasaki, N. Satoh, A. Ohnishi, M. Kitaura, M. Yang, and L. Li, Dirac versus Weyl fermions in topological insulators: Adler-Bell-Jackiw anomaly in transport phenomena, Phys. Rev. Lett. 111, 246603 (2013).
  12. X. Huang, L. Zhao, Y. Long, P. Wang, D. Chen, Z. Yang, H. Liang, M. Xue, H. Weng, Z. Fang, X. Dai, and G. Chen, Observation of the chiral-anomaly-induced negative magnetoresistance in 3D Weyl semimetal TaAs, Phys. Rev. X 5, 031023 (2015).
  13. X. Yang, Y. Liu, Z. Wang, Y. Zheng, and Z.-An Xu, Chiral anomaly induced negative magnetoresistance in topological Weyl semimetal NbAs, arXiv:1506.03190.
  14. N. P. Armitage, E. J. Mele, and A. Vishwanath, Weyl and Dirac semimetals in three-dimensional solids, Rev. Mod. Phys. 90, 015001 (2018).
  15. E. V. Gorbar, V. A. Miransky, I. A. Shovkovy, and P. O. Sukhachov, Electronic Properties of Dirac and Weyl Semimetals (World Scientific Publishing Co., Singapore, 2021).
  16. K. S. Novoselov, E. McCann, S. V. Morozov, V. I. Fal’ko, M. I. Katsnelson, U. Zeitler, D. Jiang, F. Schedin, and A. K. Geim, Unconventional quantum Hall effect and Berry’s phase of 2π in bilayer graphene, Nat. Phys. 2, 177 (2006).
  17. E. McCann and M. Koshino, The electronic properties of bilayer graphene, Rep. Prog. Phys. 76, 056503 (2013).
  18. E. McCann and V. I. Fal’ko, Landau-level degeneracy and quantum Hall effect in a graphite bilayer, Phys. Rev. Lett. 96, 086805 (2006).
  19. D. S. L. Abergel and V. I. Fal’ko, Optical and magneto-optical far-infrared properties of bilayer graphene, Phys. Rev. B 75, 155430 (2007).
  20. O. Derzhko, J. Richter, and M. Maksymenko, Strongly correlated flat-band systems: The route from Heisenberg spins to Hubbard electrons, Int. J. Mod. Phys. B 29, 1530007 (2015).
  21. S. A. Parameswaran, R. Roy, and S. L. Sondhi, Fractional quantum Hall physics in topological flat bands, C. R. Phys. 14, 816 (2013).
  22. E. J. Bergholtz and Z. Liu, Topological flat band models and fractional Chern insulators, Int. J. Mod. Phys. B 27, 1330017 (2013).
  23. A. A. Daniel Leykam and S. Flach, Artificial flat band systems: From lattice models to experiments, Adv. Phys.: X 3, 1473052 (2018).
  24. A. Mielke, Ferromagnetic ground states for the Hubbard model on line graphs, J. Phys. A: Math. Gen. 24, L73 (1991).
  25. Y. Cao, V. Fatemi, A. Demir, S. Fang, S. L. Tomarken, J. Y. Luo, J. D. Sanchez-Yamagishi, K. Watanabe, T. Taniguchi, E. Kaxiras, R. C. Ashoori, and P. Jarillo-Herrero, Correlated insulator behaviour at half-filling in magic-angle graphene superlattices, Nature (London) 556, 80 (2018).
  26. Y. Cao, V. Fatemi, S. Fang, K. Watanabe, T. Taniguchi, E. Kaxiras, and P. Jarillo-Herrero, Unconventional superconductivity in magic-angle graphene superlattices, Nature (London) 556, 43 (2018).
  27. I. Syozi, Statistics of Kagomé lattice, Prog. Theor. Phys. 6, 306 (1951).
  28. E. H. Lieb, Two theorems on the Hubbard model, Phys. Rev. Lett. 62, 1201 (1989).
  29. B. Sutherland, Localization of electronic wave functions due to local topology, Phys. Rev. B 34, 5208 (1986).
  30. J. Vidal, R. Mosseri, and B. Douçot, Aharonov-Bohm cages in two-dimensional structures, Phys. Rev. Lett. 81, 5888 (1998).
  31. A. Raoux, M. Morigi, J.-N. Fuchs, F. Piéchon, and G. Montambaux, From dia- to paramagnetic orbital susceptibility of massless fermions, Phys. Rev. Lett. 112, 026402 (2014).
  32. F. Piéchon, J.-N. Fuchs, A. Raoux, and G. Montambaux, Tunable orbital susceptibility in α−T3 tight-binding models, J. Phys.: Conf. Ser. 603, 012001 (2015).
  33. J. W. McClure, Diamagnetism of graphite, Phys. Rev. 104, 666 (1956).
  34. H. Fang, C. Battaglia, C. Carraro, S. Nemsak, B. Ozdol, J. S. Kang, H. A. Bechtel, S. B. Desai, F. Kronast, A. A. Unal, G. Conti, C. Conlon, G. K. Palsson, M. C. Martin, A. M. Minor, C. S. Fadley, E. Yablonovitch, R. Maboudian, and A. Javey, Strong interlayer coupling in van der Waals heterostructures built from single-layer chalcogenides, Proc. Natl. Acad. Sci. USA 111, 6198 (2014).
  35. T. Mizoguchi, Y. Kuno, and Y. Hatsugai, Flat band, spin-1 Dirac cone, and Hofstadter diagram in the fermionic square kagome model, Phys. Rev. B 104, 035161 (2021).
  36. O. V. Bugaiko and D. O. Oriekhov, Electronic states of pseudospin-1 fermions in α−T3 lattice ribbons in a magnetic field, J. Phys.: Condens. Matter 31, 325501 (2019).
  37. F. Zhang, A. H. MacDonald, and E. J. Mele, Valley Chern numbers and boundary modes in gapped bilayer graphene, Proc. Natl. Acad. Sci. USA 110, 10546 (2013).
  38. P. O. Sukhachov, D. O. Oriekhov, and E. V. Gorbar, Stackings and effective models of bilayer dice lattices, Phys. Rev. B 108, 075166 (2023).
  39. P. Parui, S. Ghosh, and B. L. Chittari, Topological properties of nearly flat bands in bilayer α−T3 lattice, Phys. Rev. B 109, 165118 (2024).
  40. D. N. Sheng, L. Sheng, and Z. Y. Weng, Quantum Hall effect in graphene: Disorder effect and phase diagram, Phys. Rev. B 73, 233406 (2006).
  41. R. Ma, L. Sheng, R. Shen, M. Liu, and D. N. Sheng, Quantum Hall effect in bilayer graphene: Disorder effect and quantum phase transition, Phys. Rev. B 80, 205101 (2009).
  42. J. J. Wang, S. Liu, J. Wang, and J.-F. Liu, Integer quantum Hall effect of the α−T3 model with a broken flat band, Phys. Rev. B 102, 235414 (2020).
