Symmetry breaking in two dimensions on ultrafast timescales

Alireza Valizadeh1,2, Patrick Dillmann3, and Peter Keim4,*

  • *Contact author: peter.keim@uni-duesseldorf.de
PDF

Phys. Rev. Research 8, 013146 – Published 10 February, 2026

DOI: https://doi.org/10.1103/rmd6-ll3b

Abstract

The melting of two-dimensional monocrystals is described within the celebrated Kosterlitz‐Thouless‐Halperin‐Nelson‐Young scenario by the dissociation of topological defects. It describes the screening of elasticity due to thermally activated topological defects until shear elasticity disappears. As a well-defined continuous phase transition, freezing and melting should be reversible and independent of history. However, this is not the case: Cooling an isotropic two-dimensional fluid at a finite but nonzero rate does not result in monocrystals. The symmetry cannot be broken globally but only locally within Einstein's event horizon: The slowing down of critical fluctuations forces the system to fall out of equilibrium, resulting in finite-sized domains with a uniform order parameter. For linear cooling rates, the domain size is described by the Kibble‐Zurek mechanism, originally developed for defect formation in the primordial Higgs field shortly after the Big Bang. The size of the domains is a function of the so-called fallout time, the time when the ensemble becomes nonergodic. In the present manuscript, we go beyond the Kibble‐Zurek picture and investigate the limit of the deepest quench on a colloidal monolayer. We resolve the time dependence of structure formation for (local) symmetry breaking when the fallout time is effectively set to zero. However, when quenching instantaneously to various temperatures below the melting point—either deep in the crystalline phase or close to the transition—we find universal behavior if the timescale is rescaled properly.

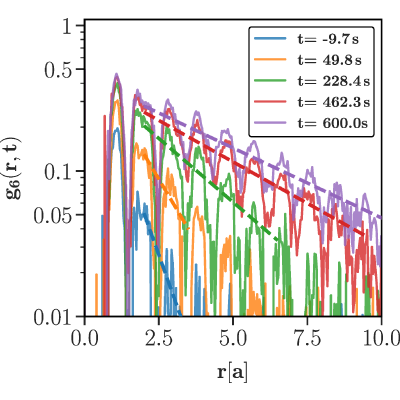

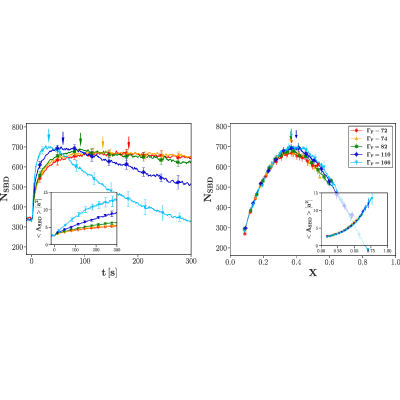

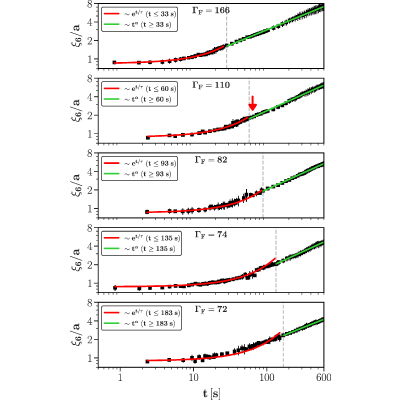

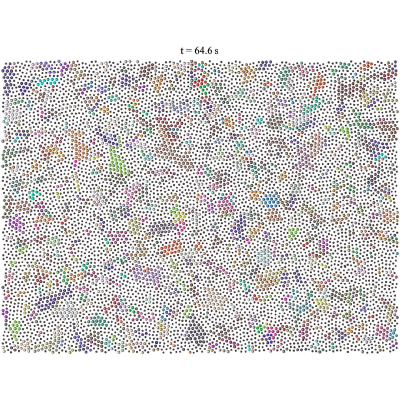

View figure in article

Physics Subject Headings (PhySH)

Article Text

Supplemental Material

References (56)

  1. H. N. Ritland, Density phenomena in the transformation range of a borosilicate crown glass, J. Am. Ceram. Soc. 37, 370 (1954).
  2. K. Vollmayr, W. Kob, and K. Binder, Cooling-rate effects in amorphous silica: A computer-simulation study, Phys. Rev. B 54, 15808 (1996).
  3. C. A. Angell, K. L. Ngai, G. B. McKenna, P. F. McMillan, and S. W. Martin, Relaxation in glassforming liquids and amorphous solids, J. Appl. Phys. 88, 3113 (2000).
  4. P. G. Debenedetti and F. H. Stillinger, Supercooled liquids and the glass transition, Nature (London) 410, 259 (2001).
  5. K. Binder, Theory of first-order phase transitions, Rep. Prog. Phys. 50, 783 (1987).
  6. L. Onsager, Crystal statistics. I. A two-dimensional model with an order-disorder transition, Phys. Rev. 65, 117 (1944).
  7. J. M. Kosterlitz and D. J. Thouless, Long range order and metastability in two dimensional solids and superfluids (application of dislocation theory), J. Phys. C 5, L124 (1972).
  8. J. M. Kosterlitz and D. J. Thouless, Ordering, metastability and phase transitions in two-dimensional systems, J. Phys. C 6, 1181 (1973).
  9. D. R. Nelson and B. I. Halperin, Dislocation-mediated melting in two dimensions, Phys. Rev. B 19, 2457 (1979).
  10. B. I. Halperin and D. R. Nelson, Theory of two-dimensional melting, Phys. Rev. Lett. 41, 121 (1978).
  11. A. P. Young, Melting and the vector Coulomb gas in two dimensions, Phys. Rev. B 19, 1855 (1979).
  12. T. W. B. Kibble, Topology of cosmic domains and strings, J. Phys. A: Math. Gen. 9, 1387 (1976).
  13. T. W. B. Kibble, Some implications of a cosmological phase transition, Phys. Rep. 67, 183 (1980).
  14. T. Kibble, Phase-transition dynamics in the lab and the universe, Phys. Today 60, 47 (2007).
  15. Y. B. Zel’dovic, I. Kobzarev, and O. L.B., Cosmological consequences of a spontaneous breakdown of a discrete symmetry, Zh. Eksp. Teor. Fiz. 67, 3 (1974).
  16. W. H. Zurek, Cosmological experiments in superfluid helium? Nature (London) 317, 505 (1985).
  17. W. H. Zurek, Cosmic strings in laboratory superfluids and the topological remnants of other phase transitions, Acta Phys. Pol. B 24, 1301 (1993).
  18. W. H. Zurek, Cosmological experiments in condensed matter systems, Phys. Rep. 276, 177 (1996).
  19. F. Suzuki and W. H. Zurek, Deconstructing dynamics of symmetry breaking, Proc. Natl. Acad. Sci. USA 122, e2523903122 (2025).
  20. I. Chuang, R. Durrer, N. Turok, and B. Yurke, Cosmology in the laboratory: Defect dynamics in liquid crystals, Science 251, 1336 (1991).
  21. C. Bäuerle, Y. M. Bunkov, S. N. Fisher, H. Godfrin, and G. R. Pickett, Laboratory simulation of cosmic string formation in the early universe using superfluid He3, Nature (London) 382, 332 (1996).
  22. R. Carmi, E. Polturak, and G. Koren, Observation of spontaneous flux generation in a multi-Josephson-junction loop, Phys. Rev. Lett. 84, 4966 (2000).
  23. M. A. Miranda, J. Burguete, H. Mancini, and W. González-Viñas, Frozen dynamics and synchronization through a secondary symmetry-breaking bifurcation, Phys. Rev. E 87, 032902 (2013).
  24. S. C. Chae, N. Lee, Y. Horibe, M. Tanimura, S. Mori, B. Gao, S. Carr, and S. W. Cheong, Direct observation of the proliferation of ferroelectric loop domains and vortex-antivortex pairs, Phys. Rev. Lett. 108, 167603 (2012).
  25. X.-Y. Xu, Y.-J. Han, K. Sun, J.-S. Xu, J.-S. Tang, C.-F. Li, and G.-C. Guo, Quantum simulation of Landau-Zener model dynamics supporting the Kibble-Zurek mechanism, Phys. Rev. Lett. 112, 035701 (2014).
  26. S. Ulm, J. Roßnagel, G. Jacob, C. Degünther, S. T. Dawkins, U. G. Poschinger, R. Nigmatullin, A. Retzker, M. B. Plenio, F. Schmidt-Kaler, and K. Singer, Observation of the Kibble–Zurek scaling law for defect formation in ion crystals, Nat. Commun. 4, 2290 (2013).
  27. K. Pyka, J. Keller, H. L. Partner, R. Nigmatullin, T. Burgermeister, D. M. Meier, K. Kuhlmann, A. Retzker, M. B. Plenio, W. H. Zurek, A. del Campo, and T. E. Mehlstäuble, Topological defect formation and spontaneous symmetry breaking in ion Coulomb crystals, Nat. Commun. 4, 2291 (2013).
  28. G. Lamporesi, S. Donadello, S. Serafini, F. Dalfovo, and G. Ferrari, Spontaneous creation of Kibble–Zurek solitons in a Bose–Einstein condensate, Nat. Phys. 9, 656 (2013).
  29. A. del Campo and W. H. Zurek, Universality of phase transition dynamics: Topological defects from symmetry breaking, Int. J. Mod. Phys. A 29, 1430018 (2014).
  30. A. Keesling, A. Omran, H. Levine, H. Bernien, H. Pichler, S. Choi, R. Samajdar, S. Schwartz, P. Silvi, S. Sachdev, P. Zoller, M. Endres, M. Greiner, V. Vuletić, and M. D. Lukin, Quantum Kibble–Zurek mechanism and critical dynamics on a programmable Rydberg simulator, Nature (London) 568, 207 (2019).
  31. S. Ebadi, T. T. Wang, H. Levine, A. Keesling, G. Semeghini, A. Omran, D. Bluvstein, R. Samajdar, H. Pichler, W. W. Ho, S. Choi, S. Sachdev, M. Greiner, V. Vuletić, and M. D. Lukin, Quantum phases of matter on a 256-atom programmable quantum simulator, Nature (London) 595, 227 (2021).
  32. M. Schmitt, M. M. Rams, J. Dziarmaga, M. Heyl, and W. H. Zurek, Quantum phase transition dynamics in the two-dimensional transverse-field Ising model, Sci. Adv. 8, eabl6850 (2022).
  33. A. del Campo, Universal statistics of topological defects formed in a quantum phase transition, Phys. Rev. Lett. 121, 200601 (2018).
  34. H.-B. Zeng, C.-Y. Xia, and A. del Campo, Universal breakdown of Kibble-Zurek scaling in fast quenches across a phase transition, Phys. Rev. Lett. 130, 060402 (2023).
  35. H. Christiansen, S. Majumder, and W. Janke, Zero-temperature coarsening in the two-dimensional long-range Ising model, Phys. Rev. E 103, 052122 (2021).
  36. D. Gessert, H. Christiansen, and W. Janke, Aging following a zero-temperature quench in the d=3 Ising model, Phys. Rev. E 109, 044148 (2024).
  37. S. Deutschländer, P. Dillmann, G. Maret, and P. Keim, Kibble–Zurek mechanism in colloidal monolayers, Proc. Natl. Acad. Sci. USA 112, 6925 (2015).
  38. F. Ebert, P. Dillmann, G. Maret, and P. Keim, The experimental realization of a two-dimensional colloidal model system, Rev. Sci. Inst. 80, 083902 (2009).
  39. P. Keim, G. Maret, and H. H. von Grünberg, Frank's constant in the hexatic phase, Phys. Rev. E 75, 031402 (2007).
  40. U. Gasser, C. Eisenmann, G. Maret, and P. Keim, Melting of crystals in two dimensions, ChemPhysChem 11, 963 (2010).
  41. J. M. Kosterlitz, Nobel lecture: Topological defects and phase transitions, Rev. Mod. Phys. 89, 040501 (2017).
  42. Dynabeads, 4.5 μm, http://www.dynal.no.
  43. J. C. Crocker and D. G. Grier, Methods of digital video microscopy for colloidal studies, J. Colloid Interface Sci. 179, 298 (1996).
  44. Earlier work [39] reports lower values due to a lower magnetic susceptibility of the colloids, measured by superconducting quantum interference device. It is now more precise to determine the susceptibility by comparison of the pair correlation function in the fluid phase with computer simulations, leading to the given transition temperatures.
  45. See Supplemental Material at http://link.aps.org/supplemental/10.1103/rmd6-ll3b for two other length scales showing qualitatively identical results.
  46. N. D. Mermin and H. Wagner, Absence of ferromagnetism or antiferromagnetism in one- or two-dimensional isotropic Heisenberg models, Phys. Rev. Lett. 17, 1133 (1966).
  47. P. Hohenberg, Existence of long-range order in 1 and 2 dimensions, Phys. Rev. 158, 383 (1967).
  48. N. D. Mermin, Crystalline order in two dimensions, Phys. Rev. 176, 250 (1968).
  49. P. Dillmann, G. Maret, and P. Keim, Two-dimensional colloidal systems in time-dependent magnetic fields, Eur. Phys. J. Spec. Top. 222, 2941 (2013).
  50. U. Gasser, E. R. Weeks, A. Schofield, P. N. Pusey, and D. A. Weitz, Real space imaging of nucleation and growth in colloidal crystallization, Science 292, 258 (2001).
  51. T. Bauer, F. Höfling, T. Munk, E. Frey, and T. Franosch, The localization transition of the two-dimensional Lorentz model, Eur. Phys. J.: Spec. Top. 189, 103 (2010).
  52. T. Franosch, F. Höfling, T. Bauer, and E. Frey, Persistent memory for a Brownian walker in a random array of obstacles, Chem. Phys. 375, 540 (2010).
  53. Critical-like refers to critical phenomena similar to equilibrium conditions but being out of equilibrium and nonergodic.
  54. J. Asja and F. C. Leticia, Quench dynamics of the 2D XY model, J. Stat. Mech. (2011) P02032.
  55. P. Hartmann, A. Douglass, J. C. Reyes, L. S. Matthews, T. W. Hyde, A. Kovacs, and Z. Donko, Crystallization dynamics of a single layer complex plasma, Phys. Rev. Lett. 105, 115004 (2010).
  56. A. Valizadeh, Raw Data for Symmetry Breaking on Ultrafast Timescales, Edmond – the Open Research Data Repository of the Max Planck Society, 2025, https://doi.org/10.17617/3.T3VVFB.
