Frequency-dependent topology in multisublattice systems: Analytical theory of dispersive effective Hamiltonians

Seiji Mizuno*

  • *Contact author: mizuno@eng.hokudai.ac.jp
PDF

Phys. Rev. Research 8, 023064 – Published 20 April, 2026

DOI: https://doi.org/10.1103/rmcp-lwsl

Abstract

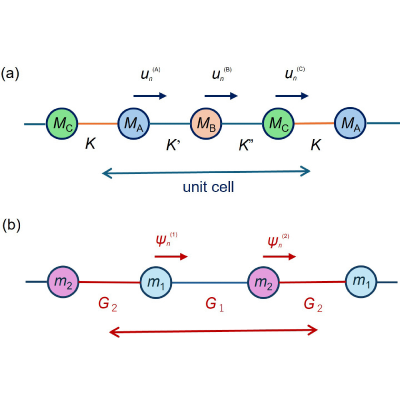

Topological phases in one-dimensional lattices are usually described by fixed, frequency-independent Hamiltonians, where topology is determined solely by structural parameters. However, in many wave-based systems with internal resonances, effective couplings become intrinsically dispersive and depend on the eigenfrequency itself. Here, we develop an analytical theory of such frequency-dependent topology using a trimer (SSH3) mass-spring lattice as a minimal model. By exactly eliminating the internal sublattice, the three-band SSH3 dynamics are mapped onto an effective two-sublattice Hamiltonian with frequency-dependent inertial and coupling terms. Because the effective parameters depend explicitly on the eigenfrequency, the resulting eigenvalue problem is nonlinear in ω and self-consistently reproduces the full three-band spectrum despite the two-level representation. This mapping reveals that the resonant effective coupling G2(ω) acts as a bifurcation parameter controlling band inversion, redistribution of integer winding numbers, and the emergence of edge-localized modes. We show that a sign reversal of G2(ω) induces a frequency-selective topological transition accompanied by a winding redistribution (ν1,ν2,ν3)=(−1,2,−1) and analytically predictable in-gap edge states governed by closed-form localization criteria. Within this framework, the bulk-edge correspondence is not determined by a fixed Hamiltonian but by the effective Hamiltonian evaluated self-consistently along the bulk dispersion relation. The formulation is further extended to adiabatically modulated lattices, where locally nontrivial Berry curvature and alternating topological charges emerge on the (q,t) torus, while the global Chern number remains neutral. Because dispersive renormalization arising from internal degrees of freedom is ubiquitous in phononic, photonic, and other wave-based lattice systems, the present theory establishes a general analytical framework for topological phases in dispersive multisublattice media beyond conventional static tight-binding descriptions.

View figure in article

Physics Subject Headings (PhySH)

Article Text

Supplemental Material

References (35)

  1. W. P. Su, J. R. Schrieffer, and A. J. Heeger, Solitons in polyacetylene, Phys. Rev. Lett. 42, 1698 (1979).
  2. M. J. Rice and E. J. Mele, Elementary excitations of a linearly conjugated diatomic polymer, Phys. Rev. Lett. 49, 1455 (1982).
  3. D. J. Thouless, Quantization of particle transport, Phys. Rev. B 27, 6083 (1983).
  4. M. V. Berry, Quantal phase factors accompanying adiabatic changes, Proc. R. Soc. Lond. A 392, 45 (1984).
  5. J. Zak, Berry’s phase for energy bands in solids, Phys. Rev. Lett. 62, 2747 (1989).
  6. M. Z. Hasan and C. L. Kane, Colloquium: Topological insulators, Rev. Mod. Phys. 82, 3045 (2010).
  7. X.-L. Qi and S.-C. Zhang, Topological insulators and superconductors, Rev. Mod. Phys. 83, 1057 (2011).
  8. J. K. Asbóth, L. Oroszlány, and A. P. Pályi, A Short Course on Topological Insulators (Springer, Cham, 2016).
  9. R. D. King-Smith and D. Vanderbilt, Theory of polarization of crystalline solids, Phys. Rev. B 47, 1651 (1993).
  10. R. Resta, Quantum-mechanical position operator in extended systems, Phys. Rev. Lett. 80, 1800 (1998).
  11. C.-K. Chiu, J. C. Y. Teo, A. P. Schnyder, and S. Ryu, Classification of topological quantum matter with symmetries, Rev. Mod. Phys. 88, 035005 (2016).
  12. A. Altland and M. R. Zirnbauer, Nonstandard symmetry classes in mesoscopic normal-superconducting hybrid structures, Phys. Rev. B 55, 1142 (1997).
  13. G. M. Graf and M. Porta, Bulk-edge correspondence for two-dimensional topological insulators, Commun. Math. Phys. 324, 851 (2013).
  14. R. S. K. Mong and V. Shivamoggi, Edge states and the bulk-boundary correspondence in Dirac Hamiltonians, Phys. Rev. B 83, 125109 (2011).
  15. B. Xie, H.-X. Wang, Z. Zhihao, Y. Tian, and J.-H. Jiang, Higher-order band topology in multi-sublattice systems, Phys. Rev. B 102, 035147 (2020).
  16. L. Lu, J. D. Joannopoulos, and M. Soljačić, Topological photonics, Nat. Photon. 8, 821 (2014).
  17. L. Lu, J. D. Joannopoulos, and M. Soljačić, Topological states in photonic systems, Nat. Phys. 12, 626 (2016).
  18. R. Süsstrunk and S. D. Huber, Observation of phononic helical edge states in a mechanical topological insulator, Science 349, 47 (2015).
  19. S. D. Huber, Topological mechanics, Nat. Phys. 12, 621 (2016).
  20. X. Zhang, M. Xiao, Y. Cheng, M.-H. Lu, and J. Christensen, Topological sound, Rev. Mod. Phys. 92, 021003 (2020).
  21. C. H. Lee, S. Imhof, C. Berger, F. Bayer, J. Brehm, L. W. Molenkamp, T. Kiessling, and R. Thomale, Topolectrical circuits, Commun. Phys. 1, 39 (2018).
  22. M. Xiao, X. Zhang, and C. T. Chan, Surface impedance and bulk band geometric phases in one-dimensional systems, Phys. Rev. X 4, 021017 (2014).
  23. M. Ezawa, Topological phases in trimerized lattices, Phys. Rev. B 97, 155305 (2018).
  24. L. Xiao, T. Deng, K. Wang, W. Yi, and P. Xue, Topological phases in one-dimensional trimer lattices, Phys. Rev. B 97, 014305 (2018).
  25. Z.-Q. Zhang, Z. Chen, and J.-H. Wang, Topological properties of multi-sublattice systems with internal degrees of freedom, Phys. Rev. B 106, 085109 (2022).
  26. X. Ni et al., Observation of topologically protected bound states in photonic quantum walks, Phys. Rev. Lett. 120, 063902 (2018).
  27. Y.-G. Peng et al., Acoustic Floquet topological insulators, Phys. Rev. Lett. 122, 014301 (2019).
  28. Z. Liu et al., Locally resonant sonic materials, Science 289, 1734 (2000).
  29. N. Fang et al., Ultrasonic metamaterials with negative modulus, Nat. Mater. 5, 452 (2006).
  30. J. Christensen, L. Martin-Moreno, and F. J. García- Vidal, All-angle blockage states in acoustic checkerboard structures, Phys. Rev. Lett. 101, 014301 (2008).
  31. G. Ma and P. Sheng, Acoustic metamaterials: From local resonances to broad horizons, Sci. Adv. 2, e1501595 (2016).
  32. S. A. Cummer, J. Christensen, and A. Alù, Controlling sound with acoustic metamaterials, Nat. Rev. Mater. 1, 16001 (2016).
  33. See Supplemental Material at https://link.aps.org/supplemental/10.1103/rmcp-lwsl for detailed derivations and extended analysis, including Sec. S1 (equations of motion and exact mapping to a two-sublattice model), Sec. S2 (effective two-level Hamiltonian and chiral symmetry), Sec. S3 (band-edge structure, eigenmodes, and local resonance), Sec. S4 (Berry connection, Zak phase, and winding numbers), Sec. S5 (analytical edge-state solutions in finite SSH3 chains), Sec. S6 (Berry curvature on the (q,t) torus), and Sec. S7 (generalization to higher-sublattice chains).
  34. T. Kitagawa, E. Berg, M. Rudner, and E. Demler, Topological characterization of periodically driven quantum systems, Phys. Rev. B 82, 235114 (2010).
  35. M. S. Rudner, N. H. Lindner, E. Berg, and M. Levin, Anomalous edge states and the bulk–edge correspondence for periodically driven two-dimensional systems, Phys. Rev. X 3, 031005 (2013).
