Stability analysis of relativistic electron dynamics in Lagrange waveguides

Majid G. Nazarlu1, Haokun Luo1, Yunxuan Wei1, Georgios G. Pyrialakos1, Mercedeh Khajavikhan1,2,*, and Demetrios N. Christodoulides1,2,†

  • †Contact author: demetri@usc.edu
  • *Contact author: khajavik@usc.edu
PDF

Phys. Rev. Research 7, 043323 – Published 22 December, 2025

DOI: https://doi.org/10.1103/kst6-rz68

Abstract

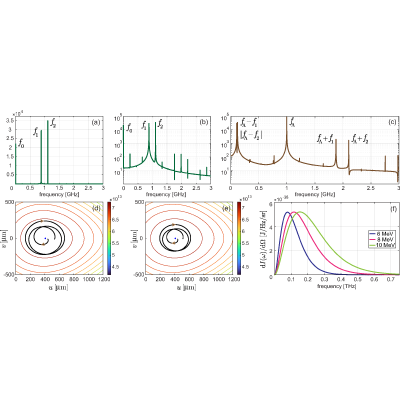

Recently, the prospect of guiding charged particles by means of Lagrange points has been put forward. What makes this methodology possible is the action of Coriolis forces that dynamically provide stability in static helicoidal potential landscapes. In such an environment, particle guidance can occur indefinitely with minimal losses, without the need for magnetic fields, in a manner analogous to photon transport in optical fibers. Here, we provide a rigorous stability analysis of the relativistic charged-particle dynamics when launched into a Lagrange waveguide—an aspect crucial in establishing the necessary criteria for stable trapping. By considering all the force components involved, our results delineate the stability boundaries under both attractive and repulsive electrostatic conditions. A first-order perturbation approach yields both the spectral eigenvalues and their corresponding eigenvectors associated with the stability of particle dynamics in a six-dimensional phase space. The Larmor radiation is also investigated in terms of pertinent parameters, along with the radiated energy spectral density. Our results enable the design and realization of this new class of Lagrange systems capable of guiding charged particles across a wide range of energy scales, with potential utility in a broad spectrum of applications.

View figure in article

Physics Subject Headings (PhySH)

Article Text

Supplemental Material

References (50)

  1. X. Yang, L. Wang, J. Maxson, A. C. Bartnik, M. Kaemingk, W. Wan, L. Cultrera, L. Wu, V. Smaluk, T. Shaftan, S. McSweeney, C. Jing, R. Kostin, and Y. Zhu, Towards construction of a novel nanometer-resolution MeV-STEM for imaging thick frozen biological samples, Photonics 11, 252 (2024).
  2. L. Reimer, Transmission Electron Microscopy: Physics of Image Formation and Microanalysis, 1984th ed. (Springer, New York, 2013).
  3. C. J. Peddie, C. Genoud, A. Kreshuk, K. Meechan, K. D. Micheva, K. Narayan, C. Pape, R. G. Parton, N. L. Schieber, Y. Schwab, B. Titze, P. Verkade, A. Aubrey, and L. M. Collinson, Volume electron microscopy, Nat. Rev. Methods Primers 2, 51 (2022).
  4. R. Dahan, A. Gorlach, U. Haeusler, A. Karnieli, O. Eyal, P. Yousefi, M. Segev, A. Arie, G. Eisenstein, P. Hommelhoff, and I. Kaminer, Imprinting the quantum statistics of photons on free electrons, Science 373, eabj7128 (2021).
  5. Y. Chen, Nanofabrication by electron beam lithography and its applications: A review, Microelectron. Eng. 135, 57 (2015).
  6. C. Zhu, H. Ekinci, A. Pan, B. Cui, and X. Zhu, Electron beam lithography on nonplanar and irregular surfaces, Microsyst. Nanoeng. 10, 52 (2024).
  7. C. Vieu, F. Carcenac, A. Pépin, Y. Chen, M. Mejias, A. Lebib, L. Manin-Ferlazzo, L. Couraud, and H. Launois, Electron beam lithography: Resolution limits and applications, Appl. Surf. Sci. 164, 111 (2000).
  8. L. J. Wong, K.-H. Hong, S. Carbajo, A. Fallahi, P. Piot, M. Soljačić, J. D. Joannopoulos, F. X. Kärtner, and I. Kaminer, Laser-induced linear-field particle acceleration in free space, Sci. Rep. 7, 11159 (2017).
  9. S. M. Hooker, Developments in laser-driven plasma accelerators, Nat. Photon. 7, 775 (2013).
  10. E. Esarey, C. B. Schroeder, and W. P. Leemans, Physics of laser-driven plasma-based electron accelerators, Rev. Mod. Phys. 81, 1229 (2009).
  11. E. A. Peralta, K. Soong, R. J. England, E. R. Colby, Z. Wu, B. Montazeri, C. McGuinness, J. McNeur, K. J. Leedle, D. Walz, E. B. Sozer, B. Cowan, B. Schwartz, G. Travish, and R. L. Byer, Demonstration of electron acceleration in a laser-driven dielectric microstructure, Nature (London) 503, 91 (2013).
  12. T. Chlouba, R. Shiloh, S. Kraus, L. Brückner, J. Litzel, and P. Hommelhoff, Coherent nanophotonic electron accelerator, Nature (London) 622, 476 (2023).
  13. C. D. Bruzewicz, J. Chiaverini, R. McConnell, and J. M. Sage, Trapped-ion quantum computing: Progress and challenges, Appl. Phys. Rev. 6, 021314 (2019).
  14. D. Cozzolino, B. Da Lio, D. Bacco, and L. K. Oxenløwe, High‐dimensional quantum communication: Benefits, progress, and future challenges, Adv. Quantum Technol. 2, 1900038 (2019).
  15. T. K. Paraïso, T. Roger, D. G. Marangon, I. De Marco, M. Sanzaro, R. I. Woodward, J. F. Dynes, Z. Yuan, and A. J. Shields, A photonic integrated quantum secure communication system, Nat. Photon. 15, 850 (2021).
  16. D. Kielpinski, C. Monroe, and D. J. Wineland, Architecture for a large-scale ion-trap quantum computer, Nature (London) 417, 709 (2002).
  17. V. Krutyanskiy, M. Galli, V. Krcmarsky, S. Baier, D. A. Fioretto, Y. Pu, A. Mazloom, P. Sekatski, M. Canteri, M. Teller, J. Schupp, J. Bate, M. Meraner, N. Sangouard, B. P. Lanyon, and T. E. Northup, Entanglement of trapped-ion qubits separated by 230 meters, Phys. Rev. Lett. 130, 050803 (2023).
  18. A. Walther, F. Ziesel, T. Ruster, S. T. Dawkins, K. Ott, M. Hettrich, K. Singer, F. Schmidt-Kaler, and U. Poschinger, Controlling fast transport of cold trapped ions, Phys. Rev. Lett. 109, 080501 (2012).
  19. C. Monroe and J. Kim, Scaling the ion trap quantum processor, Science 339, 1164 (2013).
  20. K. R. Brown, J. Kim, and C. Monroe, Co-designing a scalable quantum computer with trapped atomic ions, npj Quantum Inf. 2, 16034 (2016).
  21. N. Christofilos, Focussing system for ions and electrons, US Patent 2,736,799 (1956), https://patents.google.com/patent/US2736799A/en.
  22. E. D. Courant, M. S. Livingston, and H. S. Snyder, The strong-focusing synchrotron—A new high energy accelerator, Phys. Rev. 88, 1190 (1952).
  23. H. Wiedemann, Particle Accelerator Physics (Springer, Cham, 2015).
  24. W. Paul and H. Steinwedel, Notizen: Ein neues massenspektrometer ohne magnetfeld, Z. Naturforsch. A 8, 448 (1953).
  25. W. Paul, Electromagnetic traps for charged and neutral particles, Rev. Mod. Phys. 62, 531 (1990).
  26. G. Harari, Y. Ben-Aryeh, and A. Mann, Propagator for the general time-dependent harmonic oscillator with application to an ion trap, Phys. Rev. A 84, 062104 (2011).
  27. L. S. Brown and G. Gabrielse, Geonium theory: Physics of a single electron or ion in a Penning trap, Rev. Mod. Phys. 58, 233 (1986).
  28. S. Sasidharan, O. Bezrodnova, S. Rau, W. Quint, S. Sturm, and K. Blaum, Penning-trap mass measurement of helium-4, Phys. Rev. Lett. 131, 093201 (2023).
  29. K. Y. Ng, Physics of Intensity Dependent Beam Instabilities (World Scientific Publishing Company, Singapore, 2010).
  30. A. Chao, Physics of Collective Beam Instabilities in High Energy Accelerators (John Wiley & Sons, Nashville, TN, 1993).
  31. D. A. G. Deacon, L. R. Elias, J. M. J. Madey, G. J. Ramian, H. A. Schwettman, and T. I. Smith, First operation of a free-electron laser, Phys. Rev. Lett. 38, 892 (1977).
  32. P. G. O’Shea and H. P. Freund, Free-electron lasers. Status and applications, Science 292, 1853 (2001).
  33. H. Luo, Y. Wei, G. G. Pyrialakos, M. Khajavikhan, and D. N. Christodoulides, Guiding charged particles in vacuum via Lagrange points, Nat. Commun. 15, 6882 (2024).
  34. D. Marcuse, Propagation of light rays through a lens-waveguide with curved axis, Bell Syst. Tech. J. 43, 741 (1964).
  35. S. E. Miller, Communication by laser, Sci. Am. 214, 19 (1966).
  36. A. W. Snyder and J. D. Love, Optical Waveguide Theory, 1st ed. (Springer, New York, NY, 1983).
  37. J. C. Knight, Photonic crystal fibres, Nature (London) 424, 847 (2003).
  38. T. A. Birks, J. C. Knight, and P. S. Russell, Endlessly single-mode photonic crystal fiber, Opt. Lett. 22, 961 (1997).
  39. M. Ibanescu, Y. Fink, S. Fan, E. L. Thomas, and J. D. Joannopoulos, An all-dielectric coaxial waveguide, Science 289, 415 (2000).
  40. Y. Plotnik, M. C. Rechtsman, D. Song, M. Heinrich, J. M. Zeuner, S. Nolte, Y. Lumer, N. Malkova, J. Xu, A. Szameit, Z. Chen, and M. Segev, Observation of unconventional edge states in “photonic graphene”, Nat. Mater. 13, 57 (2014).
  41. C. W. Hsu, B. Zhen, A. D. Stone, J. D. Joannopoulos, and M. Soljačić, Bound states in the continuum, Nat. Rev. Mater. 1, 16048 (2016).
  42. E. Bannikova and M. Capaccioli, Foundations of Celestial Mechanics, 1st ed. (Springer International Publishing, Cham, Switzerland, 2023).
  43. A. Pérez-Villegas, M. Portail, C. Wegg, and O. Gerhard, Revisiting the tale of Hercules: How stars orbiting the Lagrange points visit the Sun, Astrophys. J. Lett. 840, L2 (2017).
  44. H. Luo, Y. Wei, F. O. Wu, G. G. Pyrialakos, D. N. Christodoulides, and M. Khajavikhan, Guiding Trojan light beams via Lagrange points, Nat. Phys. 20, 95 (2024).
  45. C. Moller, Theory of Relativity, 2nd ed. (Oxford University Press, London, UK, 1972).
  46. See Supplemental Material at http://link.aps.org/supplemental/10.1103/kst6-rz68 for derivations, additional details, and supporting information.
  47. M. W. Hirsch, S. Smale, and R. L. Devaney, Differential Equations, Dynamical Systems, and an Introduction to Chaos, 3rd ed. (Academic Press, San Diego, CA, 2017).
  48. S. E. Tsimring, Electron Beams and Microwave Vacuum Electronics (John Wiley & Sons, Inc., Hoboken, NJ, 2010).
  49. M. Reiser, Theory and Design of Charged Particle Beams, 2nd ed. (Wiley-VCH Verlag, Weinheim, 2008).
  50. A. Zangwill, Modern Electrodynamics (Cambridge University Press (Virtual Publishing), Cambridge, UK, 2019).
