Unified wake topology map for He II counterflow past a cylinder

Yingxuan Hu1, Wenlin Huang1, Shihao Yang1, Limin Qiu1,2,*, and Shiran Bao1,2,†

  • 1Institute of Refrigeration and Cryogenics, Zhejiang University, Hangzhou 310027, China
  • 2Zhejiang Key Laboratory of Refrigeration and Cryogenic Technology, Hangzhou 310027, China

  • *Contact author: limin.qiu@zju.edu.cn
  • †Contact author: srbao@zju.edu.cn
PDF

Phys. Rev. Research 8, 033159 – Published 10 August, 2026

DOI: https://doi.org/10.1103/klbl-7xnz

Abstract

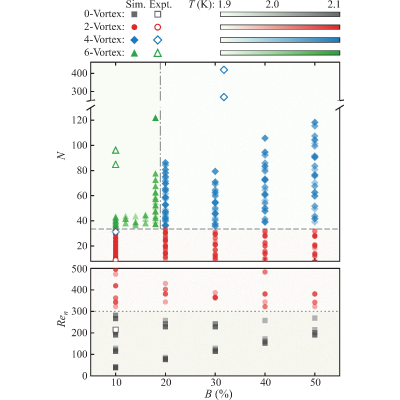

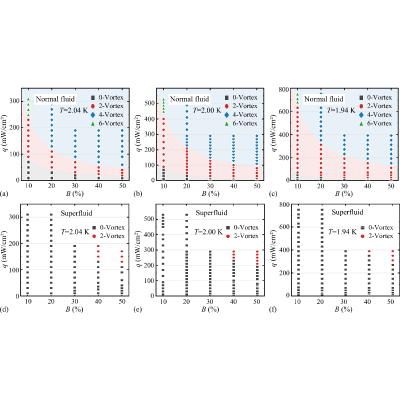

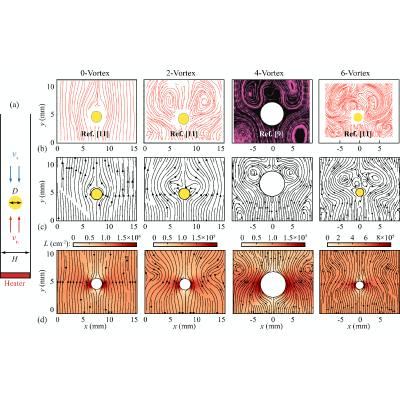

Thermal counterflow of superfluid He4 past a cylinder produces quasisteady eddies not only downstream but also anomalously upstream. However, the mechanism and organizing principles behind the observed multistable wake topologies (zero-, two-, four-, and six-vortex states) have remained unclear. We show that the full spectrum of reported normal-fluid wake states is captured numerically with a two-fluid model coupled to Vinen’s vortex-line-density equation. Our simulations further reveal that the superfluid component can also develop anomalous upstream eddies, a feature not previously reported. We trace these behaviors to a self-organized zone of enhanced mutual-friction dissipation near the cylinder shoulders that reshapes the effective obstacle, drives upstream eddies in both components, and suppresses intrinsic wake oscillations in the normal fluid. Guided by this mechanism, we perform systematic parameter scans and construct a unified phase diagram in terms of the normal-fluid Reynolds number Ren and a dimensionless interaction number N, separating inertia- and mutual-friction-controlled transitions and delineating the parameter windows for the discrete wake topologies. These results turn a striking phenomenology into a predictive map and establish mutual-friction feedback as a robust route to unusual wake structures in quantum fluids.

View figure in article

Physics Subject Headings (PhySH)

Article Text

Supplemental Material

References (47)

  1. G. K. Batchelor, An Introduction to Fluid Dynamics (Cambridge University Press, Cambridge, England, 2000).
  2. C. H. K. Williamson, Vortex dynamics in the cylinder wake, Annu. Rev. Fluid Mech. 28, 477 (1996).
  3. L. D. Landau and E. M. Lifshitz, Fluid Mechanics, 2nd ed. (Elsevier, Amsterdam, 1987), Vol. 6.
  4. R. J. Donnelly, Quantized Vortices in Helium II (Cambridge University Press, Cambridge, England, 1991).
  5. W. F. Vinen, Mutual friction in a heat current in liquid helium II. II. Experiments on transient effects, Proc. R. Soc. A 240, 128 (1957).
  6. W. F. Vinen, Mutual friction in a heat current in liquid helium II. III. Theory of the mutual friction, Proc. R. Soc. A 242, 493 (1957).
  7. Y. Tang, W. Guo, H. Kobayashi, S. Yui, M. Tsubota, and T. Kanai, Imaging quantized vortex rings in superfluid helium to evaluate quantum dissipation, Nat. Commun. 14, 2941 (2023).
  8. S. W. Van Sciver, Helium Cryogenics (Springer, New York, 2012).
  9. T. Zhang and S. W. Van Sciver, Large-scale turbulent flow around a cylinder in counterflow superfluid He4 (He (II)), Nat. Phys. 1, 36 (2005).
  10. S. W. Van Sciver, S. Fuzier, and T. Xu, Particle image velocimetry studies of counterflow heat transport in superfluid He II, J. Low Temp. Phys. 148, 225 (2007).
  11. T. V. Chagovets and S. W. Van Sciver, Visualization of He II counterflow around a cylinder, Phys. Fluids 25, 105104 (2013).
  12. D. Duda, M. La Mantia, M. Rotter, and L. Skrbek, On the visualization of thermal counterflow of He II past a circular cylinder, J. Low Temp. Phys. 175, 331 (2014).
  13. S. Fuzier, S. W. Van Sciver, and T. Zhang, PIV measurements of He II counterflow around a cylinder, AIP Conf. Proc. 850, 203 (2006).
  14. Y. A. Sergeev and C. F. Barenghi, Normal fluid eddies in the thermal counterflow past a cylinder, J. Low Temp. Phys. 156, 268 (2009).
  15. C. Soulaine, M. Quintard, B. Baudouy, and R. Van Weelderen, Numerical investigation of thermal counterflow of He II past cylinders, Phys. Rev. Lett. 118, 074506 (2017).
  16. Z. Li, Z. Liu, Q. Zhang, M. Dai, Z. Zhang, and Y. He, Evolution of the four-vortex structure of the He II thermal counterflow based on the simplified two-fluid model, Phys. Fluids 35, 095130 (2023).
  17. H. Yousefi and H. Afshin, Numerical simulation of thermal counterflow in superfluid helium: Investigating the effect of rotation and heat flux on the surface of the cylinder, Comput. Phys. Commun. 310, 109495 (2025).
  18. Y. Hu, K. Wang, X. Zhi, L. Qiu, and S. Bao, Numerical study on the development length of thermal counterflow in superfluid helium, Phys. Fluids 37, 073612 (2025).
  19. Y. Hu, W. Huang, S. Yang, K. Wang, X. Zhi, L. Qiu, and S. Bao, Transient heat transfer in superfluid helium (He-II) from circular heaters with finite dimensions, Int. Commun. Heat Mass Transfer 169, 109564 (2025).
  20. S. Bao and W. Guo, Transient heat transfer of superfluid He4 in nonhomogeneous geometries: Second sound, rarefaction, and thermal layer, Phys. Rev. B 103, 134510 (2021).
  21. S. K. Nemirovskii and V. V. Lebedev, Hydrodynamics of superfluid turbulence, Zh. Eksp. Teor. Fiz. 84, 1729 (1983) [Sov. Phys. JETP 57, 1009 (1983)].
  22. S. K. Nemirovskii, On the closure problem of the coarse-grained hydrodynamics of turbulent superfluids, J. Low Temp. Phys. 201, 254 (2020).
  23. M. Tsubota, K. Fujimoto, and S. Yui, Numerical studies of quantum turbulence, J. Low Temp. Phys. 188, 119 (2017).
  24. R. J. Donnelly and C. F. Barenghi, The observed properties of liquid helium at the saturated vapor pressure, J. Phys. Chem. Ref. Data 27, 1217 (1998).
  25. R. T. Wang, C. E. Swanson, and R. J. Donnelly, Anisotropy and drift of a vortex tangle in helium II, Phys. Rev. B 36, 5240 (1987).
  26. L. Kondaurova, V. L’vov, A. Pomyalov, and I. Procaccia, Structure of a quantum vortex tangle in He4 counterflow turbulence, Phys. Rev. B 89, 014502 (2014).
  27. S. K. Nemirovskii, Quantum turbulence: Theoretical and numerical problems, Phys. Rep. 524, 85 (2013).
  28. C. F. Barenghi, A. V. Gordeev, and L. Skrbek, Depolarization of decaying counterflow turbulence in He II, Phys. Rev. E 74, 026309 (2006).
  29. A. W. Baggaley, The sensitivity of the vortex filament method to different reconnection models, J. Low Temp. Phys. 168, 18 (2012).
  30. S. Yui, Y. Tang, W. Guo, H. Kobayashi, and M. Tsubota, Universal anomalous diffusion of quantized vortices in ultraquantum turbulence, Phys. Rev. Lett. 129, 025301 (2022).
  31. H. Sanavandi, M. Hulse, S. Bao, Y. Tang, and W. Guo, Boiling and cavitation caused by transient heat transfer in superfluid helium-4, Phys. Rev. B 106, 054501 (2022).
  32. S. Inui, M. Hulse, T. Kanai, and W. Guo, Boiling peak heat flux for steady inhomogeneous heat transfer in superfluid He4, Phys. Rev. B 108, 174509 (2023).
  33. L. Galantucci, M. Sciacca, and C. F. Barenghi, Coupled normal fluid and superfluid profiles of turbulent helium II in channels, Phys. Rev. B 92, 174530 (2015).
  34. See Supplemental Material at https://link.aps.org/supplemental/10.1103/klbl-7xnz for detailed governing equations, boundary conditions, and grid independence tests.
  35. S. Peng, T. Tang, J. Li, M. Zhang, and P. Yu, Numerical study of viscoelastic upstream instability, J. Fluid Mech. 959, A16 (2023).
  36. C. C. Hopkins, S. J. Haward, and A. Q. Shen, Upstream wall vortices in viscoelastic flow past a cylinder, Soft Matter 18, 4868 (2022).
  37. C. C. Hopkins, A. Q. Shen, and S. J. Haward, Effect of blockage ratio on flow of a viscoelastic wormlike micellar solution past a cylinder in a microchannel, Soft Matter 18, 8856 (2022).
  38. B. Qin, P. F. Salipante, S. D. Hudson, and P. E. Arratia, Upstream vortex and elastic wave in the viscoelastic flow around a confined cylinder, J. Fluid Mech. 864, R2 (2019).
  39. J. Bertolaccini, E. Lévêque, and P.-E. Roche, Disproportionate entrance length in superfluid flows and the puzzle of counterflow instabilities, Phys. Rev. Fluids 2, 123902 (2017).
  40. S. Babuin, E. Varga, L. Skrbek, E. Lévêque, and P.-E. Roche, Effective viscosity in quantum turbulence: A steady-state approach, Europhys. Lett. 106, 24006 (2014).
  41. M. Sahin and R. G. Owens, A numerical investigation of wall effects up to high blockage ratios on two-dimensional flow past a confined circular cylinder, Phys. Fluids 16, 1305 (2004).
  42. S. Singha and K. P. Sinhamahapatra, Flow past a circular cylinder between parallel walls at low Reynolds numbers, Ocean Eng. 37, 757 (2010).
  43. D. Kivotides, C. F. Barenghi, and D. C. Samuels, Triple vortex ring structure in superfluid helium II, Science 290, 777 (2000).
  44. L. Galantucci, A. W. Baggaley, C. F. Barenghi, and G. Krstulovic, A new self-consistent approach of quantum turbulence in superfluid helium, Eur. Phys. J. Plus 135, 547 (2020).
  45. L. Galantucci, G. Krstulovic, and C. F. Barenghi, Quantum vortices leave a macroscopic signature in the thermal background, Phys. Rev. Lett. 136, 016001 (2026).
  46. B. Mastracci, S. Bao, W. Guo, and W. F. Vinen, Particle tracking velocimetry applied to thermal counterflow in superfluid He4: Motion of the normal fluid at small heat fluxes, Phys. Rev. Fluids 4, 083305 (2019).
  47. S. Yui, H. Kobayashi, M. Tsubota, and W. Guo, Fully coupled two-fluid dynamics in superfluid He4: Anomalous anisotropic velocity fluctuations in counterflow, Phys. Rev. Lett. 124, 155301 (2020).
