Spectral repulsion does not uniquely determine modal exchange in a deformed microwave billiard

Xiaodong Zhang*

  • Shandong Key Laboratory of Space Environment and Exploration Technology, College of Physics and Electronic Engineering, Qilu Normal University, Jinan 250200, China

  • *Contact author: xiaodongzhang2021@gmail.com
PDF

Phys. Rev. Research 8, 043040 – Published 13 October, 2026

DOI: https://doi.org/10.1103/k12j-gnhf

Abstract

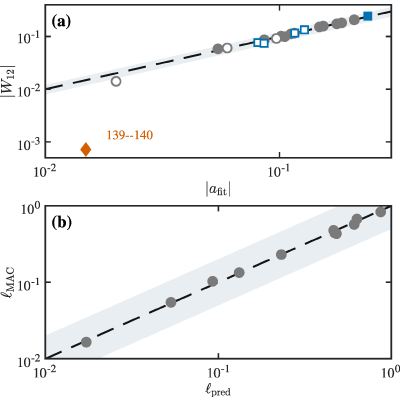

An avoided crossing is a familiar spectral signature of interaction between nearby modes, but the eigenvalue trajectory alone does not establish whether their modal identities are exchanged. We examine this question in a deformed microwave billiard by comparing finite element eigenvalues and fields. Across 21 screened adjacent level events, the spectral slope is compared with the boundary response obtained from the fields at the event center. For the 11 events whose rotation width can be resolved within the sampled interval, the boundary-derived and overlap-derived widths agree to within about 11%. One event behaves differently: The spectral model predicts substantial modal rotation, while the computed fields change very little and are instead reproduced by the boundary response. Another event shows that the mode that improves the eigenvalue model is not the mode that best restores the field subspace. Spectral repulsion alone is therefore not sufficient to determine modal exchange or the reference subspace required over a finite parameter range.

View figure in article

Physics Subject Headings (PhySH)

Article Text

Supplemental Material

References (44)

  1. M. V. Berry and M. Wilkinson, Diabolical points in the spectra of triangles, Proc. R. Soc. London Ser. A 392, 15 (1984).
  2. P. Pechukas, Distribution of energy eigenvalues in the irregular spectrum, Phys. Rev. Lett. 51, 943 (1983).
  3. J. Zakrzewski, D. Delande, and M. Kuś, Parametric motion of energy levels in quantum chaotic systems. II. Avoided-crossing distributions, Phys. Rev. E 47, 1665 (1993).
  4. B. D. Simons and B. L. Altshuler, Universal velocity correlations in disordered and chaotic systems, Phys. Rev. Lett. 70, 4063 (1993).
  5. C. W. J. Beenakker and B. Rejaei, Random-matrix theory of parametric correlations in the spectra of disordered metals and chaotic billiards, Physica A 203, 61 (1994).
  6. H. Attias and Y. Alhassid, Gaussian random-matrix process and universal parametric correlations in complex systems, Phys. Rev. E 52, 4776 (1995).
  7. J. Lu, J. Che, X. Zhang, and B. Dietz, Experimental and numerical investigation of parametric spectral properties of quantum graphs with unitary or symplectic symmetry, Phys. Rev. E 102, 022309 (2020).
  8. I. Stern, G. Carosi, N. S. Sullivan, and D. B. Tanner, Avoided mode crossings in cylindrical microwave cavities, Phys. Rev. Appl. 12, 044016 (2019).
  9. K.-W. Park, J. Kim, J. Seo, S. Moon, and K. Jeong, Indicators of wavefunction (de)localisation for avoided crossing in a quadrupole quantum billiard, J. Phys. Commun. 5, 115009 (2021).
  10. Y. Alhassid and H. Attias, Universal parametric correlations of eigenfunctions in chaotic and disordered systems, Phys. Rev. Lett. 74, 4635 (1995).
  11. K. Truong and A. Ossipov, Eigenvectors under a generic perturbation: Non-perturbative results from the random matrix approach, Europhys. Lett. 116, 37002 (2016).
  12. N. C. Perkins and C. D. Mote, Comments on curve veering in eigenvalue problems, J. Sound Vib. 106, 451 (1986).
  13. X. L. Liu, Behavior of derivatives of eigenvalues and eigenvectors in curve veering and mode localization and their relation to close eigenvalues, J. Sound Vib. 256, 551 (2002).
  14. H.-J. Stöckmann and J. Stein, ”Quantum” chaos in billiards studied by microwave absorption, Phys. Rev. Lett. 64, 2215 (1990).
  15. B. Dietz and A. Richter, Quantum and wave dynamical chaos in superconducting microwave billiards, Chaos 25, 097601 (2015).
  16. S. Sridhar, Experimental observation of scarred eigenfunctions of chaotic microwave cavities, Phys. Rev. Lett. 67, 785 (1991).
  17. J. Stein and H.-J. Stöckmann, Experimental determination of billiard wave functions, Phys. Rev. Lett. 68, 2867 (1992).
  18. H.-D. Gräf, H. L. Harney, H. Lengeler, C. H. Lewenkopf, C. Rangacharyulu, A. Richter, P. Schardt, and H. A. Weidenmüller, Distribution of eigenmodes in a superconducting stadium billiard with chaotic dynamics, Phys. Rev. Lett. 69, 1296 (1992).
  19. D. H. Wu, J. S. A. Bridgewater, A. Gokirmak, and S. M. Anlage, Probability amplitude fluctuations in experimental wave chaotic eigenmodes with and without time-reversal symmetry, Phys. Rev. Lett. 81, 2890 (1998).
  20. U. Kuhl, Wave functions, nodal domains, flow, and vortices in open microwave systems, Eur. Phys. J. Spec. Top. 145, 103 (2007).
  21. W. Zhang, X. Zhang, J. Che, M. Miski-Oglu, and B. Dietz, Properties of eigenmodes and quantum-chaotic scattering in a superconducting microwave Dirac billiard with threefold rotational symmetry, Phys. Rev. B 107, 144308 (2023).
  22. H. Bruus and A. D. Stone, Quantum chaos in a deformable billiard: Applications to quantum dots, Phys. Rev. B 50, 18275 (1994).
  23. M. Barth, U. Kuhl, and H.-J. Stöckmann, Global versus local billiard level dynamics: The limits of universality, Phys. Rev. Lett. 82, 2026 (1999).
  24. S. Rahav and S. Fishman, Spectral statistics of rectangular billiards with localized perturbations, Nonlinearity 15, 1541 (2002).
  25. Y. Hlushchuk, U. Kuhl, and S. Russ, Level dynamics in pseudointegrable billiards: An experimental study, Physica A 344, 523 (2004).
  26. D. Laurent, O. Legrand, and F. Mortessagne, Diffractive orbits in the length spectrum of a two-dimensional microwave cavity with a small scatterer, Phys. Rev. E 74, 046219 (2006).
  27. F. Simmel and M. Eckert, Avoided crossings: Curvature distribution and behavior of eigenfunctions of pseudointegrable and chaotic billiards, Phys. Rev. E 51, 5435 (1995).
  28. E. Vergini and D. A. Wisniacki, Localized structures embedded in the eigenfunctions of chaotic Hamiltonian systems, Phys. Rev. E 58, R5225 (1998).
  29. K.-W. Park, S. Moon, Y. Shin, J. Kim, K. Jeong, and K. An, Shannon entropy and avoided crossings in closed and open quantum billiards, Phys. Rev. E 97, 062205 (2018).
  30. K.-W. Park, S. Lee, and K. Jeong, Information-theoretic analysis of complex eigenmodes across avoided crossings in open microcavities, Phys. Lett. A 571, 131298 (2026).
  31. X. Zhang, J. Che, and B. Dietz, Experimental study of coupled quantum billiards with integrable and chaotic classical dynamics and test of a special Rosenzweig-Porter model, Phys. Rev. E 113, 024214 (2026).
  32. D. D. de Menezes, M. Jar e Silva, and F. M. de Aguiar, Numerical experiments on quantum chaotic billiards, Chaos 17, 023116 (2007).
  33. P. R. Garabedian and M. Schiffer, Convexity of domain functionals, J. Anal. Math. 2, 281 (1952).
  34. T. Suzuki and T. Tsuchiya, Hadamard's variational formula for simple eigenvalues, AppliedMath 4, 1211 (2024).
  35. R. J. Allemang and D. L. Brown, A correlation coefficient for modal vector analysis, in Proceedings of the 1st International Modal Analysis Conference, Orlando, Florida (Union College, Schenectady, NY, 1982), pp. 110–116.
  36. R. J. Allemang, The modal assurance criterion—Twenty years of use and abuse, Sound Vib. 37, 14 (2003).
  37. M. J. Desforges, J. E. Cooper, and J. R. Wright, Mode tracking during flutter testing using the modal assurance criterion, Proc. Inst. Mech. Eng. Part G 210, 27 (1996).
  38. C. Davis and W. M. Kahan, The rotation of eigenvectors by a perturbation. III, SIAM J. Numer. Anal. 7, 1 (1970).
  39. Å. Björck and G. H. Golub, Numerical methods for computing angles between linear subspaces, Math. Comput. 27, 579 (1973).
  40. A. V. Knyazev and M. E. Argentati, Principal angles between subspaces in an A-based scalar product: Algorithms and perturbation estimates, SIAM J. Sci. Comput. 23, 2008 (2002).
  41. C. M. Hurvich and C.-L. Tsai, Regression and time series model selection in small samples, Biometrika 76, 297 (1989).
  42. M. Stone, Cross-validatory choice and assessment of statistical predictions, J. R. Stat. Soc. B 36, 111 (1974).
  43. See Supplemental Material at http://link.aps.org/supplemental/10.1103/k12j-gnhf for numerical implementation and convergence tests, spectral model comparisons, event construction, modal width identifiability rules, complete event level diagnostics, the extended evolution of pair 137–138, and finite window additional mode diagnostics for pair 131–132.
  44. T. Kato, Perturbation Theory for Linear Operators, 2nd ed. (Springer, Berlin, 1995).
