Experimental side channel secure quantum key distribution under realistic conditions

Hao Dong1,2, Cong Jiang2,3, Di Ma2, Chi Zhang2, Jia Huang4, Hao Li4, Li-Xing You4, Yang Liu1,2,3, Xiang-Bin Wang2,3,5 et al.

Qiang Zhang1,2,3 and Jian-Wei Pan1,3

PDF

Phys. Rev. Research 8, 013214 – Published 25 February, 2026

DOI: https://doi.org/10.1103/fxxb-9y8n

Abstract

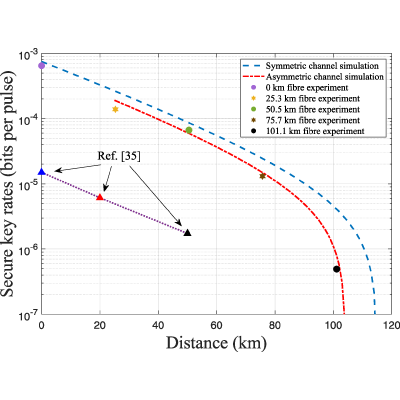

Quantum key distribution (QKD) theoretically provides unconditional security between remote parties. However, guaranteeing practical security through device characterization alone is challenging in real-world implementations due to the multidimensional spaces in which the devices may be operated. The side channel secure (SCS) QKD protocol, which only requires bounding the upper limits of the intensities for the two states, theoretically provides a rigorous solution to the challenge and achieves measurement-device-independent security in detection and security for whatever multidimensional side channel attack in the source. Here, we demonstrate a practical implementation of SCS-QKD, achieving a secure key rate of 6.67 kbps through a 50.5 km fiber and a maximum distribution distance of 101.1 km while accounting for finite-size effects. Our experiment also represents an approximately 40 times improvement over the previous experiment.

View figure in article

Physics Subject Headings (PhySH)

Article Text

Supplemental Material

References (46)

  1. C. H. Bennett and G. Brassard, Quantum cryptography: Public key distribution and coin tossing, in Proceedings of the IEEE International Conference on Computers, Systems, and Signal Processing, Bangalore, India, edited by G. R. Blakley and D. Chaum (IEEE, New York, 1984), pp. 175–179.
  2. F. Xu, X. Ma, Q. Zhang, H.-K. Lo, and J.-W. Pan, Secure quantum key distribution with realistic devices, Rev. Mod. Phys. 92, 025002 (2020).
  3. Y. Zhao, C.-H. F. Fung, B. Qi, C. Chen, and H.-K. Lo, Quantum hacking: Experimental demonstration of time-shift attack against practical quantum-key-distribution systems, Phys. Rev. A 78, 042333 (2008).
  4. L. Lydersen, C. Wiechers, C. Wittmann, D. Elser, J. Skaar, and V. Makarov, Hacking commercial quantum cryptography systems by tailored bright illumination, Nat. Photon. 4, 686 (2010).
  5. A. N. Bugge, S. Sauge, A. M. M. Ghazali, J. Skaar, L. Lydersen, and V. Makarov, Laser damage helps the eavesdropper in quantum cryptography, Phys. Rev. Lett. 112, 070503 (2014).
  6. K.-i. Yoshino, M. Fujiwara, K. Nakata, T. Sumiya, T. Sasaki, M. Takeoka, M. Sasaki, A. Tajima, M. Koashi, and A. Tomita, Quantum key distribution with an efficient countermeasure against correlated intensity fluctuations in optical pulses, npj Quantum Inf. 4, 8 (2018).
  7. Y.-J. Qian, D.-Y. He, S. Wang, W. Chen, Z.-Q. Yin, G.-C. Guo, and Z.-F. Han, Hacking the quantum key distribution system by exploiting the avalanche-transition region of single-photon detectors, Phys. Rev. Appl. 10, 064062 (2018).
  8. S. L. Braunstein and S. Pirandola, Side-channel-free quantum key distribution, Phys. Rev. Lett. 108, 130502 (2012).
  9. H.-K. Lo, M. Curty, and B. Qi, Measurement-device-independent quantum key distribution, Phys. Rev. Lett. 108, 130503 (2012).
  10. M. Lucamarini, Z. L. Yuan, J. F. Dynes, and A. J. Shields, Overcoming the rate–distance limit of quantum key distribution without quantum repeaters, Nature (London) 557, 400 (2018).
  11. Y. Liu, Z.-W. Yu, W. Zhang, J.-Y. Guan, J.-P. Chen, C. Zhang, X.-L. Hu, H. Li, C. Jiang, J. Lin, T.-Y. Chen, L. You, Z. Wang, X.-B. Wang, Q. Zhang, and J.-W. Pan, Experimental twin-field quantum key distribution through sending or not sending, Phys. Rev. Lett. 123, 100505 (2019).
  12. J.-P. Chen, C. Zhang, Y. Liu, C. Jiang, W. Zhang, X.-L. Hu, J.-Y. Guan, Z.-W. Yu, H. Xu, J. Lin, M.-J. Li, H. Chen, H. Li, L. You, Z. Wang, X.-B. Wang, Q. Zhang, and J.-W. Pan, Sending-or-not-sending with independent lasers: Secure twin-field quantum key distribution over 509 km, Phys. Rev. Lett. 124, 070501 (2020).
  13. J.-P. Chen, C. Zhang, Y. Liu, C. Jiang, W.-J. Zhang, Z.-Y. Han, S.-Z. Ma, X.-L. Hu, Y.-H. Li, H. Liu, F. Zhou, H.-F. Jiang, T.-Y. Chen, H. Li, L.-X. You, Z. Wang, X.-B. Wang, Q. Zhang, and J.-W. Pan, Twin-field quantum key distribution over a 511 km optical fibre linking two distant metropolitan areas, Nat. Photon. 15, 570 (2021).
  14. J.-P. Chen, C. Zhang, Y. Liu, C. Jiang, D.-F. Zhao, W.-J. Zhang, F.-X. Chen, H. Li, L.-X. You, Z. Wang, Y. Chen, X.-B. Wang, Q. Zhang, and J.-W. Pan, Quantum key distribution over 658 km fiber with distributed vibration sensing, Phys. Rev. Lett. 128, 180502 (2022).
  15. Y. Liu, W.-J. Zhang, C. Jiang, J.-P. Chen, C. Zhang, W.-X. Pan, D. Ma, H. Dong, J.-M. Xiong, C.-J. Zhang, H. Li, R.-C. Wang, J. Wu, T.-Y. Chen, L. You, X.-B. Wang, Q. Zhang, and J.-W. Pan, Experimental twin-field quantum key distribution over 1000 km fiber distance, Phys. Rev. Lett. 130, 210801 (2023).
  16. P. Zeng, H. Zhou, W. Wu, and X. Ma, Mode-pairing quantum key distribution, Nat. Commun. 13, 3903 (2022).
  17. H.-T. Zhu, Y. Huang, H. Liu, P. Zeng, M. Zou, Y. Dai, S. Tang, H. Li, L. You, Z. Wang, Y.-A. Chen, X. Ma, T.-Y. Chen, and J.-W. Pan, Experimental mode-pairing measurement-device-independent quantum key distribution without global phase locking, Phys. Rev. Lett. 130, 030801 (2023).
  18. H.-T. Zhu, Y. Huang, W.-X. Pan, C.-W. Zhou, J. Tang, H. He, M. Cheng, X. Jin, M. Zou, S. Tang, X. Ma, T.-Y. Chen, and J.-W. Pan, Field test of mode-pairing quantum key distribution, Optica 11, 883 (2024).
  19. W.-Y. Hwang, Quantum key distribution with high loss: Toward global secure communication, Phys. Rev. Lett. 91, 057901 (2003).
  20. X.-B. Wang, Beating the photon-number-splitting attack in practical quantum cryptography, Phys. Rev. Lett. 94, 230503 (2005).
  21. H.-K. Lo, X. Ma, and K. Chen, Decoy state quantum key distribution, Phys. Rev. Lett. 94, 230504 (2005).
  22. G. Brassard, N. Lütkenhaus, T. Mor, and B. C. Sanders, Limitations on practical quantum cryptography, Phys. Rev. Lett. 85, 1330 (2000).
  23. N. Lütkenhaus, Security against individual attacks for realistic quantum key distribution, Phys. Rev. A 61, 052304 (2000).
  24. A. Navarrete, M. Pereira, M. Curty, and K. Tamaki, Practical quantum key distribution that is secure against side channels, Phys. Rev. Appl. 15, 034072 (2021).
  25. A. Huang, S.-H. Sun, Z. Liu, and V. Makarov, Quantum key distribution with distinguishable decoy states, Phys. Rev. A 98, 012330 (2018).
  26. A. Gnanapandithan, L. Qian, and H.-K. Lo, Hidden multidimensional modulation side channels in quantum protocols, Phys. Rev. Lett. 134, 130802 (2025).
  27. G. Currás-Lorenzo, M. Pereira, G. Kato, M. Curty, and K. Tamaki, Security framework for quantum key distribution with imperfect sources, Optica Quantum 3, 525 (2025).
  28. V. Zapatero, Á. Navarrete, and M. Curty, Implementation security in quantum key distribution, Adv. Quantum Technol. 8, 2300380 (2025).
  29. D. Tupkary, S. Nahar, P. Sinha, and N. Lütkenhaus, Phase error rate estimation in QKD with imperfect detectors, Quantum 9, 1937 (2025).
  30. S. Nahar, D. Tupkary, and N. Lütkenhaus, Imperfect detectors for adversarial tasks with applications to quantum key distribution, arXiv:2503.06328.
  31. G. Currás-Lorenzo, M. Pereira, S. Nahar, and D. Tupkary, Security of quantum key distribution with source and detector imperfections through phase-error estimation, arXiv:2507.03549.
  32. X.-B. Wang, X.-L. Hu, and Z.-W. Yu, Practical long-distance side-channel-free quantum key distribution, Phys. Rev. Appl. 12, 054034 (2019).
  33. C. Jiang, Z.-W. Yu, X.-L. Hu, and X.-B. Wang, Side-channel-secure quantum key distribution with imperfect vacuum sources, Phys. Rev. Appl. 19, 064003 (2023).
  34. C. Jiang, X.-L. Hu, Z.-W. Yu, and X.-B. Wang, Side-channel security of practical quantum key distribution, Phys. Rev. Res. 6, 013266 (2024).
  35. C. Zhang, X.-L. Hu, C. Jiang, J.-P. Chen, Y. Liu, W. Zhang, Z.-W. Yu, H. Li, L. You, Z. Wang, X.-B. Wang, Q. Zhang, and J.-W. Pan, Experimental side-channel-secure quantum key distribution, Phys. Rev. Lett. 128, 190503 (2022).
  36. C. Jiang, X.-L. Hu, Z.-W. Yu, H. Xu, and X.-B. Wang, Side-channel-secure quantum key distribution with state-dependent correlated errors and Trojan-horse attack, Opt. Express 33, 51715 (2025).
  37. L. Sheridan, T. P. Le, and V. Scarani, Finite-key security against coherent attacks in quantum key distribution, New J. Phys. 12, 123019 (2010).
  38. M. Christandl, R. König, and R. Renner, Postselection technique for quantum channels with applications to quantum cryptography, Phys. Rev. Lett. 102, 020504 (2009).
  39. S. Nahar, D. Tupkary, Y. Zhao, N. Lütkenhaus, and E. Y.-Z. Tan, Postselection technique for optical quantum key distribution with improved de Finetti reductions, PRX Quantum 5, 040315 (2024).
  40. Q. Peng, J.-P. Chen, T. Xing, D. Wang, Y. Wang, Y. Liu, and A. Huang, Practical security of twin-field quantum key distribution with optical phase-locked loop under wavelength-switching attack, npj Quantum Inf. 11, 7 (2025).
  41. See Supplemental Material at http://link.aps.org/supplemental/10.1103/fxxb-9y8n for the details of the signal generation, real-time feedback design, and experimental parameters.
  42. V. Scarani and R. Renner, Security bounds for quantum cryptography with finite resources, in Workshop on Quantum Computation, Communication, and Cryptography (Springer, Berlin, Heidelberg, 2008), pp. 83–95.
  43. F.-Y. Lu, X. Lin, S. Wang, G.-J. Fan-Yuan, P. Ye, R. Wang, Z.-Q. Yin, D.-Y. He, W. Chen, G.-C. Guo, and Z.-F. Han, Intensity modulator for secure, stable, and high-performance decoy-state quantum key distribution, npj Quantum Inf. 7, 75 (2021).
  44. G. L. Roberts, M. Pittaluga, M. Minder, M. Lucamarini, J. F. Dynes, Z. L. Yuan, and A. J. Shields, Patterning-effect mitigating intensity modulator for secure decoy-state quantum key distribution, Opt. Lett. 43, 5110 (2018).
  45. V. Lovic, D. Marangon, P. Smith, R. Woodward, and A. Shields, Quantified effects of the laser-seeding attack in quantum key distribution, Phys. Rev. Appl. 20, 044005 (2023).
  46. M. Lucamarini, I. Choi, M. B. Ward, J. F. Dynes, Z. L. Yuan, and A. J. Shields, Practical security bounds against the Trojan-horse attack in quantum key distribution, Phys. Rev. X 5, 031030 (2015).
