Convective heat transfer patterns in plane-layer Rayleigh-Bénard convection revealed by transient almost-invariant sets

Aleksandar Badza1, Gary Froyland1,*, Roshan J. Samuel2, and Jörg Schumacher2

  • 1School of Mathematics and Statistics, UNSW Sydney, Sydney, NSW 2052, Australia
  • 2Institute of Thermodynamics and Fluid Mechanics, Technische Universität Ilmenau, P.O. Box 100565, D-98684 Ilmenau, Germany

  • *Contact author: g.froyland@unsw.edu.au
PDF

Phys. Rev. Research 8, 023040 – Published 13 April, 2026

DOI: https://doi.org/10.1103/f9kk-jkvz

Abstract

Horizontally extended plane-layer convection flows are characterized by characteristic patterns of turbulent heat transfer due to the convective fluid motion consisting of a nearly regular ridge network where hot fluid rises and cold fluid sinks. Here, we analyze this transport behavior by the so-called inflated generator framework, which identifies quasistationary families of almost-invariant sets, derived from leading inflated generator eigenvectors. We demonstrate the effectiveness of this data-driven analysis framework in three-dimensional turbulent flow, by extracting transient characteristic heat transfer patterns as families of almost-invariant sets subject to a gradual evolution, which contribute least to the convective heat transfer.

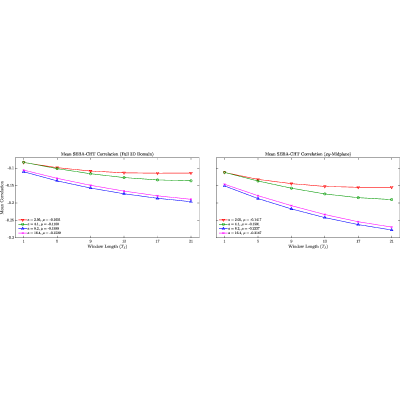

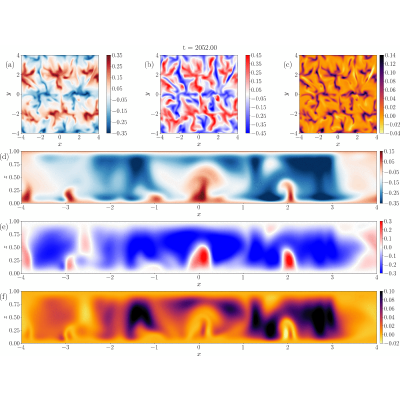

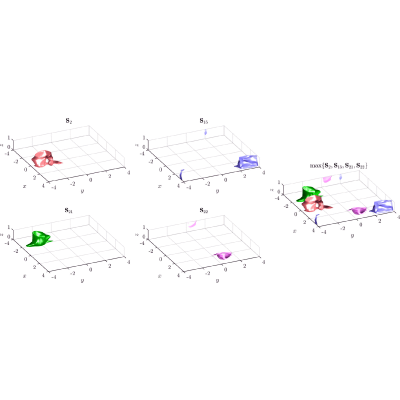

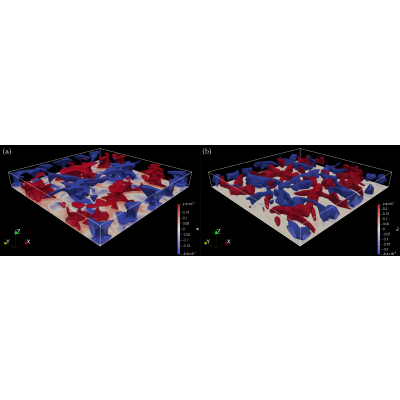

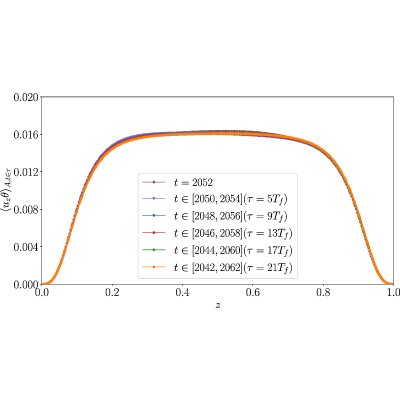

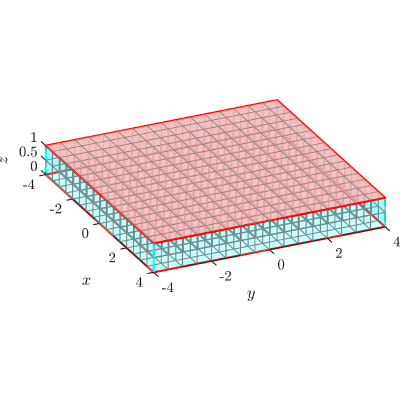

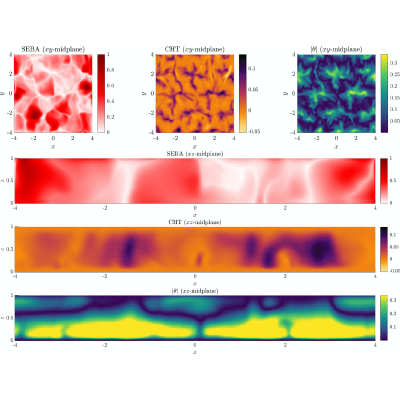

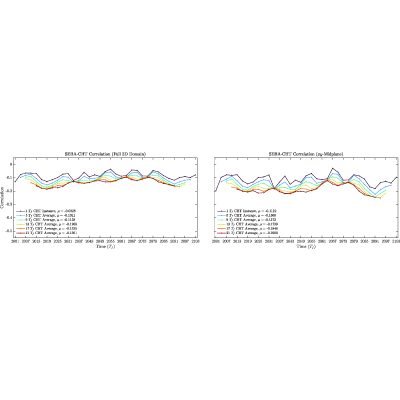

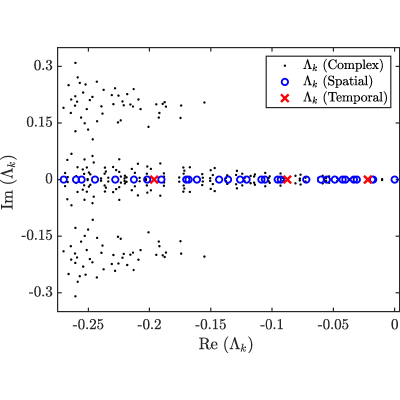

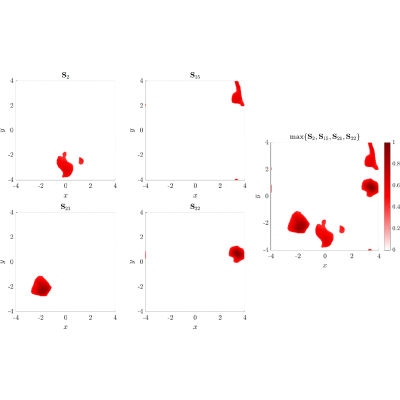

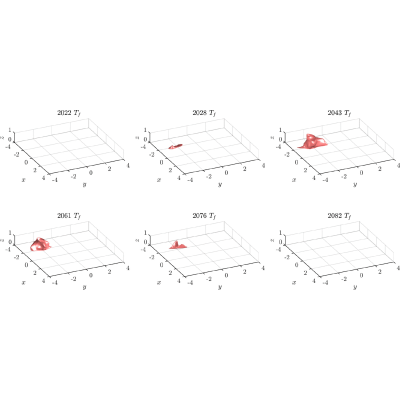

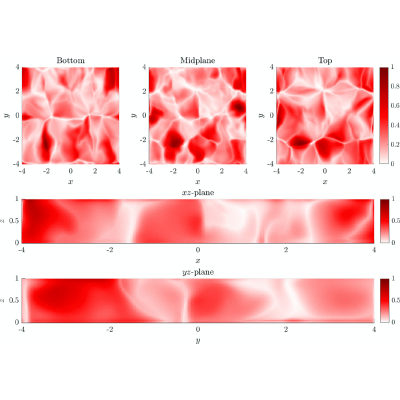

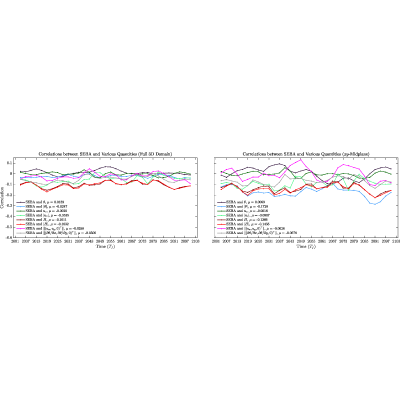

View figure in article

Physics Subject Headings (PhySH)

Article Text

References (47)

  1. P. Garaud, Journey to the center of stars: The realm of low Prandtl number fluid dynamics, Phys. Rev. Fluids 6, 030501 (2021).
  2. M. Landeau, A. Fournier, H.-C. Nataf, D. Cébron, and N. Schaeffer, Sustaining Earth's magnetic dynamo, Nat. Rev. Earth Environ. 3, 255 (2022).
  3. S. Smolentsev, R. Moreau, L. Bühler, and C. Mistrangelo, MHD thermofluid issues of liquid-metal blankets: Phenomena and advances, Fusion Eng. Des. 85, 1196 (2010).
  4. E. L. Koschmieder, Bénard Cells and Taylor Vortices (Cambridge University Press, Cambridge, UK, 1993).
  5. M. K. Verma, Physics of Buoyant Flows (World Scientific, Singapore, 2018).
  6. O. M. Lord Rayleigh, LIX. On convection currents in a horizontal layer of fluid, when the higher temperature is on the under side, Philos. Mag. 32, 529 (1916).
  7. F. Chillà and J. Schumacher, New perspectives in turbulent Rayleigh-Bénard convection, Eur. Phys. J. E 35, 58 (2012).
  8. L. P. Kadanoff, Turbulent heat flow: Structures and scaling, Phys. Today 54(8), 34 (2001).
  9. G. Ahlers, S. Grossmann, and D. Lohse, Heat transfer and large scale dynamics in turbulent Rayleigh-Bénard convection, Rev. Mod. Phys. 81, 503 (2009).
  10. A. Pandey, J. D. Scheel, and J. Schumacher, Turbulent superstructures in Rayleigh-Bénard convection, Nat. Commun. 9, 2118 (2018).
  11. R. J. A. M. Stevens, A. Blass, X. Zhu, R. Verzicco, and D. Lohse, Turbulent thermal superstructures in Rayleigh-Bénard convection, Phys. Rev. Fluids 3, 041501(R) (2018).
  12. S. Alam, D. Krasnov, A. Pandey, J. Panickacheril John, R. J. Samuel, P. P. Vieweg, and J. Schumacher, Turbulent mesoscale convection in the Boussinesq limit and beyond, Int. J. Heat Fluid Flow 115, 109856 (2025).
  13. P. P. Shevkar, R. J. Samuel, G. Zinchenko, M. Bode, J. Schumacher, and K. R. Sreenivasan, Hierarchical network of thermal plumes and their dynamics in turbulent Rayleigh–Bénard convection, Proc. Natl. Acad. Sci. USA 122, e2502972122 (2025).
  14. P. P. Vieweg, J. D. Scheel, and J. Schumacher, Supergranule aggregation for constant heat flux-driven turbulent convection, Phys. Rev. Res. 3, 013231 (2021).
  15. N. Shi, M. S. Emran, and J. Schumacher, Boundary layer structure in turbulent Rayleigh-Bénard convection, J. Fluid Mech. 706, 5 (2012).
  16. G. Froyland, N. Santitissadeekorn, and A. Monaham, Transport in time-dependent dynamical systems: Finite-time coherent sets, Chaos 20, 043116 (2010).
  17. G. Froyland, C. Horenkamp, V. Rossi, N. Santitissadeekorn, and A. S. Gupta, Three-dimensional characterization and tracking of an Agulhas Ring, Ocean Modell. 52-53, 69 (2012).
  18. M. R. Allshouse and T. Peacock, Lagrangian based methods for coherent structure detection, Chaos 25, 097617 (2015).
  19. G. Froyland and K. Padberg-Gehle, A rough-and-ready cluster-based approach for extracting finite-time coherent sets from sparse and incomplete trajectory data, Chaos 25, 087406 (2015).
  20. G. Froyland and K. Padberg-Gehle, Almost-invariant and finite-time coherent sets: Directionality, duration, and diffusion, in Ergodic Theory, Open Dynamics, and Coherent Structures, edited by W. Bahsoun, C. Bose, and G. Froyland (Springer, New York, 2014), pp. 171–216.
  21. G. Haller, Lagrangian coherent structures, Annu. Rev. Fluid Mech. 47, 137 (2015).
  22. M. C. Denes, S. R. Keating, and G. Froyland, Bathymetry imposes a global pattern of cross-front transport in the Southern Ocean, J. Phys. Oceanogr. 55, 317 (2025).
  23. C. Schneide, A. Pandey, K. Padberg-Gehle, and J. Schumacher, Probing turbulent superstructures in Rayleigh-Bénard convection by Lagrangian trajectory clusters, Phys. Rev. Fluids 3, 113501 (2018).
  24. C. Schneide, M. Stahn, A. Pandey, O. Junge, P. Koltai, K. Padberg-Gehle, and J. Schumacher, Lagrangian coherent sets in turbulent Rayleigh-Bénard convection, Phys. Rev. E 100, 053103 (2019).
  25. A. Klünker, C. Schneide, G. Froyland, J. Schumacher, and K. Padberg-Gehle, Set-oriented and finite-element study of coherent behavior in Rayleigh-Bénard convection, in Advances in Dynamics, Optimization and Computation, edited by O. Junge, O. Schütze, G. Froyland, S. Ober-Blöbaum, and K. Padberg-Gehle (Springer, Cham, 2020), pp. 86–108.
  26. P. P. Vieweg, C. Schneide, K. Padberg-Gehle, and J. Schumacher, Lagrangian heat transport in turbulent three-dimensional convection, Phys. Rev. Fluids 6, L041501 (2021).
  27. C. Schneide, P. P. Vieweg, J. Schumacher, and K. Padberg-Gehle, Evolutionary clustering of Lagrangian trajectories in turbulent Rayleigh–Bénard convection flows, Chaos 32, 013123 (2022).
  28. P. Maity, P. Koltai, and J. Schumacher, Large-scale flow in a cubic Rayleigh–Bénard cell: Long-term turbulence statistics and Markovianity of macrostate transitions, Phil. Trans. R. Soc. A 380, 20210042 (2022).
  29. N. O. Aksamit, R. Hartmann, D. Lohse, and G. Haller, Interplay between advective, diffusive and active barriers in (rotating) Rayleigh-Bénard flow, J. Fluid Mech. 969, A27 (2023).
  30. P. Maity, A. Bittracher, P. Koltai, and J. Schumacher, Collective variables between large-scale states in turbulent convection, Phys. Rev. Res. 5, 033061 (2023).
  31. M. Dellnitz and O. Junge, On the approximation of complicated dynamical behavior, SIAM J. Numer. Anal. 36, 491 (1999).
  32. A. Badza and G. Froyland, Identifying the onset and decay of quasi-stationary families of almost-invariant sets with an application to atmospheric blocking events, Chaos 34, 123153 (2024).
  33. G. Froyland, C. P. Rock, and K. Sakellariou, Sparse eigenbasis approximation: Multiple feature extraction across spatiotemporal scales with application to coherent set identification, Commun. Nonlinear Sci. Numer. Simulat. 77, 81 (2019).
  34. E. Fonda, A. Pandey, J. Schumacher, and K. R. Sreenivasan, Deep learning in turbulent convection networks, Proc. Natl. Acad. Sci. USA 116, 8667 (2019).
  35. P. F. Fischer, S. Kerkemeier, M. Min, Y.-H. Lan, M. Phillips, T. Rathnayake, E. Merzari, A. Tomboulides, A. Karakus, N. Chalmers, and T. Warburton, NekRS, a GPU-accelerated spectral element Navier–Stokes solver, Parallel Comput. 114, 102982 (2022).
  36. R. J. Samuel, M. Bode, J. D. Scheel, K. R. Sreenivasan, and J. Schumacher, No sustained mean velocity in the boundary region of plane thermal convection, J. Fluid Mech. 996, A49 (2024).
  37. R. J. Samuel and J. Schumacher, Plane-layer Rayleigh–Bénard convection up to Ra = 1011: near-wall fluctuations and role of initial conditions, Fluid Dyn. Res. 57, 061401 (2025).
  38. G. Froyland, O. Junge, and P. Koltai, Estimating long-term behavior of flows without trajectory integration: The infinitesimal generator approach, SIAM J. Numer. Anal. 51, 223 (2013).
  39. G. Froyland and P. Koltai, Estimating long-term behavior of periodically driven flows without trajectory integration, Nonlinearity 30, 1948 (2017).
  40. G. Froyland, P. Koltai, and M. Stahn, Computation and optimal perturbation of finite-time coherent sets for aperiodic flows without trajectory integration, SIAM J. Appl. Dyn. Syst. 19, 1659 (2020).
  41. G. Froyland and P. Koltai, Detecting the birth and death of finite-time coherent sets, Commun. Pure Appl. Math. 76, 3642 (2023).
  42. S. G. Johnson, HCubature.jl: The HCubature.jl package for multi-dimensional adaptive integration in Julia: v1.7.0, GitHub, https://github.com/JuliaMath/HCubature.jl.
  43. A. C. Genz and A. A. Malik, Remarks on algorithm 006: An adaptive algorithm for numerical integration over an n-dimensional rectangular region, J. Comput. Appl. Math. 6, 295 (1980).
  44. H. T. Stoppels and L. Nyman, ArnoldiMethod.jl: Arnoldi Method with Krylov-Schur restart, natively in Julia [Computer software]: v0.4.0, GitHub, https://github.com/JuliaLinearAlgebra/ArnoldiMethod.jl.
  45. P. P. Vieweg, A. Klünker, J. Schumacher, and K. Padberg-Gehle, Lagrangian studies of coherent sets and heat transport in constant heat flux-driven turbulent Rayleigh–Bénard convection, Eur. J. Mech. B Fluids 103, 69 (2024).
  46. https://github.com/gfroyland/Inflated-Generator/tree/main/Rayleigh-Benard%20convection
  47. A. Badza, G. Froyland, R. Samuel, and J. Schumacher, Transient almost-invariant sets reveal convective heat transfer patterns in plane-layer Rayleigh-Bénard convection [Dataset], Zenodo (2025), https://doi.org/10.5281/zenodo.17252840.
