Two-dimensional subwavelength topological dark state lattices

D. Burba and G. Juzeliūnas

  • Institute of Theoretical Physics and Astronomy, Faculty of Physics, Vilnius University, Saulėtekio 3, LT-10257 Vilnius, Lithuania

PDF

Phys. Rev. Research 7, 043090 – Published 22 October, 2025

DOI: https://doi.org/10.1103/dhkv-zvwg

Abstract

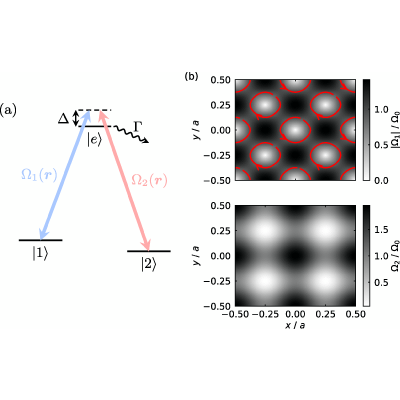

We present a general framework for engineering two-dimensional subwavelength topological optical lattices using spatially dependent atomic dark states in a Λ-type configuration of the atom-light coupling. By properly designing the spatial profiles of the laser fields inducing coupling between the atomic internal states, we show how to generate subwavelength Kronig-Penney-like geometric scalar potential accompanied by narrow and strong patches of the synthetic magnetic field localized in the same areas as the scalar potential. These sharply peaked magnetic fluxes are compensated by a smooth background magnetic field of opposite sign, resulting in zero net flux per unit cell while still enabling topologically nontrivial band structures. Specifically, for sufficiently narrow peaks, their influence is minimum, and the behavior of the system in a remaining smooth background magnetic field resembles the Landau problem, allowing for the formation of nearly flat energy bands with unit Chern numbers. Numerical analysis confirms the existence of ideal Chern bands and the robustness of the topological phases against nonadiabatic effects and losses. This makes the scheme well suited for simulating quantum Hall systems and fractional Chern insulators in ultracold atomic gases, offering a platform for exploring strongly correlated topological phases with high tunability.

View figure in article

Physics Subject Headings (PhySH)

Article Text

References (48)

  1. X.-L. Qi and S.-C. Zhang, Topological insulators and superconductors, Rev. Mod. Phys. 83, 1057 (2011).
  2. M. Z. Hasan and C. L. Kane, Colloquium: Topological insulators, Rev. Mod. Phys. 82, 3045 (2010).
  3. J. Dalibard, F. Gerbier, G. Juzeliūnas, and P. Öhberg, Colloquium: Artificial gauge potentials for neutral atoms, Rev. Mod. Phys. 83, 1523 (2011).
  4. N. Goldman, G. Juzeliūnas, P. Öhberg, and I. B. Spielman, Light-induced gauge fields for ultracold atoms, Rep. Prog. Phys. 77, 126401 (2014).
  5. M. Aidelsburger, S. Nascimbene, and N. Goldman, Artificial gauge fields in materials and engineered systems, C. R. Phys. 19, 394 (2018).
  6. V. Galitski, G. Juzeliūnas, and I. B. Spielman, Artificial gauge fields with ultracold atoms, Phys. Today 72(1), 38 (2019).
  7. N. R. Cooper, J. Dalibard, and I. B. Spielman, Topological bands for ultracold atoms, Rev. Mod. Phys. 91, 015005 (2019).
  8. T. Ozawa, H. M. Price, A. Amo, N. Goldman, M. Hafezi, L. Lu, M. C. Rechtsman, D. Schuster, J. Simon, O. Zilberberg, and I. Carusotto, Topological photonics, Rev. Mod. Phys. 91, 015006 (2019).
  9. Y. Shen, Q. Zhang, P. Shi, L. Du, X. Yuan, and A. V. Zayats, Optical skyrmions and other topological quasiparticles of light, Nat. Photon. 18, 15 (2024).
  10. A. McWilliam, C. M. Cisowski, Z. Ye, F. C. Speirits, J. B. Götte, S. M. Barnett, and S. Franke-Arnold, Topological approach of characterizing optical skyrmions and multi-skyrmions, Laser Photonics Rev. 17, 2300155 (2023).
  11. H. Xue, Y. Yang, and B. Zhang, Topological acoustics, Nat. Rev. Mater. 7, 974 (2022).
  12. X. Guo, L. Jezequel, M. Padlewski, H. Lissek, P. Delplace, and R. Fleury, Practical realization of chiral nonlinearity for strong topological protection, SciPost Phys. 18, 034 (2025).
  13. M. Lewenstein, A. Sanpera, V. Ahufinger, B. Damski, A. Sen(De), and U. Sen, Ultracold atomic gases in optical lattices: Mimicking condensed matter physics and beyond, Adv. Phys. 56, 243 (2007).
  14. I. Bloch, J. Dalibard, and W. Zwerger, Many-body physics with ultracold gases, Rev. Mod. Phys. 80, 885 (2008).
  15. O. Dutta, M. Gajda, P. Hauke, M. Lewenstein, D.-S. Lühmann, B. A. Malomed, T. Sowiński, and J. Zakrzewski, Non-standard Hubbard models in optical lattices: A review, Rep. Prog. Phys. 78, 066001 (2015).
  16. C. Gross and I. Bloch, Quantum simulations with ultracold atoms in optical lattices, Science 357, 995 (2017).
  17. F. Schäfer, T. Fukuhara, S. Sugawa, Y. Takasu, and Y. Takahashi, Tools for quantum simulation with ultracold atoms in optical lattices, Nat. Rev. Phys. 2, 411 (2020).
  18. M. O. Scully and M. S. Zubairy, Quantum Optics (Cambridge University Press, Cambridge, 1997).
  19. N. V. Vitanov, A. A. Rangelov, B. W. Shore, and K. Bergmann, Stimulated Raman adiabatic passage in physics, chemistry, and beyond, Rev. Mod. Phys. 89, 015006 (2017).
  20. M. Łącki, M. A. Baranov, H. Pichler, and P. Zoller, Nanoscale “dark state” optical potentials for cold atoms, Phys. Rev. Lett. 117, 233001 (2016).
  21. F. Jendrzejewski, S. Eckel, T. G. Tiecke, G. Juzeliūnas, G. K. Campbell, L. Jiang, and A. V. Gorshkov, Subwavelength-width optical tunnel junctions for ultracold atoms, Phys. Rev. A 94, 063422 (2016).
  22. W. Ge and M. S. Zubairy, Dark-state optical potential barriers with nanoscale spacing, Phys. Rev. A 101, 023403 (2020).
  23. P. Kubala, J. Zakrzewski, and M. Łącki, Optical lattice for a tripodlike atomic level structure, Phys. Rev. A 104, 053312 (2021).
  24. E. Gvozdiovas, P. Račkauskas, and G. Juzeliūnas, Optical lattice with spin-dependent sub-wavelength barriers, SciPost Phys. 11, 100 (2021).
  25. Y. Wang, S. Subhankar, P. Bienias, M. Łącki, T.-C. Tsui, M. A. Baranov, A. V. Gorshkov, P. Zoller, J. V. Porto, and S. L. Rolston, Dark state optical lattice with a subwavelength spatial structure, Phys. Rev. Lett. 120, 083601 (2018).
  26. T.-C. Tsui, Y. Wang, S. Subhankar, J. V. Porto, and S. L. Rolston, Realization of a stroboscopic optical lattice for cold atoms with subwavelength spacing, Phys. Rev. A 101, 041603(R) (2020).
  27. E. Gvozdiovas, I. B. Spielman, and G. Juzeliūnas, Interference-induced anisotropy in a two-dimensional dark-state optical lattice, Phys. Rev. A 107, 033328 (2023).
  28. S. Nascimbene and J. Dalibard, Emergence of a Landau level structure in dark optical lattices, arXiv:2412.15038.
  29. O. E. Sommer and N. R. Cooper, Ideal optical flux lattices, arXiv:2509.01481.
  30. L. Landau, Diamagnetismus der Metalle, Z. Phys. 64, 629 (1930).
  31. L. D. Landau and E. M. Lifshitz, Quantum Mechanics: Non-Relativistic Theory (Pergamon, Oxford, 1977), 3rd ed.
  32. T. Hernández Yanes, M. Płodzień, M. Mackoit Sinkevičienė, G. Žlabys, G. Juzeliūnas, and E. Witkowska, One- and two-axis squeezing via laser coupling in an atomic Fermi-Hubbard model, Phys. Rev. Lett. 129, 090403 (2022).
  33. R. Dum and M. Olshanii, Gauge structures in atom-laser interaction: Bloch oscillations in a dark lattice, Phys. Rev. Lett. 76, 1788 (1996).
  34. This applies to the arXiv version of Ref. [28], which was available during the original submission of our manuscript to Physical Review Research and to arXiv. Subsequently, a lossy excited level of the Lambda scheme was added in the “End Matter” of the revised Ref. [28].
  35. G. Juzeliūnas, P. Öhberg, J. Ruseckas, and A. Klein, Effective magnetic fields in degenerate atomic gases induced by light beams with orbital angular momenta, Phys. Rev. A 71, 053614 (2005); G. Juzeliūnas, J. Ruseckas, and P. Öhberg, Effective magnetic fields induced by EIT in ultra-cold atomic gases, J. Phys. B: At. Mol. Opt. Phys. 38, 4171 (2005).
  36. G. Juzeliūnas and I. B. Spielman, Flux lattices reformulated, New J. Phys. 14, 123022 (2012).
  37. N. R. Cooper, Optical flux lattices for ultracold atomic gases, Phys. Rev. Lett. 106, 175301 (2011).
  38. N. R. Cooper and J. Dalibard, Reaching fractional quantum Hall states with optical flux lattices, Phys. Rev. Lett. 110, 185301 (2013).
  39. F. D. M. Haldane, Model for a quantum Hall effect without Landau levels: Condensed-matter realization of the “parity anomaly”, Phys. Rev. Lett. 61, 2015 (1988).
  40. C.-K. Chiu, J. C. Y. Teo, A. P. Schnyder, and S. Ryu, Classification of topological quantum matter with symmetries, Rev. Mod. Phys. 88, 035005 (2016).
  41. Y. Braver, D. Burba, S. S. Nair, G. Žlabys, E. Anisimovas, T. Busch, and G. Juzeliūnas, Light-induced localized vortices in multicomponent Bose-Einstein condensates, Phys. Rev. A 112, 033301 (2025).
  42. We have calculated the Chern numbers c of the Bloch bands using the algorithm presented by T. Fukui, Y. Hatsugai, and H. Suzuki, Chern numbers in discretized brillouin zone: Efficient method of computing (spin) hall conductances, J. Phys. Soc. Jpn. 74, 1674 (2005).
  43. J. Léonard, S. Kim, J. Kwan, P. Segura, F. Grusdt, C. Repellin, N. Goldman, and M. Greiner, Realization of a fractional quantum Hall state with ultracold atoms, Nature (London) 619, 495 (2023).
  44. P. Lunt, P. Hill, J. Reiter, P. M. Preiss, M. Gałka, and S. Jochim, Realization of a Laughlin state of two rapidly rotating fermions, Phys. Rev. Lett. 133, 253401 (2024).
  45. J. Wang, J. Cano, A. J. Millis, Z. Liu, and B. Yang, Exact Landau level description of geometry and interaction in a flatband, Phys. Rev. Lett. 127, 246403 (2021).
  46. B. Estienne, N. Regnault, and V. Crépel, Ideal Chern bands as Landau levels in curved space, Phys. Rev. Res. 5, L032048 (2023).
  47. P. J. Ledwith, A. Vishwanath, and D. E. Parker, Vortexability: A unifying criterion for ideal fractional Chern insulators, Phys. Rev. B 108, 205144 (2023).
  48. J. Mitscherling, A. Avdoshkin, and J. E. Moore, Gauge-invariant projector calculus for quantum state geometry and applications to observables in crystals, Phys. Rev. B 112, 085104 (2025).
