Generation of squeezed optical states via stored classical pulses in a Bose gas

Sevilay Sevinçli1, Dennis Rätzel2,3,4, Markus Krutzik5,6, Mehmet Özgür Oktel1, and Mustafa Gündoğan5,*

  • *Contact author: mustafa.guendogan@physik.hu-berlin.de
PDF

Phys. Rev. Research 8, 033016 – Published 6 July, 2026

DOI: https://doi.org/10.1103/89xy-86yz

Abstract

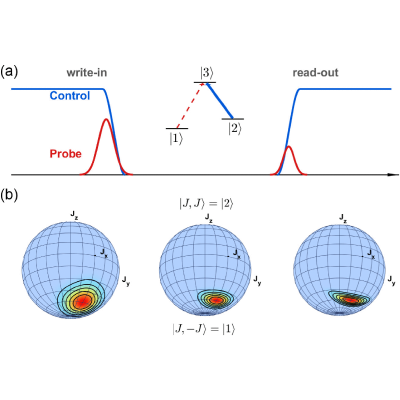

We propose and analyze a scheme to generate squeezed light by storing a classical probe pulse in a Bose-Einstein condensate (BEC) and exploiting the nonlinear evolution caused by atom-atom collisions during the storage time. A Λ-type optical memory interface maps a chosen temporal probe mode onto a single phase-matched collective spin wave; for a coherent input, this prepares a tunable coherent spin state of a two-component BEC, with its initial spin orientation set by the stored mean excitation number and the phase relation between the probe and control fields. Collisional interactions during storage then implement one-axis-twisting dynamics and generate spin squeezing in the atomic ensemble. We account for realistic loss and finite memory and retrieval efficiencies, and model readout as a single-mode beam-splitter mapping that transfers the atomic quadrature squeezing onto a propagating optical mode. The model identifies optimal storage times and predicts that, under realistic conditions, several decibels of squeezing can be transferred to the retrieved light.

View figure in article

Physics Subject Headings (PhySH)

Article Text

References (65)

  1. M. Kitagawa and M. Ueda, Squeezed spin states, Phys. Rev. A 47, 5138 (1993).
  2. A. Sørensen, L.-M. Duan, J. I. Cirac, and P. Zoller, Many-particle entanglement with Bose–Einstein condensates, Nature (London) 409, 63 (2001).
  3. J. Ma, X. Wang, C. Sun, and F. Nori, Quantum spin squeezing, Phys. Rep. 509, 89 (2011).
  4. J. Estève, C. Gross, A. Weller, S. Giovanazzi, and M. K. Oberthaler, Squeezing and entanglement in a Bose–Einstein condensate, Nature (London) 455, 1216 (2008).
  5. M. H. Schleier-Smith, I. D. Leroux, and V. Vuletić, States of an ensemble of two-level atoms with reduced quantum uncertainty, Phys. Rev. Lett. 104, 073604 (2010).
  6. J. Kong, R. Jiménez-Martínez, C. Troullinou, V. G. Lucivero, G. Tóth, and M. W. Mitchell, Measurement-induced, spatially-extended entanglement in a hot, strongly-interacting atomic system, Nat. Commun. 11, 2415 (2020).
  7. O. Hosten, N. J. Engelsen, R. Krishnakumar, and M. A. Kasevich, Measurement noise 100 times lower than the quantum-projection limit using entangled atoms, Nature (London) 529, 505 (2016).
  8. A. Kuzmich, L. Mandel, and N. P. Bigelow, Generation of spin squeezing via continuous quantum nondemolition measurement, Phys. Rev. Lett. 85, 1594 (2000).
  9. M. Saffman, D. Oblak, J. Appel, and E. S. Polzik, Spin squeezing of atomic ensembles by multicolor quantum nondemolition measurements, Phys. Rev. A 79, 023831 (2009).
  10. C. Gross, T. Zibold, E. Nicklas, J. Estève, and M. K. Oberthaler, Nonlinear atom interferometer surpasses classical precision limit, Nature (London) 464, 1165 (2010).
  11. M. F. Riedel, P. Böhi, Y. Li, T. W. Hänsch, A. Sinatra, and P. Treutlein, Atom-chip-based generation of entanglement for quantum metrology, Nature (London) 464, 1170 (2010).
  12. W. Muessel, H. Strobel, D. Linnemann, D. B. Hume, and M. K. Oberthaler, Scalable spin squeezing for quantum-enhanced magnetometry with Bose-Einstein condensates, Phys. Rev. Lett. 113, 103004 (2014).
  13. T. Laudat, V. Dugrain, T. Mazzoni, C.-L. Huang, C. L. Garrido Alzar, A. Sinatra, P. Rosenbusch, and J. Reichel, Spontaneous spin squeezing in a rubidium Bose-Einstein condensate, New J. Phys. 20, 073018 (2018).
  14. T. Berrada, S. van Frank, R. Bücker, T. Schumm, J.-F. Schaff, and J. Schmiedmayer, Integrated Mach–Zehnder interferometer for Bose–Einstein condensates, Nat. Commun. 4, 2077 (2013).
  15. C. Cassens, B. Meyer-Hoppe, E. Rasel, and C. Klempt, Entanglement-enhanced atomic gravimeter, Phys. Rev. X 15, 011029 (2025).
  16. B. Lücke, M. Scherer, J. Kruse, L. Pezzé, F. Deuretzbacher, P. Hyllus, O. Tópic, J. Peise, W. Ertmer, J. Arlt, L. Santos, A. Smerzi, and C. Klempt, Twin matter waves for interferometry beyond the classical limit, Science 334, 773 (2011).
  17. C. D. Hamley, C. S. Gerving, T. M. Hoang, E. M. Bookjans, and M. S. Chapman, Spin-nematic squeezed vacuum in a quantum gas, Nat. Phys. 8, 305 (2012).
  18. P. Kunkel, M. Prüfer, H. Strobel, D. Linnemann, A. Frölian, T. Gasenzer, M. Gärttner, and M. K. Oberthaler, Spatially distributed multipartite entanglement enables EPR steering of atomic clouds, Science 360, 413 (2018).
  19. R. Schmied, J.-D. Bancal, B. Allard, M. Fadel, V. Scarani, P. Treutlein, and N. Sangouard, Bell correlations in a Bose-Einstein condensate, Science 352, 441 (2016).
  20. M. Fadel, T. Zibold, B. Décamps, and P. Treutlein, Spatial entanglement patterns and Einstein-Podolsky-Rosen steering in a Bose-Einstein condensate, Science 360, 409 (2018).
  21. K.-J. Boller, A. Imamoğlu, and S. E. Harris, Observation of electromagnetically induced transparency, Phys. Rev. Lett. 66, 2593 (1991).
  22. S. E. Harris, J. E. Field, and A. Imamoğlu, Nonlinear optical processes using electromagnetically induced transparency, Phys. Rev. Lett. 64, 1107 (1990).
  23. M. Fleischhauer and M. D. Lukin, Dark-state polaritons in electromagnetically induced transparency, Phys. Rev. Lett. 84, 5094 (2000).
  24. L. Ma, O. Slattery, and X. Tang, Optical quantum memory based on electromagnetically induced transparency, J. Opt. 19, 043001 (2017).
  25. L. V. Hau, S. E. Harris, Z. Dutton, and C. H. Behroozi, Light speed reduction to 17 metres per second in an ultracold atomic gas, Nature (London) 397, 594 (1999).
  26. C. Liu, Z. Dutton, C. H. Behroozi, and L. V. Hau, Observation of coherent optical information storage in an atomic medium using halted light pulses, Nature (London) 409, 490 (2001).
  27. A. V. Gorshkov, A. André, M. D. Lukin, and A. S. Sørensen, Photon storage in Λ-type optically dense atomic media. II. Free-space model, Phys. Rev. A 76, 033805 (2007).
  28. R. Zhang, S. R. Garner, and L. V. Hau, Creation of long-term coherent optical memory via controlled nonlinear interactions in Bose-Einstein condensates, Phys. Rev. Lett. 103, 233602 (2009).
  29. O. Katz and O. Firstenberg, Light storage for one second in room-temperature alkali vapor, Nat. Commun. 9, 2074 (2018).
  30. Y. Ma, Y.-Z. Ma, Z.-Q. Zhou, C.-F. Li, and G.-C. Guo, One-hour coherent optical storage in an atomic frequency comb memory, Nat. Commun. 12, 2381 (2021).
  31. T. E. Northup and R. Blatt, Quantum information transfer using photons, Nat. Photon. 8, 356 (2014).
  32. Y. Lei, F. K. Asadi, T. Zhong, A. Kuzmich, C. Simon, and M. Hosseini, Quantum optical memory for entanglement distribution, Optica 10, 1511 (2023).
  33. M. Fleischhauer, A. Imamoglu, and J. P. Marangos, Electromagnetically induced transparency: Optics in coherent media, Rev. Mod. Phys. 77, 633 (2005).
  34. K. S. Choi, Coherent control of entanglement with atomic ensembles, Ph.D. thesis, California Institute of Technology, 2011.
  35. R. Barzel, M. Gündoğan, M. Krutzik, D. Rätzel, and C. Lämmerzahl, Entanglement dynamics of photon pairs and quantum memories in the gravitational field of the Earth, Quantum 8, 1273 (2024).
  36. D. F. Walls and G. J. Milburn, Quantum Optics, 2nd ed. (Springer, Berlin, 2008).
  37. W.-M. Zhang, D. H. Feng, and R. Gilmore, Coherent states: Theory and some applications, Rev. Mod. Phys. 62, 867 (1990).
  38. F. T. Arecchi, E. Courtens, R. Gilmore, and H. Thomas, Atomic coherent states in quantum optics, Phys. Rev. A 6, 2211 (1972).
  39. Z. Dutton and L. V. Hau, Storing and processing optical information with ultraslow light in Bose-Einstein condensates, Phys. Rev. A 70, 053831 (2004).
  40. Y. Li, Y. Castin, and A. Sinatra, Optimum spin squeezing in Bose-Einstein condensates with particle losses, Phys. Rev. Lett. 100, 210401 (2008).
  41. Y. Li, P. Treutlein, J. Reichel, and A. Sinatra, Spin squeezing in a bimodal condensate: Spatial dynamics and particle losses, Eur. Phys. J. B 68, 365 (2009).
  42. J. Appel, E. Figueroa, D. Korystov, M. Lobino, and A. I. Lvovsky, Quantum memory for squeezed light, Phys. Rev. Lett. 100, 093602 (2008).
  43. K. Honda, D. Akamatsu, M. Arikawa, Y. Yokoi, K. Akiba, S. Nagatsuka, T. Tanimura, A. Furusawa, and M. Kozuma, Storage and retrieval of a squeezed vacuum, Phys. Rev. Lett. 100, 093601 (2008).
  44. K. S. Choi, H. Deng, J. Laurat, and H. J. Kimble, Mapping photonic entanglement into and out of a quantum memory, Nature (London) 452, 67 (2008).
  45. M. Lettner, M. Mücke, S. Riedl, C. Vo, C. Hahn, S. Baur, J. Bochmann, S. Ritter, S. Dürr, and G. Rempe, Remote entanglement between a single atom and a Bose-Einstein condensate, Phys. Rev. Lett. 106, 210503 (2011).
  46. A. Seri, A. Lenhard, D. Rieländer, M. Gündoğan, P. M. Ledingham, M. Mazzera, and H. de Riedmatten, Quantum correlations between single telecom photons and a multimode on-demand solid-state quantum memory, Phys. Rev. X 7, 021028 (2017).
  47. E. Saglamyurek, T. Hrushevskyi, A. Rastogi, L. W. Cooke, B. D. Smith, and L. J. LeBlanc, Storing short single-photon-level optical pulses in Bose–Einstein condensates for high-performance quantum memory, New J. Phys. 23, 043028 (2021).
  48. K. Kasamatsu and M. Tsubota, Multiple domain formation induced by modulation instability in two-component Bose-Einstein condensates, Phys. Rev. Lett. 93, 100402 (2004).
  49. E. Timmermans, Phase separation of Bose-Einstein condensates, Phys. Rev. Lett. 81, 5718 (1998).
  50. O. Hosten, R. Krishnakumar, N. J. Engelsen, and M. A. Kasevich, Quantum phase magnification, Science 352, 1552 (2016).
  51. A. I. Lvovsky, B. C. Sanders, and W. Tittel, Optical quantum memory, Nat. Photon. 3, 706 (2009).
  52. N. S. Ginsberg, S. R. Garner, and L. V. Hau, Coherent control of optical information with matter wave dynamics, Nature (London) 445, 623 (2007).
  53. E. Da Ros, S. Kanthak, E. Sağlamyürek, M. Gündoğan, and M. Krutzik, Proposal for a long-lived quantum memory using matter-wave optics with Bose-Einstein condensates in microgravity, Phys. Rev. Res. 5, 033003 (2023).
  54. A. Görlitz, T. L. Gustavson, A. E. Leanhardt, R. Löw, A. P. Chikkatur, S. Gupta, S. Inouye, D. E. Pritchard, and W. Ketterle, Sodium Bose-Einstein condensates in the F=2 state in a large-volume optical trap, Phys. Rev. Lett. 90, 090401 (2003).
  55. D. S. Petrov, Quantum mechanical stabilization of a collapsing Bose-Bose mixture, Phys. Rev. Lett. 115, 155302 (2015).
  56. C. R. Cabrera, L. Tanzi, J. Sanz, B. Naylor, P. Thomas, P. Cheiney, and L. Tarruell, Quantum liquid droplets in a mixture of Bose-Einstein condensates, Science 359, 301 (2018).
  57. X.-T. Xu, Z.-Y. Wang, R.-H. Jiao, C.-R. Yi, W. Sun, and S. Chen, Ultra-low noise magnetic field for quantum gases, Rev. Sci. Instrum. 90, 054708 (2019).
  58. B. Barrett, I. Chan, and A. Kumarakrishnan, Atom-interferometric techniques for measuring uniform magnetic field gradients and gravitational acceleration, Phys. Rev. A 84, 063623 (2011).
  59. J. H. Kim, D. Hong, S. Kang, and Y. Shin, Metastable hard-axis polar state of a spinor Bose-Einstein condensate under a magnetic field gradient, Phys. Rev. A 99, 023606 (2019).
  60. D. Hong, J. Lee, J. Kim, J. H. Jung, K. Lee, S. Kang, and Y. Shin, Spin-driven stationary turbulence in spinor Bose-Einstein condensates, Phys. Rev. A 108, 013318 (2023).
  61. Y. Wu, L. Chen, Z. Xu, and H. Wang, Protecting a quantum memory for a photonic polarization qubit in a cold atomic ensemble by dynamical decoupling, Opt. Express 22, 23360 (2014).
  62. H. Edri, B. Raz, G. Fleurov, R. Ozeri, and N. Davidson, Observation of nonlinear spin dynamics and squeezing in a BEC using dynamic decoupling, New J. Phys. 23, 053005 (2021).
  63. Y. O. Dudin, L. Li, and A. Kuzmich, Light storage on the time scale of a minute, Phys. Rev. A 87, 031801(R) (2013).
  64. S. D. Jenkins, T. Zhang, and T. A. B. Kennedy, Motional dephasing of atomic clock spin waves in an optical lattice, J. Phys. B: At., Mol. Opt. Phys. 45, 124005 (2012).
  65. Y. Jiang, J. Rui, X.-H. Bao, and J.-W. Pan, Dynamical zeroing of spin-wave momentum to suppress motional dephasing in an atomic-ensemble quantum memory, Phys. Rev. A 93, 063819 (2016).

Outline

Information

Phys. Rev. Research 8, 033016– Published 6 July, 2026
  • Received 26 February 2026
  • Accepted 4 June 2026
