Compressibility control on gas-liquid-grain displacement dynamics

Feihu Ke1 and Chung-Yee Kwok2,*

  • 1Department of Civil Engineering, The University of Hong Kong, Hong Kong, China
  • 2Department of Architecture and Civil Engineering, City University of Hong Kong, Hong Kong, China

  • *Contact author: fionkwok@cityu.edu.hk
PDF

Phys. Rev. Research 8, 023314 – Published 17 June, 2026

DOI: https://doi.org/10.1103/5cmb-kgt3

Abstract

This study probes how gas compression governs the morphodynamics of gas-liquid-grain displacement in confined granular systems, a process vital to many applications like air sparging and carbon sequestration. Combining experiments and theory, we find that facilitating compression yields effects analogous to decreasing the classic capillary number. This analogy arises from the diminished transient flow rates due to the underlying coupling between viscous liquid displacement and gas pressure buildup. A theoretical model is developed to resolve this coupling, accurately matching the reduced injection pressure and prolonged breakthrough time observed in experiments. We further introduce a compression-dependent capillary number CaC that effectively captures the pattern transitions. Our findings underscore the role of compressibility in gas-driven flows—typically neglected in laboratories yet becoming increasingly critical toward industrial relevance.

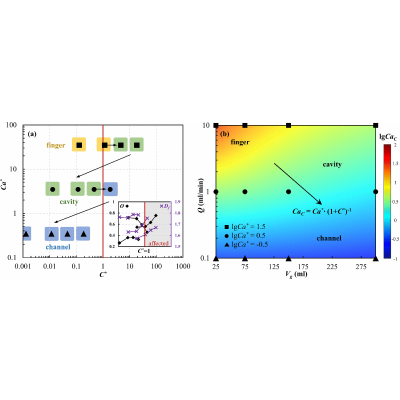

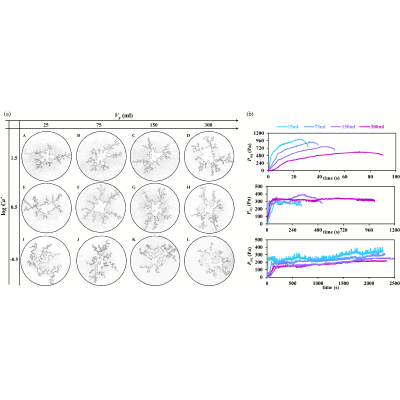

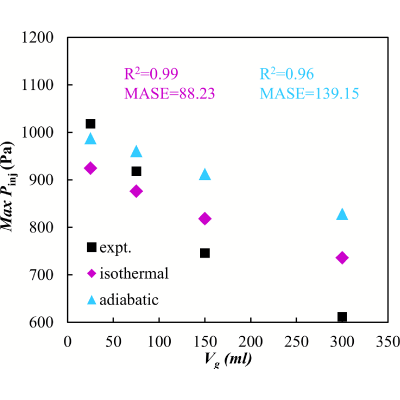

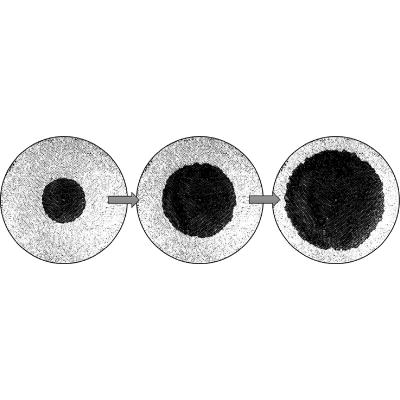

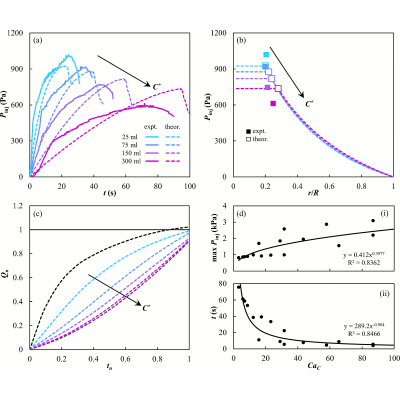

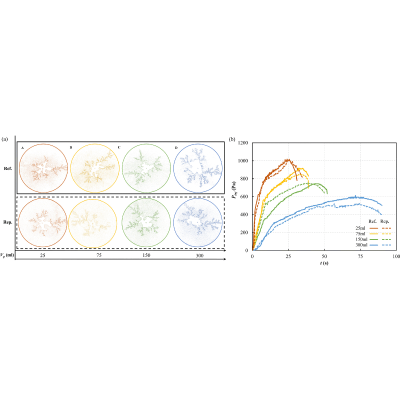

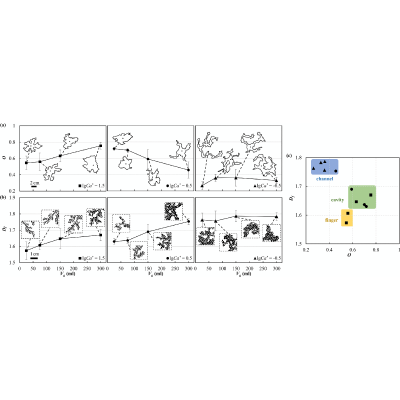

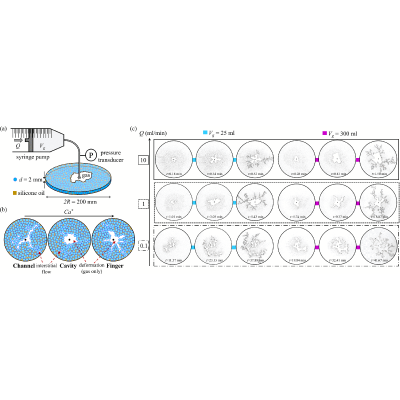

View figure in article

Physics Subject Headings (PhySH)

Article Text

Supplemental Material

References (41)

  1. F. M. Orr and J. J. Taber, Use of carbon dioxide in enhanced oil recovery, Science 224, 563 (1984).
  2. J. M. Nordbotten and M. A. Celia, Geological Storage of CO2. Modeling Approaches for Large-Scale Simulation (John Wiley & Sons, Inc., Hoboken, New Jersey, 2011).
  3. M. L. Szulczewski, C. W. MacMinn, H. J. Herzog, and R. Juanes, Lifetime of carbon capture and storage as a climate-change mitigation technology, Proc. Natl. Acad. Sci. USA, 109, 5185 (2012).
  4. J. E. McCray, Mathematical modeling of air sparging for subsurface remediation: State of the art, J. Hazard. Mater. 72, 237 (2000).
  5. C. Y. Lai, B. Rallabandi, A. Perazzo, Z. Zheng, S. E. Smiddy, and H. A. Stone, Foam-driven fracture, Proc. Natl. Acad. Sci. USA 115, 8082 (2018).
  6. M. Baudoin, Y. Song, P. Manneville, and C. N. Baroud, Airway reopening through catastrophic events in a hierarchical network, Proc. Natl. Acad. Sci. USA 110, 859 (2013).
  7. L. Paterson, Diffusion-limited aggregation and two-fluid displacements in porous media, Phys. Rev. Lett. 52, 1621 (1984).
  8. C. W. Park and G. M. Homsy, The instability of long fingers in Hele–Shaw flows, Phys. Fluids 28, 1583 (1985).
  9. R. Lenormand, E. Touboul, and C. Zarcone, Numerical models and experiments on immiscible displacements in porous media, J. Fluid Mech. 189, 165 (1988).
  10. R. Hu, T. Lan, G.-J. Wei, and Y.-F. Chen, Phase diagram of quasi-static immiscible displacement in disordered porous media, J. Fluid Mech. 875, 448 (2019).
  11. S. Suo, M. Liu, and Y. Gan, Fingering patterns in hierarchical porous media, Phys. Rev. Fluids 5, 034301 (2020).
  12. B. Zhao, C. W. MacMinn, and R. Juanes, Wettability control on multiphase flow in patterned microfluidics, Proc. Natl. Acad. Sci. USA 113, 10251 (2016).
  13. B. K. Primkulov, A. A. Pahlavan, X. Fu, B. Zhao, C. W. MacMinn, and R. Juanes, Signatures of fluid–fluid displacement in porous media: Wettability, patterns and pressures, J. Fluid Mech. 875, R4 (2019).
  14. Z. Wang, K. Chauhan, J.-M. Pereira, and Y. Gan, Disorder characterization of porous media and its effect on fluid displacement, Phys. Rev. Fluids 4, 034305 (2019).
  15. Y. Qiu, K. Xu, A. A. Pahlavan, and R. Juanes, Wetting transition and fluid trapping in a microfluidic fracture, Proc. Natl. Acad. Sci. USA, 120, e2303515120 (2023).
  16. C. Lee, B. Zhao, R. Abouatallah, R. Wang, and A. Bazylak, Compressible-gas invasion into liquid-saturated porous media: Application to polymer-electrolyte-membrane electrolyzers, Phys. Rev. Appl. 11, 054029 (2019).
  17. C. Cuttle and C. W. MacMinn, Dynamics of compression-driven gas-liquid displacement in a capillary tube, Phys. Rev. Lett. 130, 114001 (2023).
  18. C. Cuttle, L. C. Morrow, and C. W. MacMinn, Compression-driven viscous fingering in a radial Hele-Shaw cell, Phys. Rev. Fluids 8, 113904 (2023).
  19. L. C. Morrow, C. Cuttle, and C. W. MacMinn, Gas compression systematically delays the onset of viscous fingering, Phys. Rev. Lett. 131, 224002 (2023).
  20. G. G. Peng, C. Cuttle, C. W. MacMinn, and D. Pihler-Puzović, Axisymmetric gas–liquid displacement flow under a confined elastic slab, Phys. Rev. Fluids 8, 094005 (2023).
  21. Z. Sun, Z. Li, D. N. Espinoza, and M. T. Balhoff, Fluid-driven fractures in granular media: Insights from numerical investigations, Phys. Rev. E 101, 042903 (2020).
  22. F. J. Carrillo and I. C. Bourg, Capillary and viscous fracturing during drainage in porous media, Phys. Rev. E 103, 063106 (2021).
  23. H. Shin and J. C. Santamarina, Desiccation cracks in saturated fine-grained soils: Particle-level phenomena and effective-stress analysis, Géotechnique 61, 961 (2011).
  24. B. Sandnes, E. G. Flekkøy, H. A. Knudsen, K. J. Måløy, and H. See, Patterns and flow in frictional fluid dynamics, Nat. Commun. 2, 288 (2011).
  25. R. Holtzman, M. L. Szulczewski, and R. Juanes, Capillary fracturing in granular media, Phys. Rev. Lett. 108, 264504 (2012).
  26. G. Ramos, G. Varas, J.-C. Géminard, and V. Vidal, Gas-induced fluidization of mobile liquid-saturated grains, Phys. Rev. E 92, 062210 (2015).
  27. S. Lee, J. Lee, R. Le Mestre, F. Xu, and C. W. MacMinn, Migration, trapping, and venting of gas in a soft granular material, Phys. Rev. Fluids 5, 084307 (2020).
  28. R. Juanes, Y. Meng, and B. K. Primkulov, Multiphase flow and granular mechanics, Phys. Rev. Fluids 5, 110516 (2020).
  29. Y. Meng, B. K. Primkulov, Z. Yang, C. Y. Kwok, and R. Juanes, Jamming transition and emergence of fracturing in wet granular media, Phys. Rev. Res. 2, 022012 (2020).
  30. F. Ke, C. Y. Kwok, and K. Duan, Impact of intergranular bonds on morphology transition of two-phase fluid-induced deformation, Phys. Rev. Fluids 10, 013902 (2025).
  31. F. Ke, Q. Dai, C. Y. Kwok, and K. Duan, Visualization and characterization of capillary-to-viscous transition in fluid-induced granular deformation, Phys. Fluids 36, 123333 (2024).
  32. See Supplemental Material at http://link.aps.org/supplemental/10.1103/5cmb-kgt3 for a detailed description of the experimental procedure, quantitative analysis, theoretical derivation, and videos of the representative experiments.
  33. C. Chevalier, M. Ben Amar, D. Bonn, and A. Lindner, Inertial effects on Saffman–Taylor viscous fingering, J. Fluid Mech. 552, 83 (2006).
  34. D. Crandall, G. Ahmadi, M. Ferer, and D. H. Smith, Distribution and occurrence of localized-bursts in two-phase flow through porous media, Physica A 388, 574 (2009).
  35. A. Islam, S. Chevalier, I. Ben Salem, Y. Bernabe, R. Juanes, and M. Sassi, Characterization of the crossover from capillary invasion to viscous fingering to fracturing during drainage in a vertical 2D porous medium, Int. J. Multiphase Flow 58, 279 (2014).
  36. M. Trojer, M. L. Szulczewski, and R. Juanes, Stabilizing fluid-fluid displacements in porous media through wettability alteration, Phys. Rev. Appl. 3, 054008 (2015).
  37. Y. Meng, W. Li, and R. Juanes, Fracturing in wet granular media illuminated by photoporomechanics, Phys. Rev. Appl. 18, 064081 (2022).
  38. R. Holtzman and R. Juanes, Crossover from fingering to fracturing in deformable disordered media, Phys. Rev. E 82, 046305 (2010).
  39. H. J. Butt, K. Graf, and M. Kappl, Physics and Chemistry of Interfaces (Wiley-VCH, Weinheim, 2003).
  40. R. J. Lenhard and J. C. Parker, Experimental validation of the theory of extending two-phase saturation-pressure relations to three-fluid phase systems for monotonic drainage paths, Water Resour. Res. 24, 373 (1988).
  41. J. Wang, J. Lao, X. Luo, Y. Zhou, and H. Song, Intelligent prediction of water-CO2 relative permeability in heterogeneous porous media towards carbon sequestration in saline aquifers, Water 17, 1598 (2025).
