Nonequilibrium thermodynamics in driven macroscopic self-assembly

S. J. Thomson1,2,*, J.-W. Barotta2, and D. M. Harris2

  • 1School of Engineering Mathematics and Technology, University of Bristol, Ada Lovelace Building, University Walk, Bristol BS8 1TW, United Kingdom
  • 2School of Engineering, Center for Fluid Mechanics, Brown University, 184 Hope Street, Providence, Rhode Island 02912, USA

  • *Contact author: stuart.thomson@bristol.ac.uk
PDF

Phys. Rev. Research 8, L022021 – Published 1 May, 2026

DOI: https://doi.org/10.1103/1j7n-6x11

Abstract

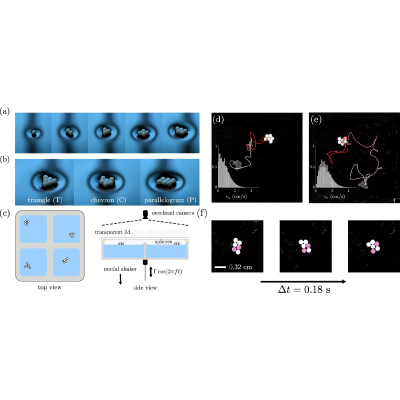

Equilibrium statistical mechanics provides a robust framework for characterizing phase transitions in systems whose microsopic dynamics are time-reversible. Efforts to develop and validate theoretical frameworks for time-irreversible, nonequilibrium systems are constrained by experimental data that capture only partial measurements of the system dynamics. We herein address this limitation using a tunable macroscopic platform for nonequilibrium physics: millimetric spheres bound by capillary attractions at the fluid interface and driven out of equilibrium by a field of supercritical Faraday waves. The external driving induces correlated motion in the particle trajectories and excites structural rearrangements between distinct metastable cluster topologies. By tracking all microstate transitions experimentally, we directly measure a nonzero entropy production rate reflecting broken detailed balance and quantifying the system's departure from equilibrium. The measured stochastic dynamics are in quantitative agreement with a many-body active Ornstein-Uhlenbeck model, thus establishing a bridge to a wider class of athermal, self-propelled systems at the microscale. These results invite corresponding studies with active colloids or passive particles immersed in bacterial baths and shed light on the dynamics and control of nonequilibrium self-assembly kinetics.

View figure in article

Physics Subject Headings (PhySH)

Article Text

Supplemental Material

References (55)

  1. B. A. Grzybowski, C. E. Wilmer, J. Kim, K. P. Browne, and K. J. M. Bishop, Self-assembly: From crystals to cells, Soft Matter 5, 1110 (2009).
  2. T. H. Tan, A. Mietke, J. Li, Y. Chen, H. Higinbotham, P. J. Foster, S. Gokhale, J. Dunkel, and N. Fakhri, Odd dynamics of living chiral crystals, Nature (London) 607, 287 (2022).
  3. I. Chakraborty, D. J. G. Pearce, R. W. Verweij, S. C. Matysik, L. Giomi, and D. J. Kraft, Self-assembly dynamics of reconfigurable colloidal molecules, ACS Nano 16, 2471 (2022).
  4. X. Tang and M. A. Grover, Control of microparticle assembly, Annu. Rev. Control Rob. Auton. Syst. 5, 491 (2022).
  5. K. J. M. Bishop, S. L. Biswal, and B. Bharti, Active colloids as models, materials, and machines, Annu. Rev. Chem. Biomol. Eng. 14, 1 (2023).
  6. I. Slavkov, D. Carrillo-Zapata, N. Carranza, X. Diego, F. Jansson, J. Kaandorp, S. Hauert, and J. Sharpe, Morphogenesis in robot swarms, Sci. Rob. 3, eaau9178 (2018).
  7. H. Yu, Y. Fu, X. Zhang, L. Chen, D. Qi, J. Shi, and W. Wang, Programmable active matter across scales, Programmable Mater. 1, e7 (2023).
  8. E. Weinan and E. Vanden-Eijnden, Transition-path theory and path-finding algorithms for the study of rare events, Annu. Rev. Phys. Chem. 61, 391 (2010).
  9. J. O'Byrne, Y. Kafri, J. Tailleur, and F. van Wijland, Time irreversibility in active matter, from micro to macro, Nat. Rev. Phys. 4, 167 (2022).
  10. R. Zakine and E. Vanden-Eijnden, Minimum-action method for nonequilibrium phase transitions, Phys. Rev. X 13, 041044 (2023).
  11. E. R. Heller and D. T. Limmer, Evaluation of transition rates from nonequilibrium instantons, Phys. Rev. Res. 6, 043110 (2024).
  12. I. A. Martínez, G. Bisker, J. M. Horowitz, and J. M. R. Parrondo, Inferring broken detailed balance in the absence of observable currents, Nat. Commun. 10, 3542 (2019).
  13. D. J. Skinner and J. Dunkel, Improved bounds on entropy production in living systems, Proc. Natl. Acad. Sci. USA 118, e2024300118 (2021).
  14. D. M. Harris, J. Quintela, V. Prost, P.-T. Brun, and J. W. M. Bush, Visualization of hydrodynamic pilot-wave phenomena, J. Visualization 20, 13 (2017).
  15. C. Maggi, M. Paoluzzi, N. Pellicciotta, A. Lepore, L. Angelani, and R. Di Leonardo, Generalized energy equipartition in harmonic oscillators driven by active baths, Phys. Rev. Lett. 113, 238303 (2014).
  16. E. Fodor, C. Nardini, M. E. Cates, J. Tailleur, P. Visco, and F. van Wijland, How far from equilibrium is active matter? Phys. Rev. Lett. 117, 038103 (2016).
  17. A. Volk and C. J. Kähler, Density model for aqueous glycerol solutions, Exp. Fluids 59, 75 (2018).
  18. D. Vella and L. Mahadevan, The “Cheerios effect”, Am. J. Phys. 73, 817 (2005).
  19. I. Ho, G. Pucci, and D. M. Harris, Direct measurement of capillary attraction between floating disks, Phys. Rev. Lett. 123, 254502 (2019).
  20. S. Protière, Particle rafts and armored droplets, Annu. Rev. Fluid Mech. 55, 459 (2023).
  21. P. A. Kralchevsky and K. Nagayama, Capillary interactions between particles bound to interfaces, liquid films and biomembranes, Adv. Colloid Interface Sci. 85, 145 (2000).
  22. See Supplemental Material at http://link.aps.org/supplemental/10.1103/1j7n-6x11 for full details of our experimental protocol; further details of the theoretical model given by Eqs. (1) and accompanying parameter estimation; and the numerical method used to solve Eqs. (1), which includes Refs. [23, 24, 25, 26, 27, 28].
  23. R. W. Perry, M. C. Holmes-Cerfon, M. P. Brenner, and V. N. Manoharan, Two-dimensional clusters of colloidal spheres: Ground states, excited states, and structural rearrangements, Phys. Rev. Lett. 114, 228301 (2015).
  24. N. D. Vassileva, D. van den Ende, F. Mugele, and J. Mellema, Fragmentation and erosion of two-dimensional aggregates in shear flow, Langmuir 23, 2352 (2007).
  25. I. B. Liu, N. Sharifi-Mood, and K. J. Stebe, Capillary assembly of colloids: Interactions on planar and curved interfaces, Annu. Rev. Condens. Matter Phys. 9, 283 (2018).
  26. A. Lagarde and S. Protière, Probing the erosion and cohesion of a granular raft in motion, Phys. Rev. Fluids 5, 044003 (2020).
  27. R. W. Perry, G. Meng, T. G. Dimiduk, J. Fung, and V. N. Manoharan, Real-space studies of the structure and dynamics of self-assembled colloidal clusters, Faraday Discuss. 159, 211 (2012).
  28. C. Sanlı, K. Saitoh, S. Luding, and D. Van Der Meer, Collective motion of macroscopic spheres floating on capillary ripples: Dynamic heterogeneity and dynamic criticality, Phys. Rev. E 90, 033018 (2014).
  29. K. J. Welch, I. Hastings-Hauss, R. Parthasarathy, and E. I. Corwin, Ballistic and diffusive dynamics in a two-dimensional ideal gas of macroscopic chaotic Faraday waves, Phys. Rev. E 89, 042143 (2014).
  30. H. Xia, N. Francois, H. Punzmann, and M. Shats, Tunable diffusion in wave-driven two-dimensional turbulence, J. Fluid Mech. 865, 811 (2019).
  31. N. Francois, H. Xia, H. Punzmann, and M. Shats, Nonequilibrium thermodynamics of turbulence-driven rotors, Phys. Rev. Lett. 124, 254501 (2020).
  32. D. M. Harris and J. W. M. Bush, Generating uniaxial vibration with an electrodynamic shaker and external air bearing, J. Sound Vib. 334, 255 (2015).
  33. U. Seifert, Stochastic thermodynamics, fluctuation theorems and molecular machines, Rep. Prog. Phys. 75, 126001 (2012).
  34. H. Löwen, Inertial effects of self-propelled particles: From active Brownian to active Langevin motion, J. Chem. Phys. 152, 040901 (2020).
  35. R. Kubo, The fluctuation-dissipation theorem, Rep. Prog. Phys. 29, 255 (1966).
  36. G. H. P. Nguyen, R. Wittmann, and H. Löwen, Active Ornstein-Uhlenbeck model for self-propelled particles with inertia, J. Phys.: Condens. Matter 34, 035101 (2022).
  37. L. Caprini and U. M. B. Marconi, Inertial self-propelled particles, J. Chem. Phys. 154, 024902 (2021).
  38. D. J. Higham, X. Mao, and A. M. Stuart, Strong convergence of Euler-type methods for nonlinear stochastic differential equations, SIAM J. Numer. Anal. 40, 1041 (2002).
  39. M. X. Lim, A. Souslov, V. Vitelli, and H. M. Jaeger, Cluster formation by acoustic forces and active fluctuations in levitated granular matter, Nat. Phys. 15, 460 (2019).
  40. L. Angelani, C. Maggi, M. L. Bernardini, A. Rizzo, and R. Di Leonardo, Effective interactions between colloidal particles suspended in a bath of swimming cells, Phys. Rev. Lett. 107, 138302 (2011).
  41. S. Ye, P. Liu, F. Ye, K. Chen, and M. Yang, Active noise experienced by a passive particle trapped in an active bath, Soft Matter 16, 4655 (2020).
  42. D. Grober, I. Palaia, M. C. Uçar, E. Hannezo, A. Šarić, and J. Palacci, Unconventional colloidal aggregation in chiral bacterial baths, Nat. Phys. 19, 1680 (2023).
  43. T. Dhar and D. Saintillan, Active transport of a passive colloid in a bath of run-and-tumble particles, Sci. Rep. 14, 11844 (2024).
  44. I. Buttinoni, G. Volpe, F. Kümmel, G. Volpe, and C. Bechinger, Active Brownian motion tunable by light, J. Phys.: Condens. Matter 24, 284129 (2012).
  45. H. Ko, M. Hadgu, K. Komilian, and D. L. Hu, Small fire ant rafts are unstable, Phys. Rev. Fluids 7, 090501 (2022).
  46. A. Zöttl and H. Stark, Modeling active colloids: From active Brownian particles to hydrodynamic and chemical fields, Annu. Rev. Condens. Matter Phys. 14, 109 (2023).
  47. J. Palacci, S. Sacanna, S.-H. Kim, G.-R. Yi, D. J. Pine, and P. M. Chaikin, Light-activated self-propelled colloids, Philos. Trans. R. Soc. A 372, 20130372 (2014).
  48. M. Rey, G. Volpe, and G. Volpe, Light, matter, action: Shining light on active matter, ACS Photon. 10, 1188 (2023).
  49. A. Gil-Villegas, A. Galindo, P. J. Whitehead, S. J. Mills, G. Jackson, and A. N. Burgess, Statistical associating fluid theory for chain molecules with attractive potentials of variable range, J. Chem. Phys. 106, 4168 (1997).
  50. P. J. Lu and D. A. Weitz, Colloidal particles: Crystals, glasses, and gels, Annu. Rev. Condens. Matter Phys. 4, 217 (2013).
  51. C. P. Goodrich, E. M. King, S. S. Schoenholz, E. D. Cubuk, and M. P. Brenner, Designing self-assembling kinetics with differentiable statistical physics models, Proc. Natl. Acad. Sci. USA 118, e2024083118 (2021).
  52. L. Ning, H. Zhu, J. Yang, Q. Zhang, P. Liu, R. Ni, and N. Zheng, Macroscopic, artificial active matter, Natl. Sci. Open 3, 20240005 (2024).
  53. Advanced Computing Research Centre, http://www.bristol.ac.uk/acrc/.
  54. S. J. Thomson, Experimental data for “Nonequilibrium thermodynamics in driven macroscopic self-assembly” [Data set], Zenodo (2026), https://doi.org/10.5281/zenodo.18923554.
  55. S. J. Thomson, Python implementation of Eqs. (1) in “Nonequilibrium thermodynamics in driven macroscopic self-assembly”, https://github.com/sjthomson/noneq-assembly.
