Comprehensive Darcy-type law for viscoplastic fluids: Framework

Emad Chaparian*

  • James Weir Fluid Laboratory, Department of Mechanical & Aerospace Engineering, University of Strathclyde, Glasgow, United Kingdom

  • *Contact author: emad.chaparian@strath.ac.uk
PDF

Phys. Rev. Fluids 10, 093301 – Published 11 September, 2025

DOI: https://doi.org/10.1103/xdgr-dqfx

Abstract

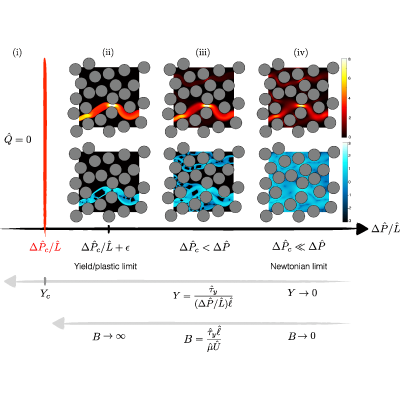

A comprehensive Darcy-type law for viscoplastic fluids is proposed. Different regimes of yield-stress fluid flow in porous media can be categorized based on the Bingham number (i.e., the ratio of the yield stress to the characteristic viscous stress). In a recent study [Chaparian, J. Fluid Mech. 980, A14 (2024)], we addressed the yield/plastic limit (infinitely large Bingham number), namely, the onset of flow when the applied pressure gradient is just sufficient to overcome the yield-stress resistance. A purely geometrical universal scale was derived for the nondimensional critical pressure gradient, which was thoroughly validated against computational data. In the present work, we investigate the Newtonian limit (infinitely large pressure difference compared to the yield stress of the fluid—ultralow Bingham number) both theoretically and computationally. We then propose a Darcy-type law applicable across the entire range of Bingham numbers by combining the mathematical models of the yield/plastic and Newtonian limits. The Exhaustive computational data generated in this study (using an augmented Lagrangian method coupled with anisotropic adaptive mesh at the pore scale) confirm the validity of the theoretical proposed law.

View figure in article

Physics Subject Headings (PhySH)

Article Text

References (48)

  1. H. Darcy, Les Fontaines Publiques de la Ville de Dijon (Dalmont, Paris, 1856).
  2. S. Whitaker, Flow in porous media i: A theoretical derivation of Darcy's law, Transp. Porous Media 1, 3 (1986).
  3. Y. Wang, X. Han, J. Li, R. Liu, Q. Wang, C. Huang, X. Wang, L. Zhang, and R. Lin, Review on oil displacement technologies of enhanced oil recovery: state-of-the-art and outlook, Energy & Fuels 37, 2539 (2023).
  4. L. Zou, U. Håkansson, and V. Cvetkovic, Analysis of cement grout propagation in fractured rocks, Technical Report, Rock Engineering Research Foundation Report 200, 2021.
  5. S. da Rocha Gomes, L. Ferrara, L. Sánchez, and M. S. Moreno, A comprehensive review of cementitious grouts: Composition, properties, requirements and advanced performance, Constr. Build. Mater. 375, 130991 (2023).
  6. M. Izadi, E. Chaparian, E. Trudel, and I. Frigaard, Squeeze cementing of micro-annuli: a visco-plastic invasion flow, J. Non-Newtonian Fluid Mech. 319, 105070 (2023).
  7. Z. Trivedi, D. Gehweiler, J. K. Wychowaniec, T. Ricken, B. Gueorguiev, A. Wagner, and O. Röhrle, A continuum mechanical porous media model for vertebroplasty: Numerical simulations and experimental validation, Biomech. Model. Mechanobiol. 22, 1253 (2023).
  8. L. Talon and D. Bauer, On the determination of a generalized Darcy equation for yield-stress fluid in porous media using a Lattice-Boltzmann TRT scheme, Eur. Phys. J. E 36, 139 (2013).
  9. C. Liu, A. De Luca, A. Rosso, and L. Talon, Darcy's law for yield stress fluids, Phys. Rev. Lett. 122, 245502 (2019).
  10. E. Chaparian and O. Tammisola, Sliding flows of yield-stress fluids, J. Fluid Mech. 911, A17 (2021).
  11. D. Fraggedakis, E. Chaparian, and O. Tammisola, The first open channel for yield-stress fluids in porous media, J. Fluid Mech. 911, A58 (2021).
  12. E. Chaparian, Yielding to percolation: a universal scale, J. Fluid Mech. 980, A14 (2024).
  13. I. A. Frigaard, K. G. Paso, and P. R. de Souza Mendes, Bingham's model in the oil and gas industry, Rheol. Acta 56, 259 (2017).
  14. N. Waisbord, N. Stoop, D. M. Walkama, J. Dunkel, and J. S. Guasto, Anomalous percolation flow transition of yield stress fluids in porous media, Phys. Rev. Fluids 4, 063303 (2019).
  15. E. Chaparian, D. Izbassarov, F. De Vita, L. Brandt, and O. Tammisola, Yield-stress fluids in porous media: a comparison of viscoplastic and elastoviscoplastic flows, Meccanica 55, 331 (2020).
  16. S. Parvar, E. Chaparian, and O. Tammisola, General hydrodynamic features of elastoviscoplastic fluid flows through randomised porous media, Theor. Comput. Fluid Dyn. 38, 531 (2024).
  17. T. Al-Fariss and K. L. Pinder, Flow through porous media of a shear-thinning liquid with yield stress, Can. J. Chem. Eng. 65, 391 (1987).
  18. D. R. Hewitt, M. Daneshi, N. J. Balmforth, and D. M. Martinez, Obstructed and channelized viscoplastic flow in a Hele-Shaw cell, J. Fluid Mech. 790, 173 (2016).
  19. M. Daneshi, J. MacKenzie, N. J. Balmforth, D. M. Martinez, and D. R. Hewitt, Obstructed viscoplastic flow in a Hele-Shaw cell, Phys. Rev. Fluids 5, 013301 (2020).
  20. T. Chevalier, C. Chevalier, X. Clain, J. C. Dupla, J. Canou, S. Rodts, and P. Coussot, Darcy's law for yield stress fluid flowing through a porous medium, J. Non-Newtonian Fluid Mech. 195, 57 (2013).
  21. T. Chevalier, S. Rodts, X. Chateau, C. Chevalier, and P. Coussot, Breaking of non-Newtonian character in flows through a porous medium, Phys. Rev. E 89, 023002 (2014).
  22. J. Bleyer and P. Coussot, Breakage of non-Newtonian character in flow through a porous medium: evidence from numerical simulation, Phys. Rev. E 89, 063018 (2014).
  23. S. Shahsavari and G. H. McKinley, Mobility and pore-scale fluid dynamics of rate-dependent yield-stress fluids flowing through fibrous porous media, J. Non-Newtonian Fluid Mech. 235, 76 (2016).
  24. S. Shahsavari and G. H. McKinley, Mobility of power-law and Carreau fluids through fibrous media, Phys. Rev. E 92, 063012 (2015).
  25. T. Chevalier and L. Talon, Generalization of Darcy's law for Bingham fluids in porous media: From flow-field statistics to the flow-rate regimes, Phys. Rev. E 91, 023011 (2015).
  26. D. Bauer, L. Talon, Y. Peysson, H. B. Ly, G. Batôt, T. Chevalier, and M. Fleury, Experimental and numerical determination of Darcy's law for yield stress fluids in porous media, Phys. Rev. Fluids 4, 063301 (2019).
  27. P. P. Castañeda, Variational linear comparison homogenization estimates for the flow of yield stress fluids through porous media, J. Non-Newtonian Fluid Mech. 321, 105104 (2023).
  28. N. Roquet and P. Saramito, An adaptive finite element method for Bingham fluid flows around a cylinder, Comput. Methods Appl. Mech. Eng. 192, 3317 (2003).
  29. E. Chaparian and O. Tammisola, An adaptive finite element method for elastoviscoplastic fluid flows, J. Non-Newtonian Fluid Mech. 271, 104148 (2019).
  30. E. Chaparian, C. E. Owens, and G. H. McKinley, Computational rheometry of yielding and viscoplastic flow in vane-and-cup rheometer fixtures, J. Non-Newtonian Fluid Mech. 307, 104857 (2022).
  31. S. Prager, Viscous flow through porous media, Phys. Fluids 4, 1477 (1961).
  32. H. L. Weissberg and S. Prager, Viscous flow through porous media. ii. approximate three-point correlation function, Phys. Fluids 5, 1390 (1962).
  33. H. L. Weissberg and S. Prager, Viscous flow through porous media. iii. upper bounds on the permeability for a simple random geometry, Phys. Fluids 13, 2958 (1970).
  34. M. Doi, A new variational approach to the diffusion and the flow problem in porous media, J. Phys. Soc. Jpn. 40, 567 (1976).
  35. J. G. Berryman, Bounds on fluid permeability for viscous flow through porous media, J. Chem. Phys. 82, 1459 (1985).
  36. F. Bignonnet, Upper bounds on the permeability of random porous media, Transp. Porous Media 122, 57 (2018).
  37. M. J. MacDonald, C. Chu, P. P. Guilloit, and K. M. Ng, A generalized Blake-Kozeny equation for multisized spherical particles, AIChE J. 37, 1583 (1991).
  38. E. Guyon, J. P. Hulin, L. Petit, and C. D. Mitescu, Physical Hydrodynamics (Oxford university press, New York, 2015).
  39. A. A. Zick and G. M. Homsy, Stokes flow through periodic arrays of spheres, J. Fluid Mech. 115, 13 (1982).
  40. H. C. Brinkman, A calculation of the viscous force exerted by a flowing fluid on a dense swarm of particles, Flow Turbul. Combust. 1, 27 (1949).
  41. A. Cancelliere, C. Chang, E. Foti, D. H. Rothman, and S. Succi, The permeability of a random medium: comparison of simulation with theory, Phys. Fluids A 2, 2085 (1990).
  42. H. Hasimoto, On the periodic fundamental solutions of the Stokes equations and their application to viscous flow past a cubic array of spheres, J. Fluid Mech. 5, 317 (1959).
  43. J. E. Drummond and M. I. Tahir, Laminar viscous flow through regular arrays of parallel solid cylinders, Int. J. Multiphase Flow 10, 515 (1984).
  44. F. Hecht, New development in freefem++, J. Numer. Math. 20, 251 (2012).
  45. E. Chaparian and I. A. Frigaard, Yield limit analysis of particle motion in a yield-stress fluid, J. Fluid Mech. 819, 311 (2017).
  46. J. A. Iglesias, G. Mercier, E. Chaparian, and I. A. Frigaard, Computing the yield limit in three-dimensional flows of a yield stress fluid about a settling particle, J. Non-Newtonian Fluid Mech. 284, 104374 (2020).
  47. E. F. Medina-Bañuelos, B. M. Marín-Santibáñez, E. Chaparian, C. E. Owens, G. H. McKinley, and J. Pérez-González, Rheo-PIV of yield-stress fluids in a 3D-printed fractal vane-in-cup geometry, J. Rheol. 67, 891 (2023).
  48. E. Chaparian and O. Tammisola, Stability of particles inside yield-stress fluid Poiseuille flows, J. Fluid Mech. 885, A45 (2020).
