  • Letter
  • Open Access

Localized arrowheads: The building blocks of elastic turbulence in rectilinear, sheared polymer flows

Theo A. Lewy* and Rich R. Kerswell

  • Department of Applied Mathematics and Theoretical Physics, University of Cambridge, Cambridge CB3 0WA, United Kingdom

  • *Contact author: tal43@cam.ac.uk
PDF

Phys. Rev. Fluids 11, L051301 – Published 15 May, 2026

DOI: https://doi.org/10.1103/vt5l-fpy6

Abstract

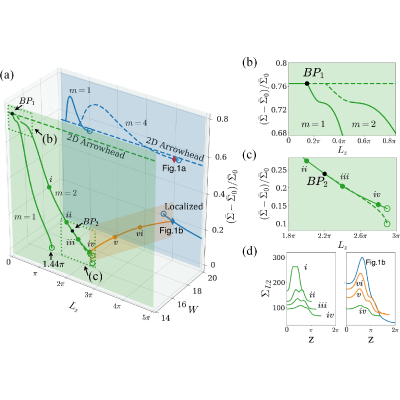

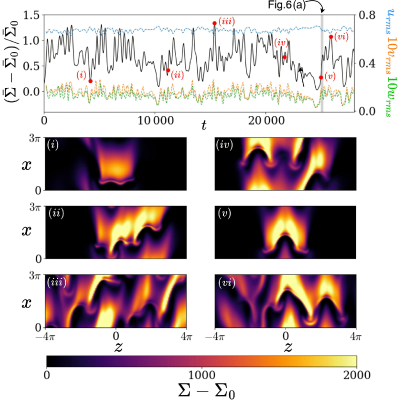

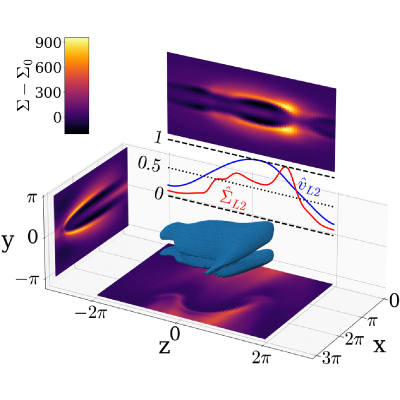

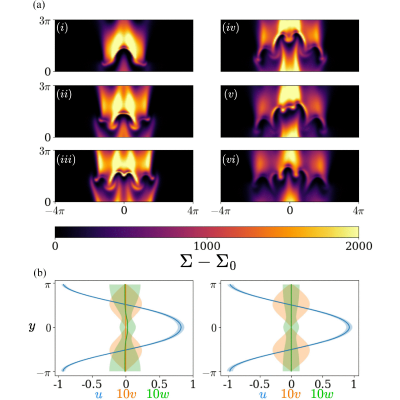

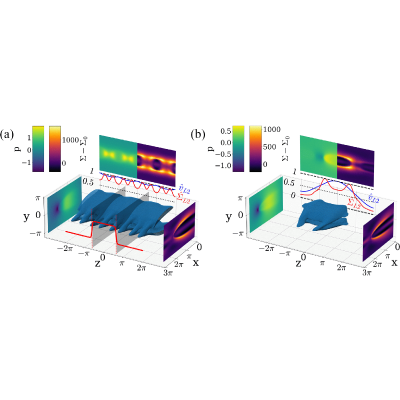

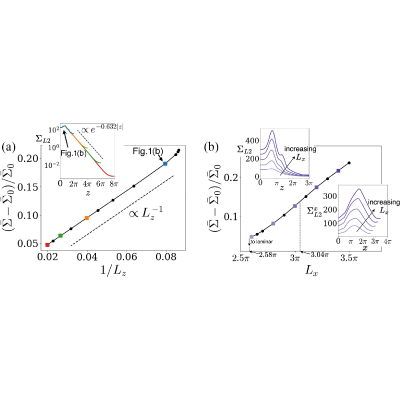

Pressure-driven flow of a dilute polymer solution has been numerically observed to possess a form of elastic turbulence which is organized around the interactions of localized versions of two-dimensional (2D) “arrowhead” traveling waves [J. Page et al. Phys. Rev. Lett. 125, 154501 (2020)]. As a step to confirming this theoretically, we identify spanwise-localized arrowhead traveling waves by tracking a symmetry-breaking bifurcation of the known spanwise-invariant (2D) arrowhead to a spanwise-periodic state and then discovering a secondary modulational instability to a spanwise-localized traveling wave. Spanwise-symmetric and -asymmetric localized arrowheads exist with the latter having a phase speed slightly inclined to the streamwise direction. Computations capture the flow randomly switching between spanwise local and global arrowhead states in a streamwise-restricted domain, suggesting they form the building blocks of the chaos. Splitting events are also seen, in which a single localized state spawns multiple arrowheads. However, both cross-shear and spanwise velocities are small, suggesting that this elastic turbulence will not be a good mixer.

View figure in article

Physics Subject Headings (PhySH)

Article Text

Supplemental Material

References (39)

  1. T. Burghelea, E. Segre, I. Bar-Joseph, A. Groisman, and V. Steinberg, Chaotic flow and efficient mixing in a microchannel with a polymer solution, Phys. Rev. E 69, 066305 (2004).
  2. A. Groisman and V. Steinberg, Elastic turbulence in a polymer solution flow, Nature (London) 405, 53 (2000).
  3. E. S. G. Shaqfeh, Purely elastic instabilities in viscometric flows, Annu. Rev. Fluid Mech. 28, 129 (1996).
  4. L. Pan, A. Morozov, C. Wagner, and P. E. Arratia, Nonlinear elastic instability in channel flows at low Reynolds numbers, Phys. Rev. Lett. 110, 174502 (2013).
  5. R. Shnapp and V. Steinberg, Nonmodal elastic instability and elastic waves in weakly perturbed channel flow, Phys. Rev. Fluids 7, 063901 (2022).
  6. D. Bonn, F. Ingremeau, Y. Amarouchene, and H. Kellay, Large velocity fluctuations in small-Reynolds-number pipe flow of polymer solutions, Phys. Rev. E 84, 045301(R) (2011).
  7. S. Berti, A. Bistagnino, G. Boffetta, A. Celani, and S. Musacchio, Two-dimensional elastic turbulence, Phys. Rev. E 77, 055306(R) (2008).
  8. S. Berti and G. Boffetta, Elastic waves and transition to elastic turbulence in a two-dimensional viscoelastic Kolmogorov flow, Phys. Rev. E 82, 036314 (2010).
  9. G. Foggi Rota, C. Amor, S. Le Clainche, and M. E. Rosti, Unified view of elastic and elasto-inertial turbulence in channel flows at low and moderate Reynolds numbers, Phys. Rev. Fluids 9, L122602 (2024).
  10. M. Lellep, M. Linkmann, and A. Morozov, Purely elastic turbulence in pressure-driven channel flows, Proc. Natl. Acad. Sci. USA 121, e2318851121 (2024).
  11. M. Beneitez, J. Page, Y. Dubief, and R. R. Kerswell, Transition route to elastic and elasto-inertial turbulence in polymer channel flows, Phys. Rev. Fluids 9, 123302 (2024).
  12. M. Beneitez, J. Page, and R. R. Kerswell, Polymer diffusive instability leading to elastic turbulence in plane Couette flow, Phys. Rev. Fluids 8, L101901 (2023).
  13. P. Garg, I. Chaudhary, M. Khalid, V. Shankar, and G. Subramanian, Viscoelastic pipe flow is linearly unstable, Phys. Rev. Lett. 121, 024502 (2018).
  14. M. Khalid, V. Shankar, and G. Subramanian, Continuous pathway between the elasto-inertial and elastic turbulent states in viscoelastic channel flow, Phys. Rev. Lett. 127, 134502 (2021).
  15. M. Khalid, I. Chaudhary, P. Garg, V. Shankar, and G. Subramanian, The centre-mode instability of viscoelastic plane Poiseuille flow, J. Fluid Mech. 915, A43 (2021).
  16. I. Chaudhary, P. Garg, G. Subramanian, and V. Shankar, Linear instability of viscoelastic pipe flow, J. Fluid Mech. 908, A11 (2021).
  17. G. Buza, J. Page, and R. R. Kerswell, Weakly nonlinear analysis of the viscoelastic instability in channel flow for finite and vanishing Reynolds numbers, J. Fluid Mech. 940, A11 (2022).
  18. G. Buza, M. Beneitez, J. Page, and R. R. Kerswell, Finite-amplitude elastic waves in viscoelastic channel flow from large to zero Reynolds number, J. Fluid Mech. 951, A3 (2022).
  19. J. Page, Y. Dubief, and R. R. Kerswell, Exact traveling wave solutions in viscoelastic channel flow, Phys. Rev. Lett. 125, 154501 (2020).
  20. D. Wan, G. Sun, and M. Zhang, Subcritical and supercritical bifurcations in axisymmetric viscoelastic pipe flows, J. Fluid Mech. 929, A16 (2021).
  21. A. Morozov, Coherent structures in plane channel flow of dilute polymer solutions with vanishing inertia, Phys. Rev. Lett. 129, 017801 (2022).
  22. T. Lewy and R. R. Kerswell, Revisiting two-dimensional viscoelastic Kolmogorov flow: A centre-mode-driven transition, J. Fluid Mech. 1007, A55 (2025).
  23. J. Nichols, R. D. Guy, and B. Thomases, Period-doubling route to chaos in viscoelastic Kolmogorov flow, Phys. Rev. Fluids 10, L041301 (2025).
  24. A. Morozov, M. Lellep, D. Capocci, and M. Linkmann, Narwhals and their blessings: Exact coherent structures of elastic turbulence in channel flows, arXiv:2509.03175v1.
  25. P.-Y. Goffin, Y. Dubief, and V. E. Terrapon, Follow the curvature of viscoelastic stress: Insights into the steady arrowhead structure, arXiv:2509.00243v1.
  26. L. Zhu and R. R. Kerswell, On the essential structure of exact travelling-wave solutions in viscoelastic flow, arXiv:2512.17407.
  27. D. Wang and S. J. Ruuth, Variable step-size implicit-explicit linear multistep methods for time-dependent partial differential equations, J. Comput. Math. 26, 838 (2008).
  28. K. J. Burns, G. M. Vasil, J. S. Oishi, D. Lecoanet, and B. P. Brown, Dedalus: A flexible framework for numerical simulations with spectral methods, Phys. Rev. Res. 2, 023068 (2020).
  29. See Supplemental Material at http://link.aps.org/supplemental/10.1103/vt5l-fpy6 for a mesh convergence test.
  30. M. Chantry, A. P. Willis, and R. R. Kerswell, Genesis of streamwise-localized solutions from globally periodic traveling waves in pipe flow, Phys. Rev. Lett. 112, 164501 (2014).
  31. M. Lellep, M. Linkmann, and A. Morozov, Linear stability analysis of purely elastic travelling-wave solutions in pressure-driven channel flows, J. Fluid Mech. 959, R1 (2023).
  32. J. F. Gibson and E. Brand, Spanwise-localized solutions of planar shear flows, J. Fluid Mech. 745, 25 (2014).
  33. E. Brand and J. Gibson, A doubly localized equilibrium solution of plane Couette flow, J. Fluid Mech. 750, R3 (2014).
  34. C. C. T. Pringle and R. R. Kerswell, Asymmetric, helical, and mirror-symmetric traveling waves in pipe flow, Phys. Rev. Lett. 99, 074502 (2007).
  35. A. Groisman and V. Steinberg, Solitary vortex pairs in viscoelastic Couette flow, Phys. Rev. Lett. 78, 1460 (1997).
  36. K. A. Kumar and M. D. Graham, Solitary coherent structures in viscoelastic shear flow: Computation and mechanism, Phys. Rev. Lett. 85, 4056 (2000).
  37. K. A. Kumar and M. D. Graham, Finite-amplitude solitary states in viscoelastic shear flow: Computation and mechanism, J. Fluid Mech. 443, 301 (2001).
  38. J. Song, N. Liu, X.-Y. Lu, and B. Khomami, Direct numerical simulation of elastic turbulence in the taylor–couette flow: transition pathway and mechanistic insight, J. Fluid Mech. 949, A49 (2022).
  39. J. Song, F. Lin, Y. Zhu, Z.-H. Wan, N. Liu, X.-Y. Lu, and B. Khomami, Self-sustaining cycle of purely elastic turbulence, Phys. Rev. Fluids 8, 014602 (2023).
