Asymptotic description of confined hydrogel swelling

Ellen M. Jolley*, Daniel J. Booth, and Thomas D. Montenegro-Johnson

  • *Contact author: ellen.jolley@warwick.ac.uk
PDF

Phys. Rev. Fluids 11, 053102 – Published 14 May, 2026

DOI: https://doi.org/10.1103/rvl1-1c4y

Abstract

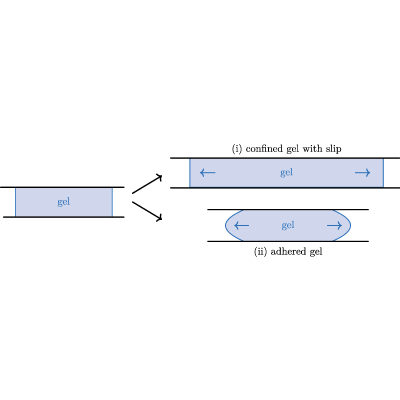

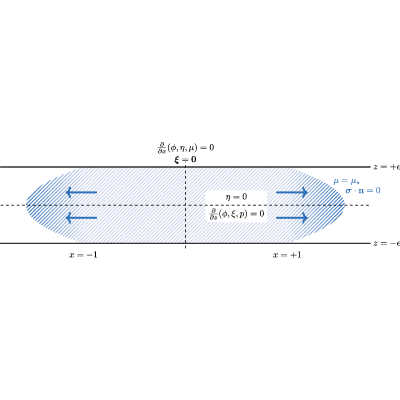

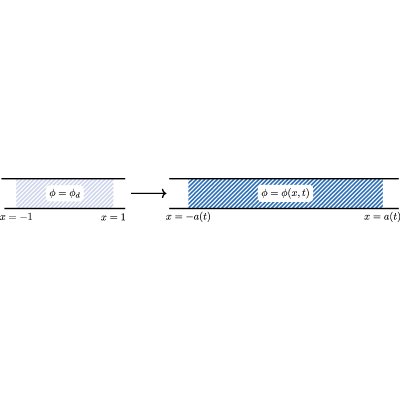

Hydrogels are soft, poroelastic solids, comprising hydrophilic polymer scaffold surrounded by adsorbed water that is free to move through the pore spaces. Hydrogels are typically biocompatible, and are therefore used in a wide variety of medical contexts. For instance, they are used to make soft contact lenses, and have potential as advanced wound dressings, targeted drug delivery devices, and deployable intestinal stents. In all these applications, the hydrogel tends to be confined by or adhered to its surroundings, and while hydrogel dynamics has received increasing mathematical attention recently, most studies have focused on free swelling. In this paper, we mathematically analyze the swelling and deswelling behavior of a hydrogel confined between two plates, in both the case where the hydrogel can slip parallel to the wall and the case where it cannot. In the slip case, we numerically solve for a full nonlinear solution based on uniaxial deformation. In the adhered case, focusing on small deformation, we find that the gel may swell either completely or incompletely (i.e., the water only penetrates partially though the gel). We give a leading-order closed-form solution for the evolution of the porosity, and thus the force on the two plates, in both cases. The partial swelling may greatly impact the efficacy of hydrogels as actuators for deployable medical devices, so may need to be a consideration in design.

View figure in article

Physics Subject Headings (PhySH)

Article Text

References (38)

  1. Hydrogel, IUPAC Compendium of Chemical Terminology, 5th ed. (2025), online version 5.0.0.
  2. T. Bertrand, J. Peixinho, S. Mukhopadhyay, and C. W. MacMinn, Dynamics of swelling and drying in a spherical gel, Phys. Rev. Appl. 6, 064010 (2016).
  3. T. Tanaka and D. J. Fillmore, Kinetics of swelling of gels, J. Chem. Phys. 70, 1214 (1979).
  4. M. B. Forrester, Pediatric Orbeez ingestions reported to Texas poison centers, Pediatr Emer. Care 35, 426 (2019).
  5. A. Bashari, A. Rouhani Shirvan, and M. Shakeri, Cellulose-based hydrogels for personal care products, Polym. Adv. Technol. 29, 2853 (2018).
  6. N. Chirani, L. Yahia, L. Gritsch, F. L. Motta, S. Chirani, and S. Farè, History and applications of hydrogels, J. Biomed. Sci. 4, 1 (2015).
  7. J. Kopecek, Hydrogels: From soft contact lenses and implants to self-assembled nanomaterials, J. Polym. Sci. A Polym. Chem. 47, 5929 (2009).
  8. Y. Liang, J. He, and B. Guo, Functional hydrogels as wound dressing to enhance wound healing, ACS Nano 15, 12687 (2021).
  9. I. M. El-Sherbiny and M. H. Yacoub, Hydrogel scaffolds for tissue engineering: Progress and challenges, Global Cardiol. Sci. Pract. 2013, 38 (2013).
  10. M. C. Koetting, J. T. Peters, S. D. Steichen, and N. A. Peppas, Stimulus-responsive hydrogels: Theory, modern advances, and applications, Mater. Sci. Eng.: R: Rep. 93, 1 (2015).
  11. J. Li and D. J. Mooney, Designing hydrogels for controlled drug delivery, Nat. Rev. Mater. 1, 16071 (2016).
  12. W. Liu, S. J. Choi, D. George, L. Li, Z. Zhong, R. Zhang, S. Y. Choi, F. M. Selaru, and D. H. Gracias, Untethered shape-changing devices in the gastrointestinal tract, Expert Opin. Drug Delivery 20, 1801 (2023).
  13. X. Li, M. Li, L. Tang, D. Shi, E. Lam, and J. Bae, 3D shape morphing of stimuli-responsive composite hydrogels, Mater. Chem. Front. 7, 5989 (2023).
  14. H. Yuk, S. Lin, C. Ma, M. Takaffoli, N. X. Fang, and X. Zhao, Hydraulic hydrogel actuators and robots optically and sonically camouflaged in water, Nat. Commun. 8, 14230 (2017).
  15. M. Doi, Gel dynamics, J. Phys. Soc. Jpn. 78, 052001 (2009).
  16. P. J. Flory and J. Rehner, Statistical mechanics of cross-linked polymer network I: Rubberlike elasticity, J. Chem. Phys. 11, 512 (1943).
  17. P. J. Flory and J. Rehner, Statistical mechanics of cross-linked polymer network II: Swelling, J. Chem. Phys. 11, 521 (1943).
  18. K. Terzaghi, Erdbaumechanik auf Bodenphysikalischer Grundlage (F. Deuticke, Vienna, 1925).
  19. M. A. Biot, General theory of three-dimensional consolidation, J. Appl. Phys. 12, 155 (1941).
  20. M. D. Butler and T. D. Montenegro-Johnson, The swelling and shrinking of spherical thermo-responsive hydrogels, J. Fluid Mech. 947, A11 (2022).
  21. S. A. Chester and L. Anand, A thermo-mechanically coupled theory for fluid permeation in elastomeric materials: Application to thermally responsive gels, J. Mech. Phys. Solids 59, 1978 (2011).
  22. W. Hong, X. Zhao, J. Zhou, and Z. Suo, A theory of coupled diffusion and large deformation in polymeric gels, J. Mech. Phys. Solids 56, 1779 (2008).
  23. J. J. Webber and M. G. Worster, A linear-elastic-nonlinear-swelling theory for hydrogels. Part 1. Modelling of super-absorbent gels, J. Fluid Mech. 960, A37 (2023).
  24. A. Suzuki and T. Hara, Kinetics of one-dimensional swelling and shrinking of polymer gels under mechanical constraint, J. Chem. Phys. 114, 5012 (2001).
  25. M. Levin and N. Cohen, Swelling under constraints: Exploiting 3D-printing to optimize the performance of gel-based devices, Adv. Mater. Technol. 8, 2202136 (2023).
  26. A. Plummer, C. Adkins, J.-F. Louf, A. Košmrlj, and S. S. Datta, Obstructed swelling and fracture of hydrogels, Soft Matter 20, 1425 (2024).
  27. W. Hong, Z. Liu, and Z. Suo, Inhomogeneous swelling of a gel in equilibrium with a solvent and mechanical load, Int. J. Solids Struct. 46, 3282 (2009).
  28. M. K. Kang and R. Huang, A variational approach and finite element implementation for swelling of polymeric hydrogels under geometric constraints, J. Appl. Mech. 77, 061004 (2010).
  29. M. K. Kang and R. Huang, Swell-induced surface instability of confined hydrogel layers on substrates, J. Mech. Phys. Solids 58, 1582 (2010).
  30. J. Dervaux and M. B. Amar, Mechanical instabilities of gels, Annu. Rev. Condens. Matter Phys. 3, 311 (2012).
  31. T. Yamaue and M. Doi, Theory of one-dimensional swelling dynamics of polymer gels under mechanical constraint, Phys. Rev. E 69, 041402 (2004).
  32. C. W. MacMinn, E. R. Dufresne, and J. S. Wettlaufer, Large deformations of a soft porous material, Phys. Rev. Appl. 5, 044020 (2016).
  33. M. Doi, Introduction to Polymer Physics (Oxford University Press, Oxford, UK, 1995).
  34. S. S. L. Peppin, J. A. W. Elliott, and M. G. Worster, Pressure and relative motion in colloidal suspensions, Phys. Fluids 17, 053301 (2005).
  35. S. Cai and Z. Suo, Mechanics and chemical thermodynamics of phase transition in temperature-sensitive hydrogels, J. Mech. Phys. Solids 59, 2259 (2011).
  36. M. G. Hennessy, A. Münch, and B. Wagner, Phase separation in swelling and deswelling hydrogels with a free boundary, Phys. Rev. E 101, 032501 (2020).
  37. A. Goriely, F. Box, and F. Benoist, Edge effects in elastic bulging, Int. J. Non Linear Mech. 106, 227 (2018).
  38. J. J. Webber and T. D. Montenegro-Johnson, Poromechanical modelling of responsive hydrogel pumps, J. Fluid Mech. 1009, A38 (2025).
