To jump or not to jump: Adhesion and viscous dissipation dictate the detachment of coalescing wall-attached bubbles

Çayan Demirkır, Rui Yang, Aleksandr Bashkatov, and Vatsal Sanjay

Detlef Lohse

Dominik Krug*

  • *Contact author: d.krug@aia.rwth-aachen.de
PDF

Phys. Rev. Fluids 10, 123602 – Published 8 December, 2025

DOI: https://doi.org/10.1103/nq3w-57gg

Abstract

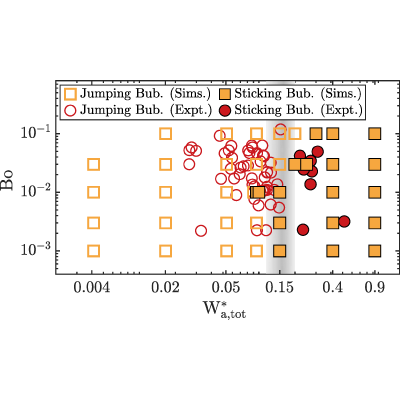

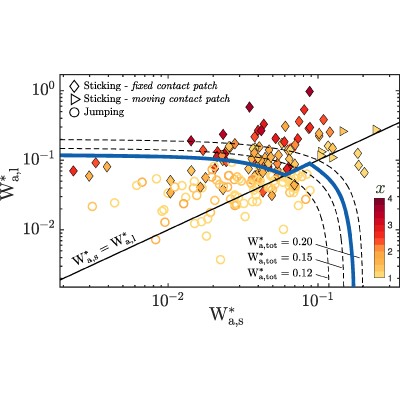

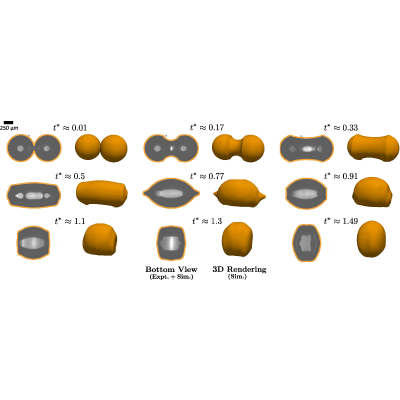

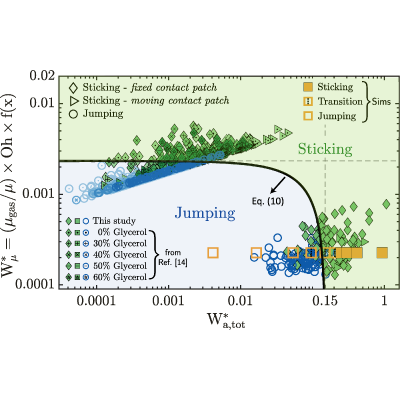

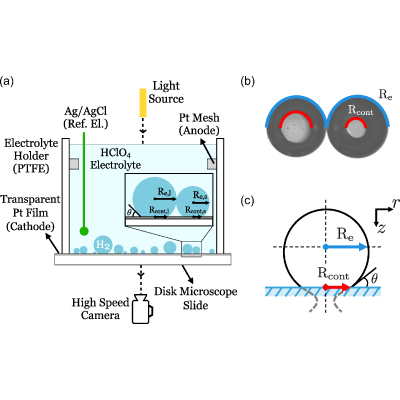

Bubble coalescence can promote bubble departure at much smaller bubble sizes than those required for buoyancy-driven detachment. This can critically enhance the efficiency of gas-evolving electrochemical processes, such as water electrolysis. In this study, we integrate high-speed imaging experiments and direct numerical simulations to dissect how and under which conditions bubble coalescence on surfaces leads to detachment. Our transparent electrode experiments provide insights into contact line dynamics, demonstrating that the bubble neck generally does not contact the surface during coalescence. We reveal that whether coalescence leads to bubble departure or not is determined by the balance between surface energy, adhesion forces, and viscous dissipation. For the previously unexplored regime at low effective Ohnesorge number, a measure of viscosity that incorporates the effect of asymmetry between the coalescing bubbles, we identify a critical dimensionless adhesion energy threshold of ≈15% of the released surface energy, below which bubbles typically detach. We develop a global energy balance model that successfully predicts coalescence outcomes across diverse experimental conditions.

View figure in article

Physics Subject Headings (PhySH)

Article Text

Supplemental Material

References (46)

  1. L. Deike, Mass transfer at the ocean–atmosphere interface: The role of wave breaking, droplets, and bubbles, Annu. Rev. Fluid Mech. 54, 191 (2022).
  2. X. Jiang, L. Rotily, E. Villermaux, and X. Wang, Abyss aerosols: Drop production from underwater bubble collisions, Phys. Rev. Lett. 133, 024001 (2024).
  3. T. B. Low and R. List, Collision, coalescence and breakup of raindrops. Part I: Experimentally established coalescence efficiencies and fragment size distributions in breakup, J. Atmos. Sci. 39, 1591 (1982).
  4. M. Schlüter, S. Herres-Pawlis, U. Nieken, U. Tuttlies, and D. Bothe, Small-scale phenomena in reactive bubbly flows: Experiments, numerical modeling, and applications, Annu. Rev. Chem. Biomol. Eng. 12, 625 (2021).
  5. J. Xu, X. Ji, W. Zhang, and G. Liu, Pool boiling heat transfer of ultra-light copper foam with open cells, Int. J. Multiphase Flow 34, 1008 (2008).
  6. M. Wang, Z. Wang, X. Gong, and Z. Guo, The intensification technologies to water electrolysis for hydrogen production–a review, Renew. Sustain. Energy Rev. 29, 573 (2014).
  7. C.-C. Wang, C.-Y. Chen et al., Water electrolysis in the presence of an ultrasonic field, Electrochim. Acta 54, 3877 (2009).
  8. X. Zhao, H. Ren, and L. Luo, Gas bubbles in electrochemical gas evolution reactions, Langmuir 35, 5392 (2019).
  9. G. F. Swiegers, R. N. Terrett, G. Tsekouras, T. Tsuzuki, R. J. Pace, and R. Stranger, The prospects of developing a highly energy-efficient water electrolyser by eliminating or mitigating bubble effects, Sustain. Energy Fuels 5, 1280 (2021).
  10. A. Angulo, P. van der Linde, H. Gardeniers, M. Modestino, and D. F. Rivas, Influence of bubbles on the energy conversion efficiency of electrochemical reactors, Joule 4, 555 (2020).
  11. F. Sepahi, N. Pande, K. L. Chong, G. Mul, R. Verzicco, D. Lohse, B. T. Mei, and D. Krug, The effect of buoyancy driven convection on the growth and dissolution of bubbles on electrodes, Electrochim. Acta 403, 139616 (2022).
  12. Á. M. Soto, T. Maddalena, A. Fraters, D. van der Meer, and D. Lohse, Coalescence of diffusively growing gas bubbles, J. Fluid Mech. 846, 143 (2018).
  13. R. Iwata, L. Zhang, Z. Lu, S. Gong, J. Du, and E. N. Wang, How coalescing bubbles depart from a wall, Langmuir 38, 4371 (2022).
  14. P. Lv, P. Peñas, H. Le The, J. Eijkel, A. van den Berg, X. Zhang, and D. Lohse, Self-propelled detachment upon coalescence of surface bubbles, Phys. Rev. Lett. 127, 235501 (2021).
  15. H. Park, S. F. Ahmadi, T. P. Foulkes, and J. B. Boreyko, Coalescence-induced jumping bubbles during pool boiling, Adv. Funct. Mater. 34, 2312088 (2024).
  16. M. Q. Raza, M. v. Köckritz, J. Sebilleau, C. Colin, M. Zupancic, M. Bucci, T. Troha, and I. Golobic, Coalescence-induced jumping of bubbles in shear flow in microgravity, Phys. Fluids 35, 023333 (2023).
  17. A. Bashkatov, S. Park, Ç. Demirkır, J. A. Wood, M. T. M. Koper, D. Lohse, and D. Krug, Performance enhancement of electrocatalytic hydrogen evolution through coalescence-induced bubble dynamics, J. Am. Chem. Soc. 146, 10177 (2024).
  18. J. D. Paulsen, R. Carmigniani, A. Kannan, J. C. Burton, and S. R. Nagel, Coalescence of bubbles and drops in an outer fluid, Nat. Commun. 5, 3182 (2014).
  19. I. U. Vakarelski, F. Kamoliddinov, and S. T. Thoroddsen, Why bubbles coalesce faster than droplets: The effects of interface mobility and surface charge, Langmuir 40, 11340 (2024).
  20. F. Liu, G. Ghigliotti, J. J. Feng, and C.-H. Chen, Numerical simulations of self-propelled jumping upon drop coalescence on non-wetting surfaces, J. Fluid Mech. 752, 39 (2014).
  21. J. Wasserfall, P. Figueiredo, R. Kneer, W. Rohlfs, and P. Pischke, Coalescence-induced droplet jumping on superhydrophobic surfaces: Effects of droplet mismatch, Phys. Rev. Fluids 2, 123601 (2017).
  22. X. X. Yan, L. L. Zhang, S. S. Sett, L. L. Feng, C. C. Zhao, Z. Z. Huang, H. H. Vahabi, A. K. Kota, F. F. Chen, and N. N. Miljkovic, Droplet jumping: Effects of droplet size, surface structure, pinning, and liquid properties, ACS Nano 13, 1309 (2019).
  23. P. Zhao, Z. Hu, P. Cheng, R. Huang, and S. Gong, Coalescence-induced bubble departure: Effects of dynamic contact angles, Langmuir 38, 10558 (2022).
  24. N. Pande, S. K. Chandrasekar, D. Lohse, G. Mul, J. A. Wood, B. T. Mei, and D. Krug, Electrochemically induced ph change: Time-resolved confocal fluorescence microscopy measurements and comparison with numerical model, J. Phys. Chem. Lett. 11, 7042 (2020).
  25. N. Pande, J. A. Wood, G. Mul, D. Lohse, B. T. Mei, and D. Krug, Electroconvective instability in water electrolysis: An evaluation of electroconvective patterns and their onset features, Phys. Rev. Appl. 16, 034021 (2021).
  26. Ç. Demirkır, J. A. Wood, D. Lohse, and D. Krug, Life beyond fritz: On the detachment of electrolytic bubbles, Langmuir 40, 20474 (2024).
  27. J. Massing, G. Mutschke, D. Baczyzmalski, S. S. Hossain, X. Yang, K. Eckert, and C. Cierpka, Thermocapillary convection during hydrogen evolution at microelectrodes, Electrochim. Acta 297, 929 (2019).
  28. S. Park, L. Liu, Ç. Demirkır, O. van der Heijden, D. Lohse, D. Krug, and M. T. Koper, Solutal marangoni effect determines bubble dynamics during electrocatalytic hydrogen evolution, Nat. Chem. 15, 1532 (2023).
  29. A. K. Chesters, Modes of bubble growth in the slow-formation regime of nucleate pool boiling, Int. J. Multiphase Flow 4, 279 (1978).
  30. S. Popinet, An accurate adaptive solver for surface-tension-driven interfacial flows, J. Comput. Phys. 228, 5838 (2009).
  31. S. Popinet and collaborators, Basilisk C, http://basilisk.fr.
  32. V. Sanjay and R. Yang, Jumping bubbles: A computational framework for studying bubble coalescence, https://comphy-lab.org/JumpingBubbles/.
  33. S. Popinet, Numerical models of surface tension, Annu. Rev. Fluid Mech. 50, 49 (2018).
  34. G. Tryggvason, R. Scardovelli, and S. Zaleski, Direct Numerical Simulations of Gas–Liquid Multiphase Flows (Cambridge University Press, Cambridge, UK, 2011).
  35. S. Afkhami, J. Buongiorno, A. Guion, S. Popinet, Y. Saade, R. Scardovelli, and S. Zaleski, Transition in a numerical model of contact line dynamics and forced dewetting, J. Comput. Phys. 374, 1061 (2018).
  36. J. H. Snoeijer and B. Andreotti, Moving contact lines: Scales, regimes, and dynamical transitions, Annu. Rev. Fluid Mech. 45, 269 (2013).
  37. J. Eggers, J. E. Sprittles, and J. H. Snoeijer, Coalescence dynamics, Annu. Rev. Fluid Mech. 57 (2024).
  38. A. T. Oratis, V. Bertin, and J. H. Snoeijer, Coalescence of bubbles in a viscoelastic liquid, Phys. Rev. Fluids 8, 083603 (2023).
  39. K. L. Mittal, Contact Angle, Wettability and Adhesion (CRC Press, 2003), Vol. 3.
  40. S.-J. Hong, F.-M. Chang, T.-H. Chou, S. H. Chan, Y.-J. Sheng, and H.-K. Tsao, Anomalous contact angle hysteresis of a captive bubble: Advancing contact line pinning, Langmuir 27, 6890 (2011).
  41. See Supplemental Material at http://link.aps.org/supplemental/10.1103/nq3w-57gg for the details of moving contact patch, buoyancy-driven departures, a comment on bubble size ratio relationship to adhesion energy, and the details of parameters investigated, which includes Refs. [45, 46].
  42. A. Bashkatov, F. Bürkle, Ç. Demirkır, W. Ding, V. Sanjay, A. Babich, X. Yang, G. Mutschke, J. Czarske, D. Lohse, D. Krug, L. Büttner, and K. Eckert, Electrolyte spraying within H2 bubbles during water electrolysis under normal and microgravity conditions, Nat. Commun. 16, 4580 (2025).
  43. Ç. Demirkır, D. Krug, P. Lv, R. Yang, A. Bashkatov, V. Sanjay, D. Lohse, P. Peñas, H. Le-The, J. Eijkel, A. van den Berg, and X. Zhang, Dataset for: To jump or not to jump: Adhesion and viscous dissipation dictate the detachment of coalescing wall-attached bubbles, https://zenodo.org/records/17566467.
  44. V. Sanjay, P. Chantelot, and D. Lohse, When does an impacting drop stop bouncing? J. Fluid Mech. 958, A26 (2023).
  45. L. Korson, W. Drost-Hansen, and F. J. Millero, Viscosity of water at various temperatures, J. Phys. Chem. 73, 34 (1969).
  46. L. H. Brickwedde, Properties of aqueous solutions of perchloric acid, J. Res. Natl. Bur. Stan. 42, 309 (1949).
