Magnetic control of a two-layer pipe flow

S. H. Ferguson Briggs1,*, M. G. Blyth2, and A. J. Mestel1

  • *Contact author: sf218@ic.ac.uk
PDF

Phys. Rev. Fluids 10, 103704 – Published 23 October, 2025

DOI: https://doi.org/10.1103/ljc3-r4hx

Abstract

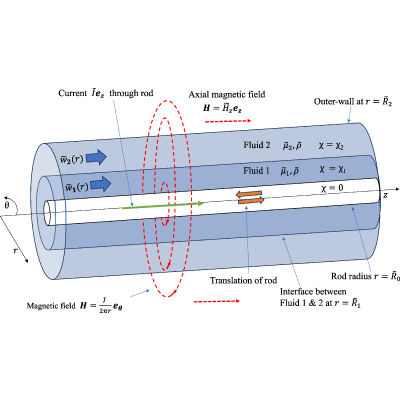

The gap between two solid, coaxial cylinders is filled with two ferrofluids of differing viscosity and magnetic susceptibility. Axial motion is driven by a pressure gradient and/or translation of the inner cylinder. An axial magnetic field is imposed externally, while current flowing in the inner cylinder generates an azimuthal field. It is known that the axisymmetric capillary instability of the cylindrical fluid interface may be controlled either by hydrodynamic shear or magnetic effects, but each of these can give rise to other instabilities, often nonaxisymmetric. This paper investigates the 10-dimensional parameter space to determine when combined action of shear and magnetic effects can provide overall stability, essentially using shear to stabilize the troublesome helical "tearing" mode, while magnetic stresses control the hydrodynamic instability. Stability is easier to obtain when the inner fluid is more magnetic.

View figure in article

Physics Subject Headings (PhySH)

Corrections

10 December, 2025

Correction: The order of the author names was set incorrectly and has been fixed. The byline style has been adjusted accordingly.

Article Text

References (38)

  1. C. Scherer and A. M. Figueiredo Neto, Ferrofluids: properties and applications, Braz. J. Phys. 35, 718 (2005).
  2. S. W. Charles, Some applications of magnetic fluids—use as an ink and in microwave systems, J. Magn. Magn. Mater. 65, 350 (1987).
  3. A. R. Abdel Fattah, S. Ghosh, and I. K. Puri, Printing microstructures in a polymer matrix using a ferrofluid droplet, J. Magn. Magn. Mater. 401, 1054 (2016).
  4. P. A. Voltairas, D. I. Fotiadis, and L. K. Michalis, Hydrodynamics of magnetic drug targeting, J. Biomech. 35, 813 (2002).
  5. M. Asfer, S. K. Saroj, and P. K. Panigrahi, Retention of ferrofluid aggregates at the target site during magnetic drug targeting, J. Magn. Magn. Mater. 436, 47 (2017).
  6. V. C. Gonella, F. Hanser, J. Vorwerk, S. Odenbach, and D. Baumgarten, Influence of local particle concentration gradient forces on the flow-mediated mass transport in a numerical model of magnetic drug targeting, J. Magn. Magn. Mater. 525, 167490 (2021).
  7. M. D. Contreras-Mateus, A. Chaves-Guerrero, F. H. Sánchez, and N. N. Nassar, Ferrofluids and magnetism in the oil industry: Theories, challenges, and current applications—A comprehensive review, Phys. Fluids 36, 121302 (2024).
  8. M. M. Neamtu-Halic, M. Holzner, and L. M. Stancanelli, Drag reduction utilizing a wall-attached ferrofluid film in turbulent channel flow, J. Fluid Mech. 996, A35 (2024).
  9. L. Preziosi and F. Rosso, Interfacial stability in a two-layer shearing flow between sliding pipes, Eur. J. Mech. B, Fluids 10, 269 (1991).
  10. A. G. Walton, The linear and nonlinear stability of thread-annular flow, Philos. Trans. R. Soc. A 363, 1223 (2005).
  11. Lord Rayleigh F.R.S., On the instability of jets, Proc. London Math. Soc. s1-10, 4 (1878).
  12. S. Tomotika, On the instability of a cylindrical thread of a viscous liquid surrounded by another viscous fluid, Proc. R. Soc. London A 150, 322 (1935).
  13. R. M. Christiansen and A. N. Hixson, Breakup of a liquid in a denser liquid, Ind. Eng. Chem. 49, 1017 (1957).
  14. B. J. Meister and G. F. Scheele, Drop formation from cylindrical jets in immiscible liquid systems, AIChE J. 15, 700 (1969).
  15. V. G. Bashtovoi and M. S. Krakov, Stability of an axisymmetric jet of magnetizable fluid, J. Appl. Mech. Tech. Phys. 19, 541 (1979).
  16. V. I. Arkhipenko, Y. D. Barkov, V. G. Bashtovoi, and M. S. Krakov, Investigation into the stability of a stationary cylindrical column of magnetizable liquid, Fluid Dyn. 15, 477 (1981).
  17. D. Rannacher and A. Engel, Cylindrical Korteweg–de Vries solitons on a ferrofluid surface, New J. Phys. 8, 108 (2006).
  18. E. Bourdin, J.-C. Bacri, and E. Falcon, Observation of axisymmetric solitary waves on the surface of a ferrofluid, Phys. Rev. Lett. 104, 094502 (2010).
  19. R. Canu and M.-C. Renoult, Linear stability analysis of a Newtonian ferrofluid cylinder under a magnetic field, J. Fluid Mech. 915, A137 (2021).
  20. R. Canu and M.-C. Renoult, Linear stability analysis of a Newtonian ferrofluid cylinder surrounded by a Newtonian fluid, J. Fluid Mech. 927, A36 (2021).
  21. V. M. Korovin, Capillary disintegration of a configuration formed by two viscous ferrofluids surrounding a current-carrying conductor and having a cylindrical interface, Tech. Phys. 49, 669 (2004).
  22. S. H. Ferguson Briggs and A. J. Mestel, Linear stability of a ferrofluid centred around a current-carrying wire, J. Fluid Mech. 942, A20 (2022).
  23. M. G. Blyth and E. I. Părău, Solitary waves on a ferrofluid jet, J. Fluid Mech. 750, 401 (2014).
  24. A. Doak and J.-M. Vanden-Broeck, Travelling wave solutions on an axisymmetric ferrofluid jet, J. Fluid Mech. 865, 414 (2019).
  25. P. J. Redberger and M. E. Charles, Axial laminar flow in a circular pipe containing a fixed eccentric core, Can. J. Chem. Eng. 40, 148 (1962).
  26. D. D. Joseph, K. Nguyen, and G. S. Beavers, Non-uniqueness and stability of the configuration of flow of immiscible fluids with different viscosities, J. Fluid Mech. 141, 319 (1984).
  27. D. D. Joseph, M. Renardy, and Y. Renardy, Instability of the flow of two immiscible liquids with different viscosities in a pipe, J. Fluid Mech. 141, 309 (1984).
  28. L. Preziosi, K. Chen, and D. D. Joseph, Lubricated pipelining: stability of core-annular flow, J. Fluid Mech. 201, 323 (1989).
  29. H. H. Hu and D. D. Joseph, Lubricated pipelining: stability of core-annular flow. Part 2, J. Fluid Mech. 205, 359 (1989).
  30. S. H. Ferguson Briggs, M. G. Blyth, and A. J. Mestel, Stability of a two-fluid rod annular flow, Phys. Rev. Fluids 10, 034001 (2025).
  31. H. A. Dijkstra, The coupling of interfacial instabilities and the stabilization of two-layer annular flows, Phys. Fluids 4, 1915 (1992).
  32. C. J. Heaton, Linear instability of annular Poiseuille flow, J. Fluid Mech. 610, 391 (2008).
  33. M. Weinstein, The effect of a vertical magnetic field on the capillary instability of a liquid–liquid jet, J. Franklin Inst. 325, 537 (1988).
  34. S. H. Ferguson Briggs, M. G. Blyth, and A. J. Mestel, Stability of two flowing coaxial ferrofluid annuli, Magnetohydrodnamics 61, 129 (2025).
  35. R. E. Rosensweig, Ferrohydrodynamics (Cambridge University Press, Cambridge, UK, 1985).
  36. S. V. Mirnov and I. B. Semenov, Investigation of the instabilities of the plasma string in the Tokamak-3 system by means of a correlation method, Sov. At. Energy 30, 22 (1971).
  37. R. Canu, A. Bouchet, and M.-C. Renoult, New experiments and theory on ferrofluid cylinder in an azimuthal magnetic field, Phys. Fluids 35, 112116 (2023).
  38. R. R. Kerswell, Nonlinear nonmodal stability theory, Annu. Rev. Fluid Mech. 50, 319 (2018).
