Swimming in circles of a Janus particle by diffusion of insoluble surfactant on its active face

Darren Crowdy*

  • *Contact author: d.crowdy@imperial.ac.uk
PDF

Phys. Rev. Fluids 10, 104101 – Published 15 October, 2025

DOI: https://doi.org/10.1103/h36b-4ydh

Abstract

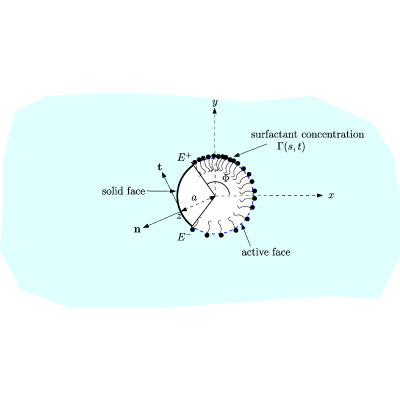

An exact solution is obtained for the Stokes flow around an active circular two-dimensional Janus swimmer whose active face is a free surface and its inert face is a no-slip surface, a conceptual design motivated by recent work on superhydrophobic surfaces. Locomotion is driven by Marangoni stresses associated with the diffusion of insoluble surfactant from one edge of the active face to the other. The dynamical system governing the motion of the swimmer is derived explicitly in terms of the swimmer geometry. It is shown that this Marangoni-driven actuation mechanism results in a translational-rotational coupling causing the Janus particle to swim in circles while spinning about its center. While idealized, the model swimmer exemplifies a set of minimal ingredients needed to set up such translational-rotational coupling.

View figure in article

Physics Subject Headings (PhySH)

Article Text

References (34)

  1. A. Zöttl and H. Stark, Emergent behavior in active colloids, J. Phys.: Condens. Matter 28, 253001 (2016).
  2. N. J. Suematsu and S. Nakata, Evolution of self-propelled objects: From the viewpoint of nonlinear science, Chem. Eur. J. 24, 6308 (2018).
  3. S. Nakata, M. Nagayama, H. Kitahata, N. J. Suematsu, and T. Hasegawa, Physicochemical design and analysis of self-propelled objects that are characteristically sensitive to environments, Phys. Chem. Chem. Phys. 17, 10326 (2015).
  4. C. H. Meredith, A. C. Castonguay, Y.-J. Chiu, A. Sen, D. Velegol, and L. D. Zarzar, Chemical design of self-propelled Janus droplets, Matter 5, 616 (2022).
  5. H. Su, S. Li, G.-Z. Yang, and K. Qian, Janus micro/nanorobots in biomedical applications, Adv. Healthcare Mater. 12, 2202391 (2023).
  6. S. Sanchez, L. Soler, and J. Katuri, Chemically powered micro- and nanomotors, Angew. Chem. Int. Ed 54, 1414 (2015).
  7. R. Golestanian, T. B. Liverpool, and A. Ajdari, Designing phoretic micro-and nano-swimmers, New J. Phys. 9, 126 (2007).
  8. S. Michelin, Self-propulsion of chemically active droplets, Annu. Rev. Fluid Mech. 55, 77 (2023).
  9. W. F. Paxton, K. C. Kistler, C. C. Olmeda, A. Sen, S. K. S. Angelo, Y. Cao, T. E. Mallouk, P. E. Lammert, and V. H. Crespi, Catalytic nanomotors: Autonomous movement of striped nanorods, J. Am. Chem. Soc. 126, 13424 (2004).
  10. S. Ebbens, M.-H. Tu, J. R. Howse, and R. Golestanian, Size dependence of the propulsion velocity for catalytic janus-sphere swimmers, Phys. Rev. E 85, 020401(R) (2012).
  11. J. Happel and H. Brenner, Low Reynolds Number Hydrodynamics (Springer, Dordrecht, 1983).
  12. D. G. Crowdy, Wall effects on self-diffusiophoretic Janus particles: A theoretical study, J. Fluid Mech. 735, 473 (2013).
  13. D. Sondak, C. Hawley, S. Heng, R. Vinsonhaler, E. Lauga, and J-L Thiffeault, Can phoretic particles swim in two dimensions, Phys. Rev. E 94, 062606 (2016).
  14. E. Yariv and D. G. Crowdy, Phoretic self-propulsion of Janus disks in the fast-reaction limit, Phys. Rev. Fluids 5, 112001(R) (2020).
  15. W.-F. Hu, T.-S. Lin, S. Rafai, and C. Misbah, Chaotic swimming of phoretic particles, Phys. Rev. Lett. 123, 238004 (2019)
  16. G. Li, Swimming dynamics of a self-propelled droplet, J. Fluid Mech. 934, A20 (2022).
  17. G. Zhu and L. Zhu, Self-propulsion of an elliptical phoretic disk emitting solute uniformly, J. Fluid Mech. 974, A57 (2023).
  18. D. G. Crowdy, Exact solutions for cylindrical “slip-stick” Janus swimmers in Stokes flow, J. Fluid Mech. 719, R2 (2013).
  19. J. W. M. Bush and D. L. Hu, Walking on water: Biolocomotion at the interface, Annu. Rev. Fluid Mech. 38, 339 (2006).
  20. K. Dietrich, N. Jaensson, I. Buttinoni, G. Volpe, and L. Isa, Microscale Marangoni surfers, Phys. Rev. Lett. 125, 098001 (2020).
  21. A. Würger, Thermally driven Marangoni surfaces, J. Fluid Mech. 752, 589 (2014).
  22. E. Lauga and A. M. J. Davis, Viscous Marangoni propulsion, J. Fluid Mech. 705, 120 (2012).
  23. D. G. Crowdy, Collective viscous propulsion of a two-dimensional flotilla of Marangoni boats, Phys. Rev. Fluids 5, 124004 (2020).
  24. J. R. Philip, Flows satisfying mixed no-slip and no-shear conditions, J. Appl. Math. Phys. 23, 353 (1972).
  25. D. G. Crowdy, Frictional slip lengths for unidirectional superhydrophobic grooved surfaces, Phys. Fluids 23, 072001 (2011).
  26. K. H. Nagai, F. Takavbatake, Y. Sumino, H. Kitahata, M. Ichikawa, and N. Yoshinaga, Rotational motion of a droplet induced by interfacial tension, Phys. Rev. E 87, 013009 (2013).
  27. E. Lauga, W. R. DiLuzio, G. M. Whitesides, and H. A. Stone, Swimming in circles: Motion of bacteria near solid boundaries, Biophys. J. 90, 400 (2006).
  28. E. Yariv and M. Siegel, Rotation of a superhydrophobic cylinder in a viscous liquid, J. Fluid Mech. 880, R4 (2019).
  29. M. Siegel and E. Yariv, Jeffery's paradox for the rotation of a single ‘stick–slip’ cylinder, Mech. Res. Commun. 131, 104154 (2023).
  30. D. G. Crowdy, Torque-driven superhydrophobic cylinders swim in circles, Proc. Roy. Soc. A 480, (2024).
  31. H. Wong, D. Rumschitzki, and C. Maldarelli, On the surfactant mass balance at a deforming fluid interface, Phys. Fluids 8, 3203 (1996).
  32. W. E. Langlois and M. O. Deville, Slow Viscous Flows, 2nd ed. (Springer, New York, 2014).
  33. D. G. Crowdy, Conformal slit maps in applied mathematics, ANZIAM Journal 53, 171 (2012).
  34. D. G. Crowdy, Solving problems in multiply connected domains, CBMS-NSF Regional Conference Series in Applied Mathematics (Society for Industrial and Applied Mathematics, Philadelphia, 2020).

Outline

Information

Phys. Rev. Fluids 10, 104101– Published 15 October, 2025
  • Received 6 November 2024
  • Accepted 17 September 2025
