Diffusion from particle-coated drops: The subtle role of particle size

Alexandros T. Oratis, Matteo Camagna, Timo J. J. M. van Overveld, and Valeria Garbin*

  • *Contact author: v.garbin@tudelft.nl
PDF

Phys. Rev. Fluids 11, 103602 – Published 13 October, 2026

DOI: https://doi.org/10.1103/gpjv-8nqr

Abstract

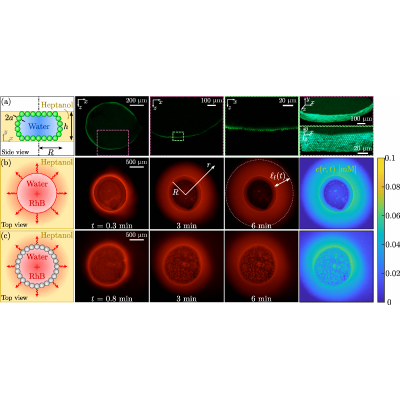

Many natural and industrial systems involve particle-laden interfaces. Because interfacial particles prevent the coalescence and coarsening of drops, they hold promise for various applications requiring stable emulsions. Despite their remarkable ability to stabilize emulsions, it remains challenging to characterize how particles influence the interfacial transport of dissolved solutes. Here we quantify the diffusion from a single particle-coated drop by confining it to a two-dimensional configuration. Using fluorescence microscopy, we extract the intensity profiles of the fluorescent dye as it diffuses from the drop, yielding spatiotemporal measurements of the concentration field. Over a range of particle sizes, the particles impose minimal resistance to diffusion. We explain this behavior with a mathematical model describing interfacial mass transfer across a particle-coated interface. The particle monolayer controls the temporal dynamics of interfacial flux, but hinders the overall transport only at extreme coverage fractions beyond the close-packing limit. This framework reveals why particles often fail to hinder diffusion, offering new pathways to harness mass transfer in particle-stabilized emulsions.

View figure in article

Physics Subject Headings (PhySH)

Article Text

References (51)

  1. T. N. Hunter, R. J. Pugh, G. V. Franks, and G. J. Jameson, The role of particles in stabilising foams and emulsions, Adv. Colloid Interface Sci. 137, 57 (2008).
  2. Leonard, M. C. Sagis, Dynamic properties of interfaces in soft matter: Experiments and theory, Rev. Mod. Phys. 83, 1367 (2011).
  3. J. Tang, P. J. Quinlan, and K. C. Tam, Stimuli-responsive Pickering emulsions: Recent advances and potential applications, Soft Matter 11, 3512 (2015).
  4. B. P. Binks, Particles as surfactants—Similarities and differences, Curr. Opin. Colloid Interface Sci. 7, 21 (2002).
  5. R. Van Hooghten, V. E. Blair, A. Vananroye, A. B. Schofield, J. Vermant, and J. H. Thijssen, Interfacial rheology of sterically stabilized colloids at liquid interfaces and its effect on the stability of Pickering emulsions, Langmuir 33, 4107 (2017).
  6. J. H. Thijssen and J. Vermant, Interfacial rheology of model particles at liquid interfaces and its relation to (bicontinuous) Pickering emulsions, J. Phys.: Condens. Matter 30, 023002 (2018).
  7. A. B. Pawar, M. Caggioni, R. Ergun, R. W. Hartel, and P. T. Spicer, Arrested coalescence in Pickering emulsions, Soft Matter 7, 7710 (2011).
  8. Y. Chevalier and M.-A. Bolzinger, Emulsions stabilized with solid nanoparticles: Pickering emulsions, Colloids Surf. A 439, 23 (2013).
  9. M. E. Cates and E. Tjhung, Theories of binary fluid mixtures: From phase-separation kinetics to active emulsions, J. Fluid Mech. 836, P1 (2018).
  10. D. Bais, A. Trevisan, R. Lapasin, P. Partal, and C. Gallegos, Rheological characterization of polysaccharide–surfactant matrices for cosmetic O/W emulsions, J. Colloid Interface Sci. 290, 546 (2005).
  11. C. C. Berton-Carabin and K. Schroën, Pickering emulsions for food applications: Background, trends, and challenges, Annu. Rev. Food Sci. Technol. 6, 263 (2015).
  12. X. Yan, C. Ma, F. Cui, D. J. McClements, X. Liu, and F. Liu, Protein-stabilized Pickering emulsions: Formation, stability, properties, and applications in foods, Trends Food Sci. Technol. 103, 293 (2020).
  13. S. Crossley, J. Faria, M. Shen, and D. E. Resasco, Solid nanoparticles that catalyze biofuel upgrade reactions at the water/oil interface, Science 327, 68 (2010).
  14. A. M. B. Rodriguez and B. P. Binks, Catalysis in Pickering emulsions, Soft Matter 16, 10221 (2020).
  15. F. Chang, C. M. Vis, W. Ciptonugroho, and P. C. Bruijnincx, Recent developments in catalysis with Pickering emulsions, Green Chem. 23, 2575 (2021).
  16. D. Dedovets, Q. Li, L. Leclercq, V. Nardello-Rataj, J. Leng, S. Zhao, and M. Pera-Titus, Multiphase microreactors based on liquid–liquid and gas–liquid dispersions stabilized by colloidal catalytic particles, Angew. Chem. Int. Ed. 61, e202107537 (2022).
  17. A. Dinsmore, M. F. Hsu, M. Nikolaides, M. Marquez, A. Bausch, and D. Weitz, Colloidosomes: Selectively permeable capsules composed of colloidal particles, Science 298, 1006 (2002).
  18. K. L. Thompson, M. Williams, and S. P. Armes, Colloidosomes: Synthesis, properties and applications, J. Colloid Interface Sci. 447, 217 (2015).
  19. Q. Sun, J.-F. Chen, and A. F. Routh, Coated colloidosomes as novel drug delivery carriers, Expert Opin. Drug Deliv. 16, 903 (2019).
  20. M. Abkarian, A. B. Subramaniam, S.-H. Kim, R. J. Larsen, S.-M. Yang, and H. A. Stone, Dissolution arrest and stability of particle-covered bubbles, Phys. Rev. Lett. 99, 188301 (2007).
  21. B. Laborie, F. Lachaussée, E. Lorenceau, and F. Rouyer, How coatings with hydrophobic particles may change the drying of water droplets: Incompressible surface versus porous media effects, Soft Matter 9, 4822 (2013).
  22. A. Gallo, F. Tavares, R. Das, and H. Mishra, How particle–particle and liquid–particle interactions govern the fate of evaporating liquid marbles, Soft Matter 17, 7628 (2021).
  23. J. Saczek, K. Murphy, V. Zivkovic, A. Putranto, and S. S. Pramana, Impact of coating particles on liquid marble lifetime: Reactor engineering approach to evaporation, Soft Matter 20, 5822 (2024).
  24. J.-W. Kim, A. Fernández-Nieves, N. Dan, A. S. Utada, M. Marquez, and D. A. Weitz, Colloidal assembly route for responsive colloidosomes with tunable permeability, Nano Lett. 7, 2876 (2007).
  25. M. Sjöö, S. C. Emek, T. Hall, M. Rayner, and M. Wahlgren, Barrier properties of heat treated starch Pickering emulsions, J. Colloid Interface Sci. 450, 182 (2015).
  26. M. Li, Q. Song, Y. Wang, and B. Liu, Pickering emulsions with low interface coverage but enhanced stability for emulsion interface catalysis and SERS-based detection, Nat. Commun. 16, 2490 (2025).
  27. D. Lee and D. A. Weitz, Double emulsion-templated nanoparticle colloidosomes with selective permeability, Adv. Mater. 20, 3498 (2008).
  28. H. N. Yow and A. F. Routh, Release profiles of encapsulated actives from colloidosomes sintered for various durations, Langmuir 25, 159 (2009).
  29. K. L. Thompson, S. Armes, J. Howse, S. Ebbens, I. Ahmad, J. Zaidi, D. York, and J. Burdis, Covalently cross-linked colloidosomes, Macromolecules 43, 10466 (2010).
  30. Y. Liu, M. Xu, L. M. Portela, and V. Garbin, Diffusion across particle-laden interfaces in Pickering droplets, Soft Matter 20, 94 (2023).
  31. T. J. J. M. van Overveld and V. Garbin, Scaling regimes for unsteady diffusion across particle-stabilized fluid interfaces, Phys. Rev. Fluids 10, L112501 (2025).
  32. F. Clément and J. Leng, Evaporation of liquids and solutions in confined geometry, Langmuir 20, 6538 (2004).
  33. F. Boulogne, F. Giorgiutti-Dauphiné, and L. Pauchard, The buckling and invagination process during consolidation of colloidal droplets, Soft Matter 9, 750 (2013).
  34. C. Loussert, A. Bouchaudy, and J.-B. Salmon, Drying dynamics of a charged colloidal dispersion in a confined drop, Phys. Rev. Fluids 1, 084201 (2016).
  35. O. Milark, J.-B. Salmon, and B. Sobac, Confined drying of a binary liquid mixture droplet: A quantitative interferometric study under humidity control, Phys. Rev. Fluids 11, 033603 (2026).
  36. P.-O. Gendron, F. Avaltroni, and K. Wilkinson, Diffusion coefficients of several rhodamine derivatives as determined by pulsed field gradient–nuclear magnetic resonance and fluorescence correlation spectroscopy, J. Fluoresc. 18, 1093 (2008).
  37. P. Peñas-López, B. van Elburg, M. A. Parrales, and J. Rodríguez-Rodríguez, Diffusion of dissolved CO2 in water propagating from a cylindrical bubble in a horizontal Hele-Shaw cell, Phys. Rev. Fluids 2, 063602 (2017).
  38. M. H. Jacobs, Diffusion processes, in Ergebnisse der Biologie (Springer, Berlin, 1967), pp. 1–160.
  39. R. Zwanzig, Diffusion past an entropy barrier, J. Phys. Chem. 96, 3926 (1992).
  40. D. Reguera and J. M. Rubí, Kinetic equations for diffusion in the presence of entropic barriers, Phys. Rev. E 64, 061106 (2001).
  41. P. Kalinay and J. K. Percus, Corrections to the Fick-Jacobs equation, Phys. Rev. E 74, 041203 (2006).
  42. J. Crank, The Mathematics of Diffusion (Oxford University Press, Oxford, 1979).
  43. P. S. Epstein and M. S. Plesset, On the stability of gas bubbles in liquid-gas solutions, J. Chem. Phys. 18, 1505 (1950).
  44. P. B. Duncan and D. Needham, Test of the Epstein- Plesset model for gas microparticle dissolution in aqueous media: Effect of surface tension and gas undersaturation in solution, Langmuir 20, 2567 (2004).
  45. R. E. Beck and J. S. Schultz, Hindered diffusion in microporous membranes with known pore geometry, Science 170, 1302 (1970).
  46. R. T. Rosenberg and N. R. Dan, Controlling surface porosity and release from hydrogels using a colloidal particle coating, J. Colloid Int. Sci. 349, 498 (2010).
  47. M. Zhang, L. Wei, H. Chen, Z. Du, B. P. Binks, and H. Yang, Compartmentalized droplets for continuous flow liquid–liquid interface catalysis, J. Am. Chem. Soc. 138, 10173 (2016).
  48. D. Gunes, M. Murith, J. Godefroid, C. Pelloux, H. Deyber, O. Schafer, and O. Breton, Oleofoams: Properties of crystal-coated bubbles from whipped oleogels evidence for Pickering stabilization, Langmuir 33, 1563 (2017).
  49. A. Sarkar and E. Dickinson, Sustainable food-grade Pickering emulsions stabilized by plant-based particles, Curr. Opin. Colloid Interface Sci. 49, 69 (2020).
  50. M. P. Ruiz and J. A. Faria, Catalysis at the solid–liquid–liquid interface of water–oil Pickering emulsions: A tutorial review, ACS Eng. Au 2, 295 (2022).
  51. A. T. Oratis, M. Camagna, T. J. J. M. van Overveld, and V. Garbin, Experimental data sets for the manuscript: Diffusion from particle-coated drops: The subtle role of the particle size, 4TU.ResearchData, 2026, https://doi.org/10.4121/dea9d2cd-a6ec-44fc-a740-d25b9c7e1433.
