Viscoplasticity can stabilize liquid collar motion on vertical cylinders

James D. Shemilt1,2,*, Alice B. Thompson1, Alex Horsley3, Carl A. Whitfield1,3, and Oliver E. Jensen1

  • *Contact author: jds74@cam.ac.uk
PDF

Phys. Rev. Fluids 10, 103301 – Published 22 October, 2025

DOI: https://doi.org/10.1103/dqm7-p5vp

Abstract

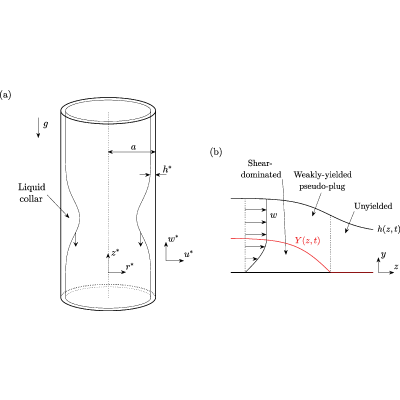

Liquid films coating vertical cylinders can form annular liquid collars which translate downwards under gravity. We investigate the dynamics of a thin viscoplastic liquid film coating the interior or exterior of a vertical cylindrical tube, quantifying how the yield stress modifies both the Rayleigh-Plateau instability leading to collar formation and the translation of collars down the tube. We use thin-film theory to derive an evolution equation for the layer thickness, which we solve numerically to examine the nonlinear dynamics. Instability and collar formation occur when gravity is sufficiently strong to make the fluid yield initially. We use matched asymptotics to derive a model describing the quasisteady translation of a slender liquid collar when the Bond number is small. The structure of the asymptotic solution for a viscoplastic collar shares some features with the Newtonian version, but there are several novel asymptotic regions that emerge at the two ends of the collar. The global force balance, which determines the collar's speed, is modified by a leading-order contribution from viscous drag in the collar when the liquid is viscoplastic. We use the asymptotic model to describe slow changes in collar volume when the film thicknesses ahead of, and behind, the collar are unequal. When the film thickness ahead of the collar is less than a critical value that we determine, viscoplastic collars adjust their volume and reach a steadily translating state. This contrasts with the Newtonian problem, where the only state in which steady translation occurs is unstable to small changes in the film thickness.

View figure in article

Physics Subject Headings (PhySH)

synopsis

Model of Fluid Draining in Lung Airways

Published 22 October, 2025

A theory for the motion of a fluid “bump” inside a cylinder may lead to improved drugs for lung diseases.

See more in Physics

Article Text

References (51)

  1. R. V. Craster and O. K. Matar, Dynamics and stability of thin liquid films, Rev. Mod. Phys. 81, 1131 (2009).
  2. D. Quéré, Fluid coating on a fiber, Annu. Rev. Fluid Mech. 31, 347 (1999).
  3. M. Heil, A. Hazel, and J. A. Smith, The mechanics of airway closure, Respir. Physiol. Neurobiol. 163, 214 (2008).
  4. R. Levy, D. B. Hill, M. G. Forest, and J. B. Grotberg, Pulmonary fluid flow challenges for experimental and mathematical modeling, Integr. Compar. Biol. 54, 985 (2014).
  5. O. E. Jensen, Draining collars and lenses in liquid-lined vertical tubes, J. Colloid Interface Sci. 221, 38 (2000).
  6. D. Kavishvar and A. Ramachandran, The yielding behaviour of human mucus, Adv. Colloid Interface Sci. 322, 103049 (2023).
  7. J. Patarin, É. Ghiringhelli, G. Darsy, M. Obamba, P. Bochu, and M. R. de Saint Vincent, Rheological analysis of sputum from patients with chronic bronchial diseases, Sci. Rep. 10, 15685 (2020).
  8. P. Zamankhan, B. T. Helenbrook, S. Takayama, and J. B. Grotberg, Steady motion of Bingham liquid plugs in two-dimensional channels, J. Fluid Mech. 705, 258 (2012).
  9. Y. Hu, S. Bian, J. Grotberg, M. Filoche, J. White, S. Takayama, and J. B. Grotberg, A microfluidic model to study fluid dynamics of mucus plug rupture in small lung airways, Biomicrofluidics 9, 044119 (2015).
  10. Y. Hu, F. Romanò, and J. B. Grotberg, Effects of surface tension and yield stress on mucus plug rupture: A numerical study, J. Biomech Eng. 142, 061007 (2020).
  11. J. D. Shemilt, A. Horsley, O. E. Jensen, A. B. Thompson, and C. A. Whitfield, Surface-tension-driven evolution of a viscoplastic liquid coating the interior of a cylindrical tube, J. Fluid Mech. 944, A22 (2022).
  12. J. D. Shemilt, A. Horsley, O. E. Jensen, A. B. Thompson, and C. A. Whitfield, Surfactant amplifies yield-stress effects in the capillary instability of a film coating a tube, J. Fluid Mech. 971, A24 (2023).
  13. O. Erken, B. Fazla, M. Muradoglu, D. Izbassarov, F. Romanò, and J. B. Grotberg, Effects of elastoviscoplastic properties of mucus on airway closure in healthy and pathological conditions, Phys. Rev. Fluids 8, 053102 (2023).
  14. B. Fazla, O. Erken, D. Izbassarov, F. Romanò, J. B. Grotberg, and M. Muradoglu, Effects of kinematic hardening of mucus polymers in an airway closure model, J. Non-Newtonian Fluid Mech. 330, 105281 (2024).
  15. D. Huh, H. Fujioka, Y. Tung, N. Futai, R. Paine, J. B. Grotberg, and S. Takayama, Acoustically detectable cellular-level lung injury induced by fluid mechanical stresses in microfluidic airway systems, Proc. Natl. Acad. Sci. USA 104, 18886 (2007).
  16. S. Kalliadasis and H.-C. Chang, Drop formation during coating of vertical fibres, J. Fluid Mech. 261, 135 (1994).
  17. H.-C. Chang and E. A. Demekhin, Mechanism for drop formation on a coated vertical fibre, J. Fluid Mech. 380, 233 (1999).
  18. L. Yu and J. Hinch, The velocity of “large” viscous drops falling on a coated vertical fibre, J. Fluid Mech. 737, 232 (2013).
  19. L. Yu and J. Hinch, Drops of power-law fluids falling on a coated vertical fibre, J. Fluid Mech. 751, 184 (2014).
  20. W. J. Smit, C. Kusina, J.-F. Joanny, and A. Colin, Stress field inside the bath determines dip coating with yield-stress fluids in cylindrical geometry, Phys. Rev. Lett. 123, 148002 (2019).
  21. W. J. Smit, C. Kusina, A. Colin, and J.-F. Joanny, Withdrawal and dip coating of an object from a yield-stress reservoir, Phys. Rev. Fluids 6, 063302 (2021).
  22. P. S. Hammond, Nonlinear adjustment of a thin annular film of viscous fluid surrounding a thread of another within a circular cylindrical pipe, J. Fluid Mech. 137, 363 (1983).
  23. P. A. Gauglitz and C. J. Radke, An extended evolution equation for liquid film breakup in cylindrical capillaries, Chem. Eng. Sci. 43, 1457 (1988).
  24. D. Halpern and J. B. Grotberg, Nonlinear saturation of the Rayleigh instability due to oscillatory flow in a liquid-lined tube, J. Fluid Mech. 492, 251 (2003).
  25. R. Camassa, H. R. Ogrosky, and J. Olander, Viscous film-flow coating the interior of a vertical tube. Part 2. Air-driven flow, J. Fluid Mech. 825, 1056 (2017).
  26. D. Halpern and J. B. Grotberg, Surfactant effects on fluid-elastic instabilities of liquid-lined flexible tubes: A model of airway closure, J. Biomech Eng. 115, 271 (1993).
  27. H. R. Ogrosky, Linear stability and nonlinear dynamics in a long-wave model of film flows inside a tube in the presence of surfactant, J. Fluid Mech. 908, A23 (2021).
  28. D. Halpern, H. Fujioka, and J. B. Grotberg, The effect of viscoelasticity on the stability of a pulmonary airway liquid layer, Phys. Fluids 22, 011901 (2010).
  29. F. Romanò, H. Fujioka, M. Muradoglu, and J. B. Grotberg, Liquid plug formation in an airway closure model, Phys. Rev. Fluids 4, 093103 (2019).
  30. F. Romanò, M. Muradoglu, and J. B. Grotberg, Effect of surfactant in an airway closure model, Phys. Rev. Fluids 7, 093103 (2022).
  31. F. Romanò, M. Muradoglu, H. Fujioka, and J. B. Grotberg, The effect of viscoelasticity in an airway closure model, J. Fluid Mech. 913, A31 (2021).
  32. R. Camassa, H. R. Ogrosky, and J. Olander, Viscous film flow coating the interior of a vertical tube. Part 1. Gravity-driven flow, J. Fluid Mech. 745, 682 (2014).
  33. G. F. Dietze, G. Lavalle, and C. Ruyer-Quil, Falling liquid films in narrow tubes: Occlusion scenarios, J. Fluid Mech. 894, A17 (2020).
  34. I. C. Walton and S. H. Bittleston, The axial flow of a Bingham plastic in a narrow eccentric annulus, J. Fluid Mech. 222, 39 (1991).
  35. N. J. Balmforth and R. V. Craster, A consistent thin-layer theory for Bingham plastics, J. Non-Newtonian Fluid Mech. 84, 65 (1999).
  36. N. J. Balmforth, A. S. Burbidge, R. V. Craster, J. Salzig, and A. Shen, Visco-plastic models of isothermal lava domes, J. Fluid Mech. 403, 37 (2000).
  37. N. J. Balmforth, S. Ghadge, and T. G. Myers, Surface tension driven fingering of a viscoplastic film, J. Non-Newtonian Fluid Mech. 142, 143 (2007).
  38. M. Jalaal, B. Stoeber, and N. J. Balmforth, Spreading of viscoplastic droplets, J. Fluid Mech. 914, A21 (2021).
  39. M. Jalaal and N. J. Balmforth, Long bubbles in tubes filled with viscoplastic fluid, J. Non-Newtonian Fluid Mech. 238, 100 (2016).
  40. J. van der Kolk, D. Tieman, and M. Jalaal, Viscoplastic lines: Printing a single filament of yield stress material on a surface, J. Fluid Mech. 958, A34 (2023).
  41. T. V. Ball and N. J. Balmforth, Viscoplastic rimming flow inside a rotating cylinder, Phys. Rev. Fluids 9, 023304 (2024).
  42. N. Balmforth and D. Hewitt, The implications of a fluid yield stress, J. Fluid Mech. 1011, P1 (2025).
  43. M. Jalaal, Controlled Spreading of Complex Droplets, Ph.D. thesis, University of British Columbia, 2016.
  44. N. J. Balmforth and J. J. Liu, Roll waves in mud, J. Fluid Mech. 519, 33 (2004).
  45. Y. Liu, N. Balmforth, and S. Hormozi, Viscoplastic surges down an incline, J. Non-Newtonian Fluid Mech. 268, 1 (2019).
  46. L. Landau and B. Levich, Dragging of a liquid by a moving plate, Acta Physicochim. URSS 17, 42 (1942).
  47. F. P. Bretherton, The motion of long bubbles in tubes, J. Fluid Mech. 10, 166 (1961).
  48. H. Wong, C. J. Radke, and S. Morris, The motion of long bubbles in polygonal capillaries. Part 1. Thin films, J. Fluid Mech. 292, 71 (1995).
  49. R. Camassa and H. R. Ogrosky, On viscous film flows coating the interior of a tube: Thin-film and long-wave models, J. Fluid Mech. 772, 569 (2015).
  50. S. A. Bahrani, S. Hamidouche, M. Moazzen, K. Seck, C. Duc, M. Muradoglu, J. B. Grotberg, and F. Romanò, Propagation and rupture of elastoviscoplastic liquid plugs in airway reopening model, J. Non-Newtonian Fluid Mech. 300, 104718 (2022).
  51. J. Shemilt, Supplementary code for “Viscoplasticity can stabilise liquid collar motion on vertical cylinders”, Zenodo (2025), https://zenodo.org/records/14919997.
