Optically trapped particle tracking velocimetry

Tetsuro Tsuji*, Shoma Hashimoto, and Satoshi Taguchi

  • *Contact author: tsuji.tetsuro.7x@kyoto-u.ac.jp
PDF

Phys. Rev. Fluids 11, 034901 – Published 9 March, 2026

DOI: https://doi.org/10.1103/brnj-cw44

Abstract

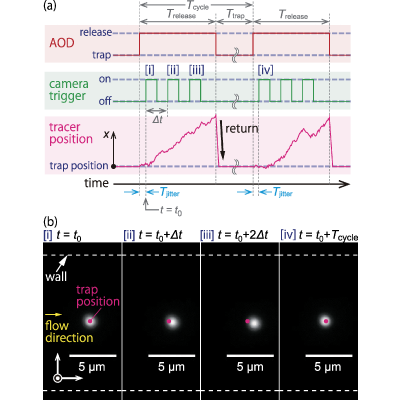

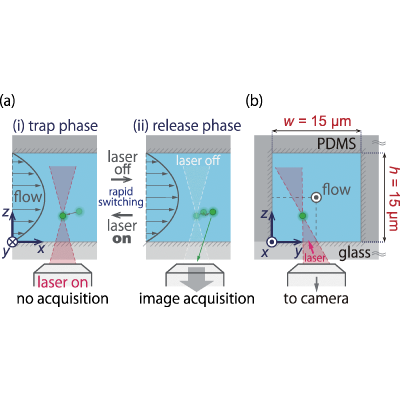

In this paper, we propose a microflow velocimetry based on particle tracking with the aid of optical trapping of tracers, namely, optically trapped particle tracking velocimetry (ot-PTV). The ot-PTV has two phases: a trap phase, in which individual tracers are trapped by an optical force and held at a measurement position; and a release phase, in which the tracer is released and advected by the fluid flow, without interference from the optical force. The released tracer is subsequently trapped again by the optical force. By repeating the set of trap and release phases, we can accumulate the sequential images of the tracer that have the same initial position. Although the data acquisition rate of ot-PTV is lower than that of standard micro-resolution particle image velocimetry (μPIV) due to the nature of pointwise measurement, an advantage of ot-PTV is that the measurement positions can be chosen by the experimenter. That is, even when tracers are scarce in a test section because of some external effects and/or the small size of the test section—ill-suited cases for μPIV since the experimenter has to wait for tracers to diffuse into the test section (i.e., diffusion-limited situation)—ot-PTV remains efficient. The concept of ot-PTV is validated using a benchmark experiment, i.e., a pressure-driven flow in a straight microchannel with a square cross section. An application to thermally induced microflows is also demonstrated, where tracers can be scarce in a test section due to thermophoresis.

View figure in article

Physics Subject Headings (PhySH)

Article Text

Supplemental Material

References (55)

  1. J. G. Santiago, S. T. Wereley, C. D. Meinhart, D. J. Beebe, and R. J. Adrian, A particle image velocimetry system for microfluidics, Exp. Fluids 25, 316 (1998).
  2. R. Lindken, M. Rossi, S. Große, and J. Westerweel, Micro-particle image velocimetry (μPIV): Recent developments, applications, and guidelines, Lab. Chip 9, 2551 (2009).
  3. J. S. Park and K. D. Kihm, Three-dimensional micro-PTV using deconvolution microscopy, Exp. Fluids 40, 491 (2006).
  4. R. Lindken, J. Westerweel, and B. Wieneke, Stereoscopic micro particle image velocimetry, Exp. Fluids 41, 161 (2006).
  5. T. Tsuji, S. Mei, and S. Taguchi, Thermo-osmotic slip flows around a thermophoretic microparticle characterized by optical trapping of tracers, Phys. Rev. Appl. 20, 054061 (2023).
  6. A. P. Bregulla, A. Würger, K. Günther, M. Mertig, and F. Cichos, Thermo-osmotic flow in thin films, Phys. Rev. Lett. 116, 188303 (2016).
  7. M. Fränzl and F. Cichos, Hydrodynamic manipulation of nano-objects by optically induced thermo-osmotic flows, Nat. Commun. 13, 656 (2022).
  8. A. P. Bregulla and F. Cichos, Flow fields around pinned self-thermophoretic microswimmers under confinement, J. Chem. Phys. 151, 044706 (2019).
  9. A. Ashkin, Acceleration and trapping of particles by radiation pressure, Phys. Rev. Lett. 24, 156 (1970).
  10. K. C. Neuman and S. M. Block, Optical trapping, Rev. Sci. Instrum. 75, 2787 (2004).
  11. J. W. Shaevitz, A practical guide to optical trapping (2006), http://genomics.princeton.edu/shaevitzlab/OT_Practicle_Guide.pdf.
  12. N. Nève, J. K. Lingwood, J. Zimmerman, S. S. Kohles, and D. C. Tretheway, The μPIVOT: an integrated particle image velocimeter and optical tweezers instrument for microenvironment investigations, Meas. Sci. Technol. 19, 095403 (2008).
  13. G. Knöner, S. Parkin, N. R. Heckenberg, and H. Rubinsztein-Dunlop, Characterization of optically driven fluid stress fields with optical tweezers, Phys. Rev. E 72, 031507 (2005).
  14. P. Almendarez-Rangel, B. Morales-Cruzado, E. Sarmiento-Gómez, R. Romero-Méndez, and F. G. Pérez-Gutiérrez, A microflow velocity measurement system based on optical tweezers: A comparison using particle tracking velocimetry, Eur. J. Mech. B. Fluids 72, 561 (2018).
  15. S. Nedev, S. Carretero-Palacios, S. R. Kirchner, F. Jäckel, and J. Feldmann, Microscale mapping of oscillatory flows, Appl. Phys. Lett. 105, 161113 (2014).
  16. N. Bruot, P. Cicuta, H. Bloomfield-Gadêlha, R. E. Goldstein, J. Kotar, E. Lauga, and F. Nadal, Direct measurement of unsteady microscale Stokes flow using optically driven microspheres, Phys. Rev. Fluids 6, 053102 (2021).
  17. J. Köhler, J. Friedrich, A. Ostendorf, and E. L. Gurevich, Characterization of azimuthal and radial velocity fields induced by rotors in flows with a low Reynolds number, Phys. Rev. E 93, 023108 (2016).
  18. S. Harlepp, F. Thalmann, G. Follain, and J. G. Goetz, Hemodynamic forces can be accurately measured in vivo with optical tweezers, Mol. Biol. Cell 28, 3252 (2017).
  19. D. Wei, P. G. Dehnavi, M.-E. Aubin-Tam, and D. Tam, Is the zero Reynolds number approximation valid for ciliary flows? Phys. Rev. Lett. 122, 124502 (2019).
  20. P. G. Dehnavi, D. Wei, M.-E. Aubin-Tam, and D. S. W. Tam, Optical tweezers-based velocimetry: A method to measure microscale unsteady flows, Exp. Fluids 61, 202 (2020).
  21. D. Y. Kim, S. G. Nagella, K. H. Choi, and S. C. Takatori, Direct experimental measurement of many-body hydrodynamic interactions with optical tweezers, Phys. Rev. Fluids 10, 064301 (2025).
  22. S. Zhao, Y. Zhang, Q. Chang, Y. Jiang, and S. Xie, Fully vectorial, high precision, and high spatial resolution flow velocity measurement in microfluidic chips using a back-focal-plane optical tweezer, Opt. Express 33, 31875 (2025).
  23. P. Dara, M. Shanei, S. Jones, and M. Käll, Directional control of transient flows generated by thermoplasmonic bubble nucleation, J. Phys. Chem. C 127, 17454 (2023).
  24. P. Dara and M. Käll, Bubble dynamics and directional Marangoni flow induced by laser heating of silicon nanodisk arrays, J. Phys. Chem. C 129, 5502 (2025).
  25. R. Di Leonardo, J. Leach, H. Mushfique, J. M. Cooper, G. Ruocco, and M. J. Padgett, Multipoint holographic optical velocimetry in microfluidic systems, Phys. Rev. Lett. 96, 134502 (2006).
  26. M. Padgett and R. Di Leonardo, Holographic optical tweezers and their relevance to lab on chip devices, Lab. Chip 11, 1196 (2011).
  27. H. Mushfique, J. Leach, H. Yin, R. D. Leonardo, M. J. Padgett, and J. M. Cooper, 3D mapping of microfluidic flow in laboratory-on-a-chip structures using optical tweezers, Anal. Chem. 80, 4237 (2008).
  28. Y. Harada and T. Asakura, Radiation forces on a dielectric sphere in the Rayleigh scattering regime, Opt. Commun. 124, 529 (1996).
  29. See Supplemental Material at http://link.aps.org/supplemental/10.1103/brnj-cw44 for S1: Experimental details, S2: Effect of temperature increase in optical trapping, S3: Evaluation of optical force acting on tracers, S4: Movies, S5: The uncertainty of the initial position, S6: Probability density of tracer velocity for all measurement positions, S7: Result of PIV analysis.
  30. H. Bruus, Theoretical Microfluidics (Oxford University Press, Oxford, 2007).
  31. S. Ito, T. Sugiyama, N. Toitani, G. Katayama, and H. Miyasaka, Application of fluorescence correlation spectroscopy to the measurement of local temperature in solutions under optical trapping condition, J. Phys. Chem. B 111, 2365 (2007).
  32. E. J. G. Peterman, F. Gittes, and C. F. Schmidt, Laser-induced heating in optical traps, Biophys. J. 84, 1308 (2003).
  33. M. L. Cordero, E. Verneuil, F. Gallaire, and C. N. Baroud, Time-resolved temperature rise in a thin liquid film due to laser absorption, Phys. Rev. E 79, 011201 (2009).
  34. T. Tsuji, S. Taguchi, and H. Takamatsu, Switching between laser-induced thermophoresis and thermal convection of liquid suspension in a microgap with variable dimension, Electrophoresis 42, 2401 (2021).
  35. R. Piazza and A. Parola, Thermophoresis in colloidal suspensions, J. Phys.: Condens. Matter 20, 153102 (2008).
  36. S. Ito, N. Toitani, H. Yamauchi, and H. Miyasaka, Evaluation of radiation force acting on macromolecules by combination of Brownian dynamics simulation with fluorescence correlation spectroscopy, Phys. Rev. E 81, 061402 (2010).
  37. S. Jin, P. Huang, J. Park, J. Y. Yoo, and K. S. Breuer, Near-surface velocimetry using evanescent wave illumination, Exp. Fluids 37, 825 (2004).
  38. P. Huang, J. S. Guasto, and K. S. Breuer, Direct measurement of slip velocities using three-dimensional total internal reflection velocimetry, J. Fluid Mech. 566, 447 (2006).
  39. D. C. Tretheway and C. D. Meinhart, Apparent fluid slip at hydrophobic microchannel walls, Phys. Fluids 14, L9 (2002).
  40. P. Joseph and P. Tabeling, Direct measurement of the apparent slip length, Phys. Rev. E 71, 035303 (2005).
  41. C. Zettner and M. Yoda, Particle velocity field measurements in a near-wall flow using evanescent wave illumination, Exp. Fluids 34, 115 (2003).
  42. P. Huang and K. S. Breuer, Direct measurement of slip length in electrolyte solutions, Phys. Fluids 19, 028104 (2007).
  43. Y. Kazoe, K. Iseki, K. Mawatari, and T. Kitamori, Evanescent wave-based particle tracking velocimetry for nanochannel flows, Anal. Chem. 85, 10780 (2013).
  44. Y. Kazoe, K. Shibata, and T. Kitamori, Super-resolution defocusing nanoparticle image velocimetry utilizing spherical aberration for nanochannel flows, Anal. Chem. 93, 13260 (2021).
  45. H. Hu and M. M. Koochesfahani, Molecular tagging velocimetry and thermometry and its application to the wake of a heated circular cylinder, Meas. Sci. Technol. 17, 1269 (2006).
  46. B. McKeon, G. Comte-Bellot, J. Foss, J. Westerweel, F. Scarano, C. Tropea, J. Meyers, J. Lee, A. Cavone, R. Schodl, M. Koochesfahani, Y. Andreopoulos, W. Dahm, J. Mullin, J. Wallace, P. Vukoslavčević, S. Morris, E. Pardyjak, and A. Cuerva, Springer Handbook of Experimental Fluid Dynamics (Springer, Berlin, Heidelberg, 2007), Chap. 5.4, pp. 362–382.
  47. G. R. Wang, Laser induced fluorescence photobleaching anemometer for microfluidic devices, Lab. Chip 5, 450 (2005).
  48. C. Kuang, W. Zhao, F. Yang, and G. Wang, Measuring flow velocity distribution in microchannels using molecular tracers, Microfluid. Nanofluid. 7, 509 (2009).
  49. C. Kuang and G. Wang, A novel far-field nanoscopic velocimetry for nanofluidics, Lab Chip 10, 240 (2010).
  50. C. Kuang, R. Qiao, and G. Wang, Ultrafast measurement of transient electroosmotic flow in microfluidics, Microfluid. Nanofluid. 11, 353 (2011).
  51. D. Paul, R. Chand, and G. V. P. Kumar, Optothermal evolution of active colloidal matter in a defocused laser trap, ACS Photon. 9, 3440 (2022).
  52. A. Jiménez Amaya and E. H. Hill, Perspective: Thermophoresis and its promise for optical patterning, Langmuir 41, 12835 (2025).
  53. T. Tsuji, Y. Sasai, and S. Kawano, Thermophoretic manipulation of micro- and nanoparticle flow through a sudden contraction in a microchannel with near-infrared laser irradiation, Phys. Rev. Appl. 10, 044005 (2018).
  54. T. Tsuji, S. Saito, and S. Taguchi, Semianalytical model of optothermal fluidics in a confinement, Phys. Rev. Fluids 9, 124202 (2024).
  55. The Kyoto University Research Information Repository (KURENAI), https://doi.org/10.57723/kds609944 (2026).
